DTXMX Radio Control System FS-i6X RC Transmitter 6CH 2.4GHz Remote Controller with fs iA6b Receiver for FPV Racing RC Drone Quadcopter

• Bi-directional communication: Can send and receive data, iA6B can the voltage information of the receiver to the i6X transmitter. PWM and PPM i-BUS S-BUS are supported. PWM as standard.
• PWM and PPM i-BUS S-BUS are supported. Standard PWM: Press and hold OK button on the right side of the screen for 2 seconds to enter menu, system settings, receiver settings and PWM/PPM/i-BUS/S-BUS output. After changing, press the CAN button for 2 seconds to save.

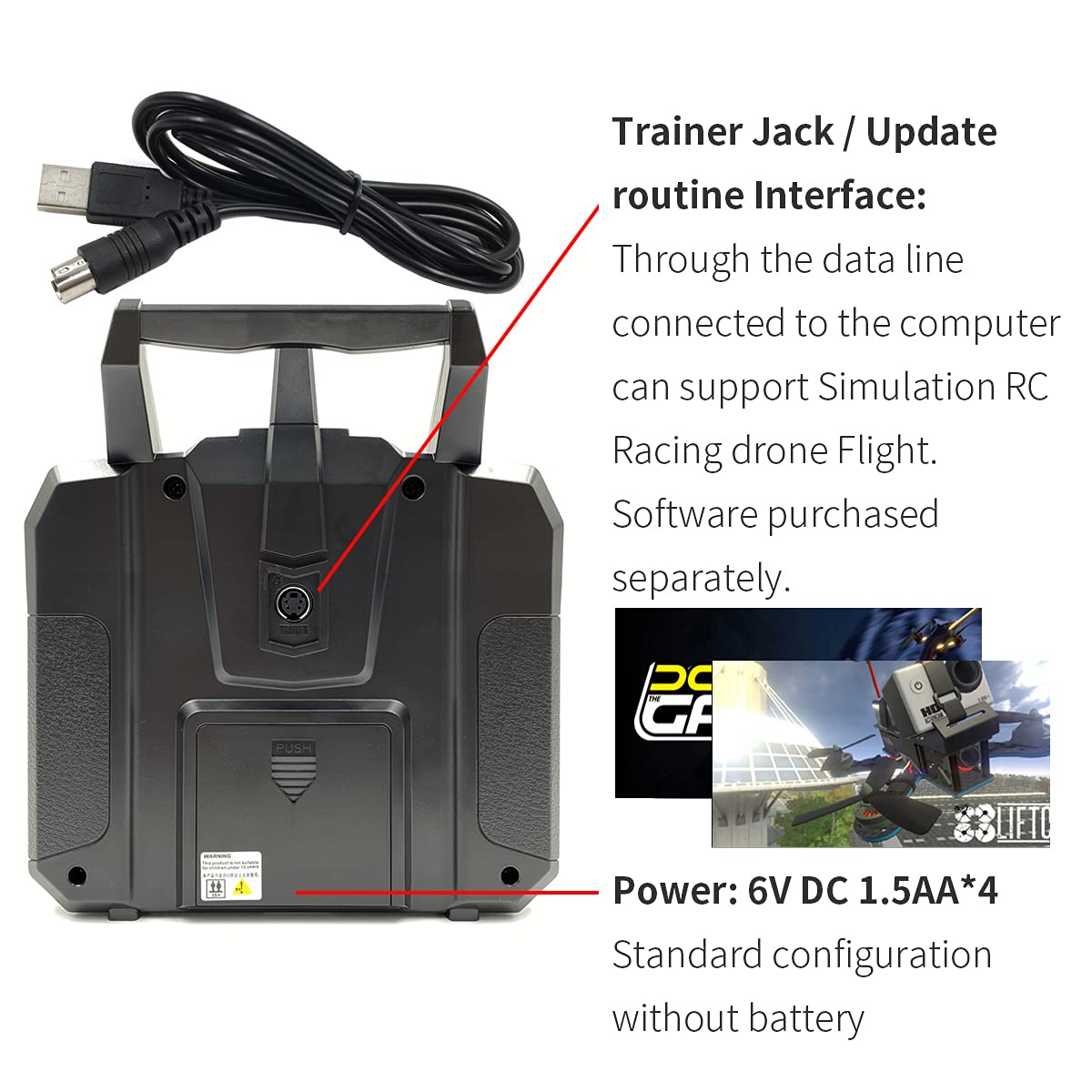

• RC simulator connect the computer as a handle via the data cable, support RC FPV racing drone. (Software is purchased separately)
• Dual transmission system with a double transmission system, it can better capture the operating status of the current model, which increases control and increases a safer control model.
• Full angle antenna: the dual gain antenna is used to make signal transmission more stable and stronger, which effectively improves directional stability and reduces interference.

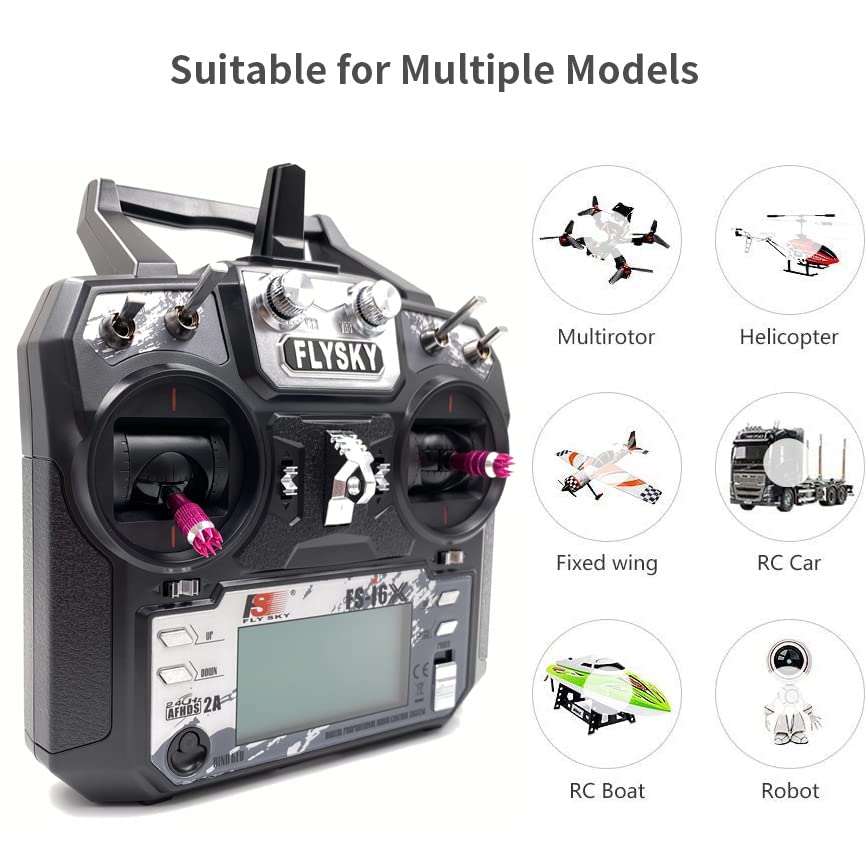

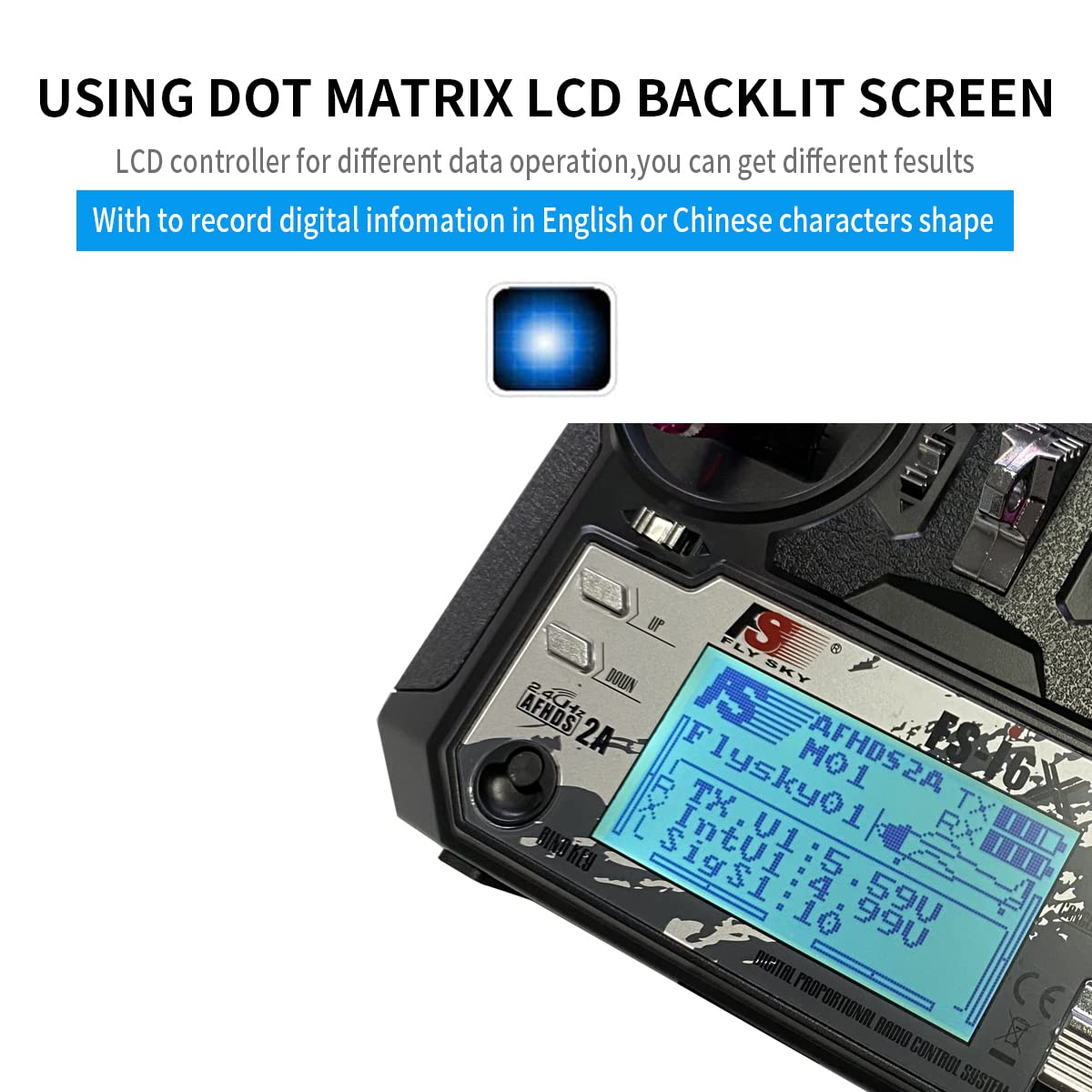

Description: Item: RC transmitter FS-i6X. Channel: 6-10 (6 by default) Model type: Drone Multirotor/Flying Sail/Aeroplane/Helicopter. RF range: 2.408-2.475 GHz. RF Power: RF channel: 135 Strap width: 500 kHz. 2.4 GHz system: AFHDS 2A / AFDHS. Modulation: GFSK. Rod resolution 4096. Low voltage warning DSC Port: PS port / 2 PPM. Adaptable: No. Antenna length: 26 mm (double antenna). Weight: 392 g. Power: 6 V DC 1.5 AA x 4. Display: STNTransflective LCD 128 x 64 Lattice, VA 73 x 39 mm, LCD with white backlight. Size: 174 x 89 x 190 mm. Update online: Yes. Colour: Black Certificate: CE0678, ID FCC: N4ZFLYSKYI6X Fashion: Mode 2 (Left Throttle Pedal) Specifications FS-IA6B: Item Name: FS-IA6B Chain: 6 pieces. Model type: Drone Multirotor/Flying Sail/Helicopter/Aeroplane. RF receiver sensitivity: -105dBm Modulation: GFSK. System type: AFHDS2A / AFHDS. Chain resolution: 1024 steps. Bind port: Yes Power supply: Yes (VCC) Power: 4 V - 6.5 V DC. Weight: 14.9 g. Antenna length: 26 mm. Size: 47.4 x 262.2 x 15 mm. Certificate: CE, FCC. Upgrade cable: Can be used to connect the RC Transmitter FS-i6X to PC updates and RC emulators (software sold separately) Box contents: RC transmitter 1X FS-i6X. 1 x FS-iA6B 1 x Binding Plug 1 x Upgrade Cable Battery not included. How can you configure 10 channels? Method I6X open 10 channels, press the OK button for 2 seconds to access the menu settings. Select the system configuration to enter, press until the last element setting
