DSD TECH SH-B35 RS485 RS232 to Bluetooth 2.0 Adapter Support Android and Windows

• DSD TECH: DSD TECH focuses on the development of communication connection devices such as USB/Serial/Wireless. We have served more than 100,000 customers in Europe, North America and Japan.

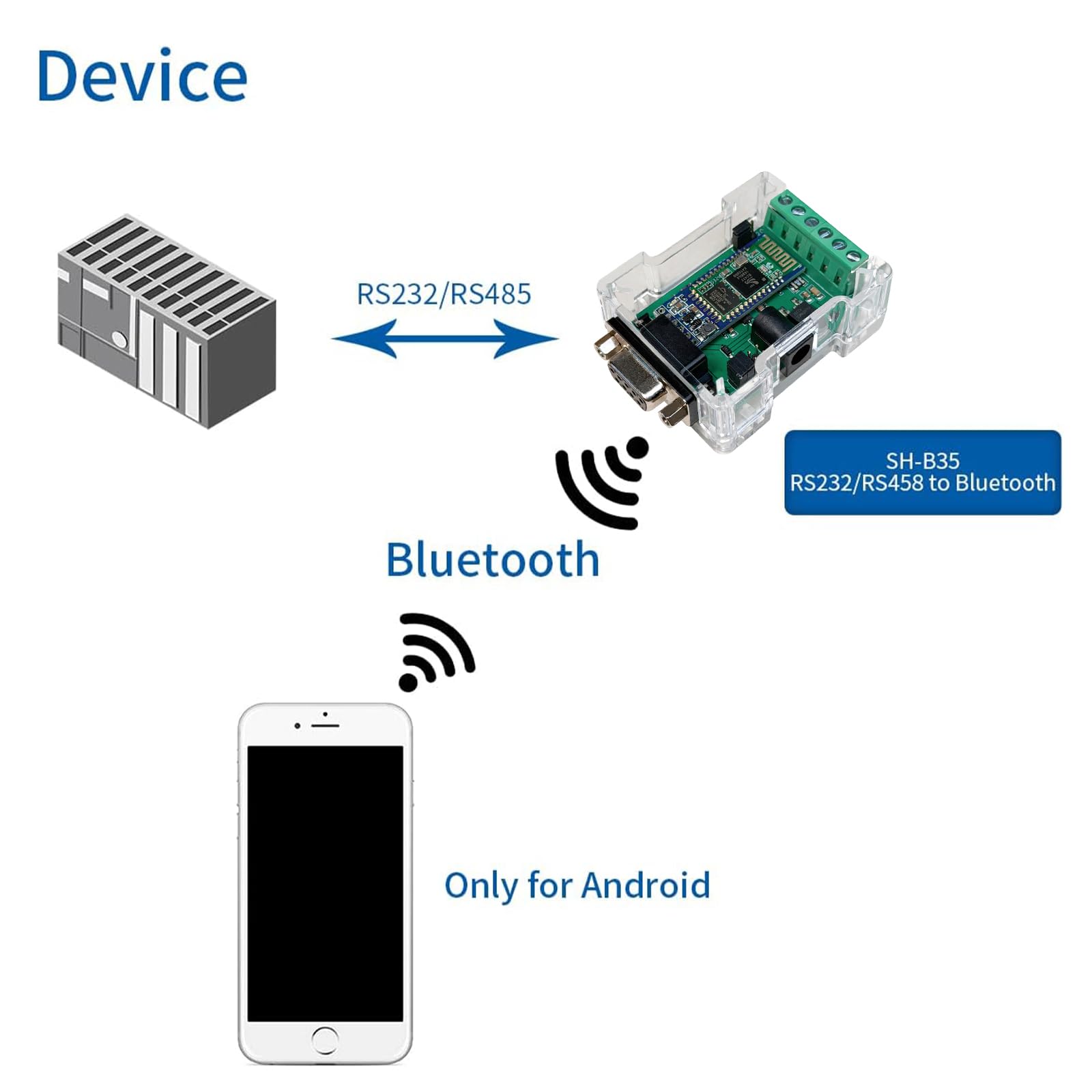

• Bluetooth 2.0 to RS485/RS232: With this Bluetooth RS485 adapter, you can wirelessly communicate with RS485/RS232 devices on Android devices or a Bluetooth enabled Computer.
• Compatibility:Built-in Industrial Bluetooth 2.0 SPP module driven by the CSR BC417 chip. Compatible with Android phones and Bluetooth enabled computers, but not compatible with any iOS device.

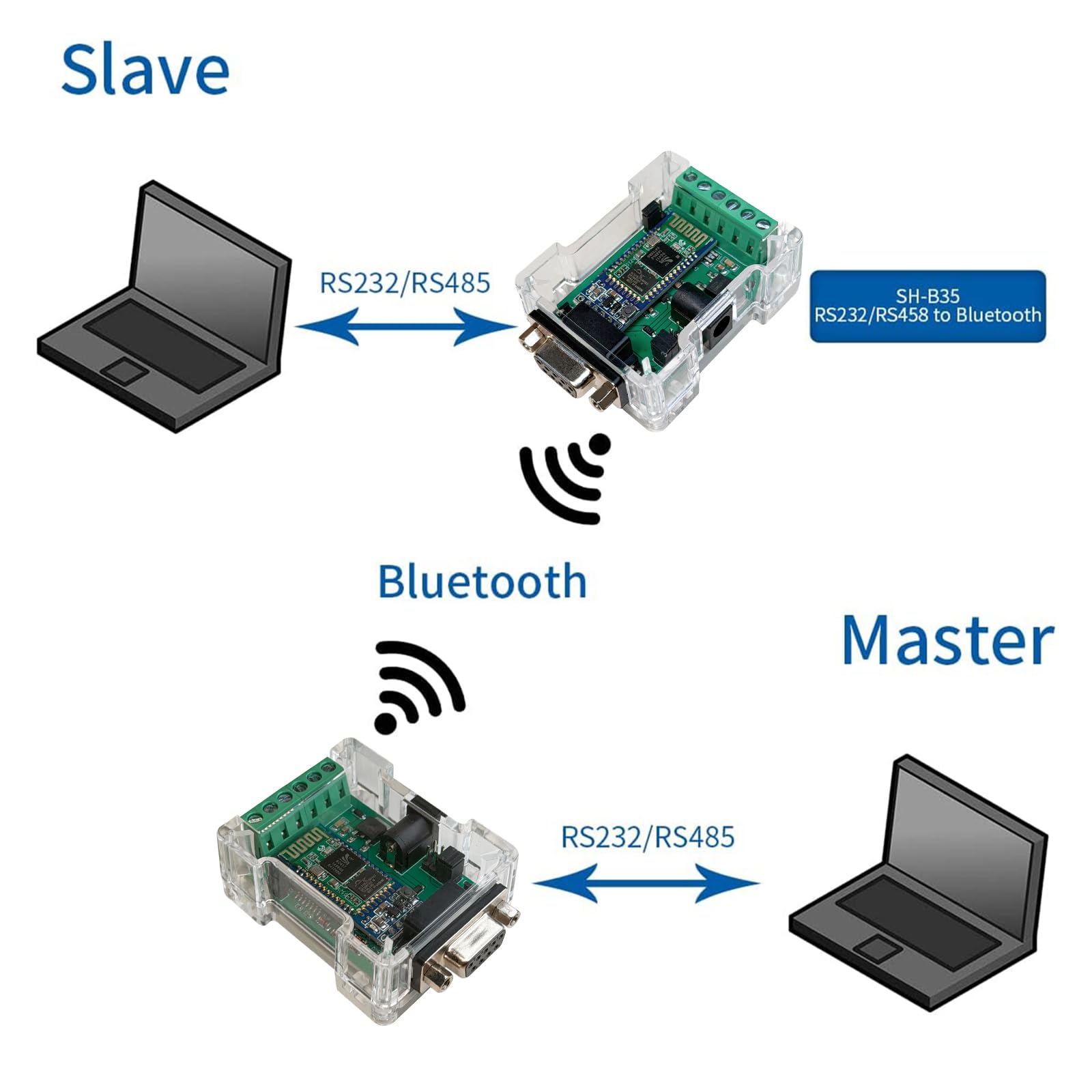

• Working mode: Supports master mode and slave mode. Two SH-B35 adapters can form a Bluetooth connection network.
• Customer Support:Offering permanent technical support and a 1-year product replacement service.All questions will be answered for you within 1 business day.

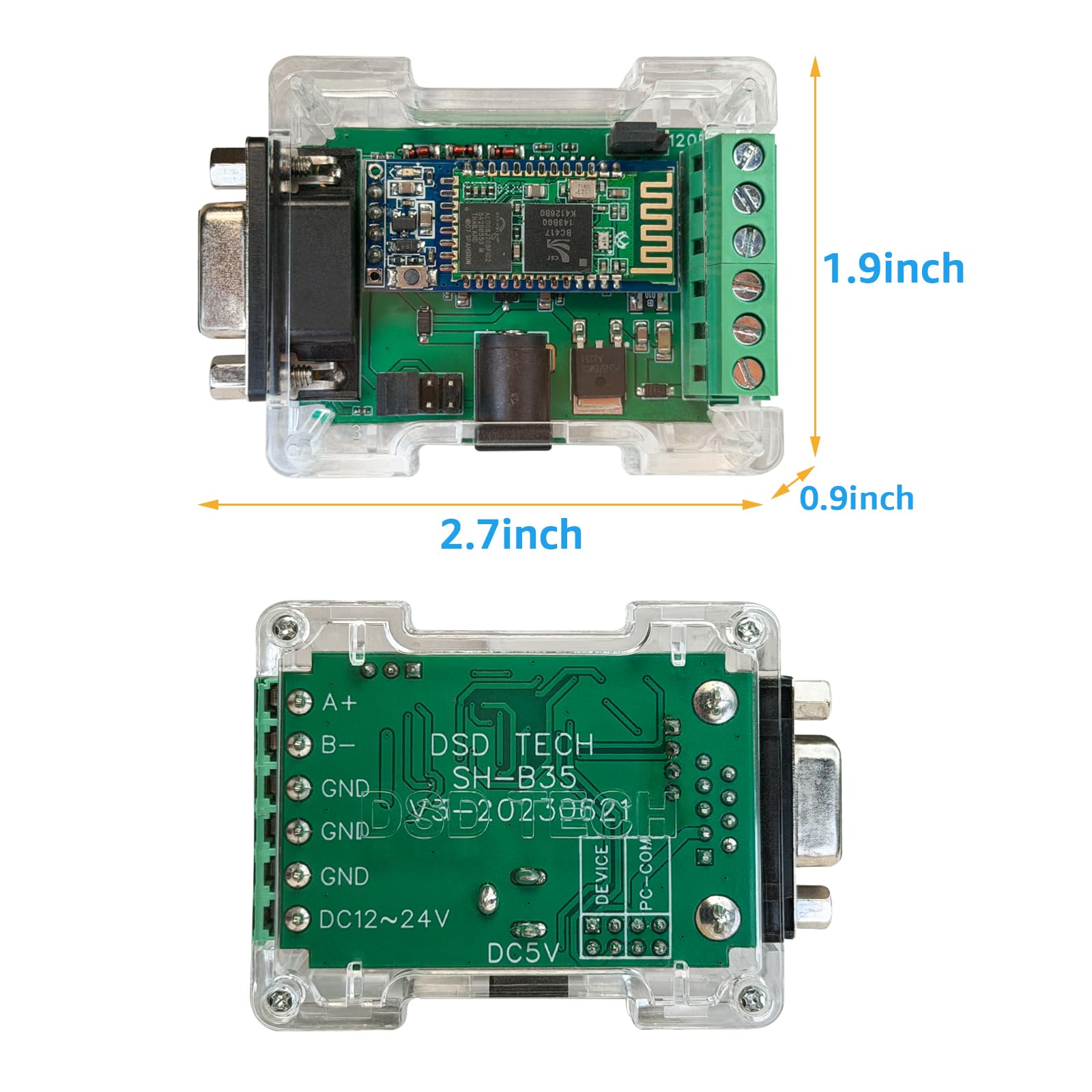

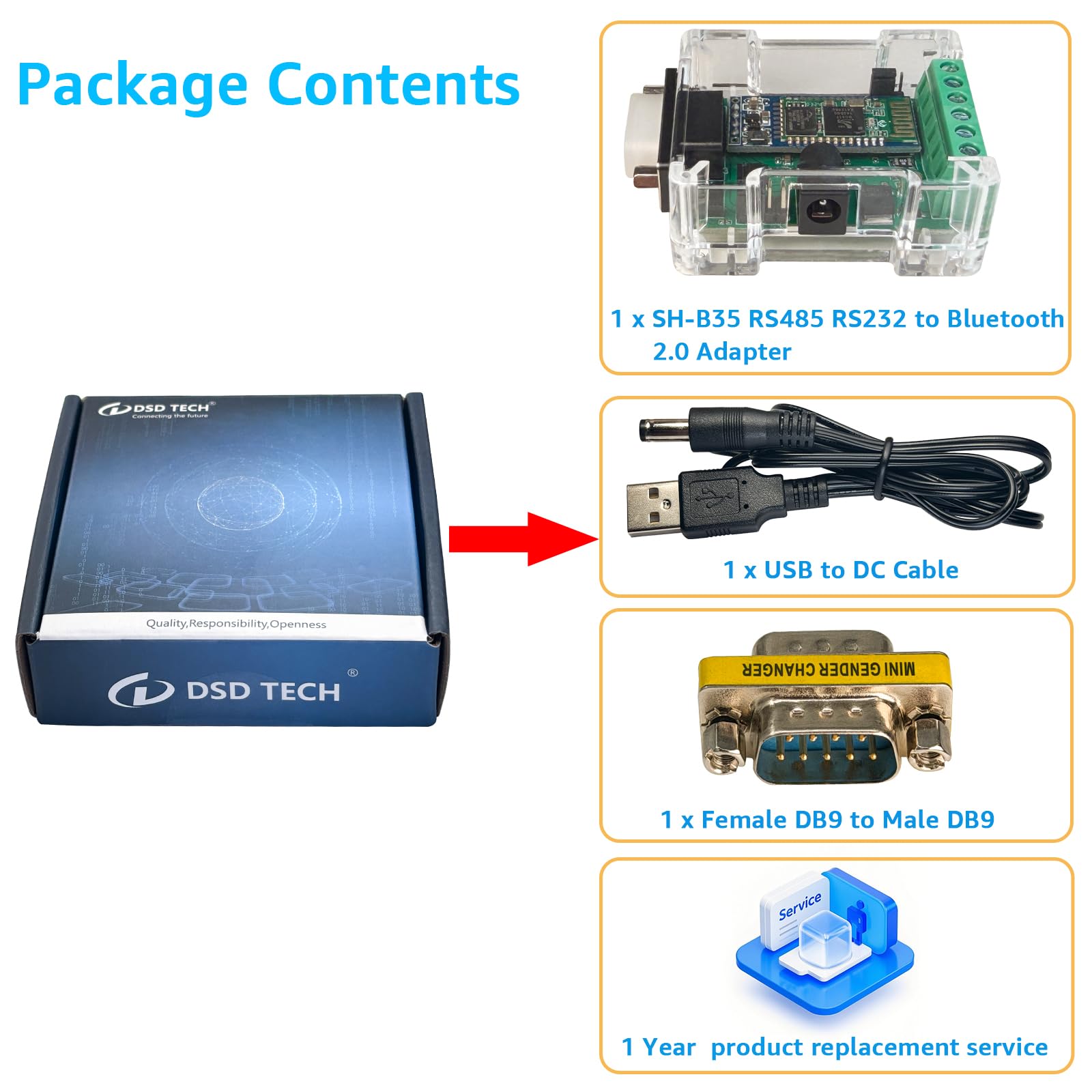

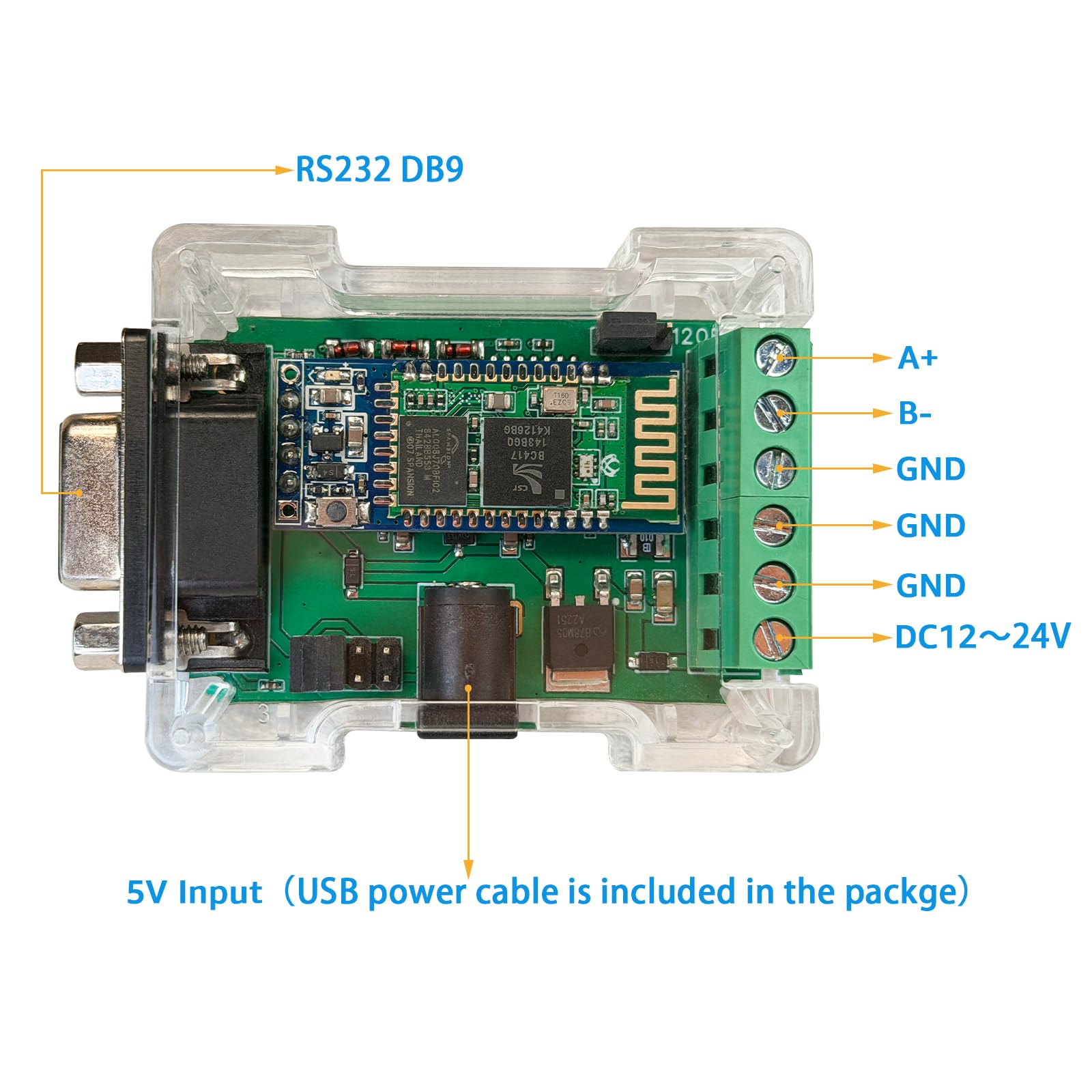

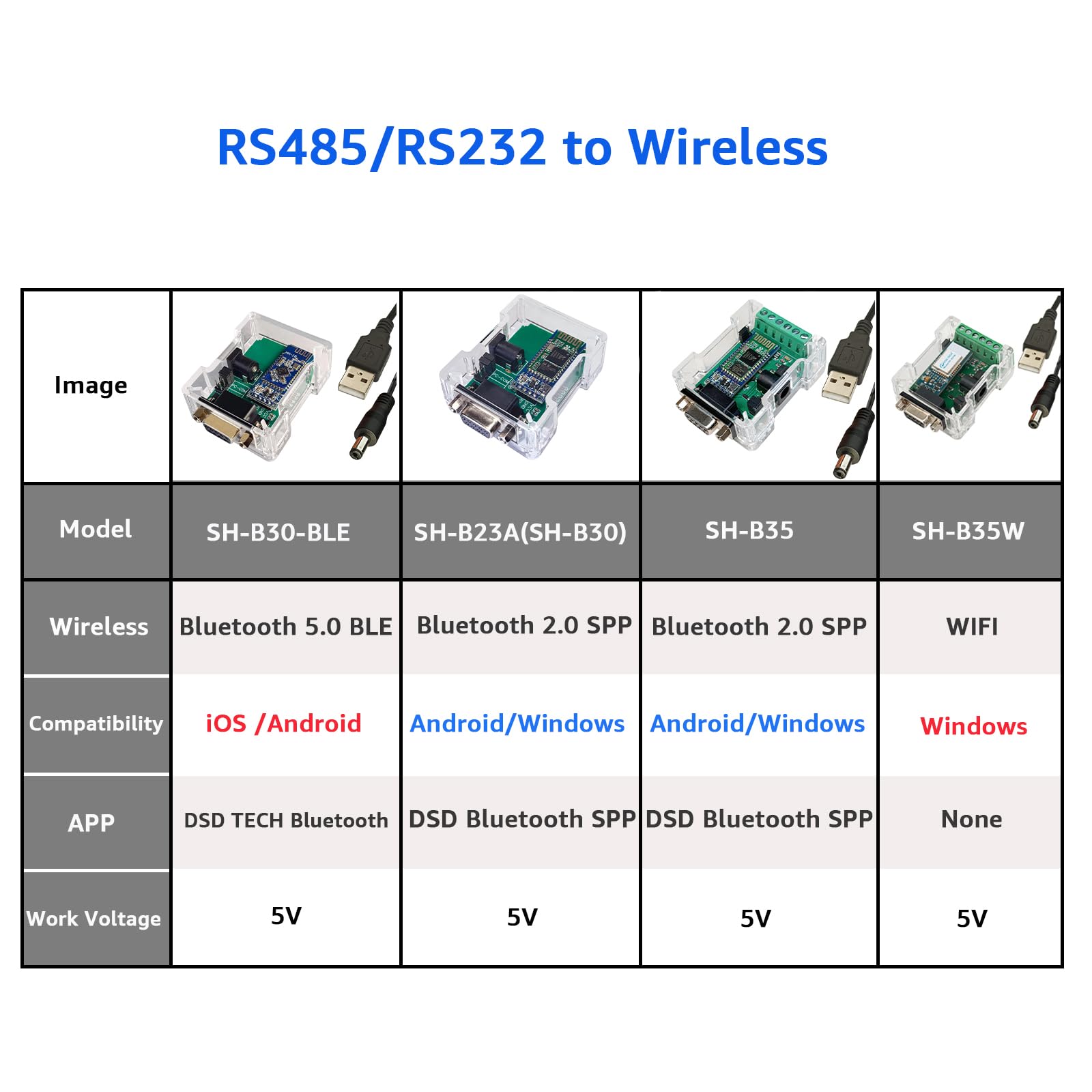

SH-B35 is an RS485/RS232 to Bluetooth converter. It is an upgraded version of SH-B23A (SH-B20) and SH-B30. With this converter, your computer or Android phone can connect to RS485/RS232 devices via Bluetooth. Specifications: Model: SH-B35 Bluetooth: Bluetooth v2.0 + EDR Class 2 Radio Default Baud Setting : 9600 ,N,8,1 RS485:Half-duplex transceiver Current draw:Max 90mA Bluetooth authentication PIN : 1234 Distance: more than 20 meters RS485 Signals:A+,B-,GND RS232 Signals: DB9(RxD, TxD, GND) Power supply: 5V DC Operating temp: -20C to 85C Support Microsoft Windows Bluetooth COM port Configuration via Serial Port Typical Application - Microsoft Windows Bluetooth COM Port This application requires install this Bluetooth adapter on Microsoft Windows, and Bluetooth connection to computer is required. A virtual COM port is created for this adapter after installation. User application software can access this adapter’s RS485/RS422 interface using the virtual COM port. Here are the steps to install this adapter on Microsoft Windows. The adapter’s authentication pin code is 1234. Package Content: 1 x SH-B35 RS485/RS232 to Bluetooth Converter 1 x USB Power cable 1 x User Manual About Warranty: DSD TECH offers a 24-month warranty on this RS485/RS232 to Bluetooth Converter. If you have any questions, please contact us and we will resolve your issue within 24 hours.
