DOREMiDi Expression Pedal Converter Pedal Sustain Pedal Expander MPC-10

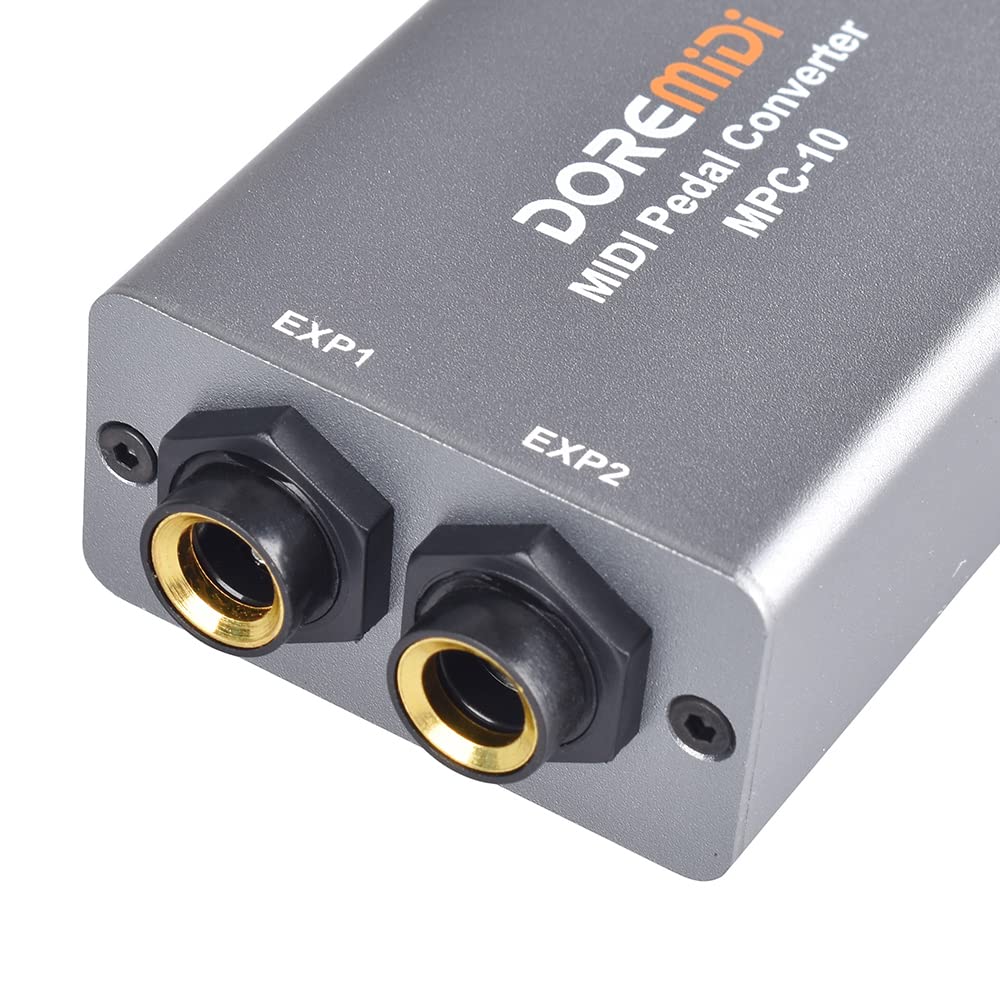

• MPC-10 has 2 pedal connection interfaces, which can connect 2 different types of pedals. And the design of automatic pedal detection is adopted inside, which can automatically detect different types of pedals. MPC-10 is currently compatible with positive polarity expression pedals, reverse polarity expression pedals, sustain pedals, dual switch type pedals, FSR electronic Hi-hat

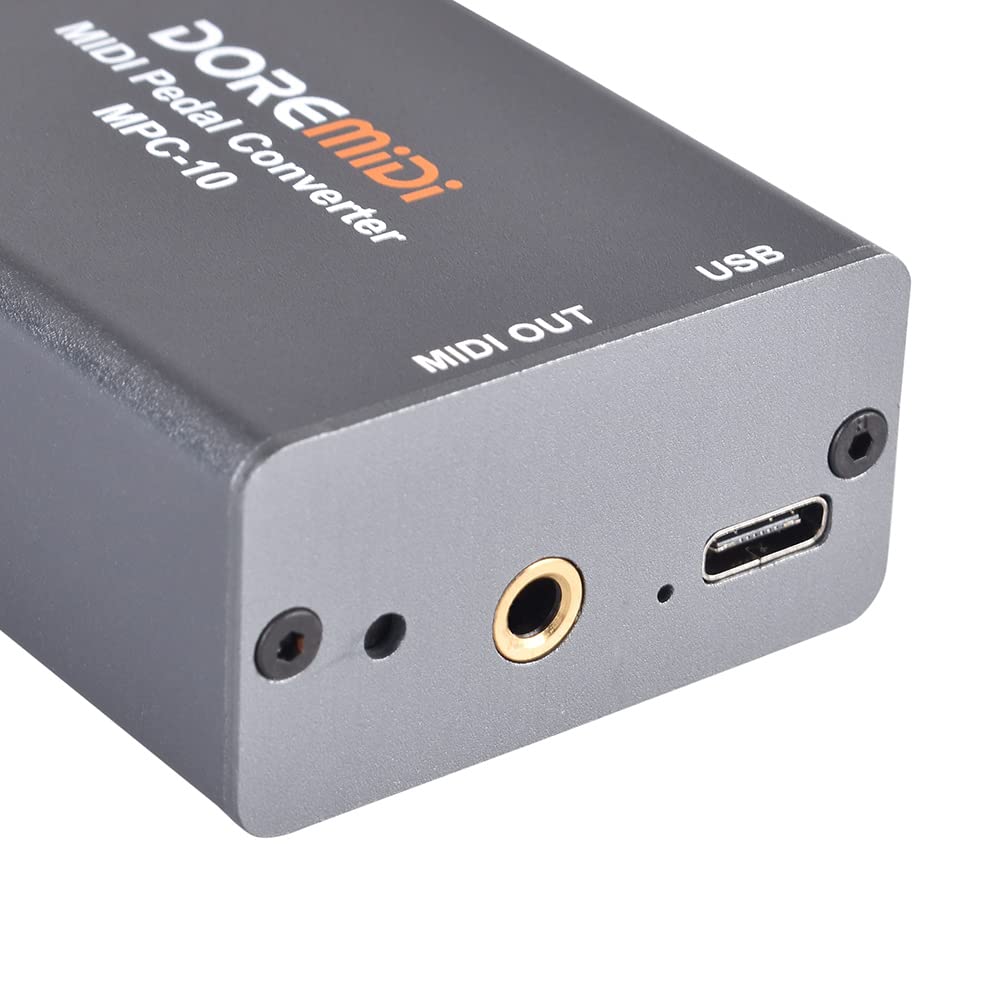

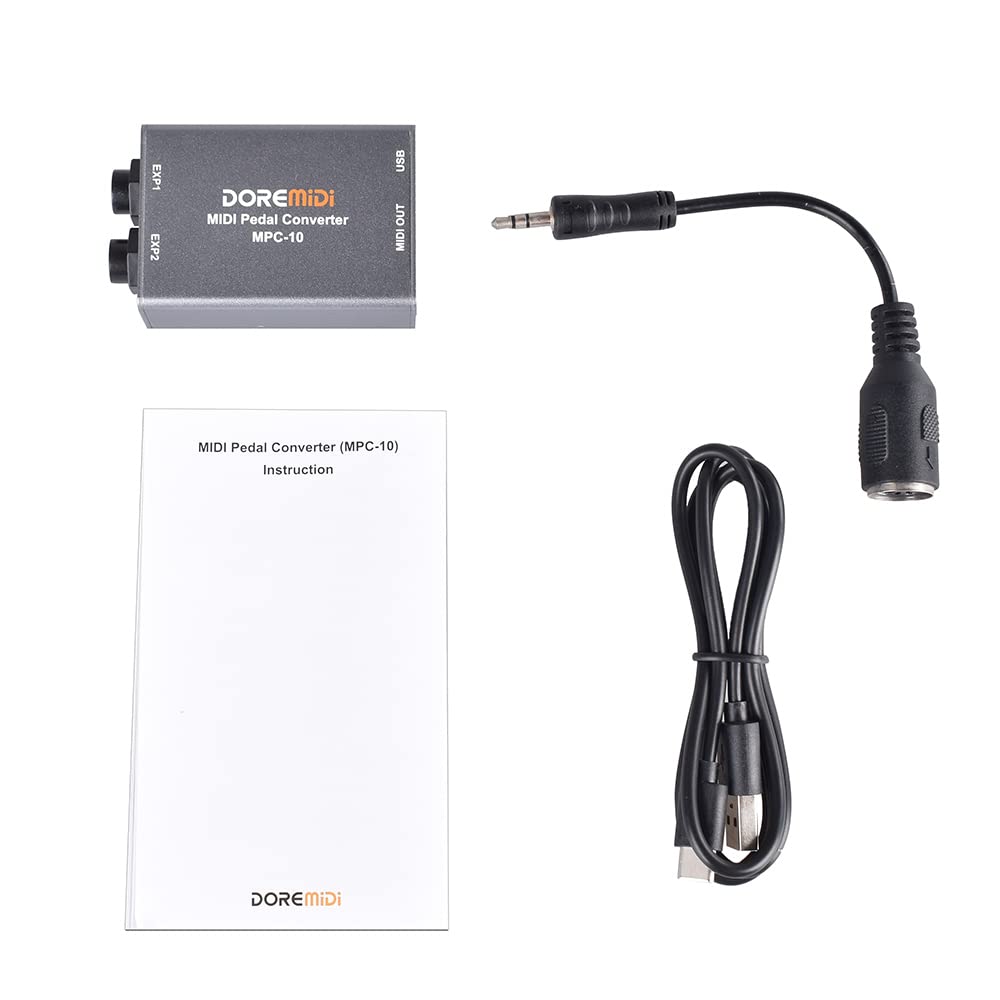

• MPC-10 has a MIDI output interface, which can be directly connected to musical instruments with a MIDI input interface. In order to maintain a portable design, MPC-10 uses a 3.5 audio port as MIDI output, which can be converted to a standard MIDI DIN interface using a 3.5-to-MIDI five-pin cable

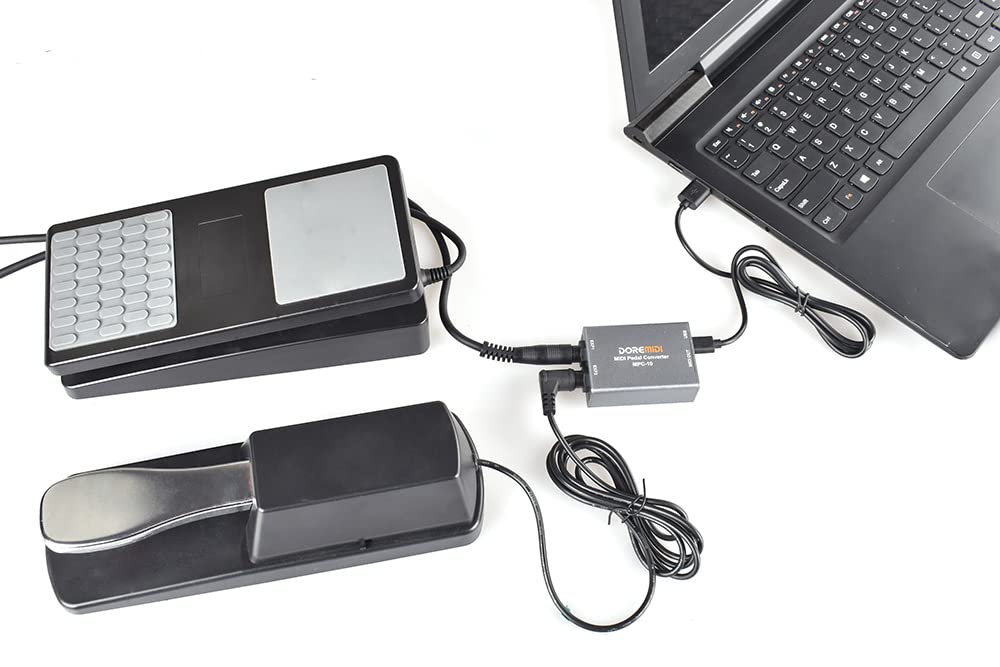

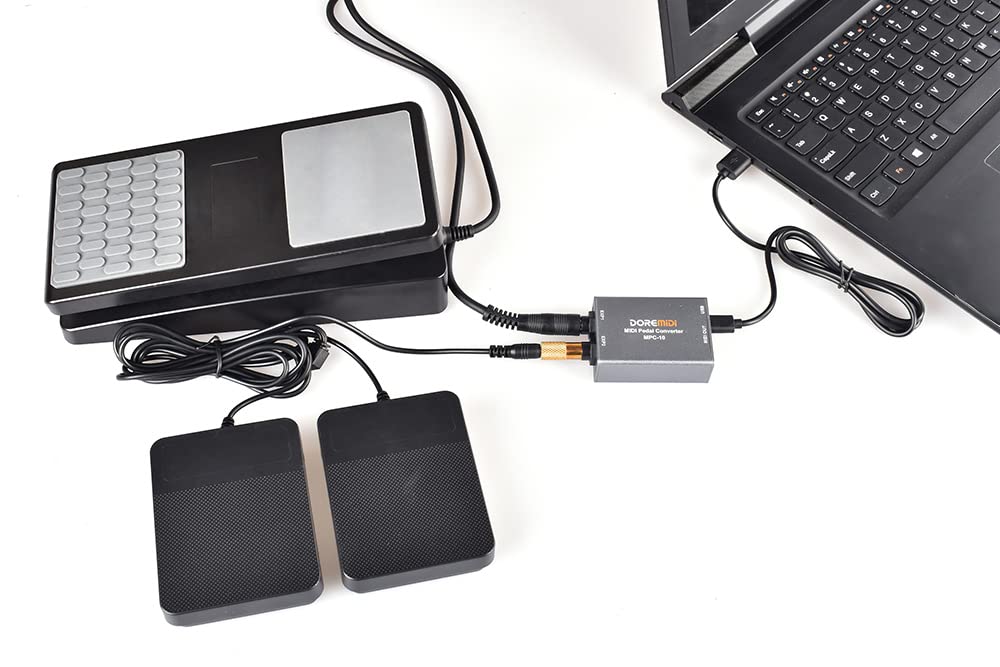

• Connect to the Computer MPC-10 is equipped with USB MIDI function, which can be directly connected to computer, mobile phone and other terminal devices to realize MIDI control. Compatible with Windows, Mac, iOS, Android and other systems, no need to install drivers, plug and play
• MPC-10 can flexibly configure MIDI messages for each pedal through DOREMiDi's pedal setting software. According to performance requirements, users can configure different MIDI messages after pedaling, including MIDI channel, CC controller, PC controller, Note, and flipping effects when pedaling
• Taking into account the subsequent optimization issues, MPC-10 also designed a firmware upgrade function, which can provide personalized customization for different users

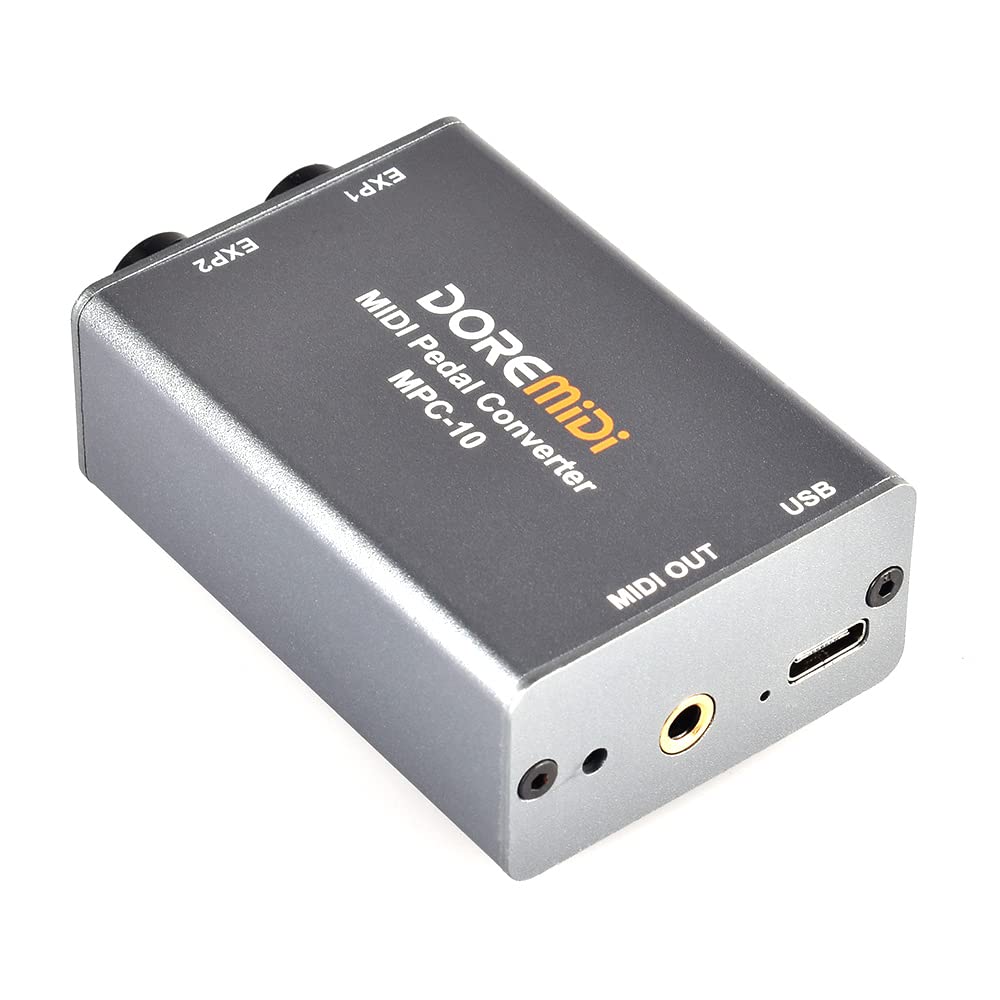

MIDI Pedal Converter (MPC-10) is a converter that can automatically detect multiple types of instrument pedals to solve the problem of insufficient number of pedals during performance. This product is compatible with positive polarity expression pedal, reverse polarity expression pedal, sustain pedal, dual-switch pedal, electronic drum hi-hats. It has MIDI DIN and USB MIDI outputs, and is suitable for use in a variety of performance scenarios.
