DollaTek NX4-PRO 3D Flight Controller Gyroscope Stabilizer Autobalance FC For RC Airplane Aircraft Fixed Wing V-tail

• Item: Flight controller board
• Input voltage: DC 5–6V
• Working temperature: 0-50 °C
• Performance: horizontal self-stabilization, manual flight, 3D lock.
• Suitable for: Ordinary T-tail fixed wing, single aileron, double aileron (requires remote control to set mixing control), delta wing (flight control built-in mixing control), V tail (flight control built-in mixing control) and other rc models.

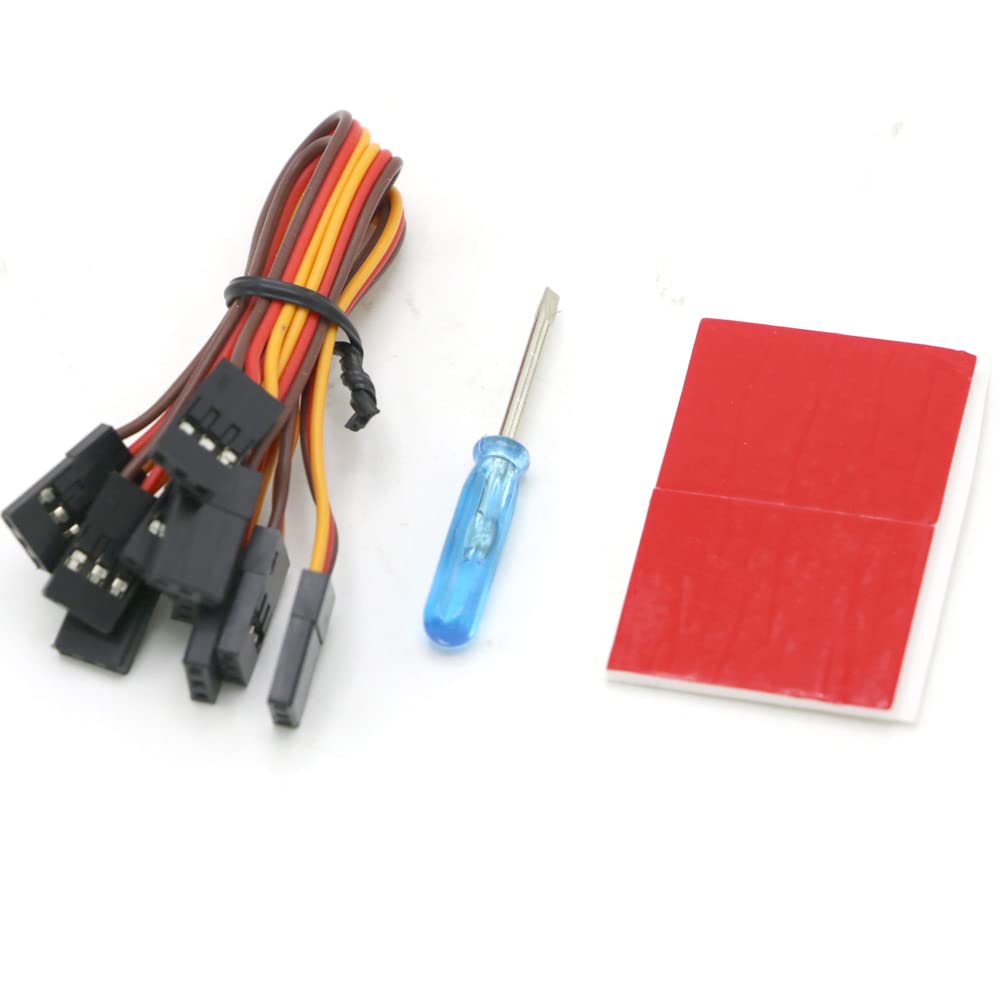

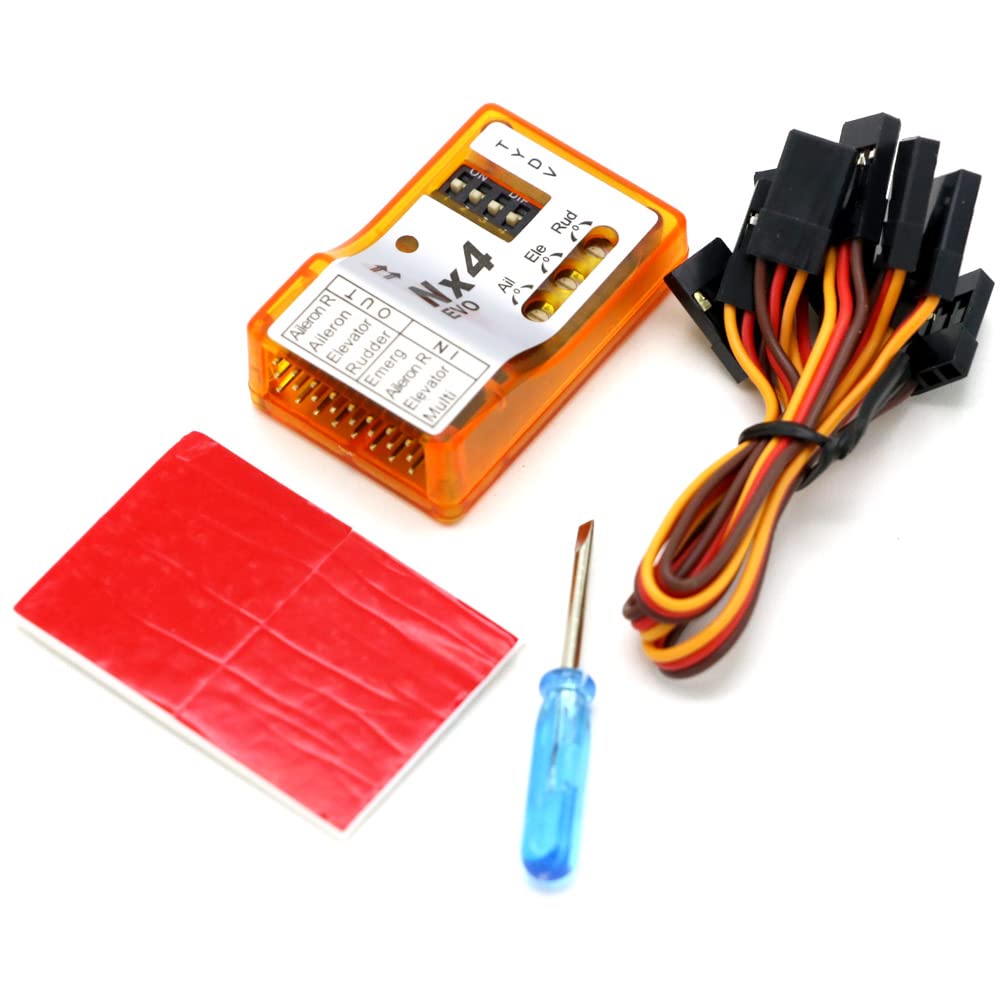

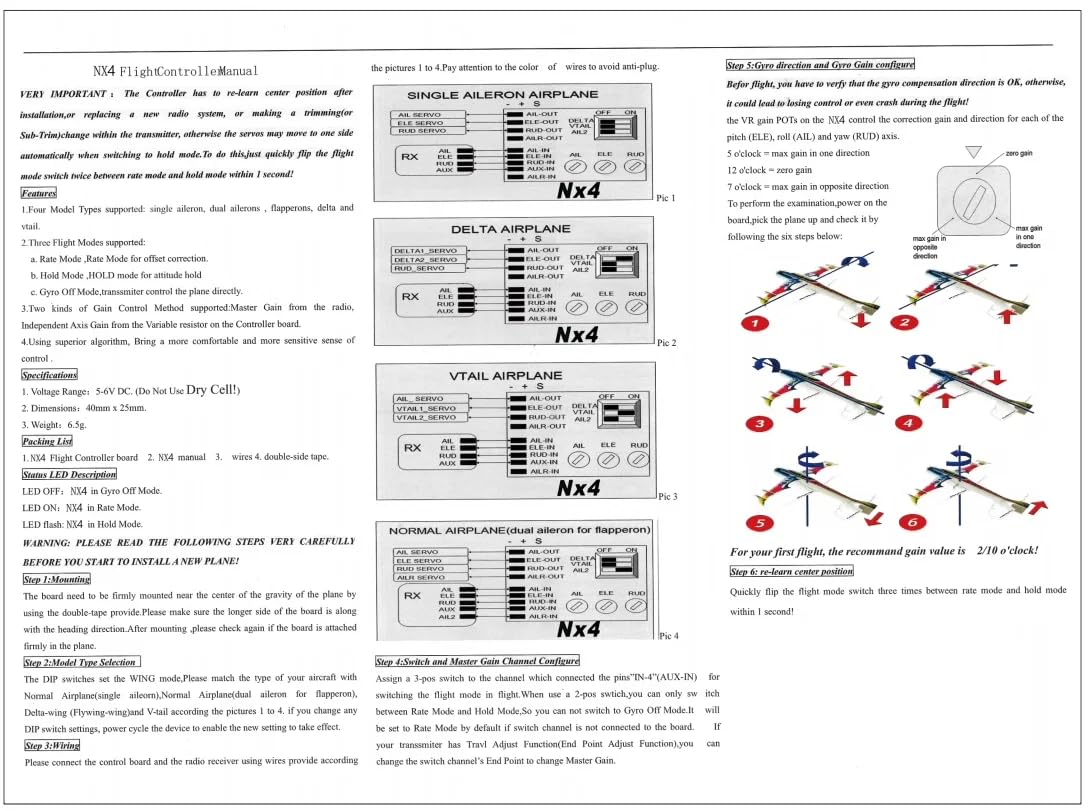

Description: Item: Flight controller board Input voltage: DC 5 – 6V Working temperature: 0-50 ° C Performance: horizontal self-stabilization, manual flight, 3D lock. Suitable for: Ordinary T-tail fixed wing, single aileron, double aileron (requires remote control to set mixing control), delta wing (flight control built-in mixing control), V tail (flight control built-in mixing control) and other rc models. Quick installation tips: 1. Refer to the manual for correct connection and check whether the remote control is working properly. 2. Adjust the DIP switch to select the correct model. Check whether the direction of the rudder control surface of the remote control is correct. 3. Adjust the working direction of the gyroscope through the potentiometer switch and check whether the control direction of the gyroscope is correct. (Please use small sensitivity for the first flight) 4. Using the remote control mode switch to toggle back and forth to calibrate the neutral point of the remote control. (When replacing the remote control or receiver, the neutral point must be calibrated) Package Included: 1x NX4-Pro 3D Flight controller
