DollaTek ICL8038 High Precision Signal Generator DIY Kit Sine Triangle Square Sawtooth Output 5Hz~400kHz Adjustable Frequency Amplitude

• The ICL8038 signal generator provides various types of waveforms like sine/triangle/square/forward and reverse sawtooth waves, allowing for a diverse range of possible applications.

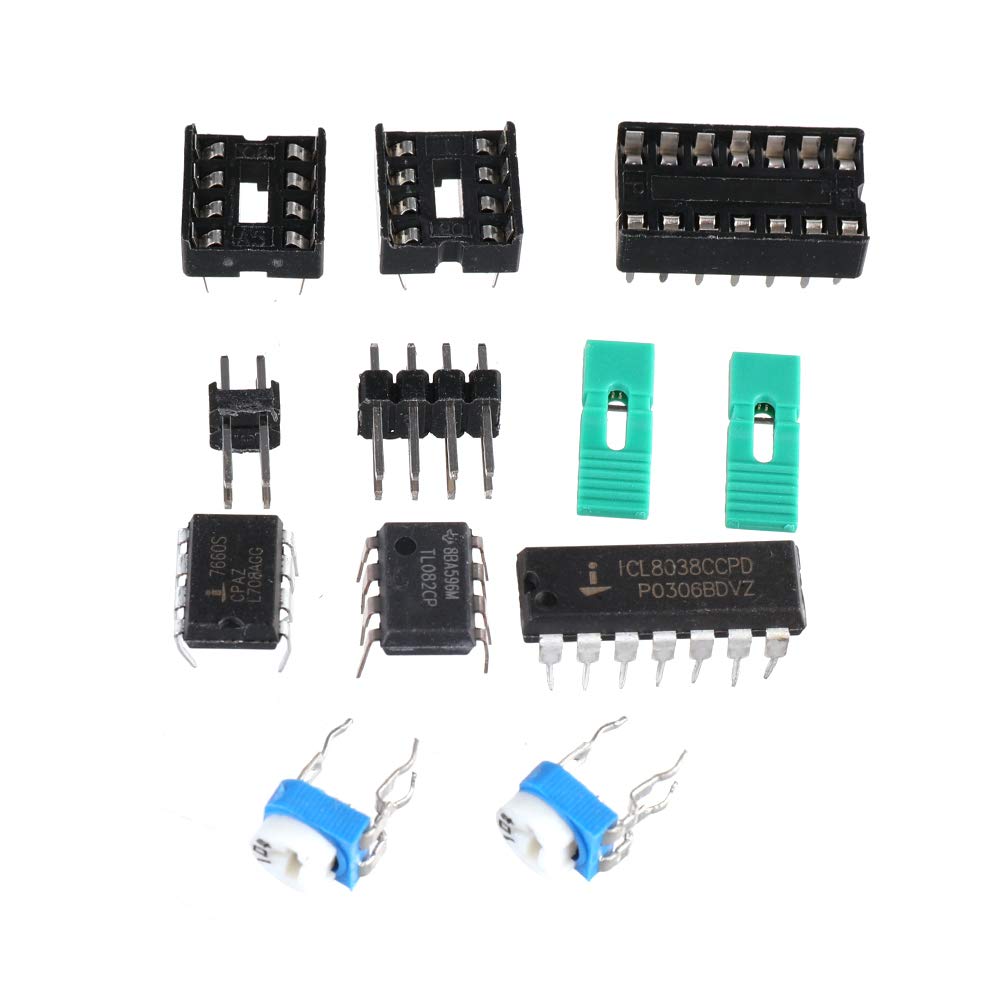

• By using ICL8038 and operational amplifiers, the ICL8038 signal generator offers higher precision and stability in generating signals.
• With a frequency range from 5Hz to 400kHz, the ICL8038 signal generator is capable of producing signals that can be used for a wide range of applications, from audio to radio frequencies.
• The duty cycle can be adjusted from 2% to 95%, which provides fine control over waveform output. This allows for customization of the output signal, making it suitable for different applications.

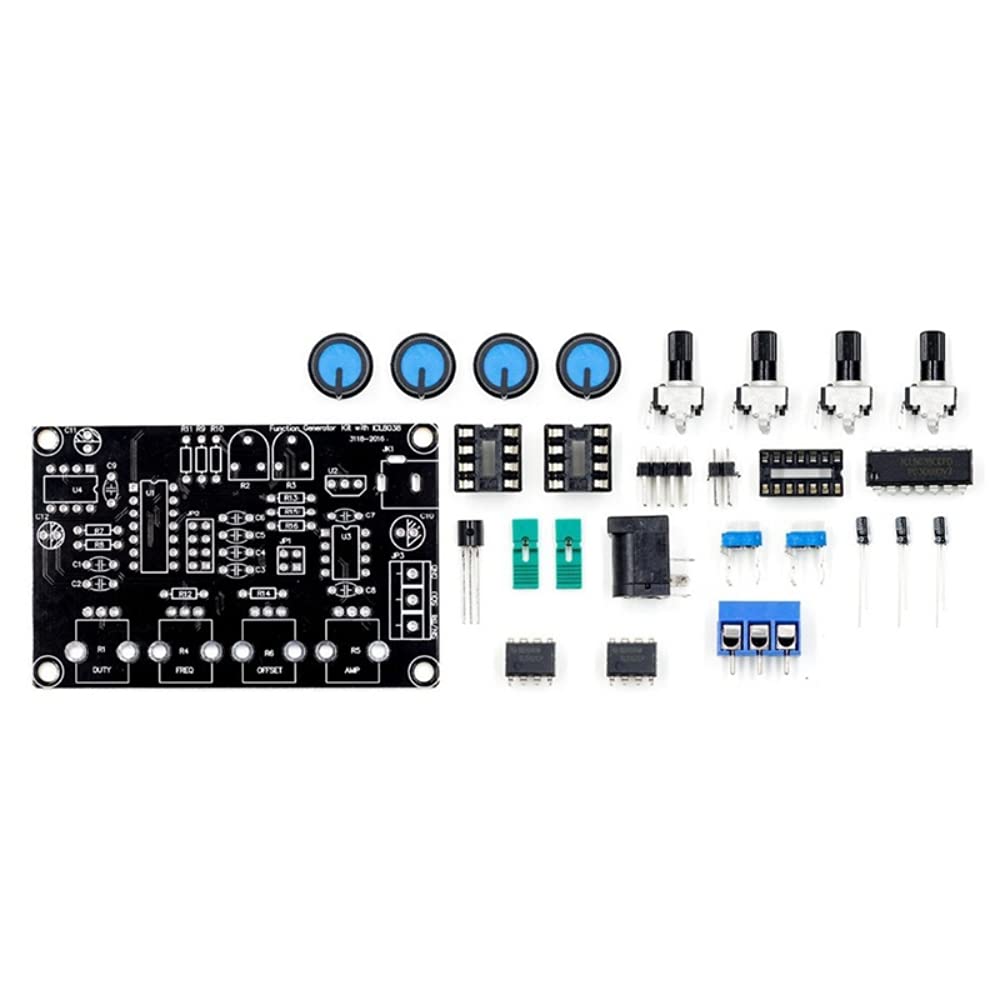

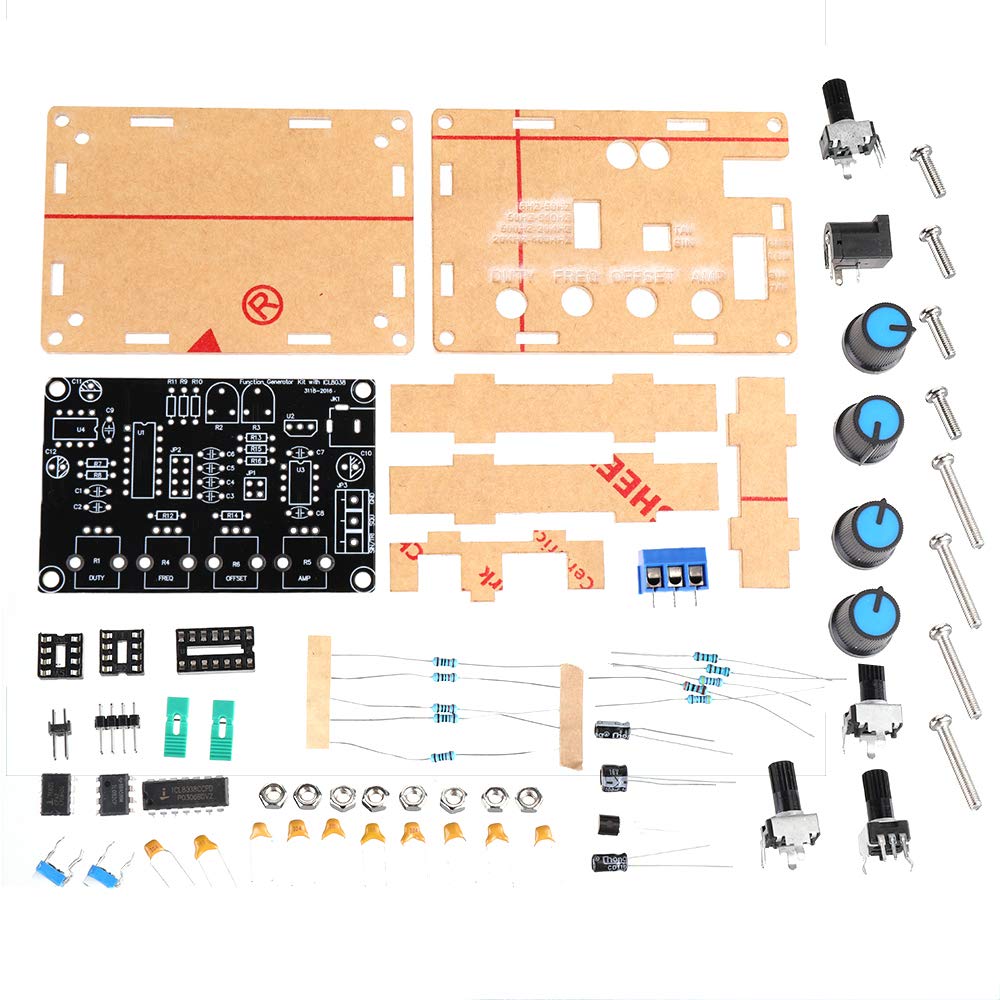

• All components are through-hole, making installation easy even for beginners. The included DIY kit comes with everything you need to assemble and install the ICL8038 signal generator, including a comprehensive manual and all necessary components.

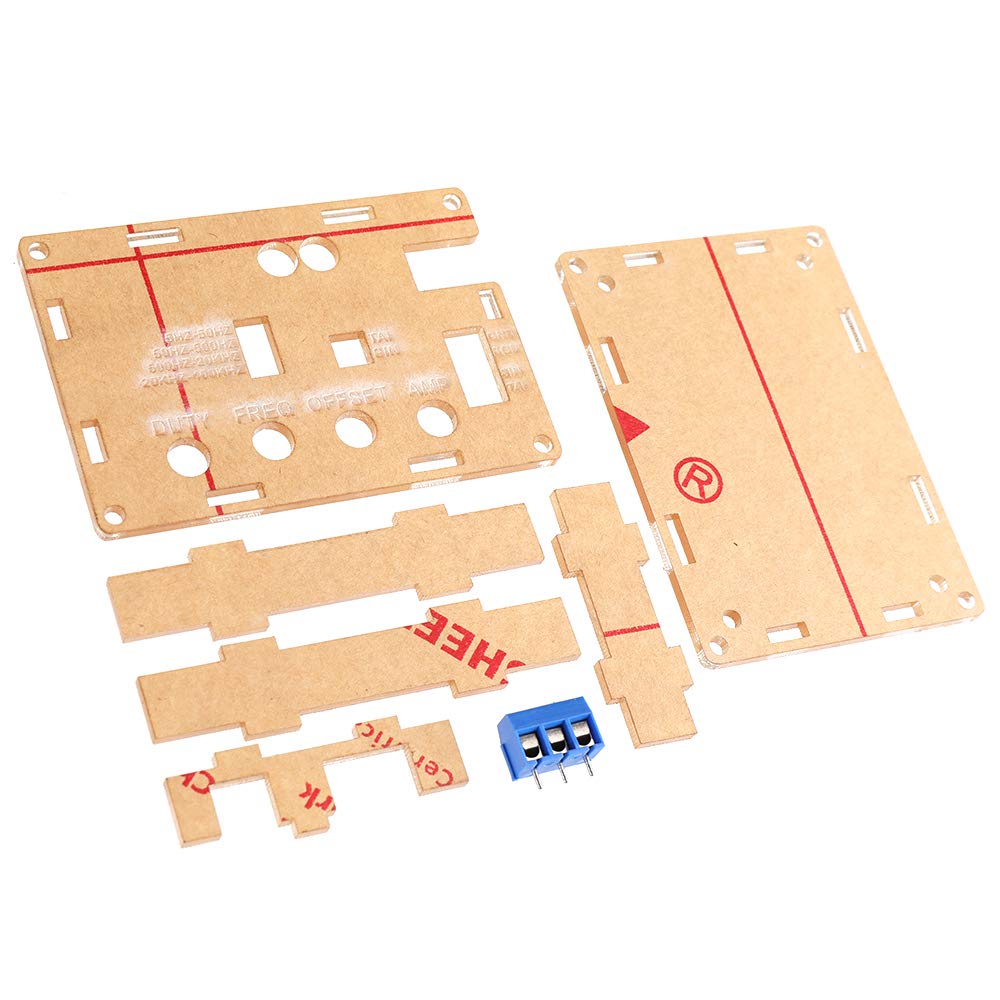

Specifications: Material: FR4 + Acrylic Supply Voltage: 12V~15V Frequency Range: 5Hz~400KHz(Adjustable) Duty Cycle Range: 2~95%(Adjustable) Low Distortion Sine Wave: 1% Low Temperature Drift: 50ppm / °C Output Triangular Wave Linearity: 0.1% DC Bias Range: -7.5V~7.5V Output Amplitude Range: 0.1V~11VPP(operating voltage 12V) Package included: 1 x Signal Generator DIY Kit
