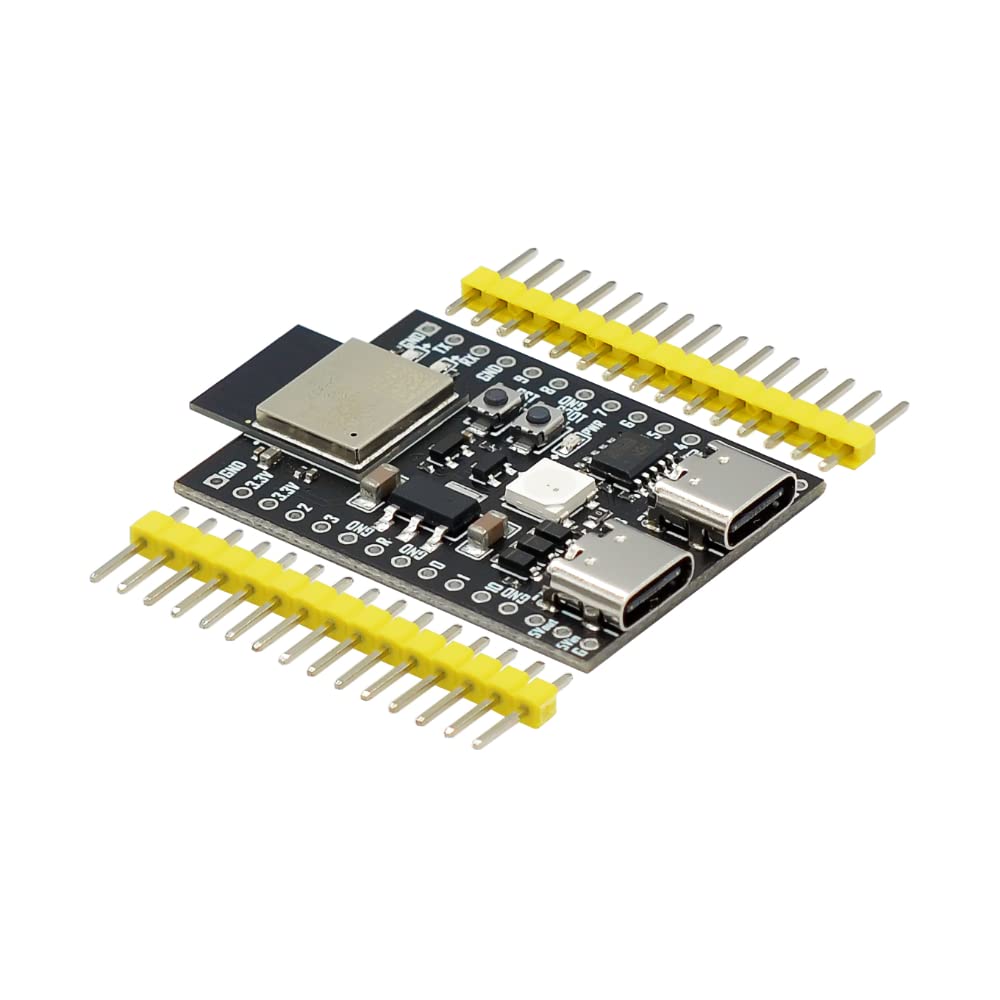

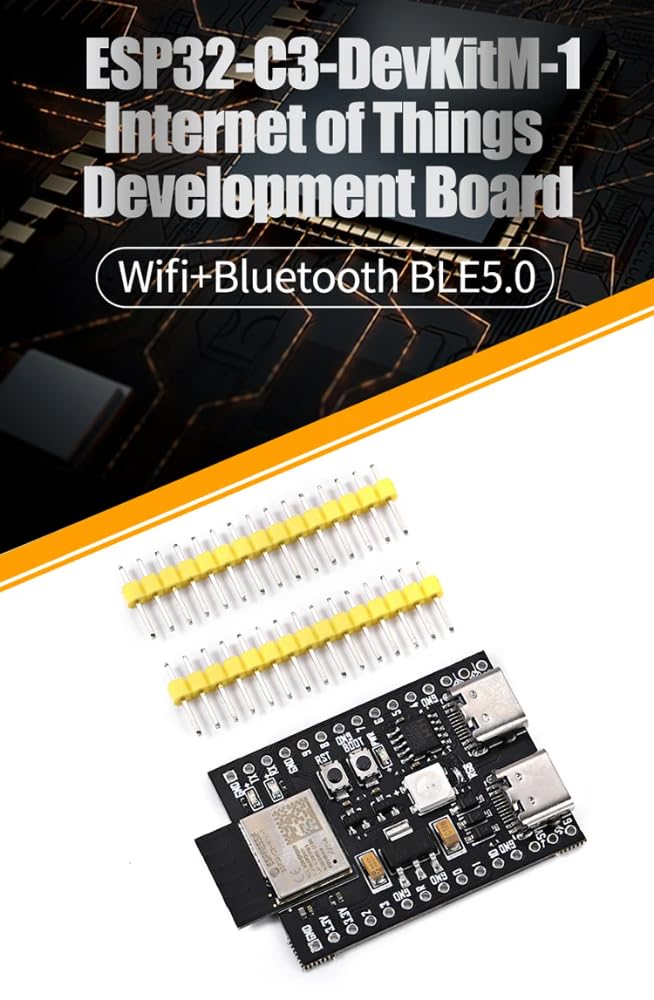

DollaTek ESP32 / ESP32-C3 WiFi+Bluetooth 5.0 Internet Of Things Dual Type-C Development Board Core Board ESP32-C3-DevKitM-1 For Arduino

• The link core board uses ESP32-C3FN4 chip and built-in ESP32-C3-MINI module module with 4 MB flash.
• ESP32-C3-MINI-1 is a general-purpose Wi-Fi and Bluetooth low energy (Bluetooth LE) module with small size and rich peripheral interfaces, which can be used in smart home, industrial automation and other fields.
• ESP32-C3 It is good to use it as a microcontroller with wifi and bluetooth functions. Most applications do not use wifi and bluetooth.
• ESP32-C3 supports secure boot based on RSA 3072 algorithm and flash encryption based on AES-128-XTS algorithm to ensure secure connection of devices.
• Innovative digital signature module and HMAC module to ensure device jdentity security.

Description: Wi-Fi Support IEEE 802.11 b/g/n protocol. Supports 20 MHz and 40 MHz bandwidths in the 2.4 GHz band. Support 1T1R mode with data rate up to 150 Mbps. Wireless Multimedia (WMM). Frame aggregation (TX/RX.A-MPDU, TX/RXA-MSDU). Immediate Block ACK. Fragmentation and defragmentation. Transmit opportunity (TXOP). Beacon automatic monitoring (hardware TSF). 4 X Virtual Wi Fi interface. Support Infrastructure BSS at the same time Station mode, SoftAP mode, Station+SoftAP mode. Formula and hybrid mode Please note that ESP32-C3 series chips scan in Station mode During tracing, the SoftAP channel will change simultaneously Antenna diversity 802.11 mc FTM Support for external power amplifiers Bluetooth Bluetooth LE: Bluetooth 5 Bluetooth mesh High power mode (18 dBm) Rate support 125 Kbps, 500 Kbps, 1 Mbps,2Mbps Advertising Extensions Multiple Advertisement Sets Channel Selection Algorithm # 2 Wi Fi and Bluetooth coexist, sharing the same antenna SECURITY MECHANISM Secure Boot Flash encryption 4096-bit OTP, up to 1792-bit available Cryptographic hardware accelerators: AES- 128/256 (FIPS PUB 197) Access rights management SHA accelerator (FIPS PUB 180-4) RSA Accelerator Random number generator (RNG) HMAC Digital signature Package include: 1 x module
