DollaTek Digital Microphone Amplifier Board Karaoke Plate Preamplifier Reverberator Suite Component Microphone Amplifier Board AMP?

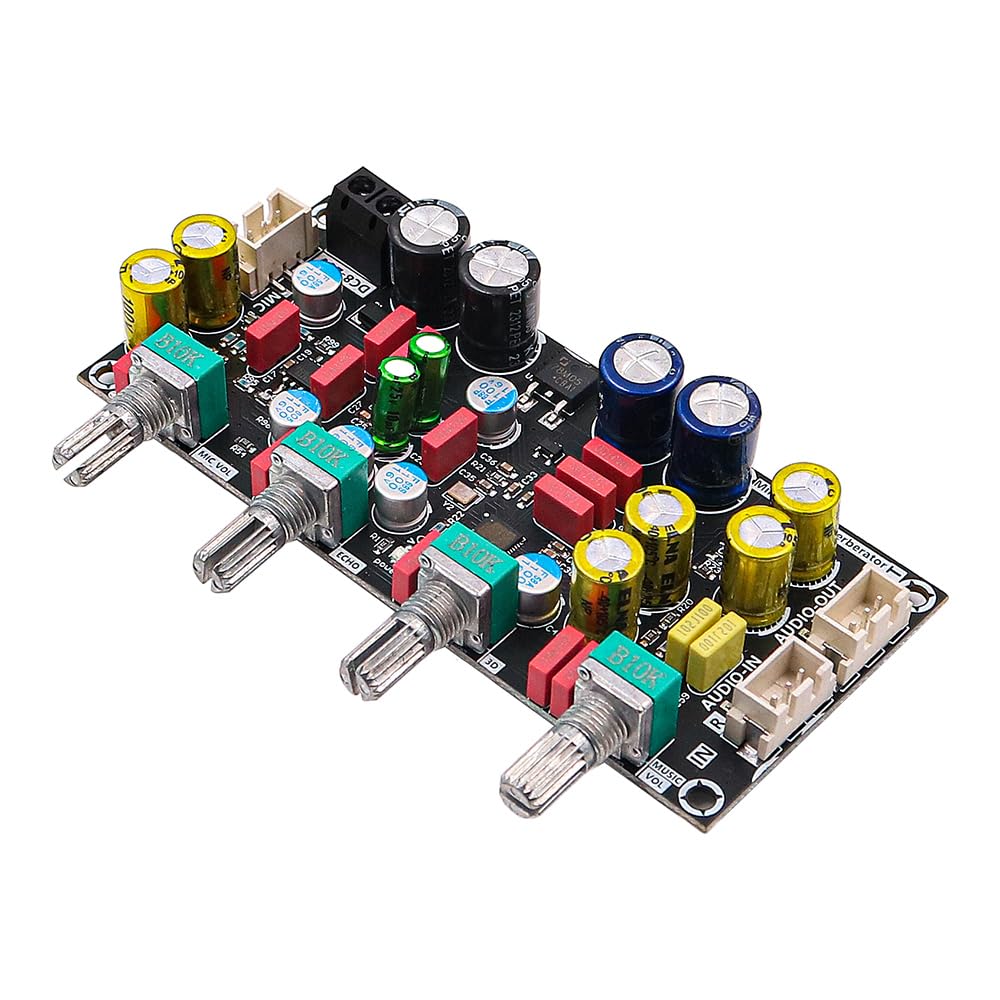

• Preamplifier Function Modules Microphone Plate Reverberation Board.

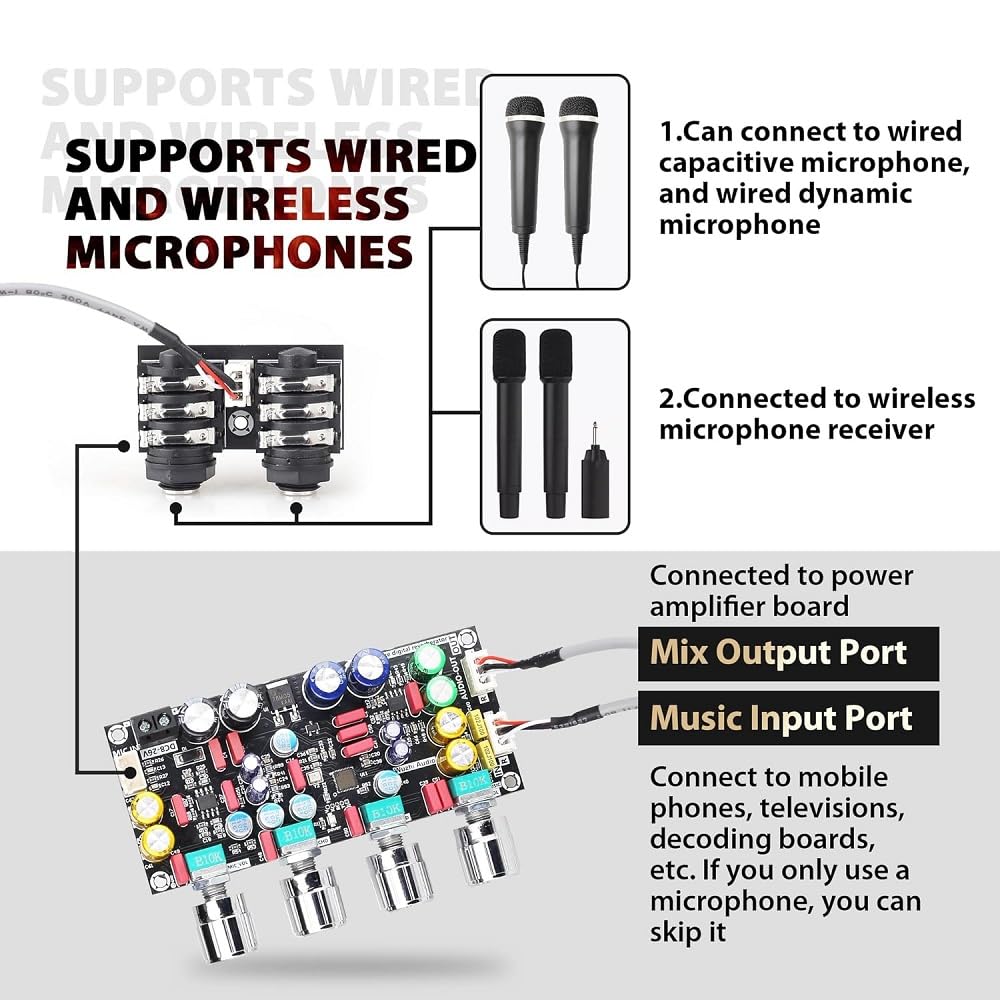

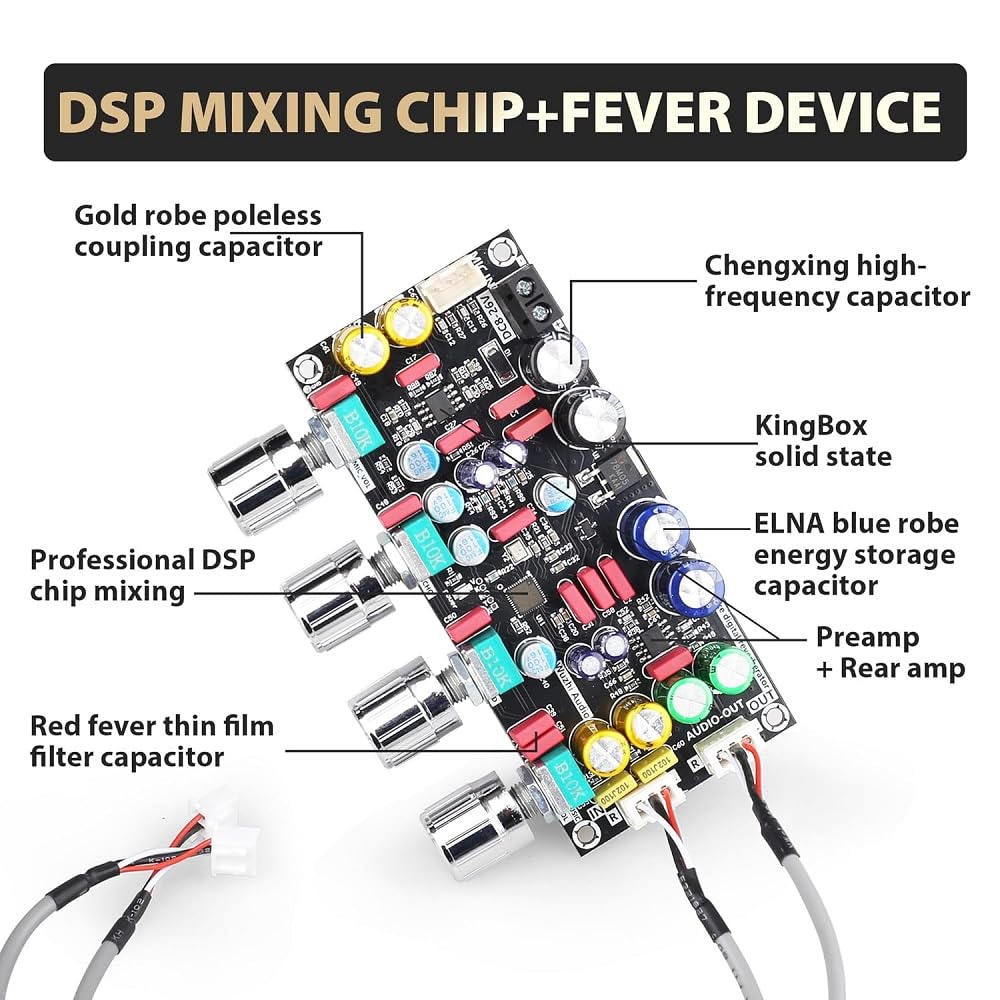

• Features: Support wired- and wireless microphone.DSP mixing chip + fever device.
• Audios signal mixed with background music and micrephone sound,connect to the amplifier.
• The sound can come from mobile phones.televisions,decording boards,etc.if-only a microphone is used,it can also be disconnected.

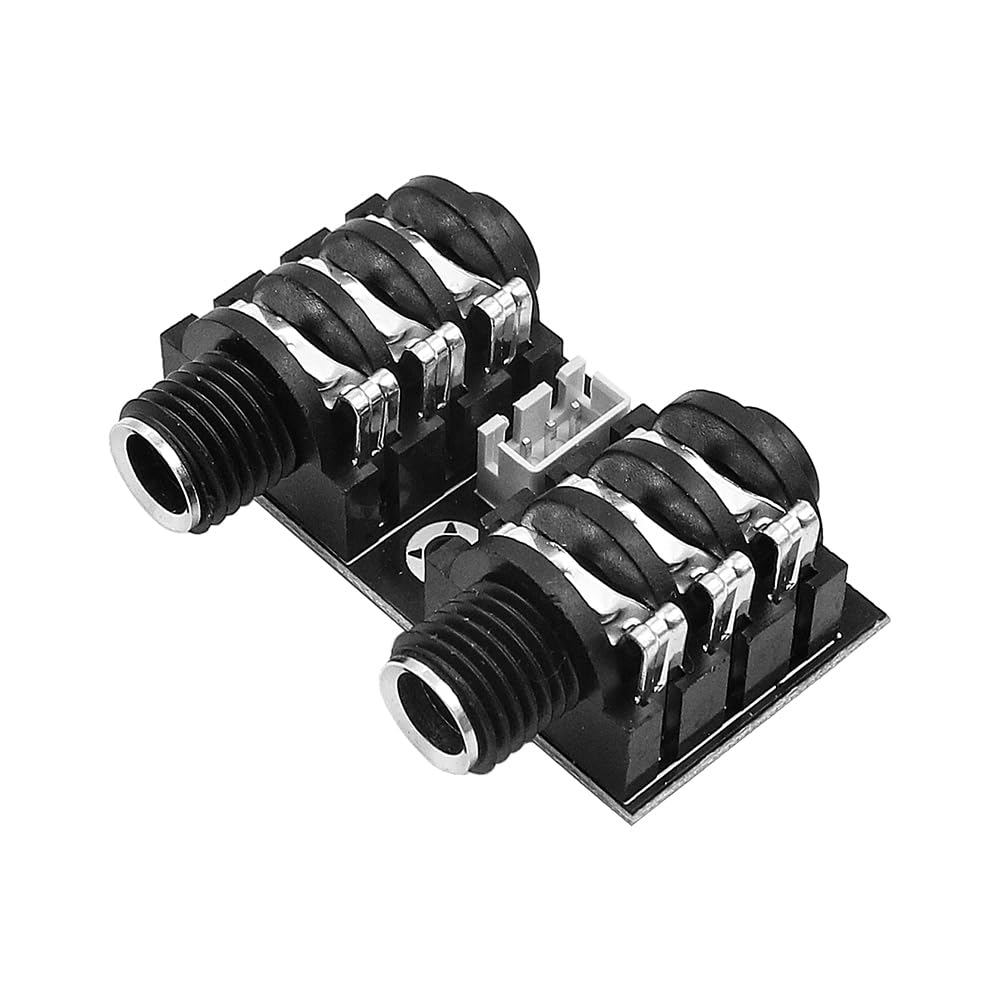

• 6.35mm microphone connector,can connect to wireless microphone receiver,wired-capacitive microphone,and wired- dynamic microphone.

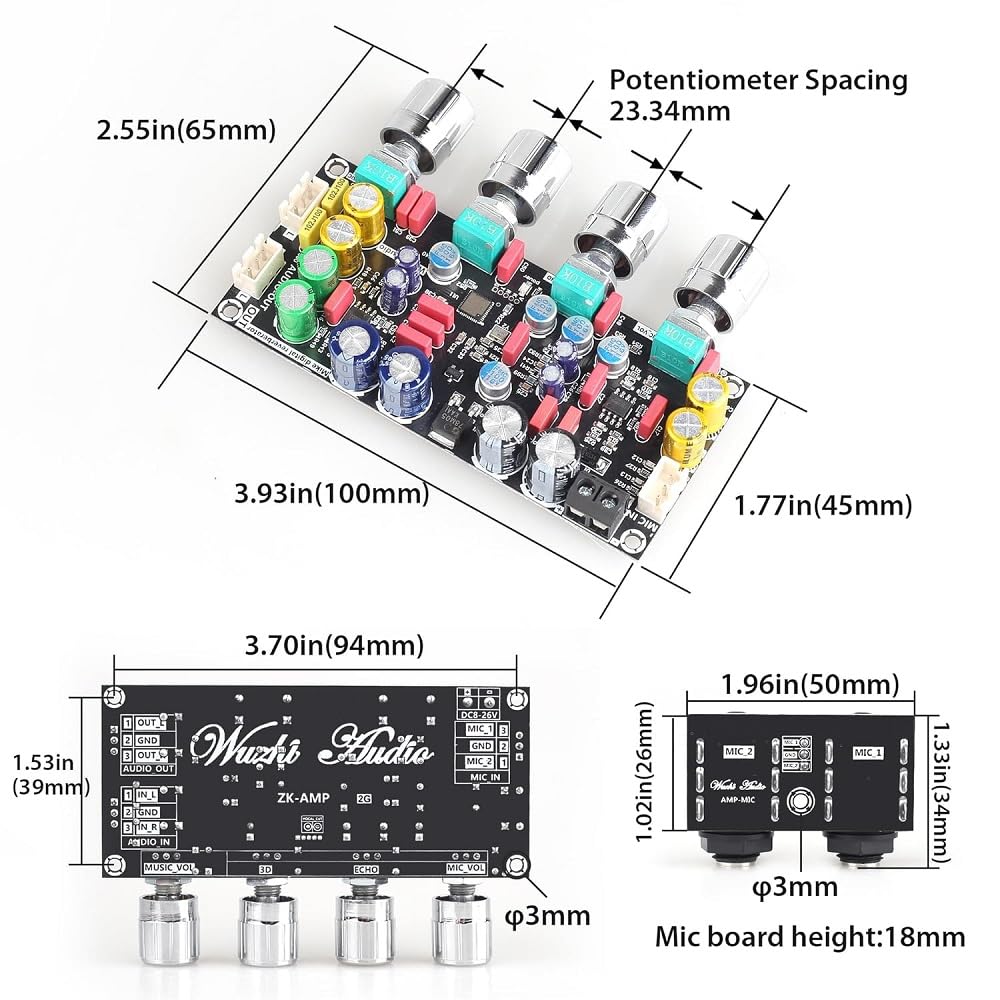

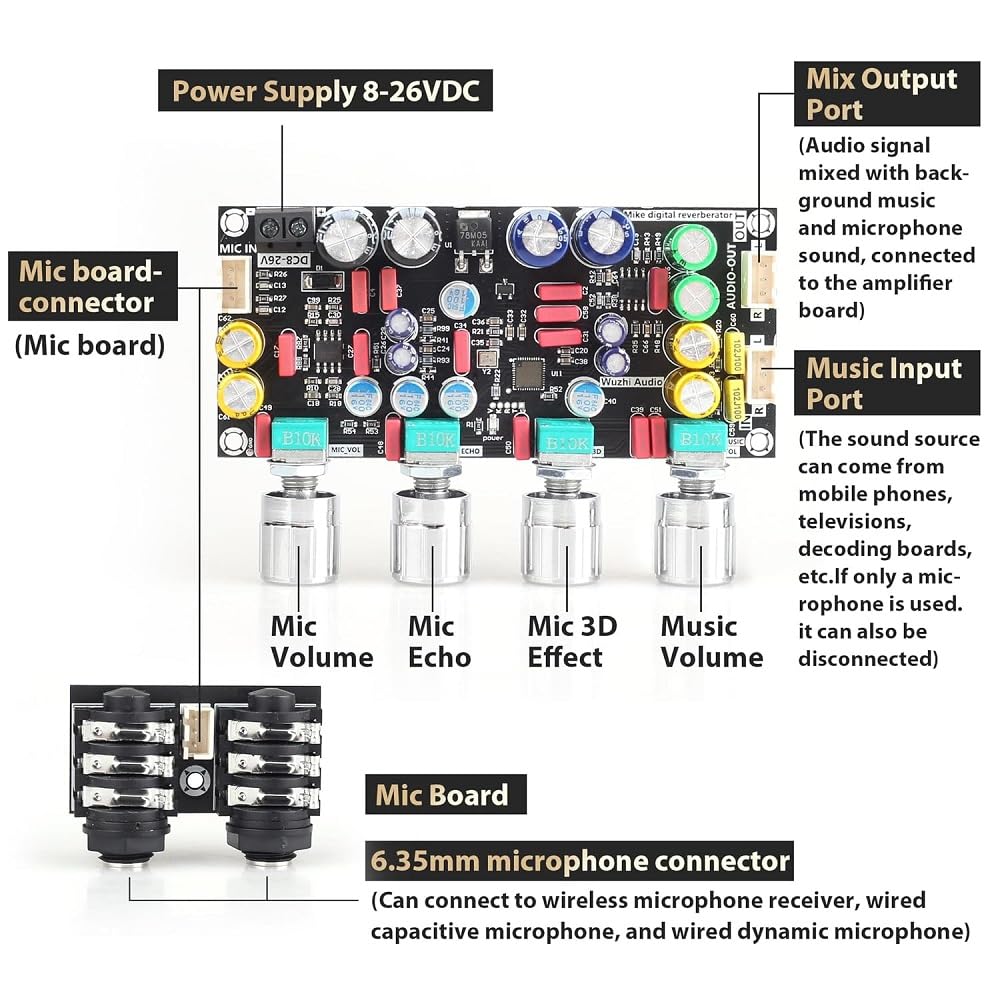

Product Feature: Fever mic front stage board, DSP reverb bel canto, ECHO+3D adjustment Supports wired capacitive microphone and wireless microphone receiver for more convenient use Parameters: Input voltage: 8-26VDC, cannot input AC Input interface: XH2.54-3P, complimentary 3P shielded wire with a length of 30cm One end is an XH2.54 connector, and the other end is stripped and tinned If you need to plug in your phone or other 3.5mm audio output interface, you need to provide your own 3.5mm audio head to XH2.54-3P audio cable. Reverberation output Interface: XH2.54-3P, with a 3P shielded wire as a gift, with a length of 30cm. One end is an XH2.54 connector, and the other end is stripped and tinned. The output is connected to the audio input of the power amplifier module. If you need an XH2.54-3P to 3.5mm audio head cable or an XH2.54-3P dual head cable, you need to purchase it yourself Mic interface: double 6.35mm Mic interface potentiometer: 10K single potentiometer, 6mm quincunx handle Distance between potentiometer 23.34mm Size: Front plate: 100x65x15mm MIC socket board: 50x34x18mm, net weight of product: 92g Including packaging weight: 120g Package List: 1 x Front stage board 1 x Mic board 1 x XH2.54-3P double ended wire 2 x XH2.54-3P single ended wire
