DollaTek Acrylic LP Vinyl Pickup Calibration Distance Gauge Adjustment Tool Phono Parts

• A protractor with high contrast offers very useful increased visibility for the cartridge alignment
• Suitable for 1/2 cartridges and is compatible with a S-shaped arm work
• Link to manual for setting up the rotary table with the instructions on the protractor
• Function: Eliminate tracking errors

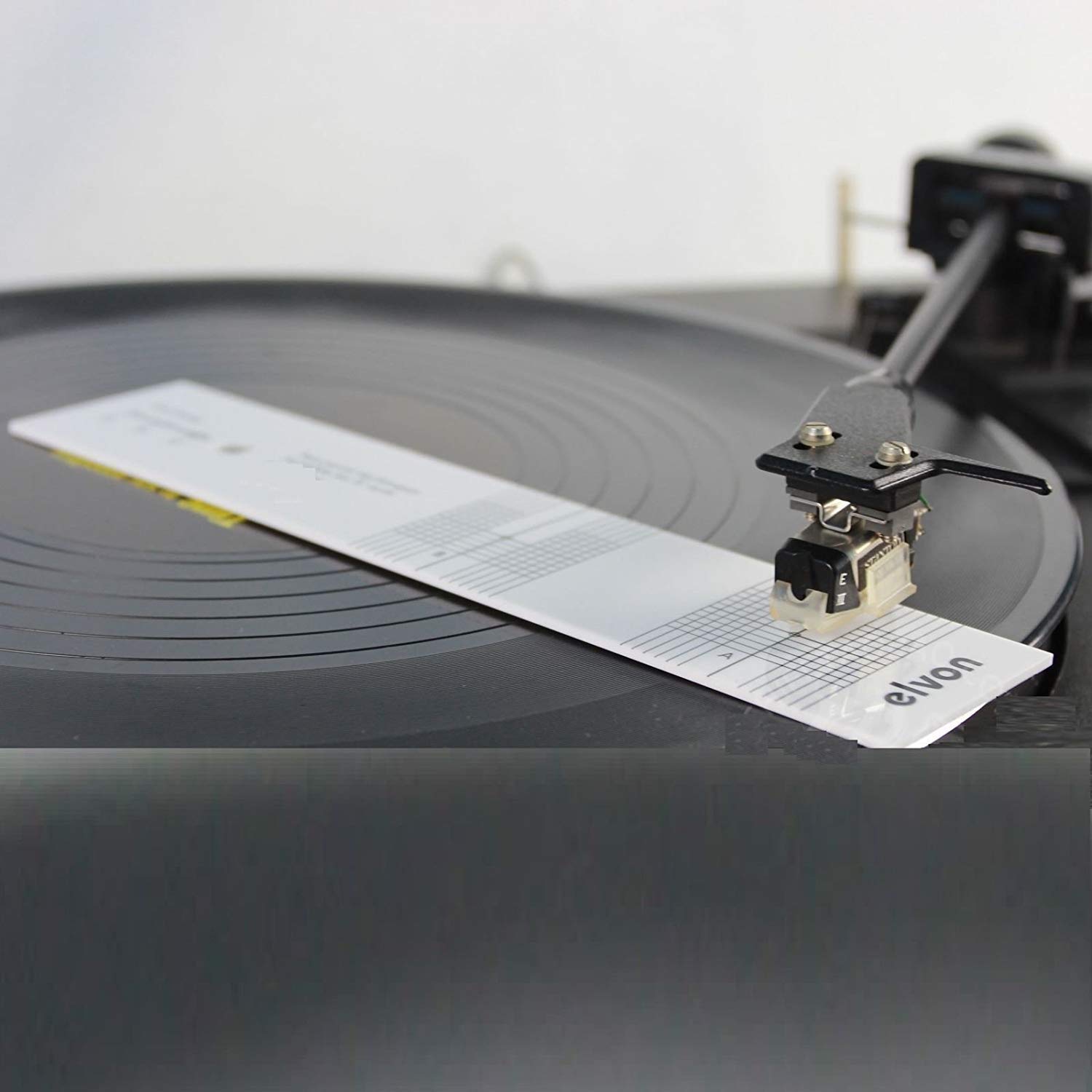

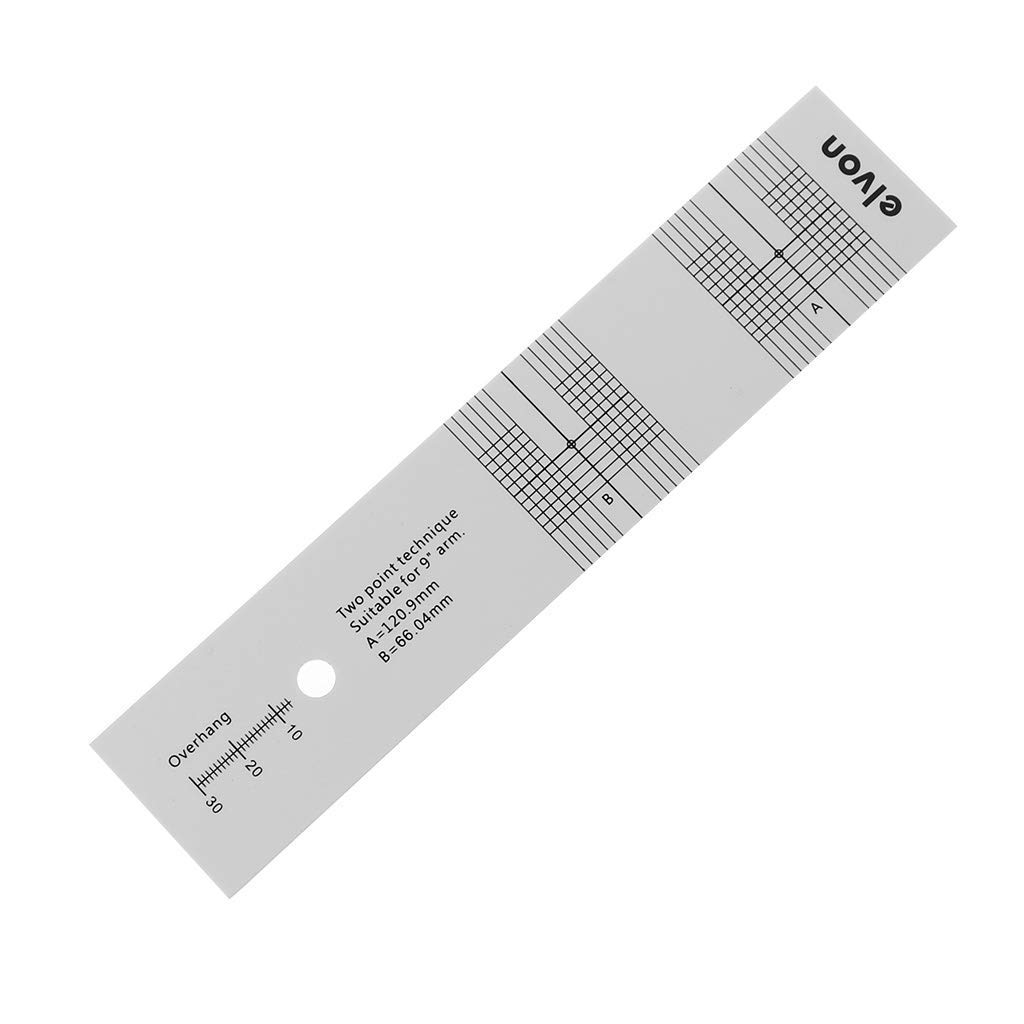

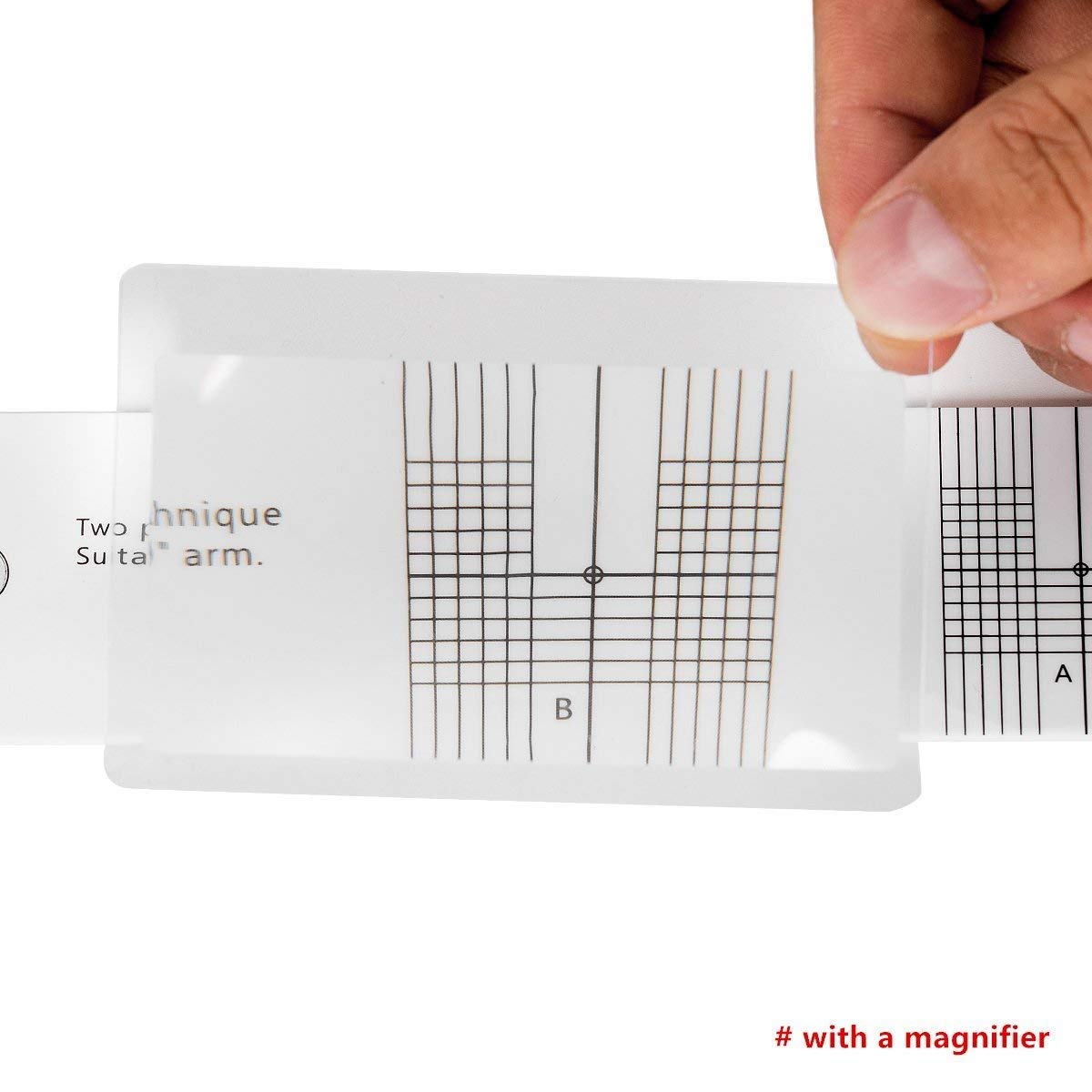

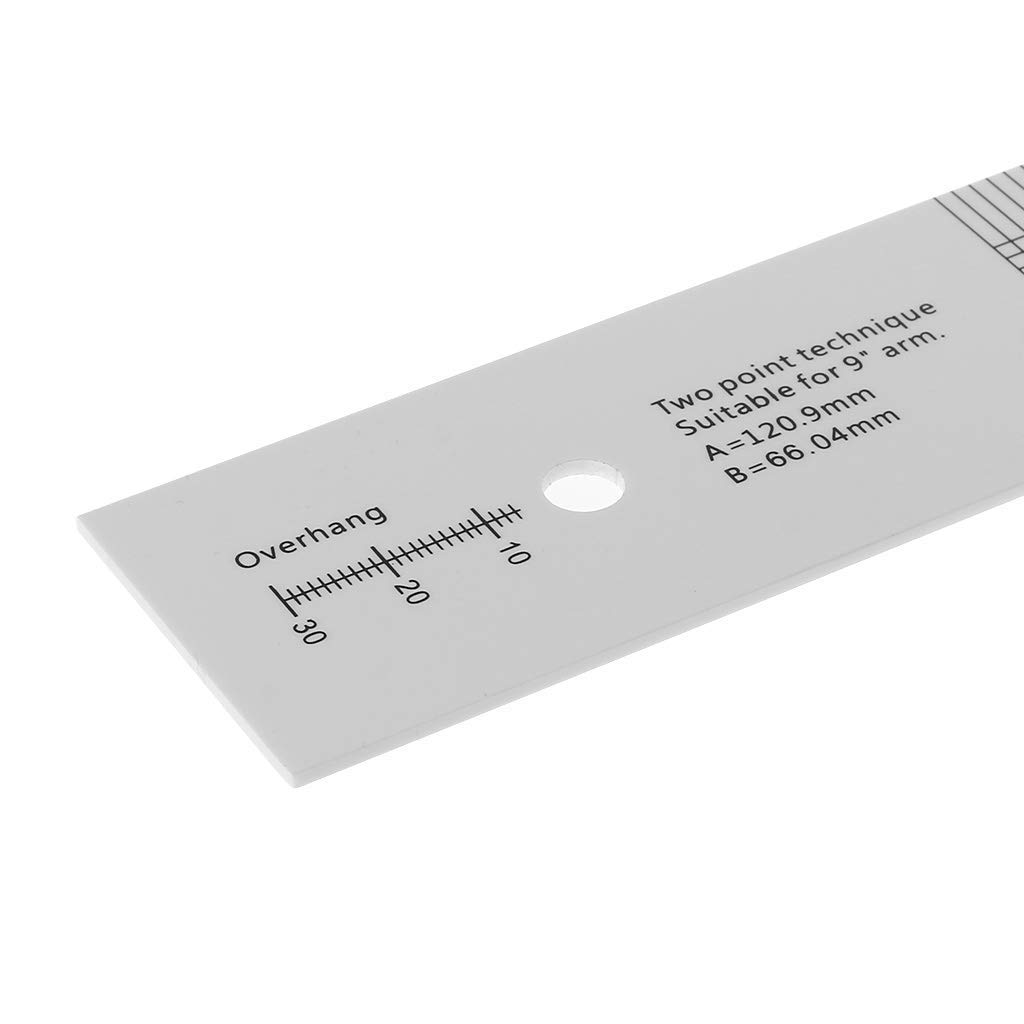

Instructions: 1. Place this protractor on your turntable platter with hole over spindle. 2. Move cartridge/ tonearm until stylus rests exactly on center of bulls eye. (120.9mm radius). Check that cartridge is square with outer set of grid lines. - If not, loosen cartridge mounting screws and twist cartridge lightly until it is square. 3. Move cartridge/ tonearm until stylus rests exactly on center of inner bulls-eye (66.04mm radius), Rotate protractor around spindle as required. Check that cartridge is square with inner set of grid lines. - If not, change overhang, (move cartridge in or out along the axis) until cartridge is square. 4. Repeat step 2 and 3 till cartridge is square at both points. Tighten mounting, and recheck as above. Remove Protractor. Relax and enjoy! Features: High contrast cartridge alignment protractor provides improved visibility and eliminates tracking errors. Avoids the over-shoot distortion to keep high quality sound Link to turntable setup guide with instructions included, printed directly on the protractor. Works with an S -Shaped arm and any 1/2" mounted cartridge. Extra magnifier make you more clear when adjusting the overhang. Specification: Material: Acrylic Type: Accessories Color: White Size: One Size Length: 18.9cm/ 7.44in Width: 4.0cm/ 1.57in Quantity: 1 Set Package includes: 1 x Overshoot Protractor 1 x Magnifier
