DollaTek 10Pcs DC to DC High Efficiency Voltage Regulator 3.0-40V to 1.5-35V Buck Converter DIY Power Supply Step Down Module

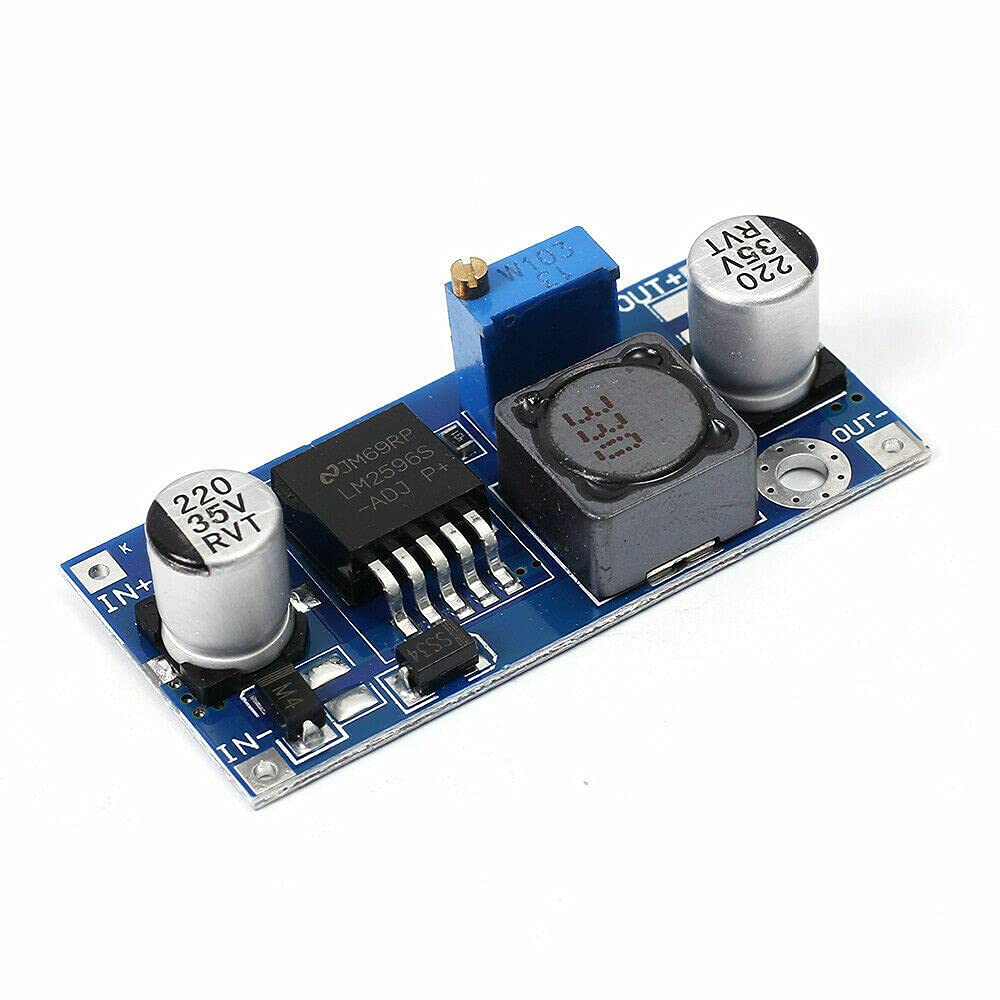

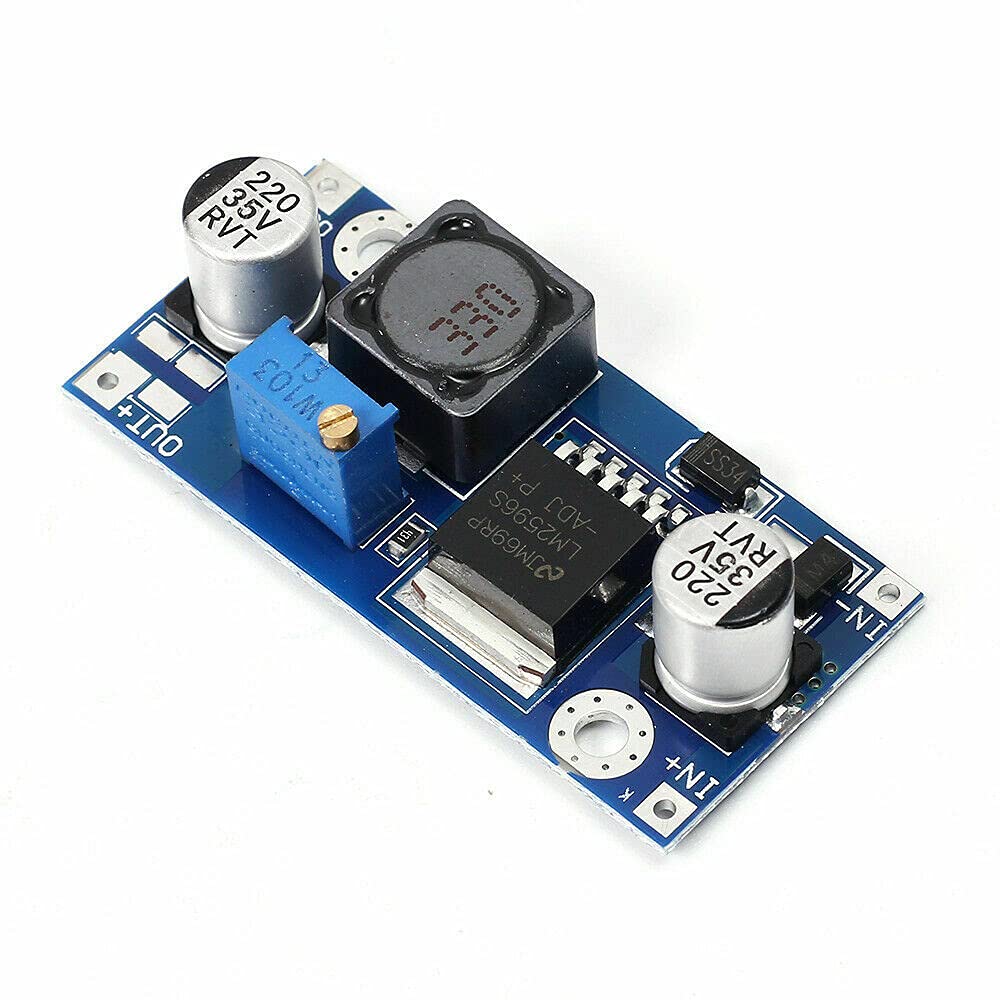

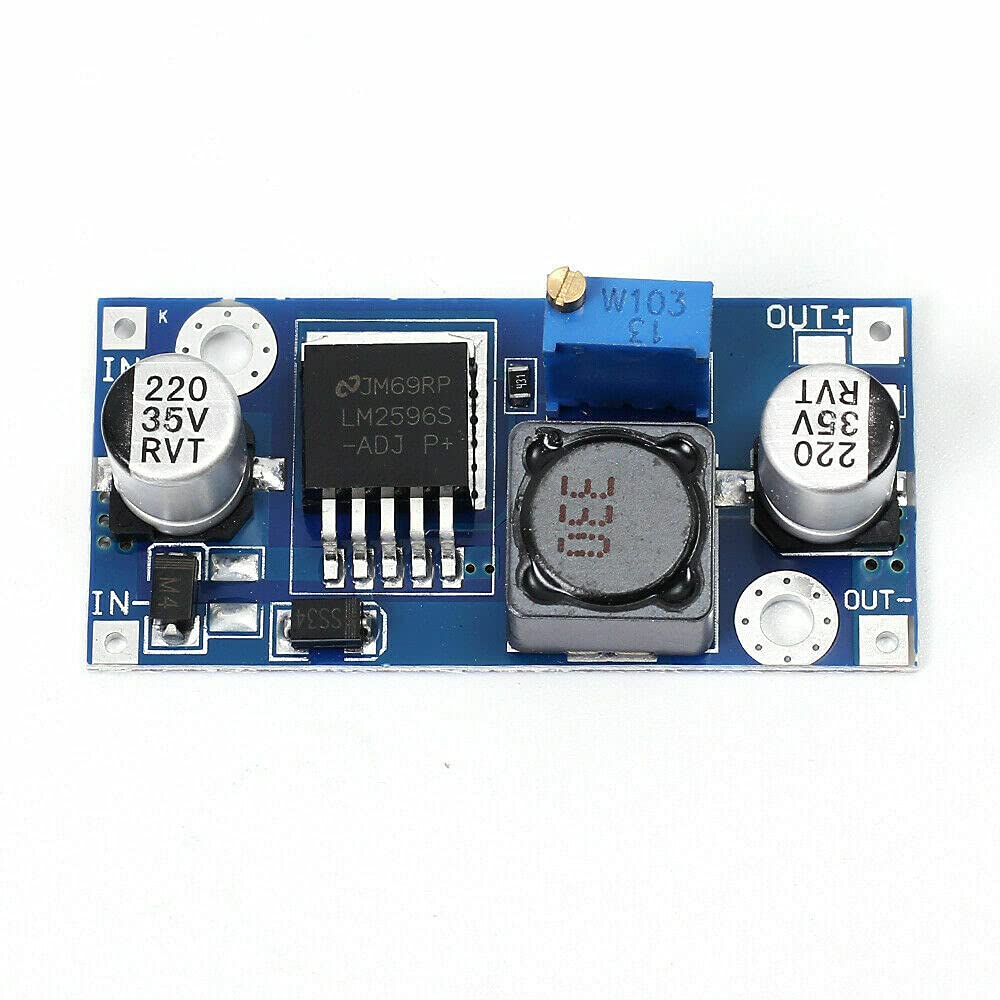

• The buck converter consists of 36u thickened circuit boards, high-Q inductance with output LED indicator, and superior solid-state capacitors that can effectively filter out high frequency noise. Suitable for various electronic projects.
• DC 3V to 40V (input voltage must be 1.5V higher than the output voltage, no boost).
• DC 1.5V to 35V voltage is continuously adjustable, maximum output current is 3A.

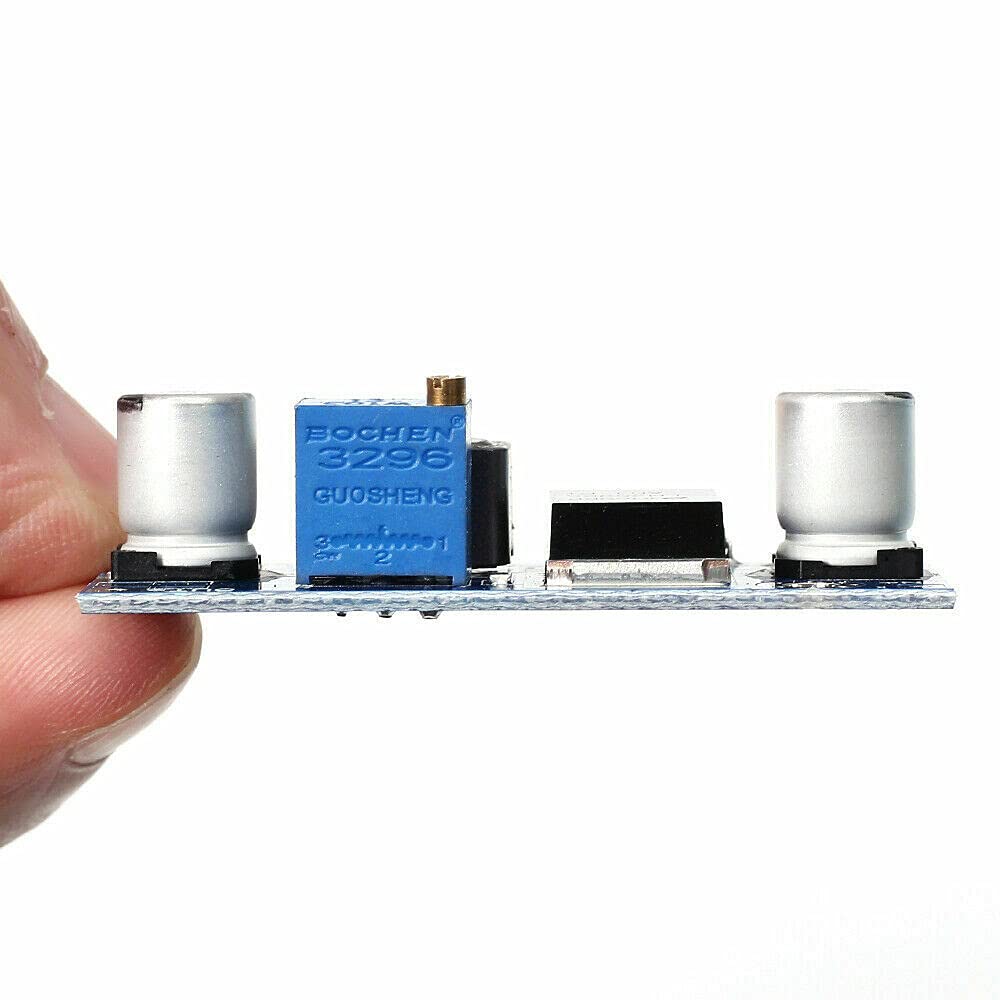

• 45 * 23 * 14 mm (with potentiometer). 8pcs included.
• Connect to power source, using a mini screwdriver to increase or decrease output voltage by adjusting the screw on the blue potentiometer and monitor voltage with multimeter to get the needed voltage, clockwise to step up voltage and counterclockwise to step down voltage.

Features: DC to DC step down module Thickened circuit boards Advanced solid-state capacitor Short circuit and over-temperature protection 100% tested, sealed in anti-static packaging Kindly Note: 1. Input voltage must be 1.5 V higher than the output voltage, no boost 2. Do not reverse the input and output interface 3. Keep output under 2.5A and use a heat sink when for a long time working Specifications: Model: 2596 Input voltage: DC 3V - 40V Output Voltage: DC 1.5V - 35V (adjustable) Output Current: 3A (max.) Conversion Efficiency: 92% (max.) Switching Frequency : 65KHz Rectification: non-synchronous rectification Module property: non-isolated buck module Operating Temperature: -45℃ to +85℃ Load Regulation: ± 0.5% Voltage Regulation: ± 2.5% Size(L x W x H): 45*23*14mm / 1.77*0.91*0.55inch Weight: 14g Package List: 10 x DC to DC Buck Converter Module
