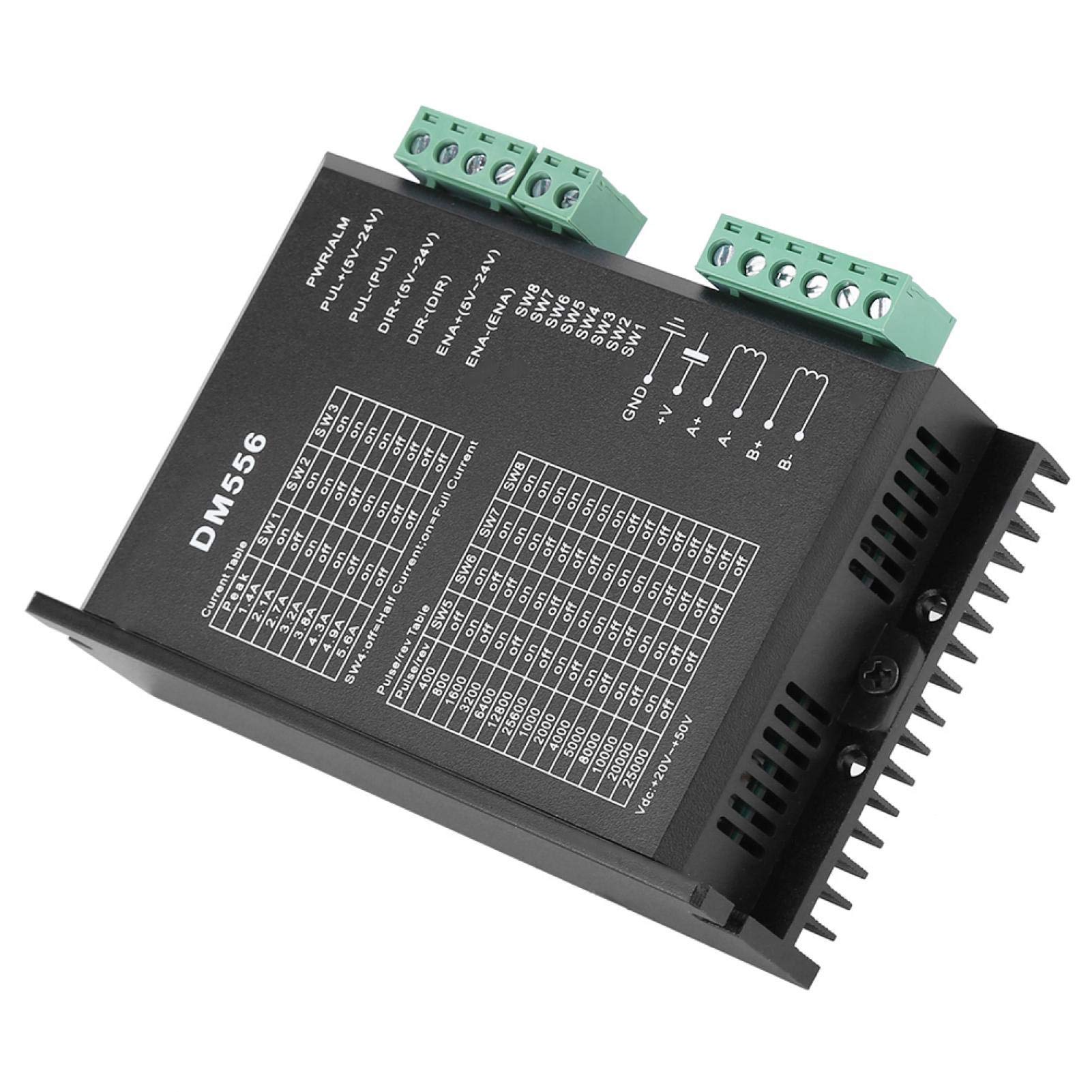

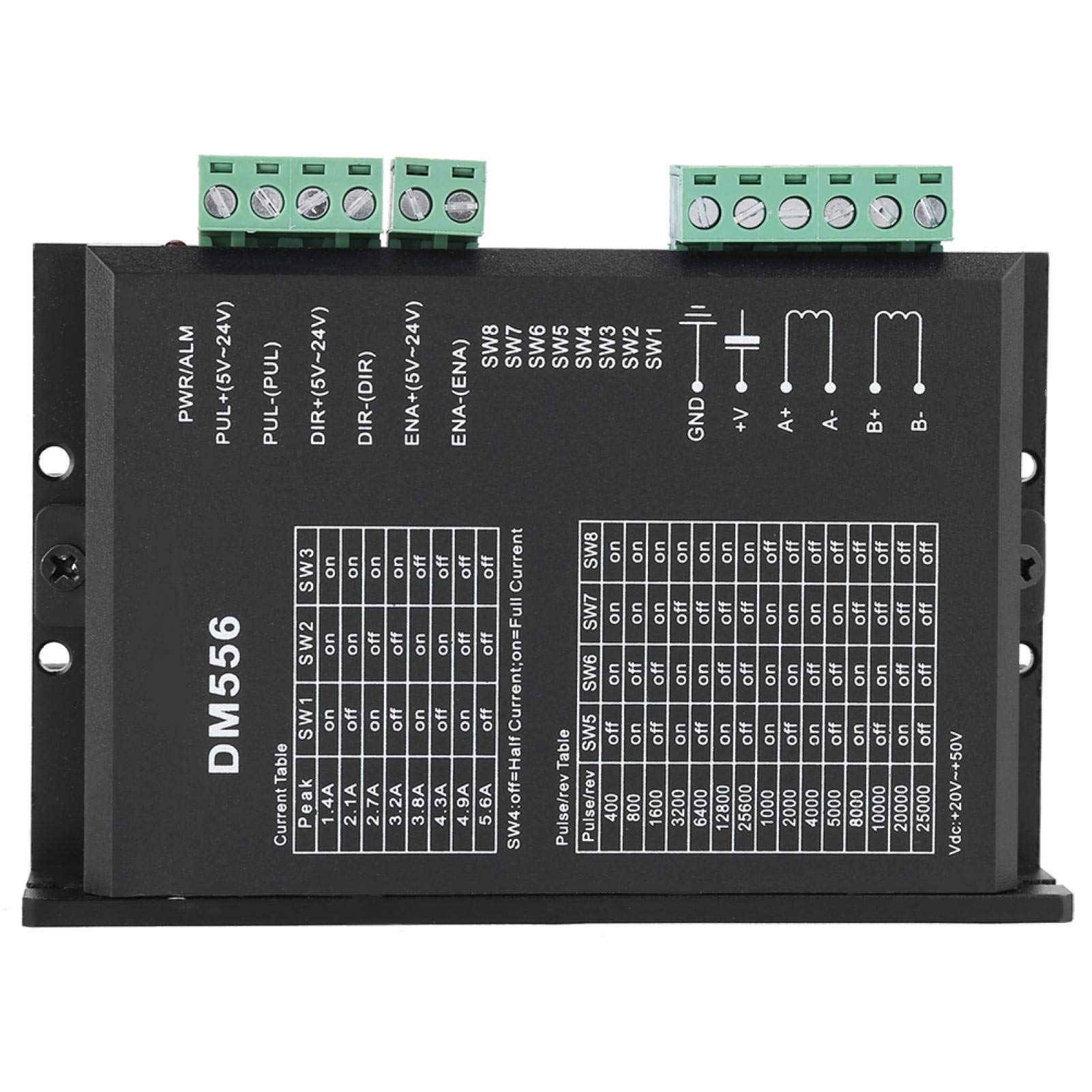

DM556 2-phase Stepper Motor Driver, 42/57 Stepping Motor Driver 24V-50V DC

• 【Adjustable Output Current】: The Motor Driver is designed with 24V-50V DC power supply, and 8 level adjustable output current 1.0A-5.6A.
• 【Bipolar Constant Current】: This Stepping Motor Driver takes bipolar constant current PWM drive output.
• 【Optical Isolation Input The Motor Driver has optical isolation input signal, and pulse response frequency can be up to 200kHz.
• 【Anti Interference Ability】: This Stepping Motor Driver has strong anti-interference capability, which can achieve high precision positioning in complicated environment.
• 【Low Noise Motor Driver】: The Motor Driver has low speed zero vibration, and low noise.

Features: 1. 24V-50V DC power supply, 8 level adjustable output current 1.0A-5.6A. 2. Bipolar constant current PWM drive output. 3. Optical isolation input signal, pulse response frequency up to 200kHz. 4. Strong anti-interference capability, achieve high precision positioning in complicated environment. 5. Low speed zero vibration, and low noise. 6. Fit for 42/57 stepper motor and widely used in automatic packaging machine, engraving machine and other automation equipments.   Specification: Model: DM556 Application: 42/57 stepper motor Input voltage: DC 20-50V Output current: 1.0-5.6A, 8 level adjustable, 0.5A resolution Drive method: Bipolar constant current PWM drive Pulse response frequency: 200kHz(Max) Insulation resistance: >500MΩ Insulation strength: 500V/min Dimensions: 118*75.5*34mm / 4.6*3.0*1.3in Weight: Approx. 270g / 9.5oz   Package list: 1 * Steeper Motor Driver
