DIYmalls BE-220 GPS Receiver Module TTL 10th Chip 115200bps for Arduino FPV Aircraft CC3D Flight Control, Replace BN-220 GPS

• be220 GPS equiped with 10th chip to replace the bn220 gps, more accurate and receiving signal faster.
• Baud Rate: 4800bps to 921600bps, default 115200bps( Remember it is NOT 9600bps).

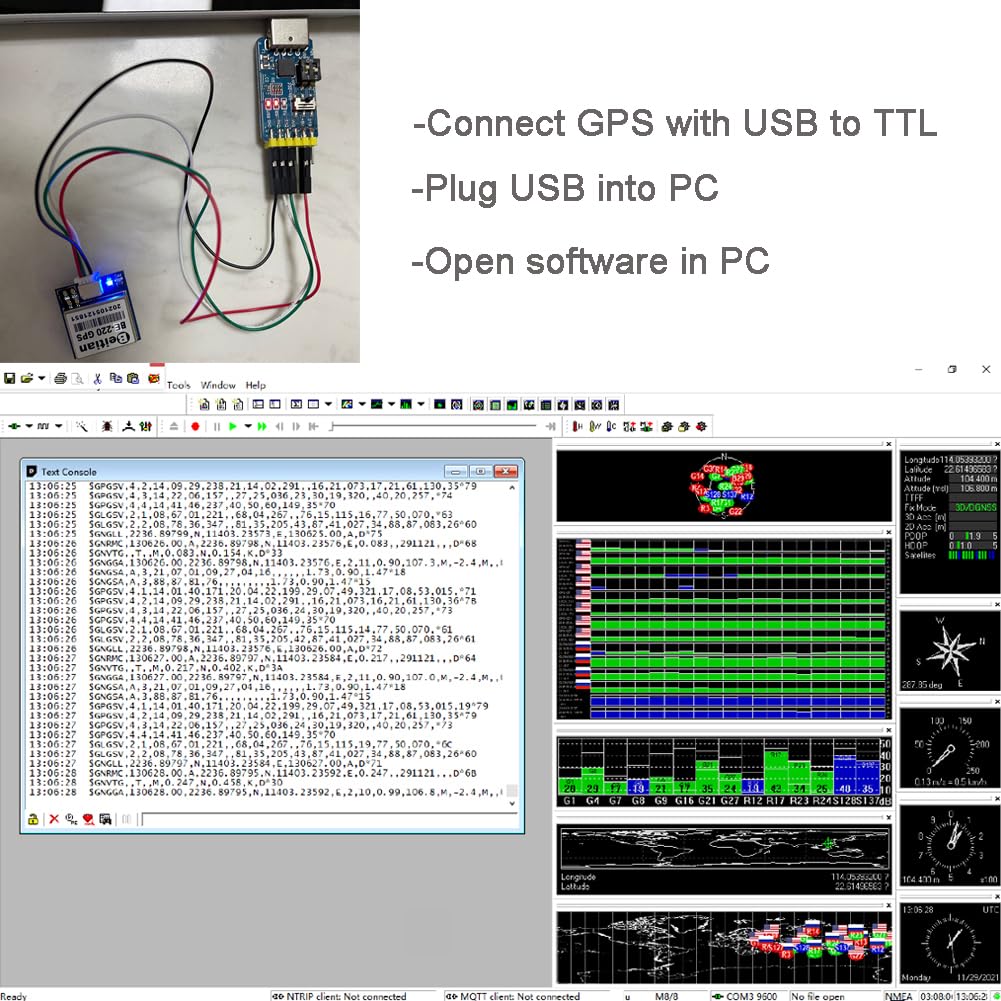

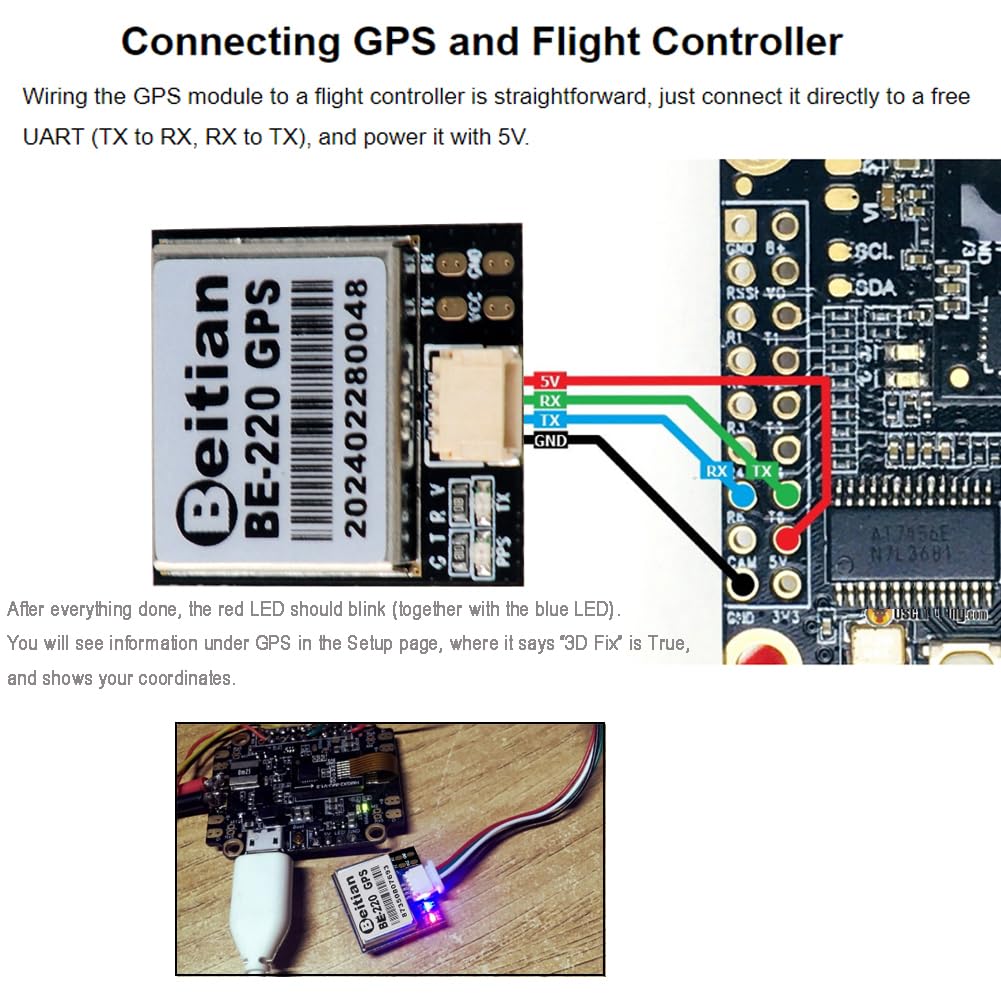

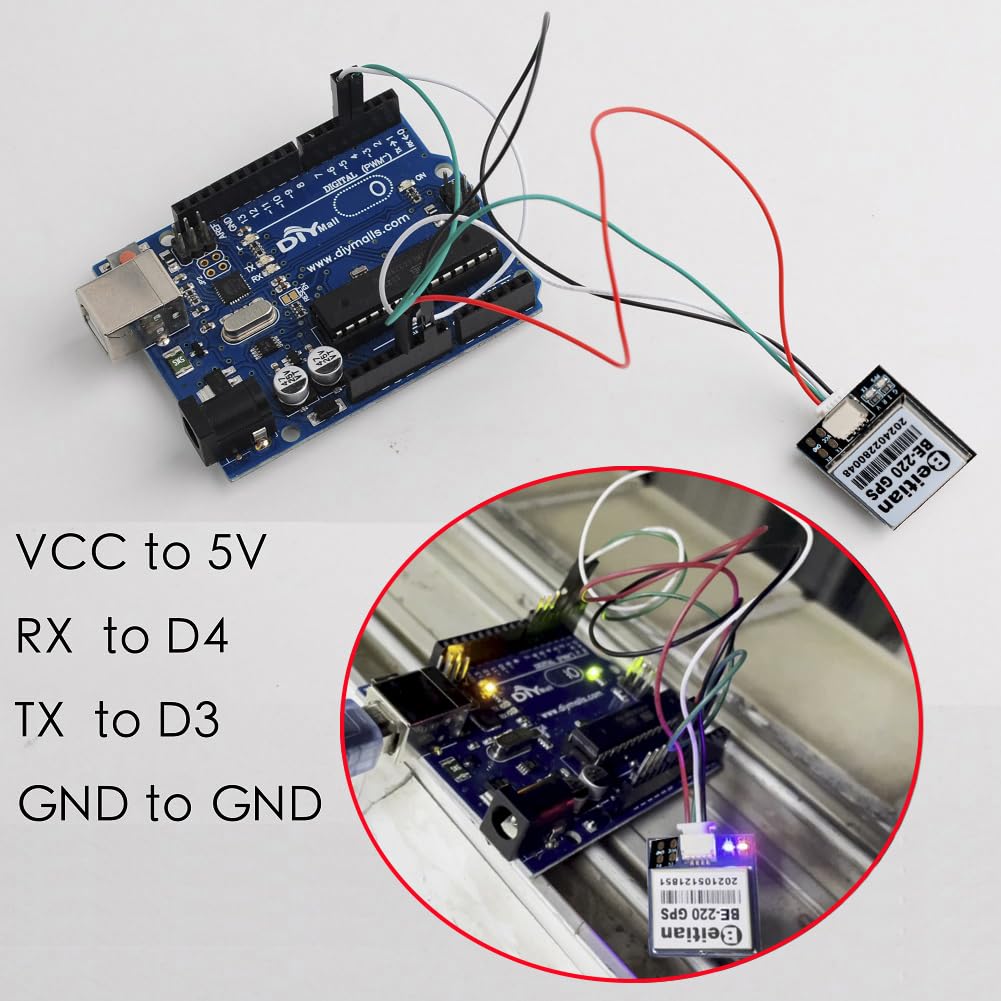

• be 220 module connection with flight control, usb to ttl and develop board: gnd to gnd, tx to rx, rx to tx, vcc to 5v.
• be-220 gps should be used outdoor, and the antenna side facing to the sky.

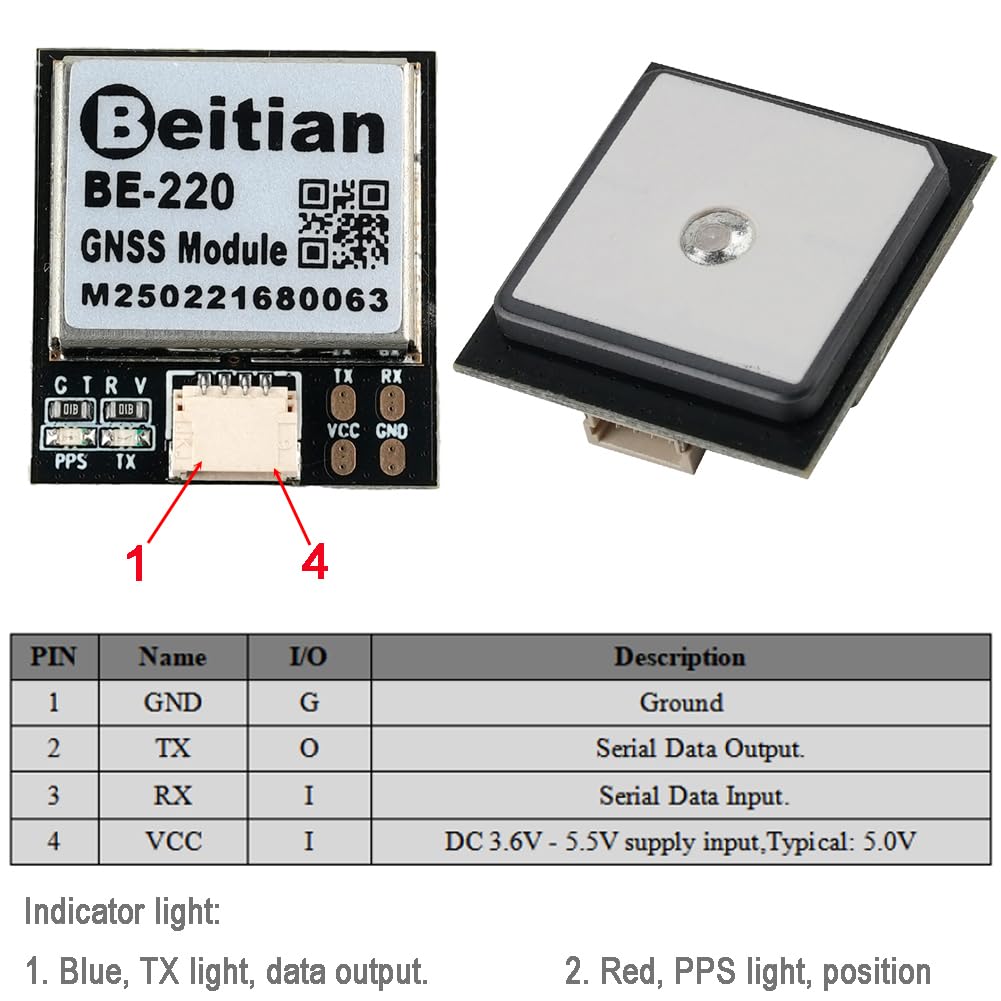

• The blue (TX) light flashes when power on, indicating there is data output.

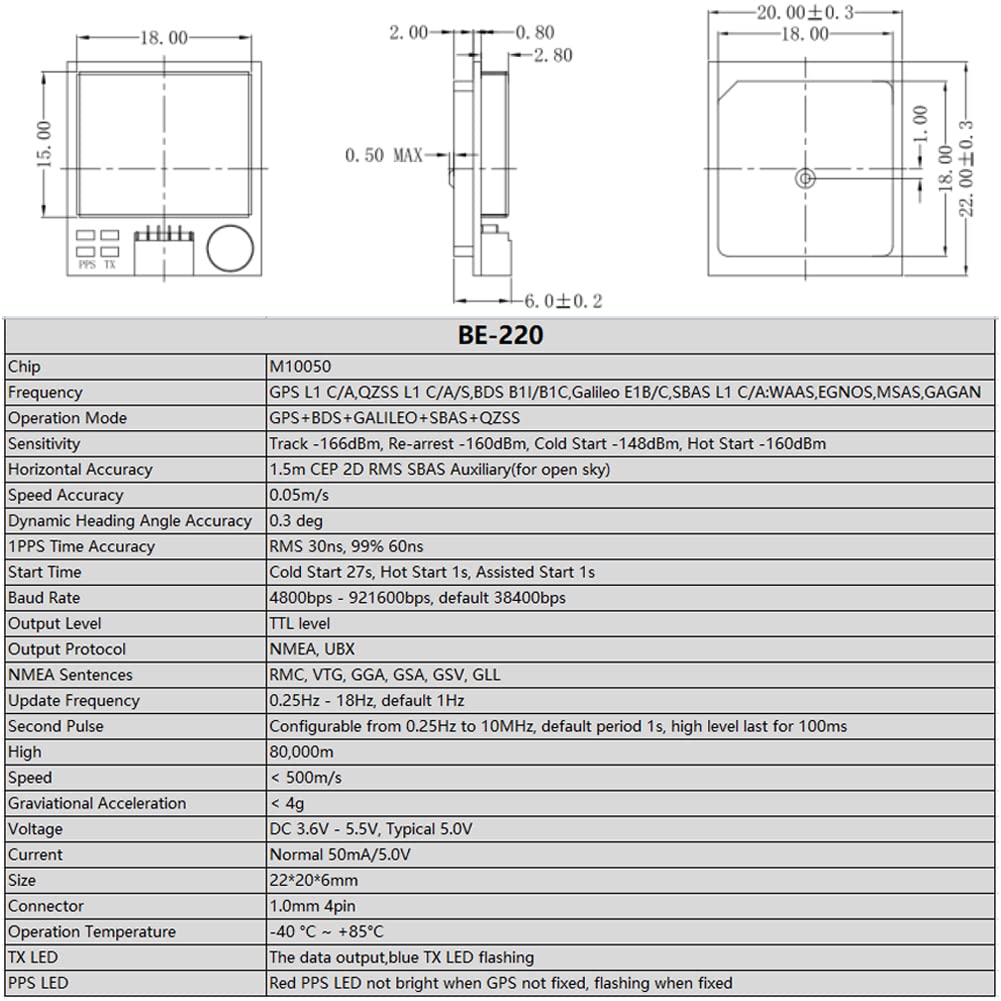

Features Chip: M10050 Frequency: GPS L1 C/A,QZSS L1 C/A/S,BDS B1I/B1C,Galileo E1B/C,SBAS L1 C/A:WAAS,EGNOS,MSAS,GAGAN Operation Mode: GPS+BDS+GALILEO+SBAS+QZSS Sensitivity: Track -166dBm, Re-arrest -160dBm, Cold Start -148dBm, Hot Start -160dBm Horizontal Accuracy: 1.5m CEP 2D RMS SBAS Auxiliary(for open sky) Speed Accuracy: 0.05m/s Dynamic Heading Angle Accuracy: 0.3 deg 1PPS Time Accuracy: RMS 30ns, 99% 60ns Start Time: Cold Start 27s, Hot Start 1s, Assisted Start 1s Baud Rate: 4800bps - 921600bps, default 38400bps Output Level: TTL level Output Protocol: NMEA, UBX NMEA Sentences: RMC, VTG, GGA, GSA, GSV, GLL Update Frequency: 0.25Hz - 18Hz, default 1Hz Second Pulse: Configurable from 0.25Hz to 10MHz, default period 1s, high level last for 100ms Graviational Acceleration: <4g Voltage: DC 3.6V - 5.5V, Typical 5.0V Current: Normal 50mA/5.0V Size: 22*20*6.2mm Connector: 1.0mm 4pin Package Included 1 x BE-220 gps module 3 x cables
