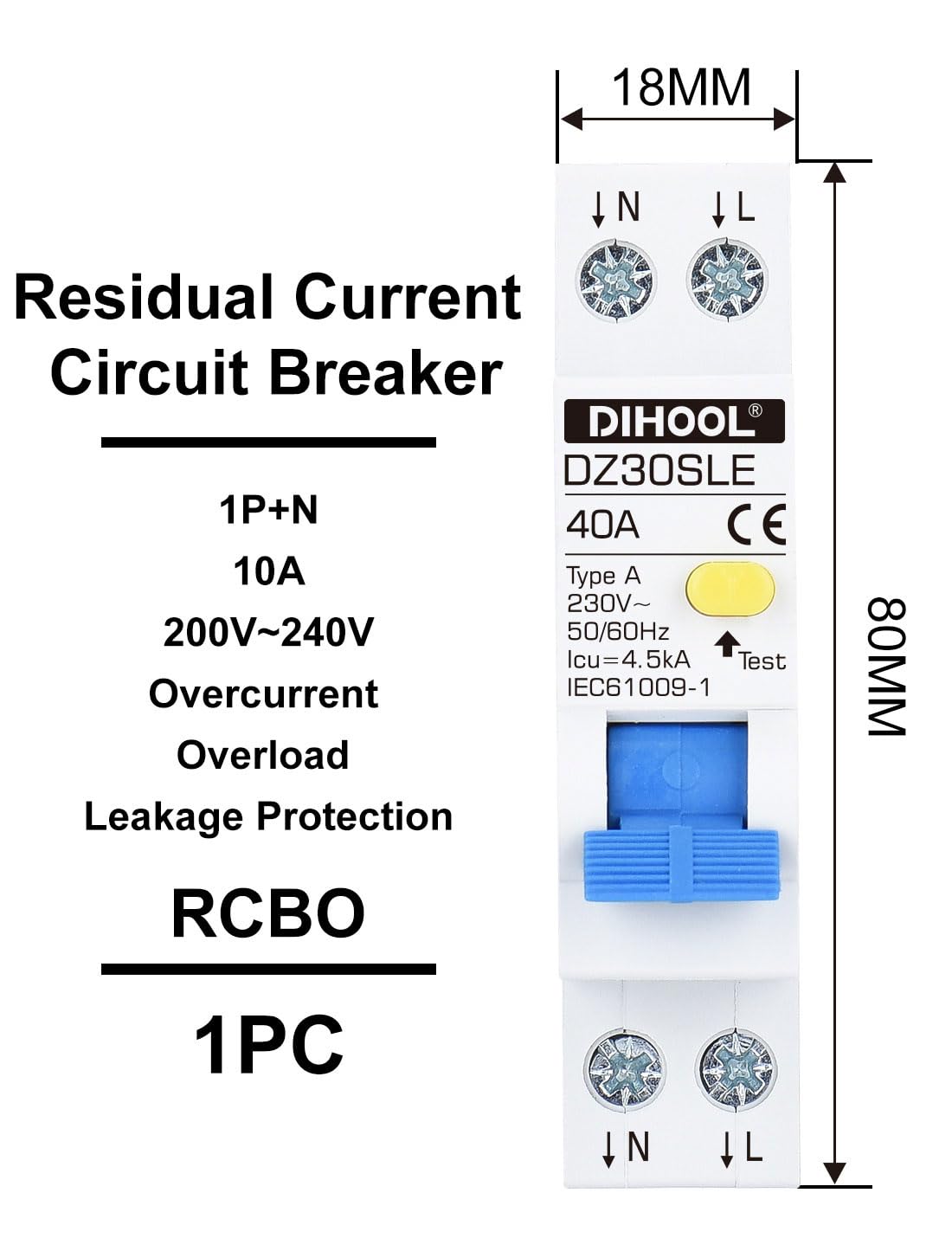

DIHOOL Type a RCBO ELCB RCD 18mm width Circuit Breaker(30mA 2 pole 40A)

• Type A, 30mA Earth leakage protection
• short circuits+leakage protection+Pulsating DC Leakage Protection + AC overload short circuit protection
• Operating test button (T) on front panel
• 18mm Width,little space occup, phase line + neutral line

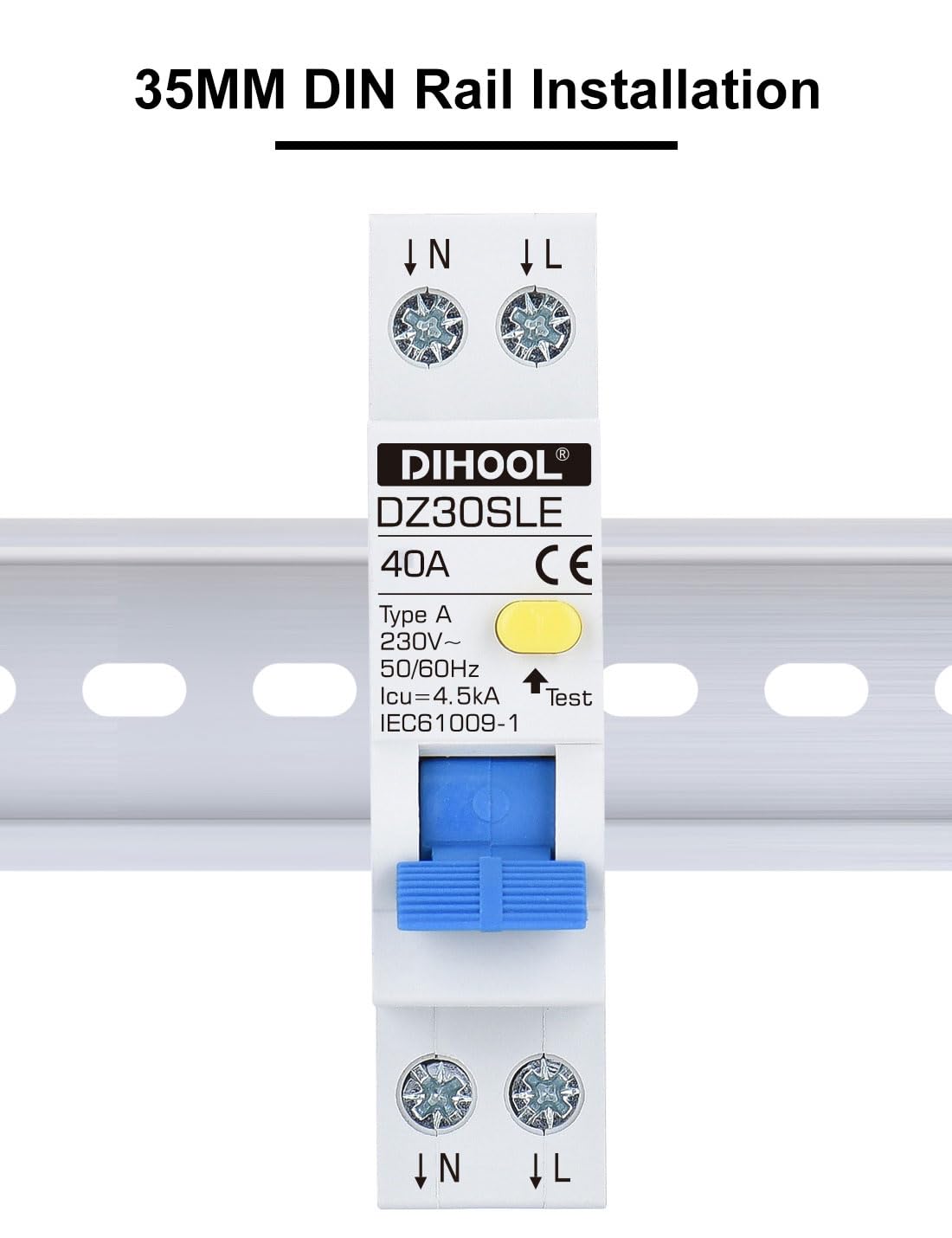

Circuit Breaker, MCB,AC circuit breaker, Mini Circuit Breaker, Miniature Circuit Breaker DZ30SLE-32 (phase line + neutral line+ leakage) protection circuit breaker is suitable for the single-phase residential circuit of 50Hz / 60Hz, rated voltage of 230V, rated current of 40A, to protect leakage, and protect overload and short-circuit of the civil electrical circuit. A TYPE 220V 30mA: For AC 220V~240V Voltage | AC leakage protection + Pulsating DC Leakage Protection | AC overload short circuit protection Pulsating DC leakage protection=AC to DC output Such as DC leakage of battery car charging, Power Supply,telephone charging Specifications Model: DZ30SLE-32 Rated Operating Voltage: 230V AC Poles: 1P+N Rated Current: 32A Product Width: 18MM Working Frequency: 50/60Hz Breaking Capacity: 4.5 kA Trip Curve: C Type Of Leakage Protection: A Rated Residual Operating Current: 30mA Mechanical Life: 20,000 times Electrical Life: 10,000 times Installation Method: in distribution box, power distribution cabinet or box with standard rail (TH35-7.5). Standard: IEC61009-1 / GB16917.1 Operating Temperature -5℃~+40℃ and the daily average temperature does not exceed +35℃ Operating Altitude: ?2000 Meter Features It has short-circuit protection, overload protection, leakage protection.
