DIHOOL MCB Circuit Breaker 1P+N 10A phase line + neutral line Din Rail Mount Isolator

• 1 x MCB Circuit Breaker for DIN Rail Mounting

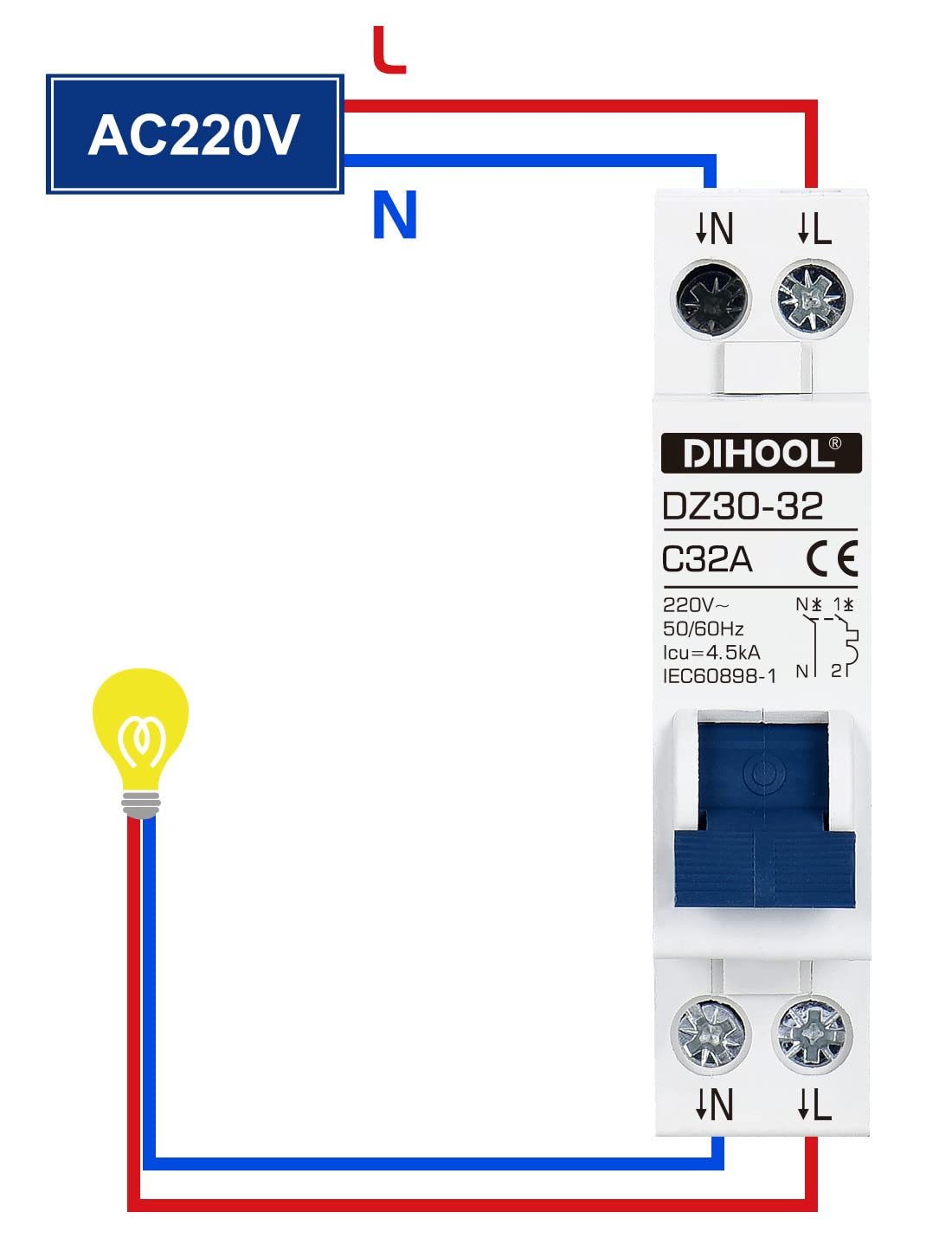

• Miniature circuit breaker can be used to protect the circuit from overcurrent damage caused by overload or short circuit. It can also be used as a switch for AC load circuits.

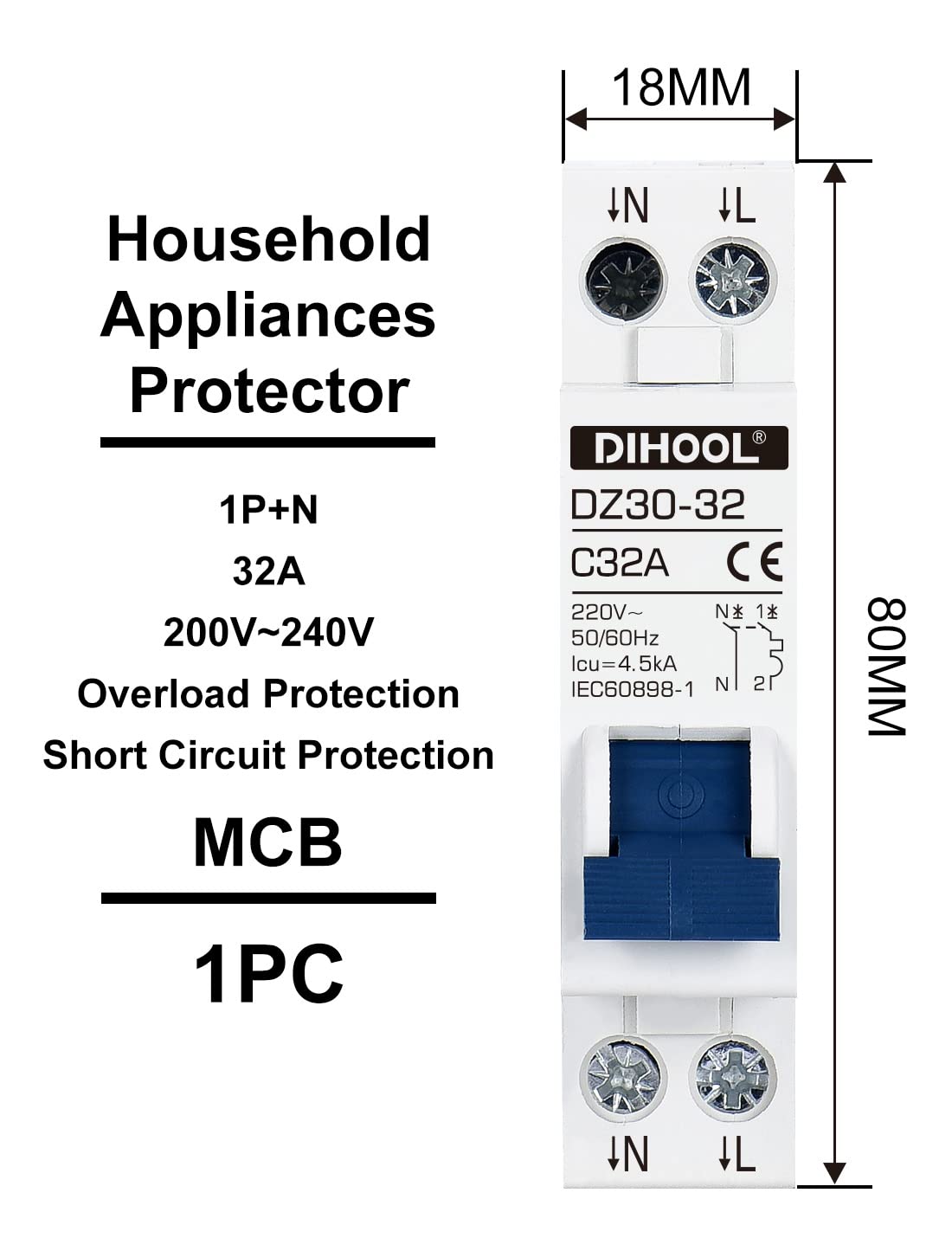

• 18mm Width,little space occup, phase line + neutral line
• The shell is made of PC flame-retardant ; can be used with the circuit breaker of the distribution box.

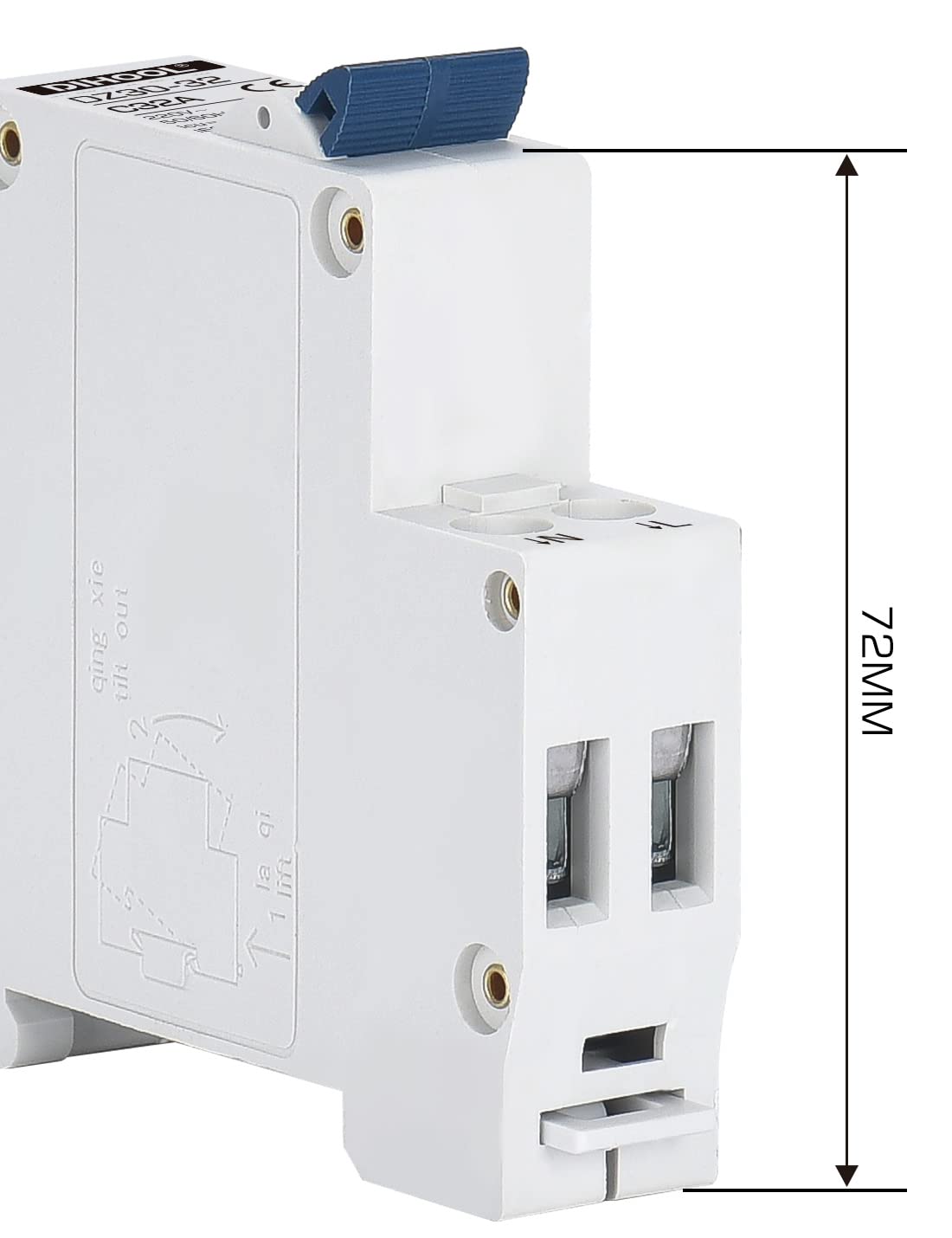

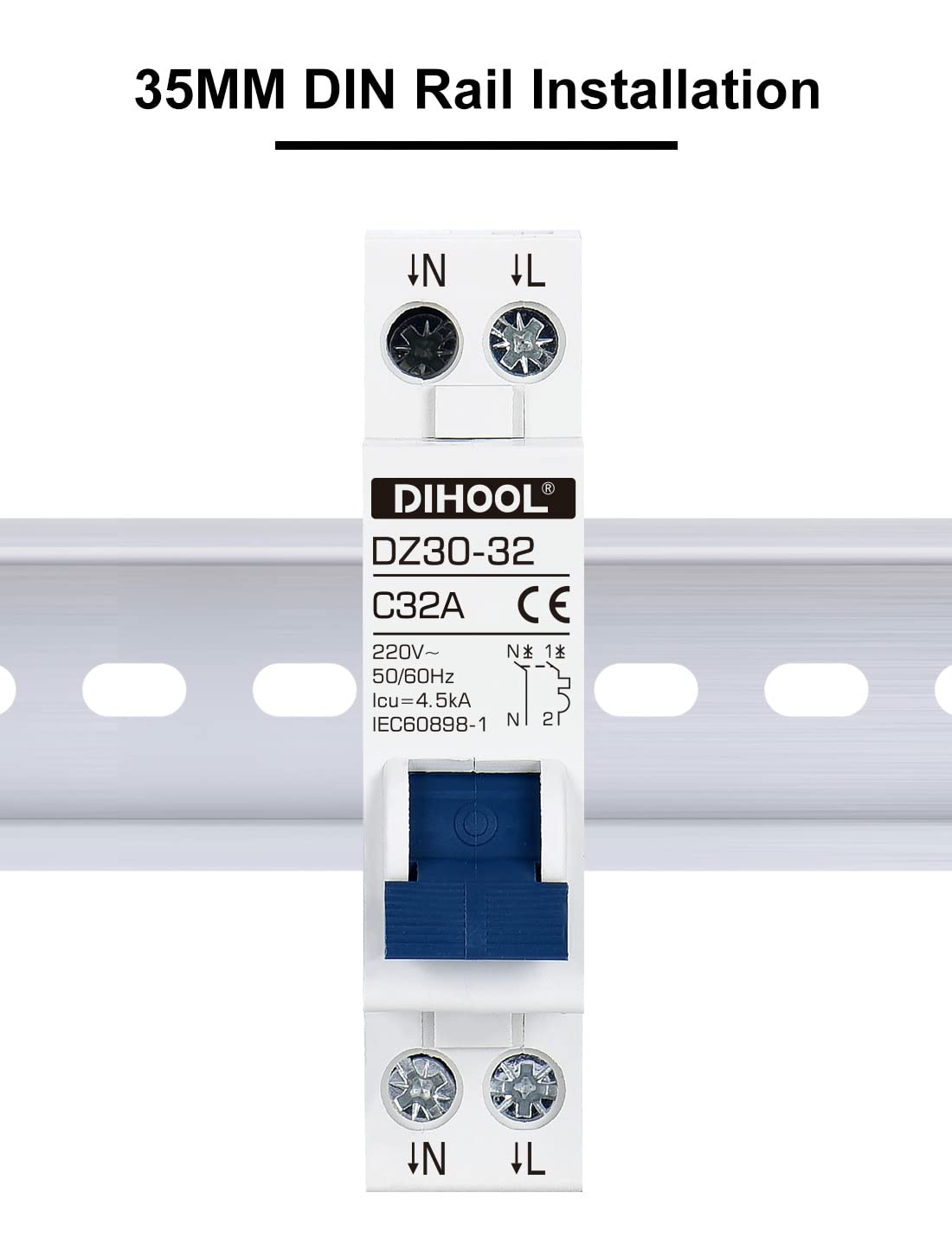

DZ30-32 (phase line + neutral line) protection circuit breaker is suitable for the single-phase residential circuit of 50Hz / 60Hz, rated voltage of 230V, rated current of 32A, to protect overload and short-circuit of the civil electrical circuit. ------ Specifications Model: DZ30-32 Rated Operating Voltage: 230V AC Poles: 1P+N Rated Current: 10A 16A 20A 25A 32A Product Width: 18MM Working Frequency: 50/60Hz Breaking Capacity: 4.5 kA Trip Curve: C Mechanical Life: 20,000 times Electrical Life: 10,000 times Installation Method: in distribution box, power distribution cabinet or box with standard rail (TH35-7.5). Standard: IEC60898-1 Operating Temperature-5℃~+40℃，and the daily average temperature does not exceed +35℃ Operating Altitude: ＜2000 Meter ------ Features Rated Current: 10A Product Size: 18MM x 72MM x 80 MM It has short-circuit protection, overload protection, leakage protection.
