Digitalkey Hat Board VGA666 for Raspberry Pi to VGA Monitor

• Hat Board for Raspberry Pi and VGA Monitor
• Hat plug & play, no external power supply or soldering to board
• Compatible with all raspberry Pi
• International products have separate terms, are sold from abroad and may differ from local products, including fit, age ratings, and language of product, labeling or instructions.

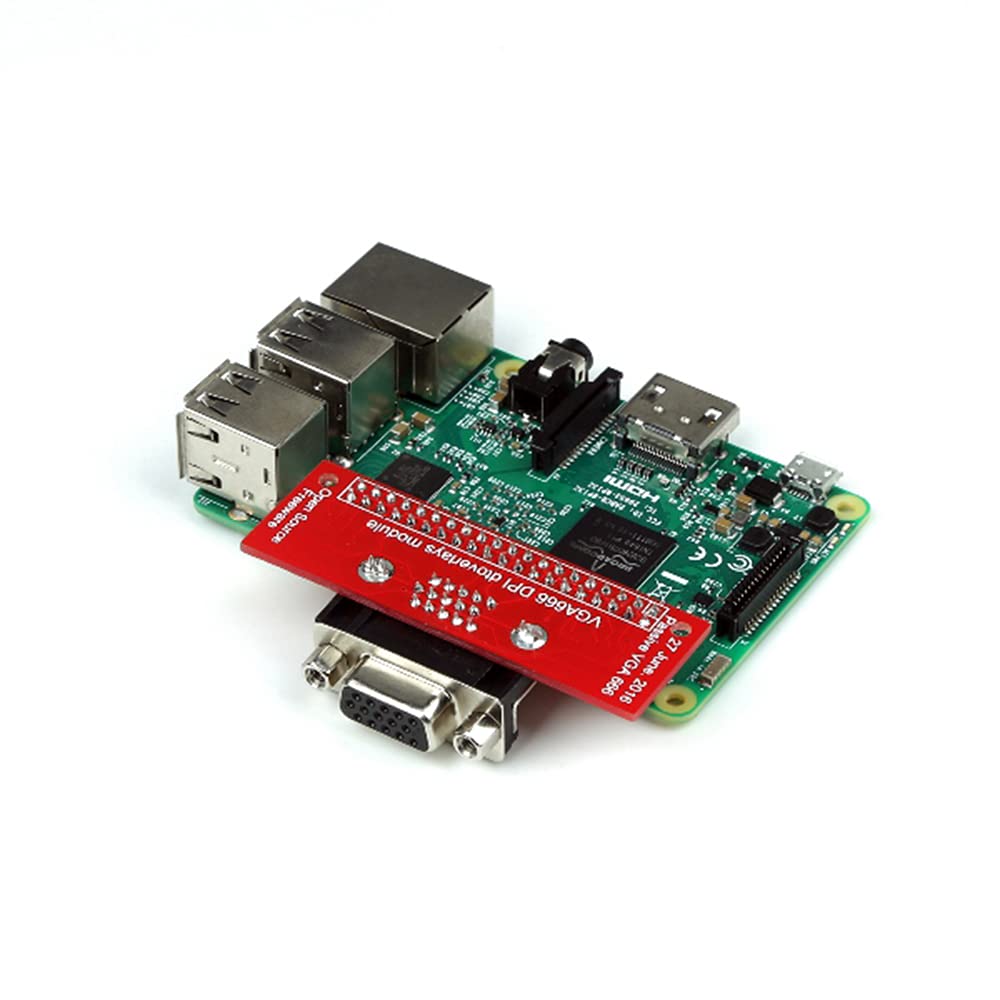

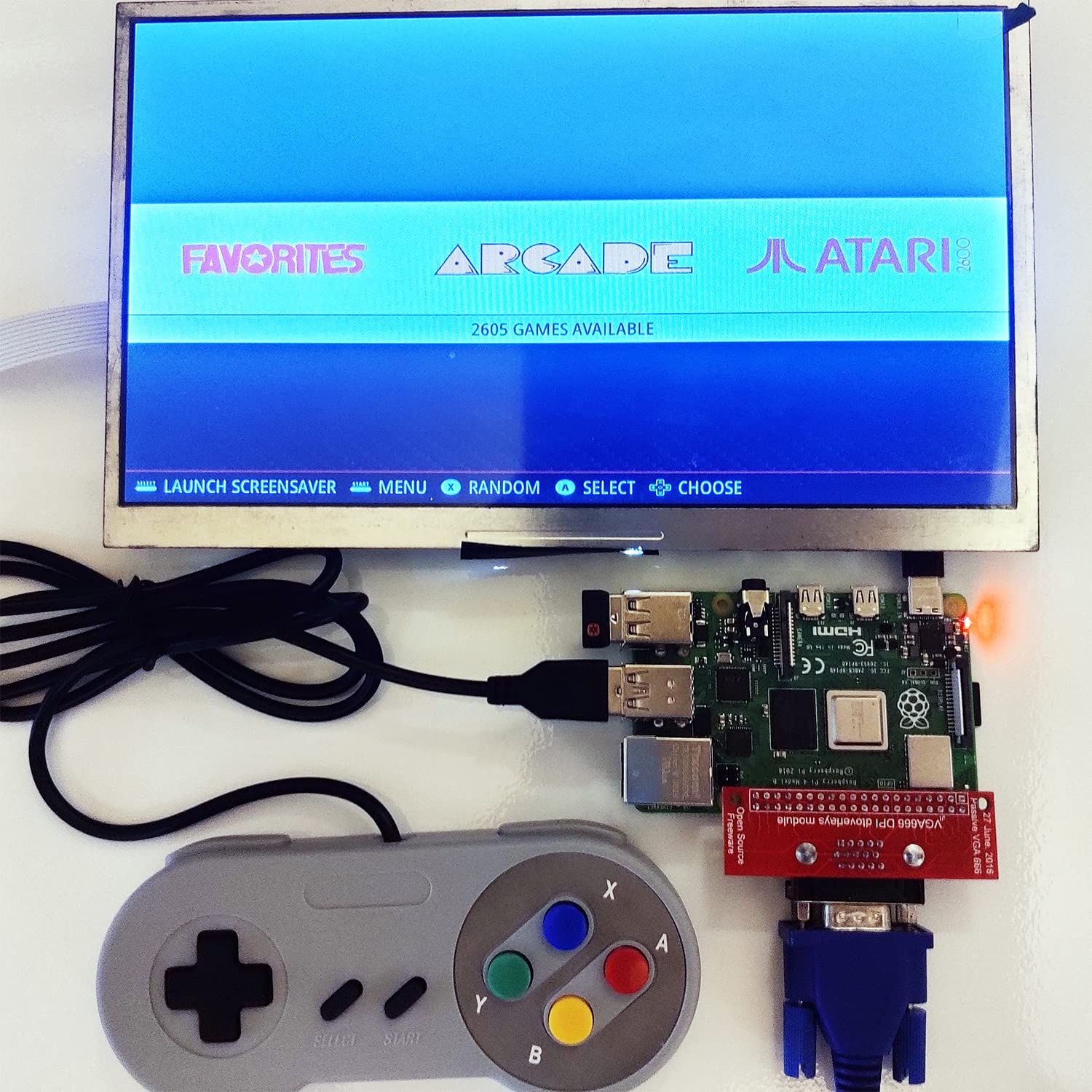

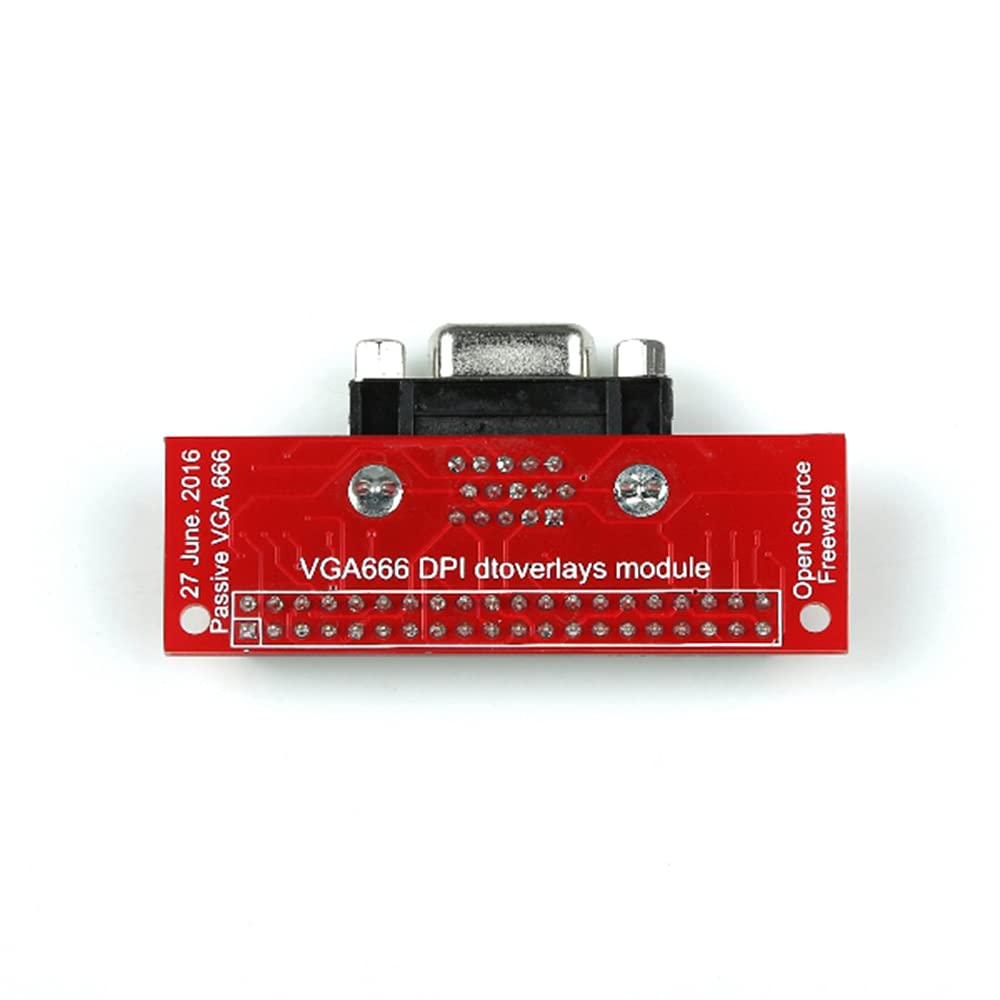

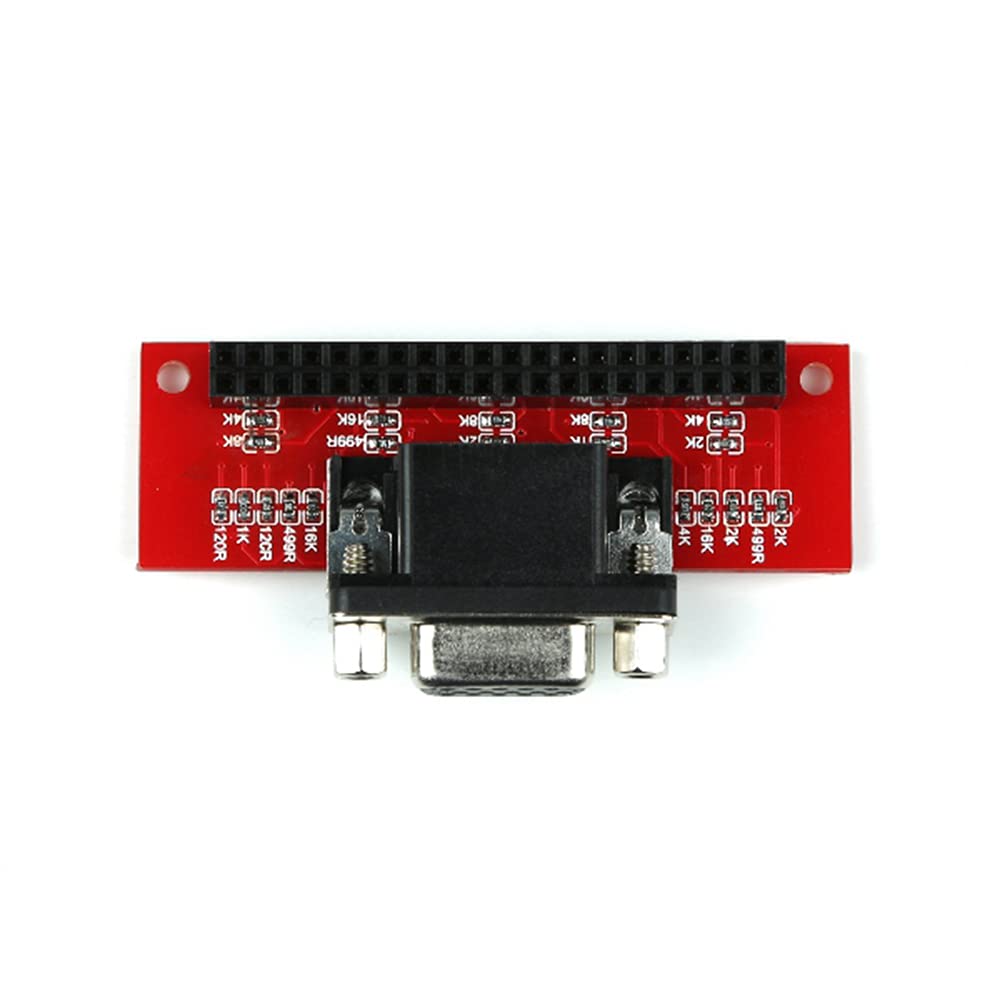

Hat card to connect a Raspberry to a VGA monitor The card mounts directly to the Raspberry's GPIOs, with no additional power or connection required. All Raspberry have one or more HDMI ports, with this card you can directly connect a VGA monitor, useful for Retrogaming or other solutions. Compatible with the following Raspberry: Raspberry Pi 4 Model B Raspberry Pi 3 Model B Plus raspberry pi zero Raspberry Pi Zero W Raspberry Pi 3 Model B Raspberry Pi 2 Model B Raspberry Pi Model B+ Operating System Configuration: For the VGA 666 card to work correctly SPI and I2C must be disabled These instructions have been provided specifically for Raspbian but should apply to most operating systems. Edit the config file and add these lines at the bottom of the file: sudo nano /boot/config.txt For Raspberry Pi 4B framebuffer_width=800 framebuffer_height=600 dpi_group=2 dpi_mode=24 dtparam=i2c_arm=off dtparam=spi=off dtparam=uart0=off dtparam=uart1=off dtoverlay=pi3-disable-bt-overlay dtoverlay=vga666 enable_dpi_lcd=1 display_default_lcd=1 force_pwm_open=0 dtparam=audio=on start_x=1 gpu_mem=128 For Raspberry Pi Zero/Zero W/2B/3B/3B+ framebuffer_width=800 framebuffer_height=600 dpi_group=2 dpi_mode=86 dtparam=i2c_arm=off dtparam=spi=off dtparam=uart0=off dtparam=uart1=off dtoverlay=pi3-disable-bt-overlay dtoverlay=vga666 enable_dpi_lcd=1 display_default_lcd=1 force_pwm_open=0 dtparam=audio=on start_x=1 gpu_mem=128 For other resolutions check this link: https://www.raspberrypi.org/documentation/configuration/config-txt/video.md
