Digitalkey VGA to CGA CVBS S-VIDEO Conversion Board for CRT and LCD

• 15KHz VGA to CRT Signal Conversion Card
• Present 4 different video outputs
• 5 pin CRT cable + power supply
• Guaranteed billing and assistance - 10 years of Italian experience by Digitalkey.it

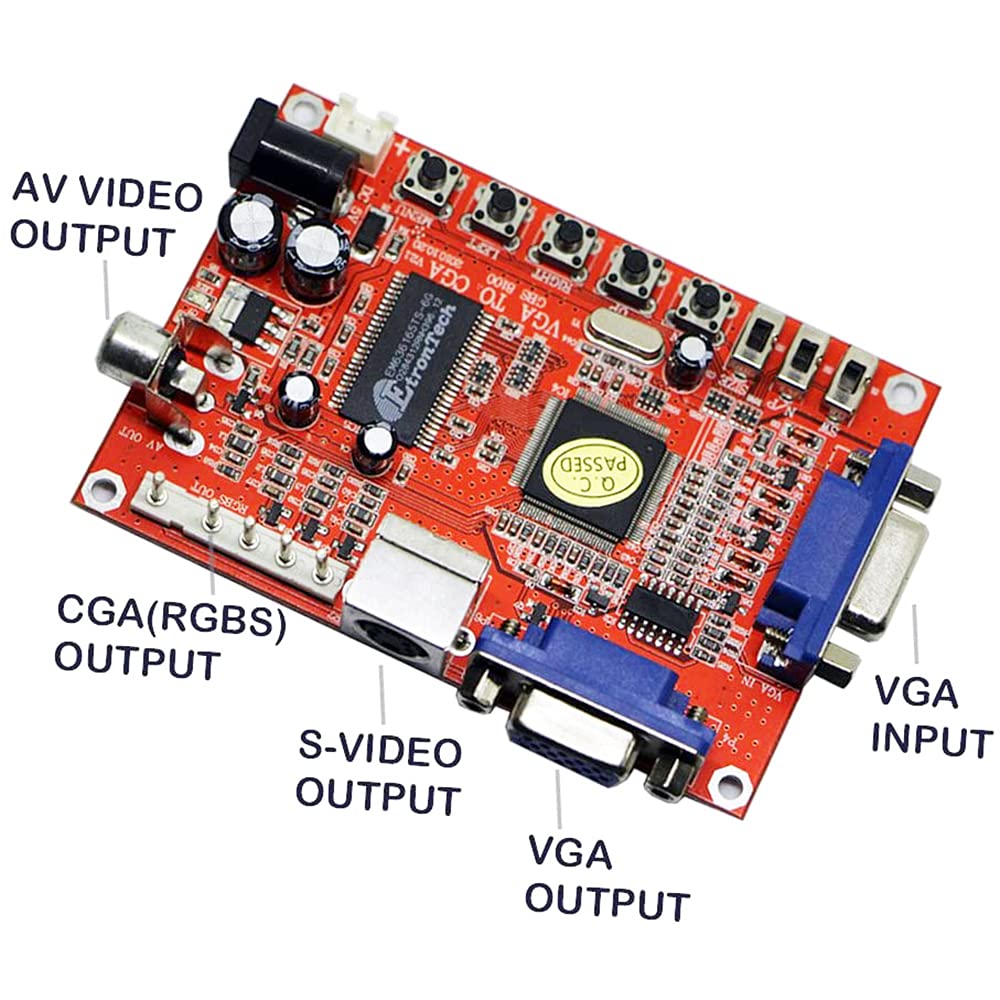

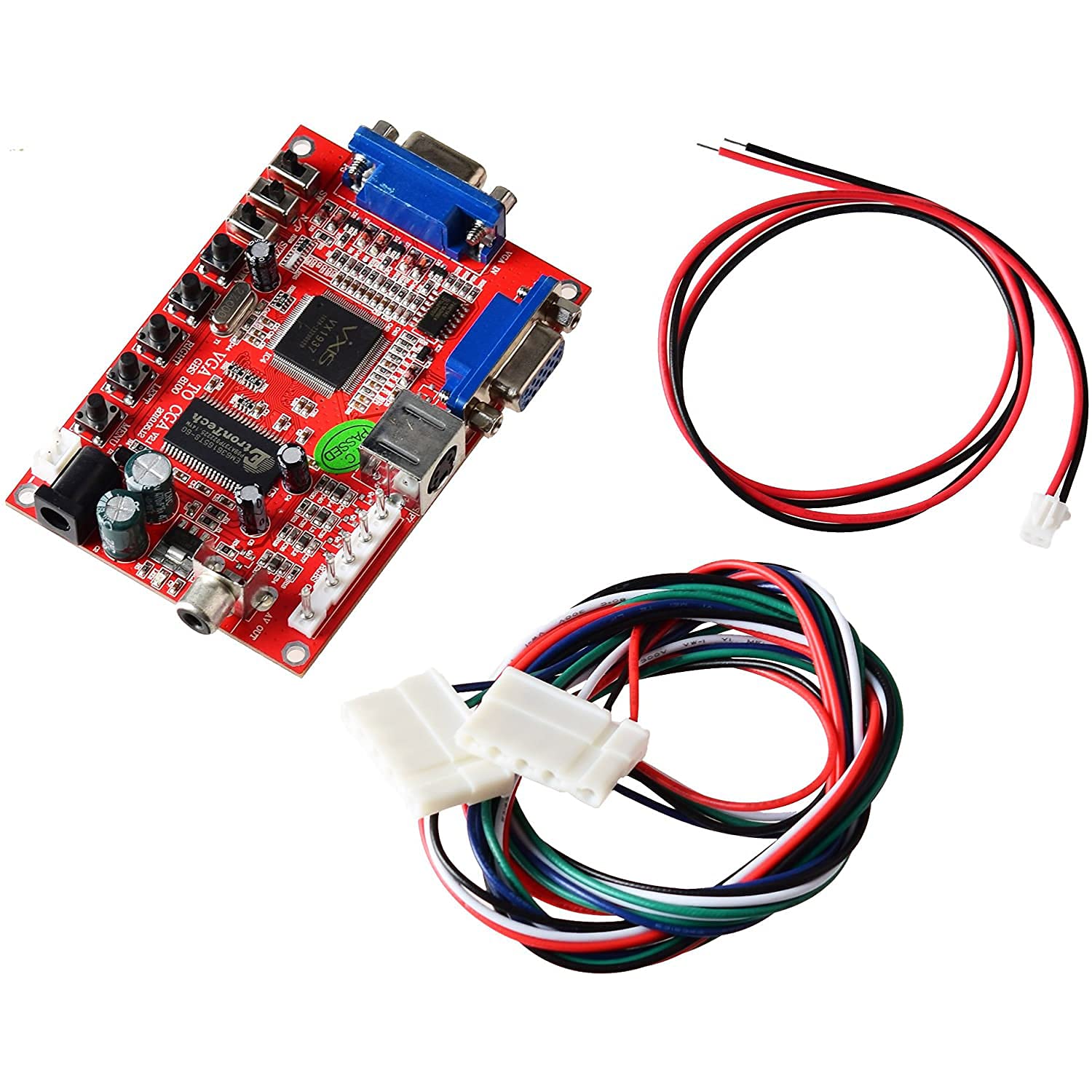

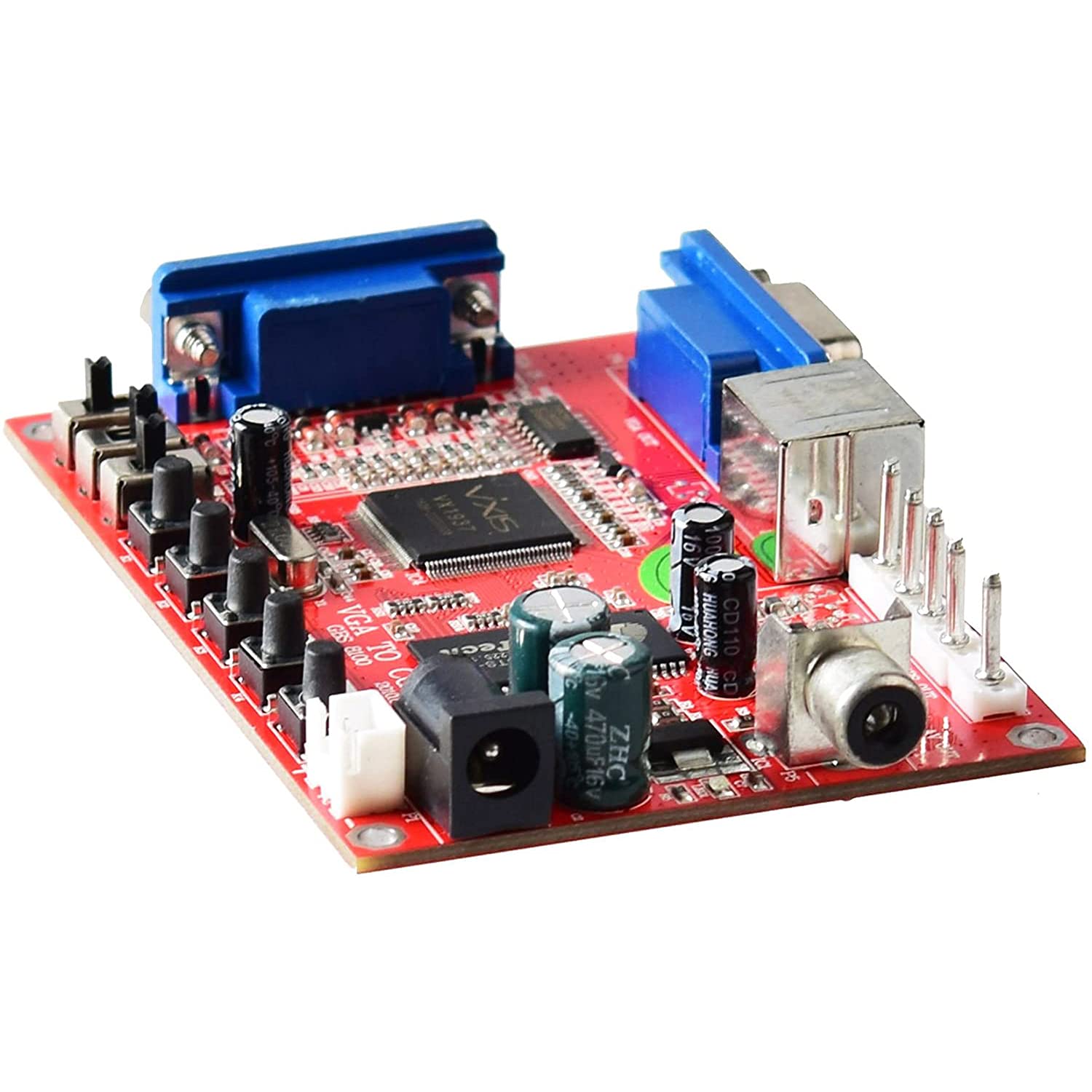

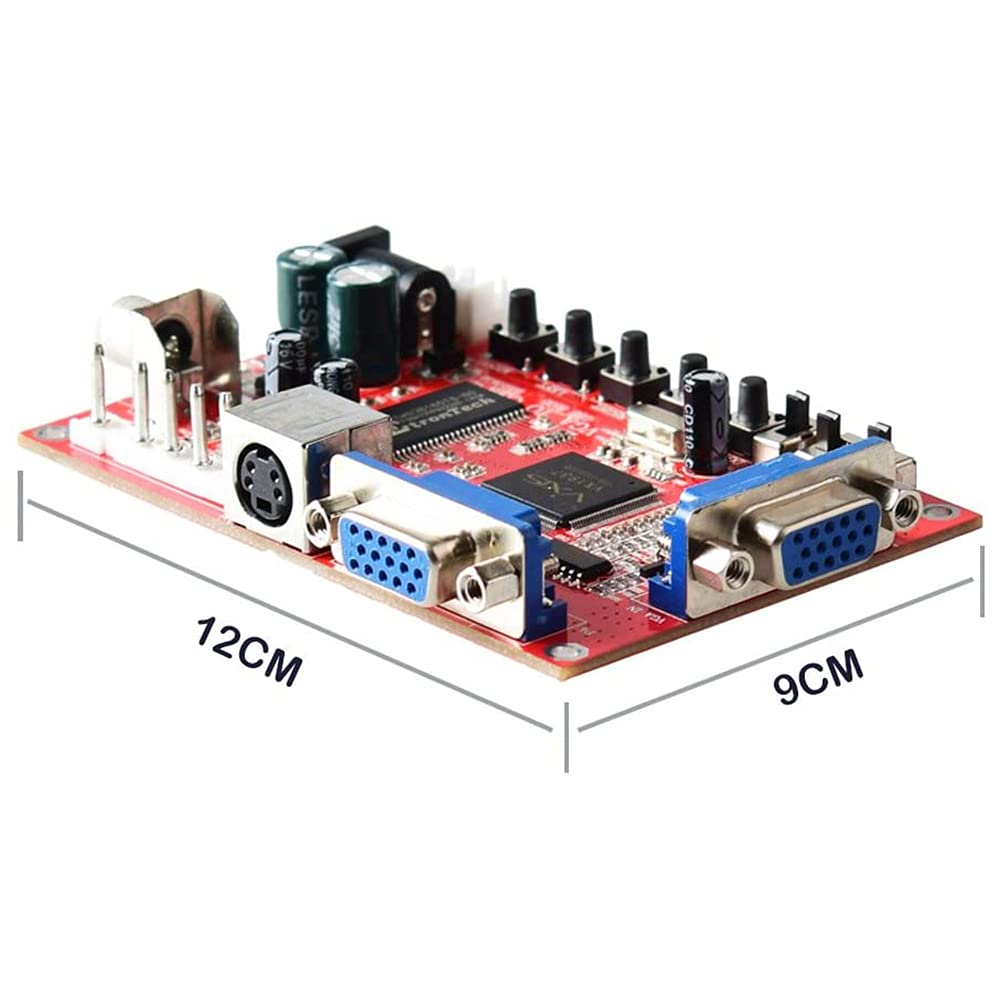

VGA to CRT Video Signal Conversion Card 15 Khz This board is the solution to connect a PC to a CRT monitor, where resolutions and frequencies change given the different technologies in use. There are a variety of adjustable parameters, support for PAL and NTSC formats Interfaces present: Input power supply 5V IN (P1, P2): choose one of two inputs, "+" pole connected to power input + 5V DC, mass corresponding to pole "-". VGA IN (P3) VGA Input: Connect VGA signal source (such as VGA port for HD games or VGA port) VGA OUT (P4) VGA output: connect the VGA display device, like an LCD monitor. VIDEO OUT (P5) Video Output: Connect to a TV or other video display device. S-VIDEO OUT (P6) Terminal S output: connected to TV or other SVideo display device. RGBS (CGA) OUT CGA signal output: then scan the card. Switches Present: (S1) - PAL / NTSC switch - Output mode switch: PAL and NTSC (ON is NTSC, OFF is PAL) (S2) - S_VIDEO / RGBS switch - Output switch: ON is the RGBS output, OFF is the output of the S terminal (S3) - SIZE switch - Output screen magnification, the default is the full screen (zoom out). Adjustment Commands MENU menu button (K5)—Press to access the menu option. UP/DOWN (K4 / K3) - Does not access the MENU for adjusting the position of the upper and lower image - Enter the MENU for choosing options select LEFT / RIGHT (K2 / K1) Adjust the position of the left and right image when not accessing the menu and selecting the increase and decrease options when accessing the menu. Product Specifications: 1: Input power: DC 5V/1A 2: Support signal format
