Digital Timer Switch Fused Spur Wall Controller For Electric Towel Rail Radiators Timeswitch

• Companyblue Digital Fused Spur Timer Wall Controller For Electric Towel Rail Radiators
• Ideal for immersion heaters, room heaters, towel rails and lighting
• Replaces existing single gang connection unit or fixed appliance outlets. box min. 25mm deep.
• 7 Day fused spur timer - Suitable for Single Heat, GT or MEG elements

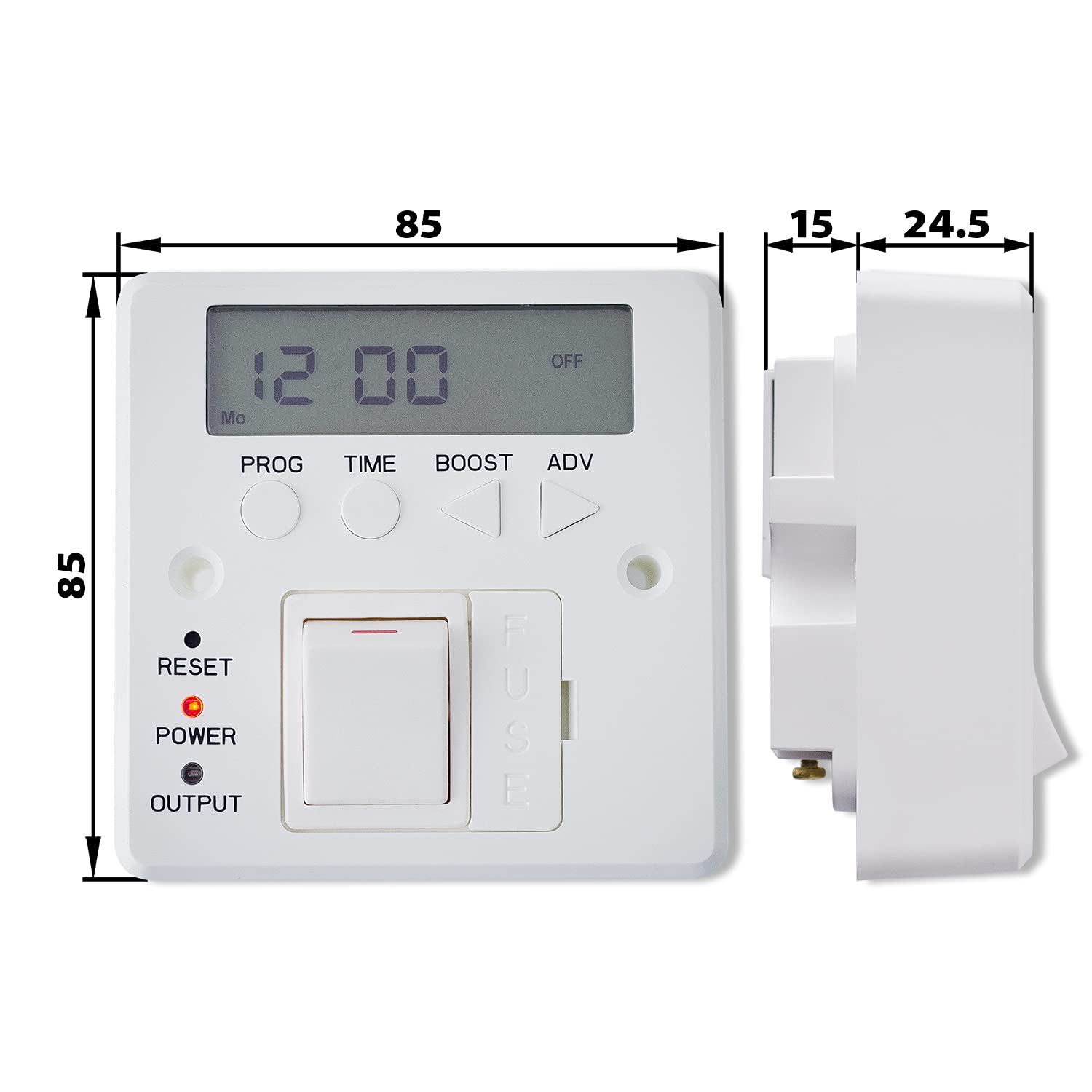

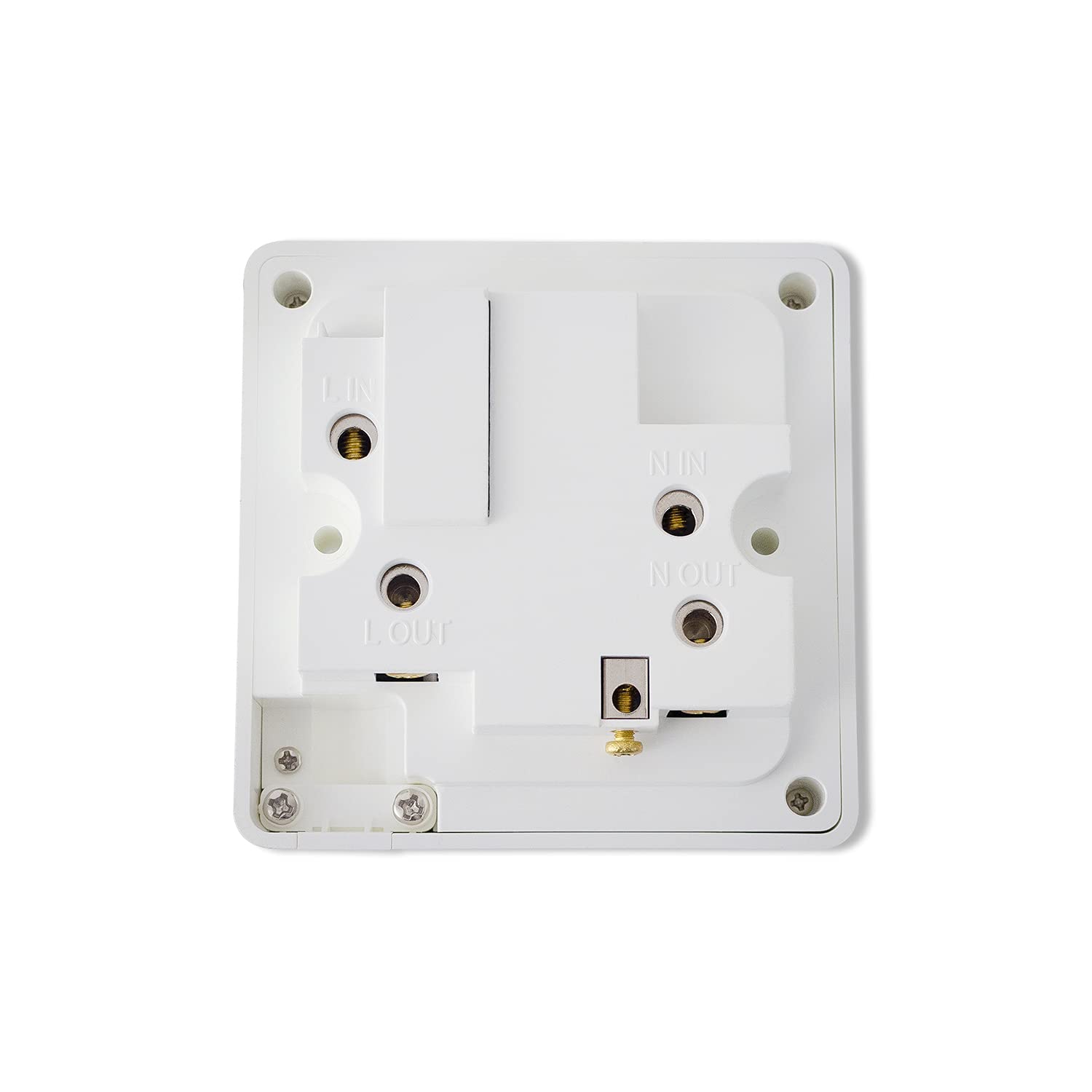

Companyblue Digital Timer Fused Spur Wall Controller For Electric Towel Rail Radiators Suitable for Single Heat, GT or MEG elements Switched fused spur with programmable timer with display, 1 or 2 hour boost function, override facility and summer/winter time auto-adjustment. CE Certified, 7 Day fused spur timer Patress box mounting Double-pole isolation Fits 25mm back box Internally-linked mains switching 200 Hour running reserve The CB-WCONT-TMR is a digital fused-spur time switch. The timer is suitable for patress box mounting. The 7 day programming logic controls a mains-linked switch, with a resistive rating of 13 amperes. There is an inbuilt re-chargeable cell to keep the timer running in the event of a loss of mains power. The output can be disconnected by an integrated double-pole isolator switch; the load is protected by a replaceable BS1362 13 Ampere cartridge fuse, within a removable caddy. Dimensions: 85 x 85 x 24.5 (see drawing below) Connections: 4 x wire-protect screw terminals Weight: 150g Power consumption: 1VA @ 230v 50hz Resistive load: 13 Amperes Inductive load: 2 Amperes (cos ø 0.6) Minimum load: 100mA @ 20v ac/dc Runnning reserve: 200 Hours Temperature rating: -20T55 Accuracy quartz regulated: (typically /- 2.5 sec / day) Minimum switching period: 1 minute Programme capacity: 7 Day, 5 Day (Week day only), 2 Day (Weekend only), Individual times per day.(Up to 4 x ON/OFF switch timings
