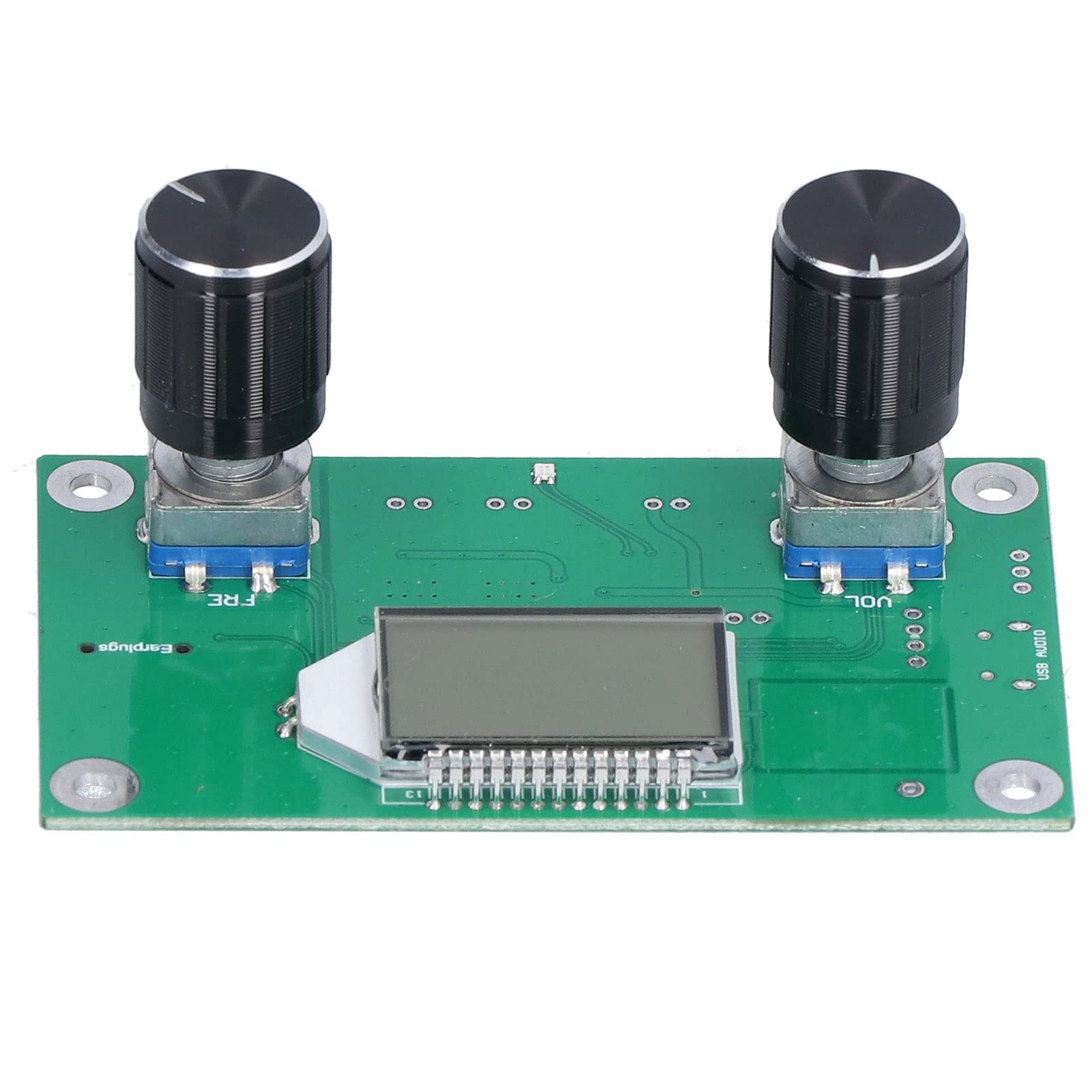

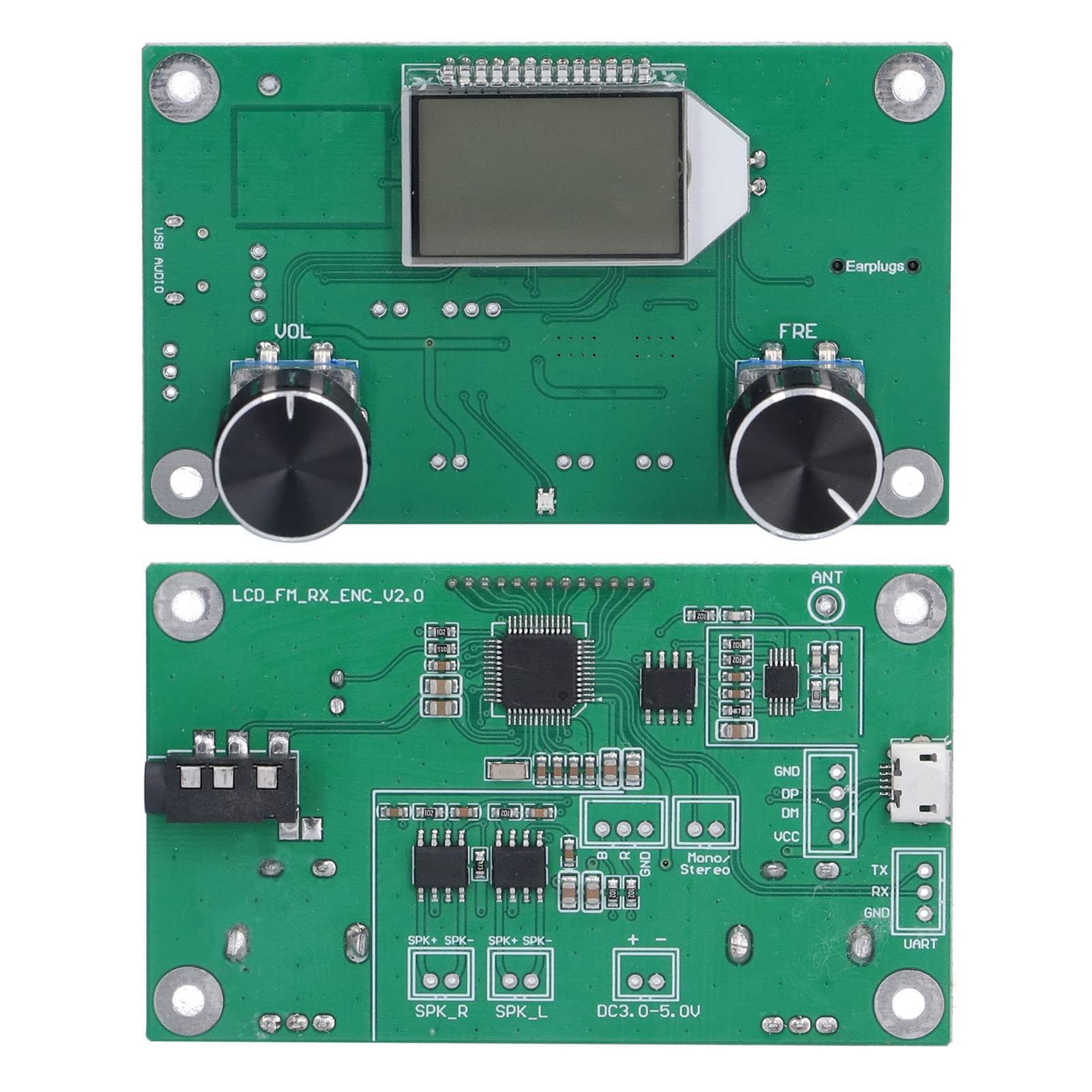

Tissting FM Receiver Control Module, Digital Radio Receiver Module Intelligent Fm Stereo Receiver Digital Radio Circuit Board Module with LCD Display 50Hz‑18KHz

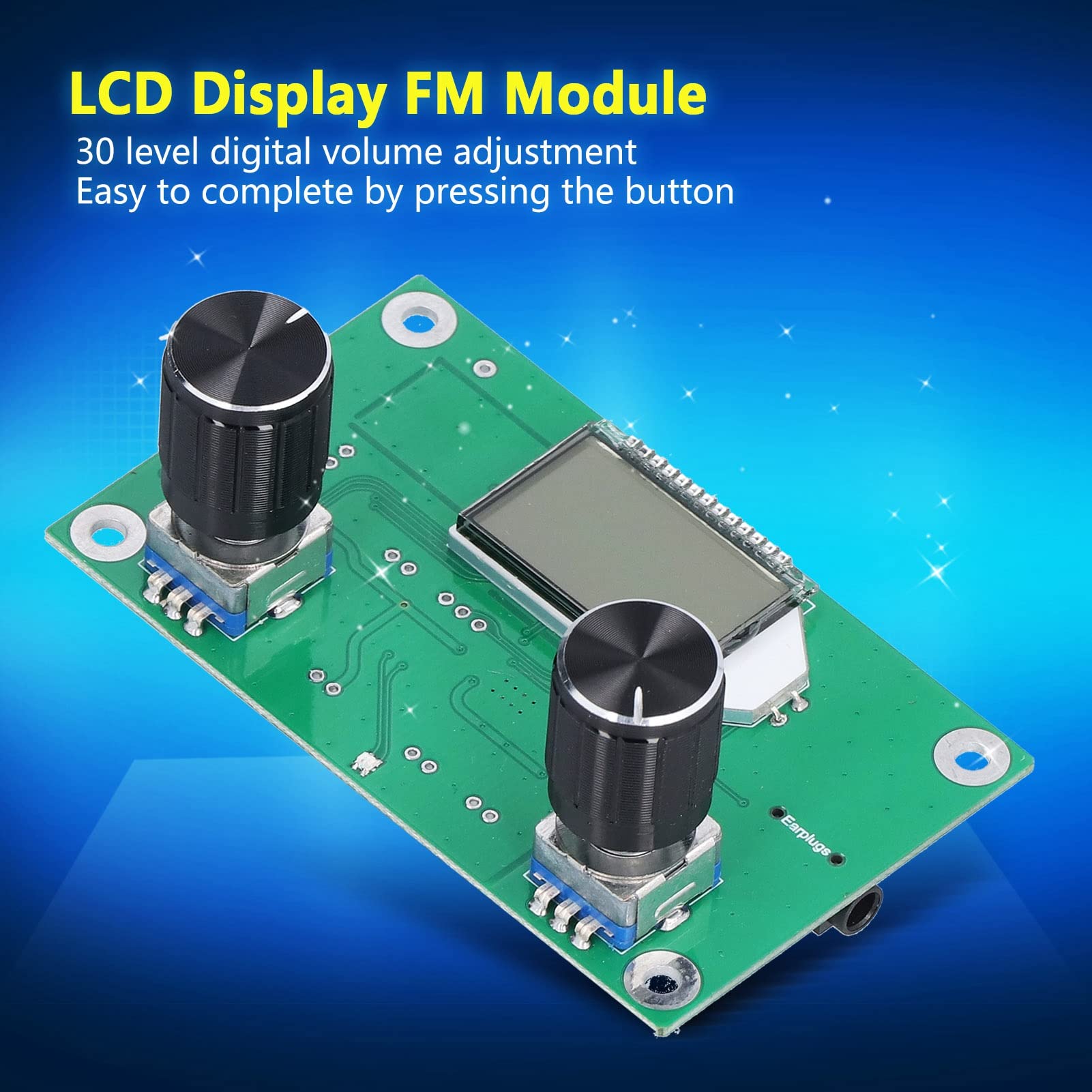

• POWERFUL FUNCTION: This radio circuit board has 30 levels of digital volume adjustment, you only need to press the button to easily adjust. It can automatically store data before the power is off, the speaker and earphone output can be automatically switched, powerful and easy to operate.
• SUPERB CRAFTSMANSHIP: The high-performance circuit board adopts advanced digital audio signal processing technology and FM phase-locked loop modulation technology, which can effectively reduce the impact of noise, make the sound quality more realistics, the output more stable, and give you a more comfortable listening experience.

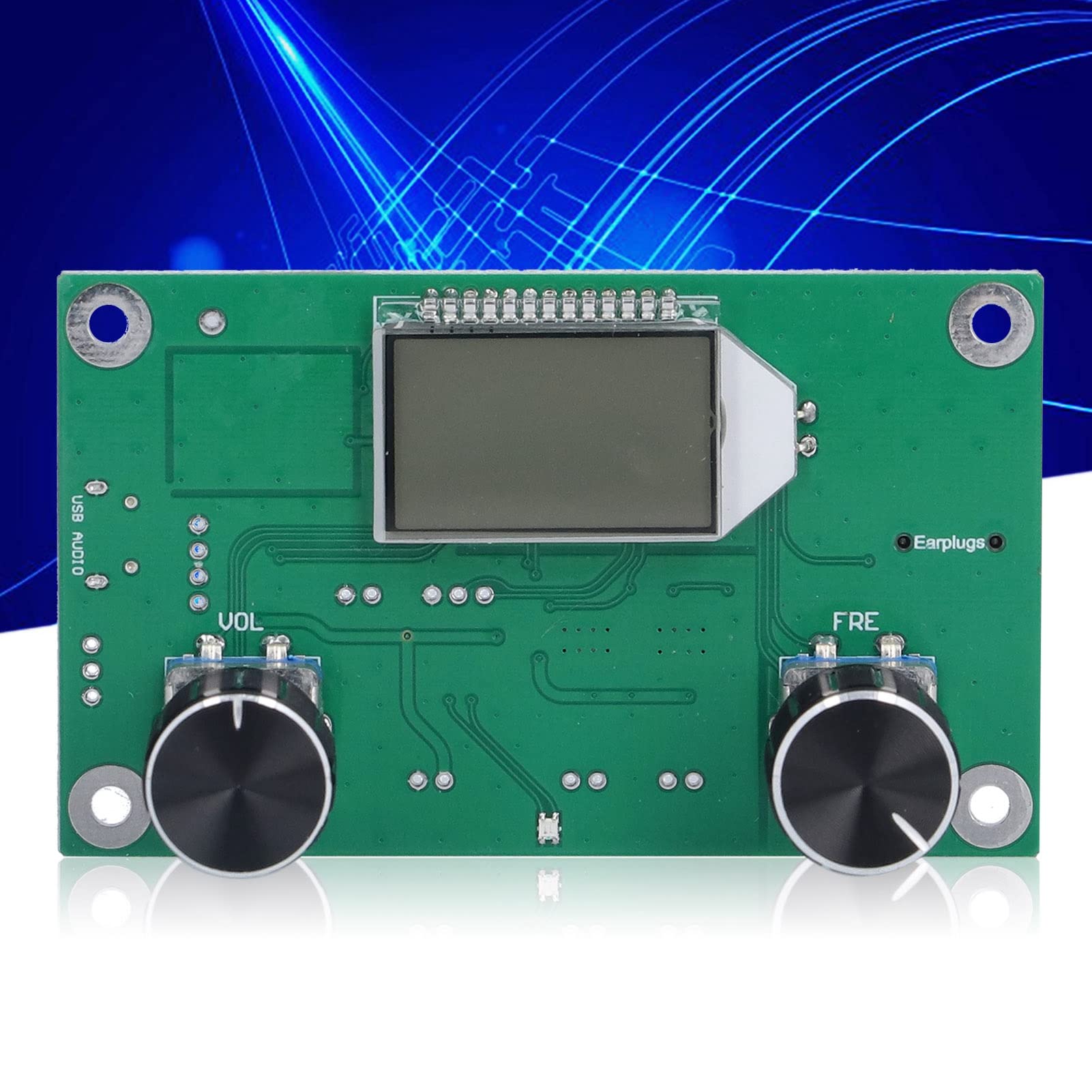

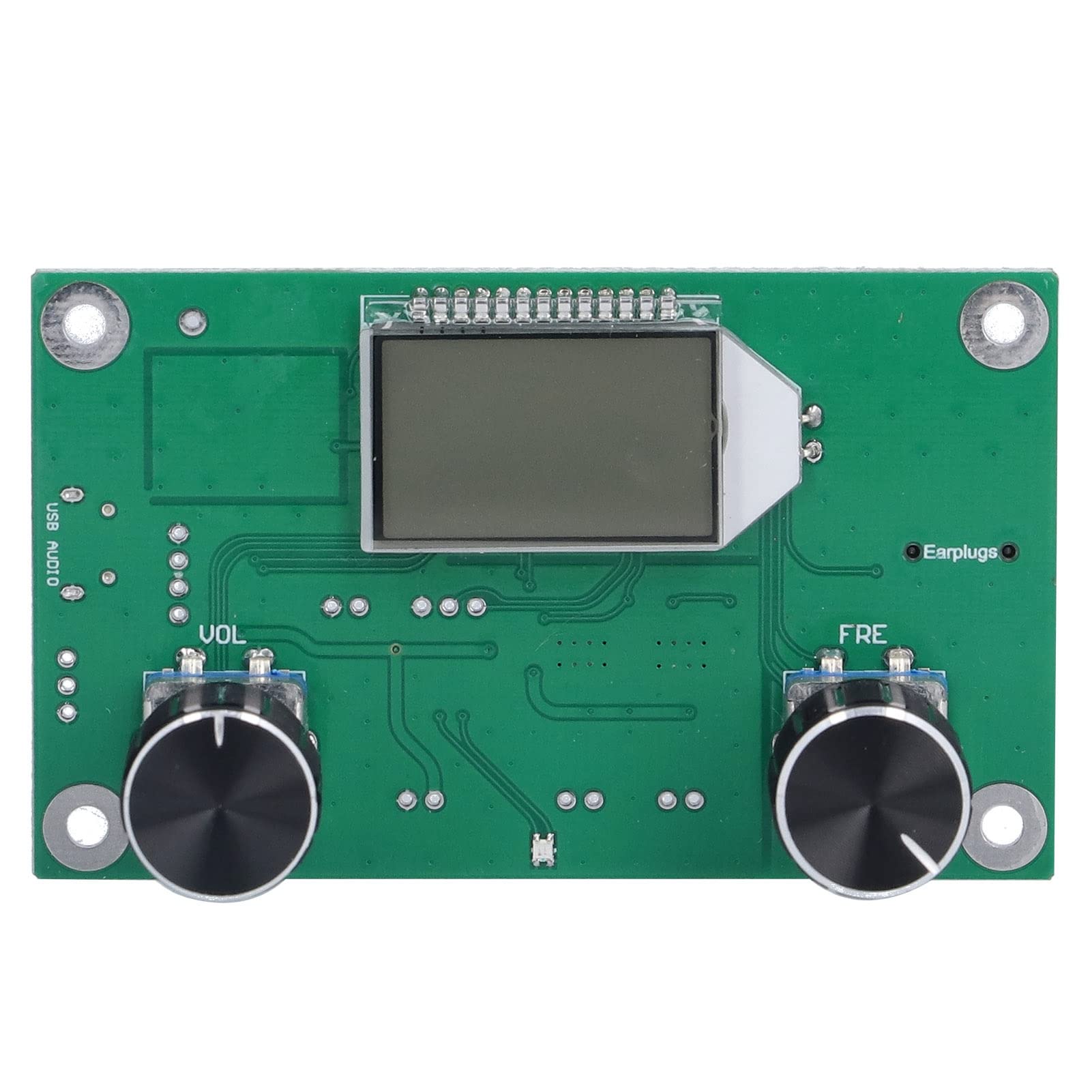

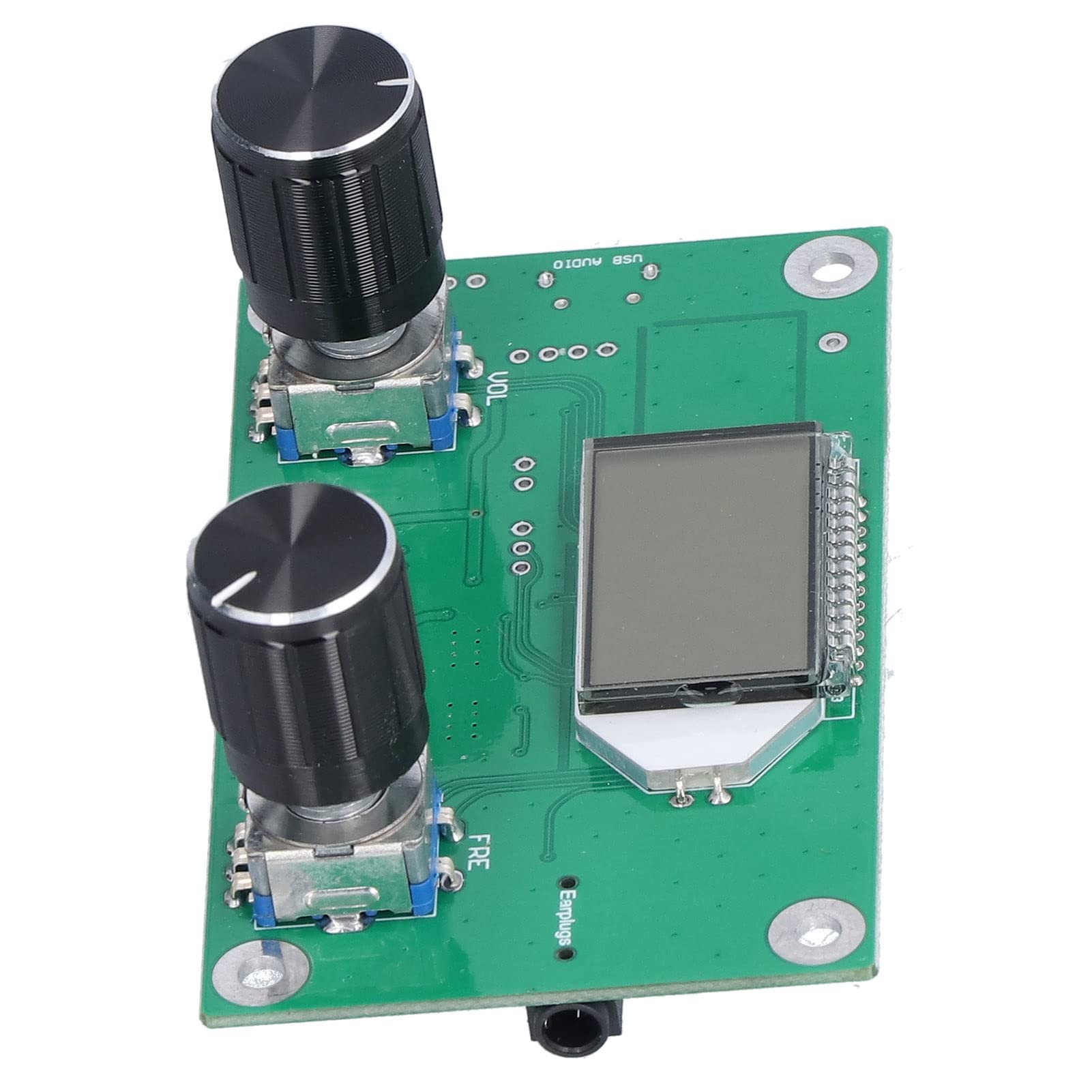

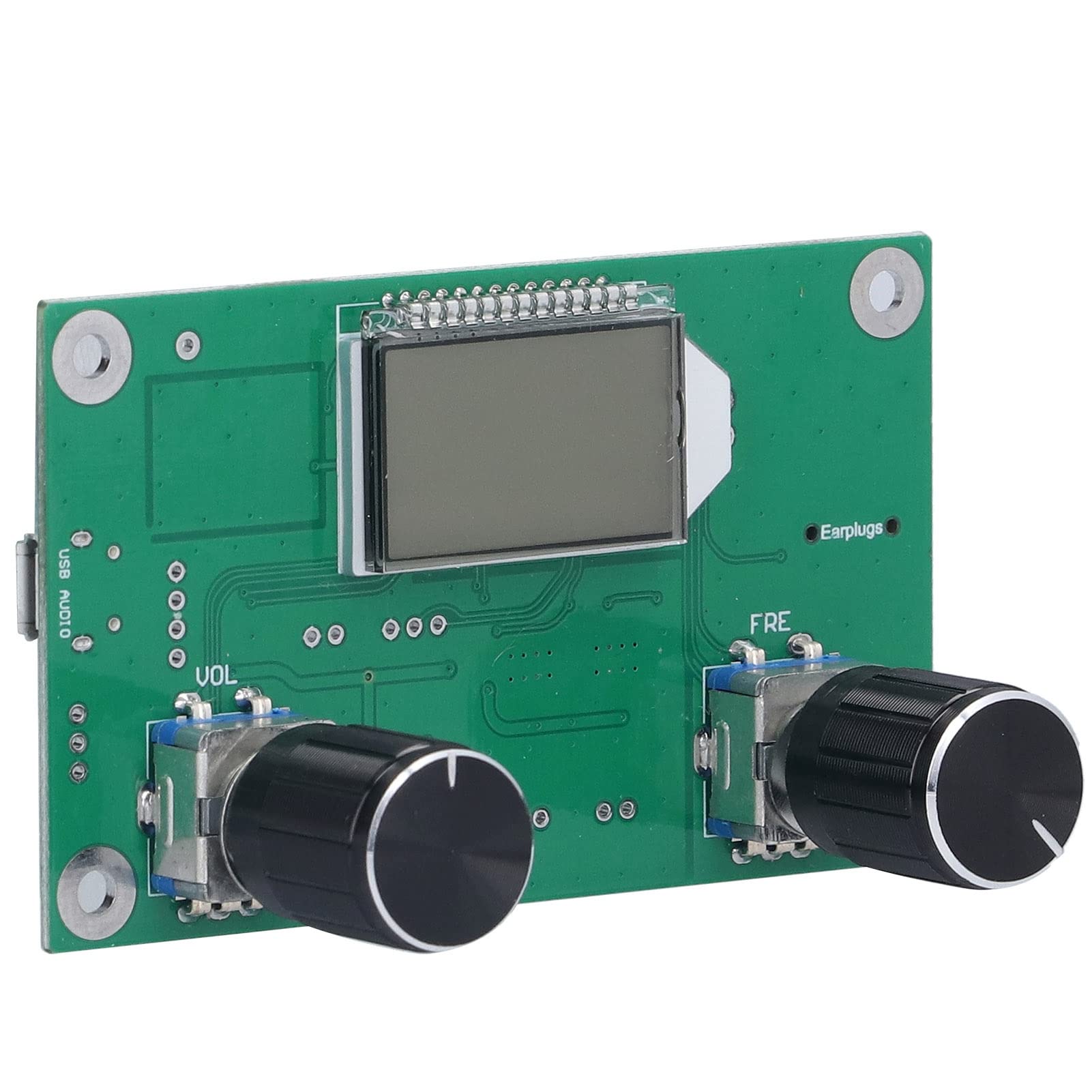

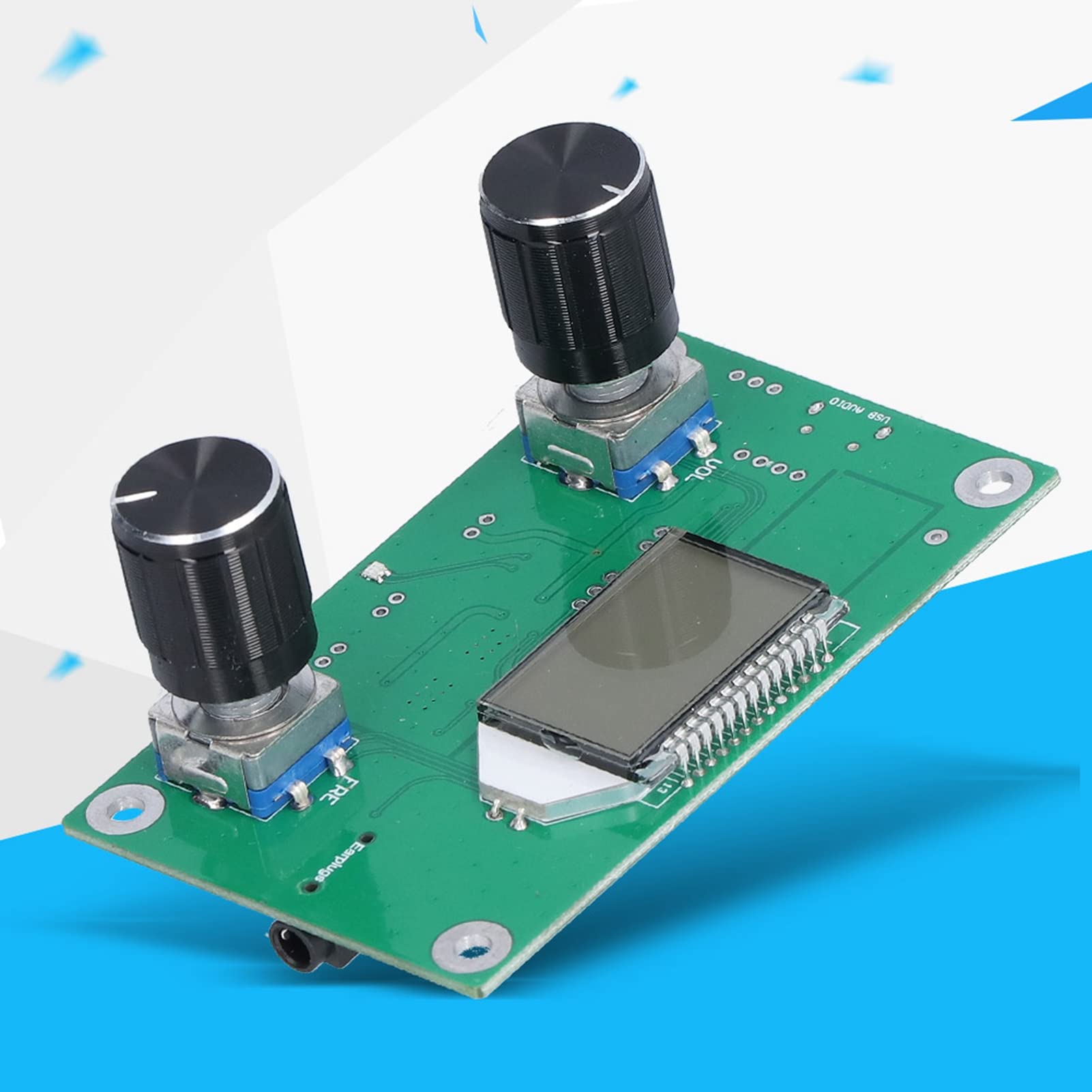

• HIGH-DEFINITION DISPLAY: The high-quality radio circuit board with LCD display allows you to read the data more clearly, and it is convenient for you to adjust the frequency. At the same time, it uses an incremental digital ro-tary encoder to adjust the volume and frequency, 360° rotation without dead angles, and more precise positioning.
• RUGGED AND DURABLE: The radio circuit board with display is made of high-strength P-CB material, which has good wear resistance and high temperature resistance, and has a long service life. It also uses a quartz crystal frequency stabilization circuit board, so that the receiving frequency does not change with temperature changes.
• AUDIO D-S-P: The durable circuit board uses professional audio D-S-P to analyze and process the audio signal, and it will automatically mute when there is no signal or the signal is weak. If you have any questions about our products, you can contact us at any time.

Specification: Item Type: Digital Radio Receiver Module Material: P-CB Output Power: 500mW (Driving Earphones), 3Wx2 (Driving Speakers) Frequency Response Range: 50Hz-18KHz Receiving Frequency Range: Turn off Campus Radio 87.0MHz-108.0MHz, Open Campus Radio 76.0MHz-108.0MHz Equivalent Noise: ≥30dB Supply Voltage: 3.0V-5.0V Power Supply Current: 1000mA at Maximum Volume, 60mA at Minimum Volume (for Reference Only) Channel: Stereo Package List: 1 x Radio Circuit Board Note: Don't overload use
