Digital Insulation Resistance Tester, 1999 Counts Megohmmeter Big LCD Display DCV ACV Megohm Meter DC250/500/1000V AC750V, 200MΩ~2000MΩ Resistance Testing with Data Hold Backlit for Motor Cables

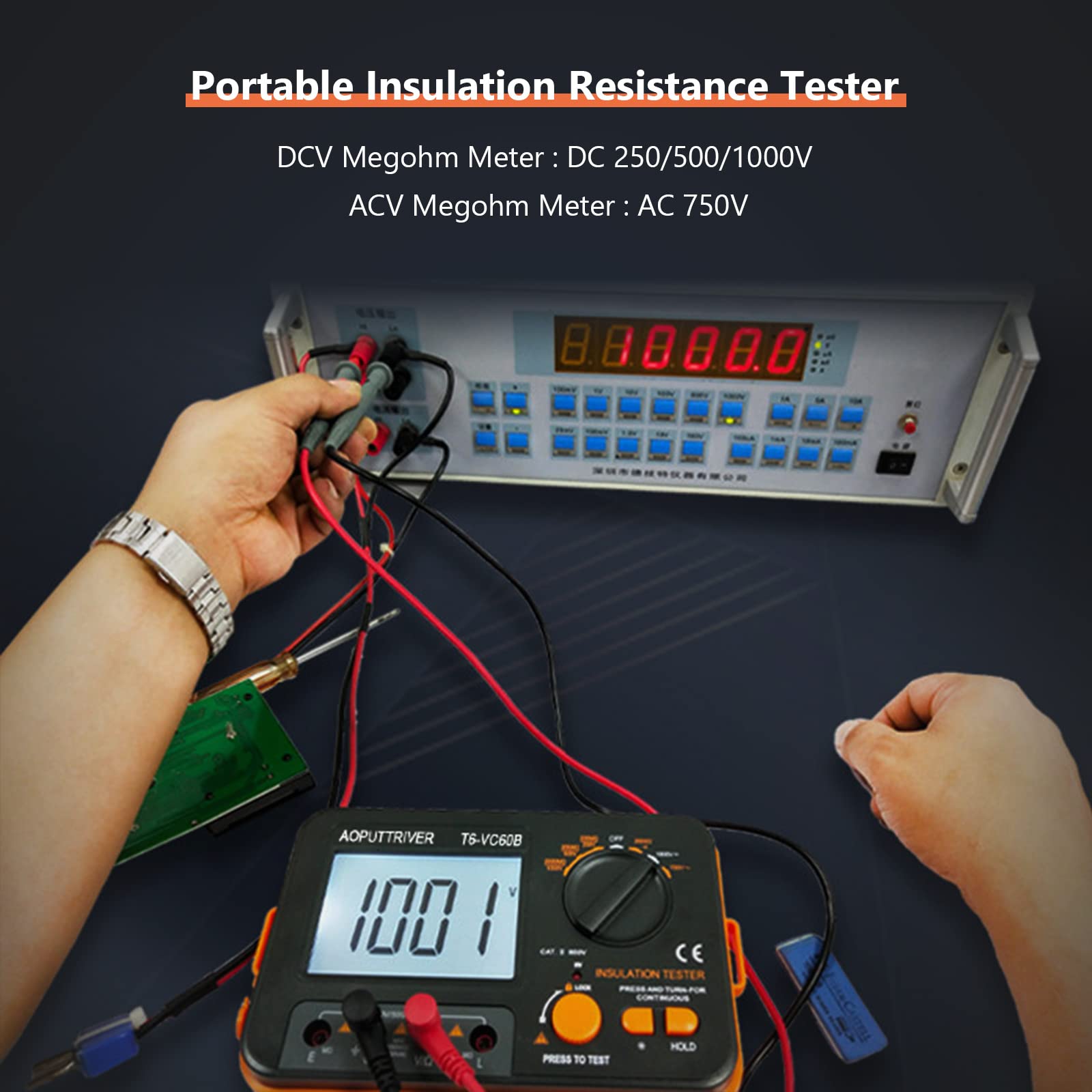

• ✅【High Precision Insulation Resistance Tester】Testing Voltage:250V/500V/1000V；Insulation Resistance:200MΩ~2000MΩ；AC Voltage:0~750V；Frequency Range:40Hz~400Hz; Manual range; 1999 Counts.
• ✅【Safe and Reliable Design】This T6-F150 Insulation Resistance Tester comes with a protective shell prevents falls from height, Full function protection, Anti high voltage circuit design. Strong anti-magnetic and anti-jamming function. High voltage and short circuit input alarm.

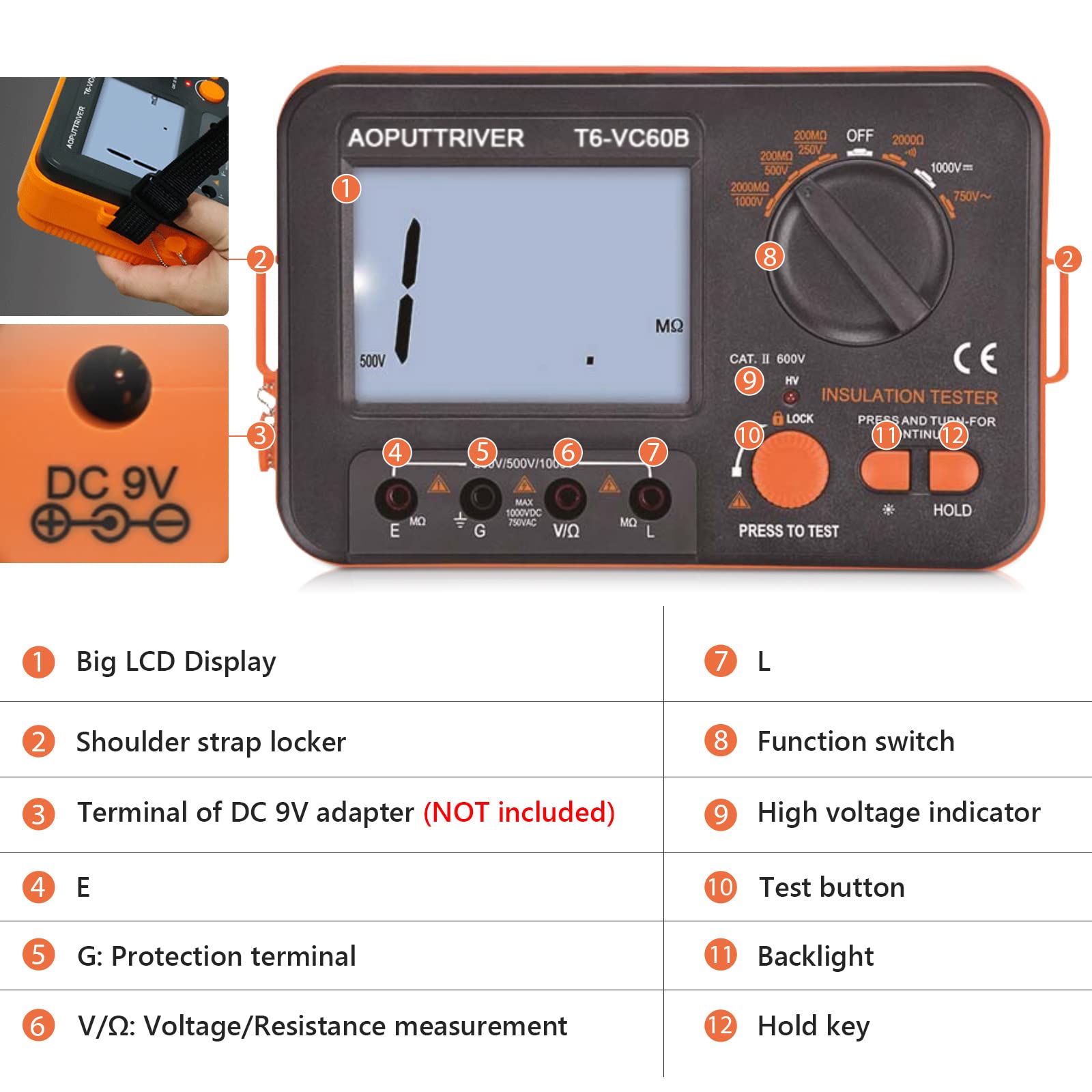

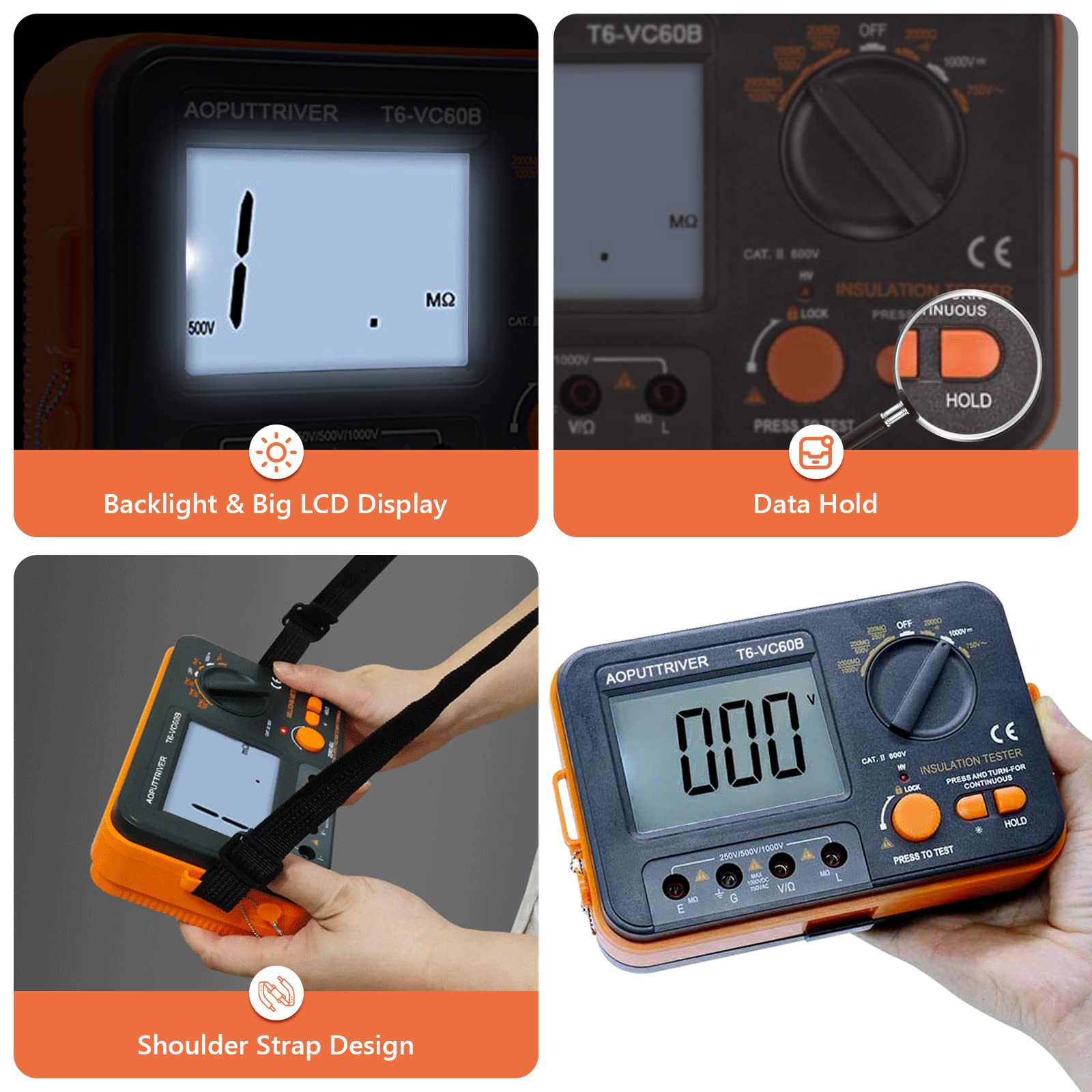

• ✅【Multi-function Megohmmeter】 Big LCD display, easy to read, Unit symbol display, easy to use, Backlight display, easy to get the values when you in a dark environment, Date hold, HV red indication, "LOCK" function, Continuously measure the object, press the test button and turn it to the right to keep the measurement state, free your hands.
• ✅【Ideal Electrical Test Instrument】Shoulder strap design, Convenient for you outside, This insulation resistance tester is widely used in power transformers, engines, electrical cables, circuit board testing, household appliance repairs, electrical appliances, etc.

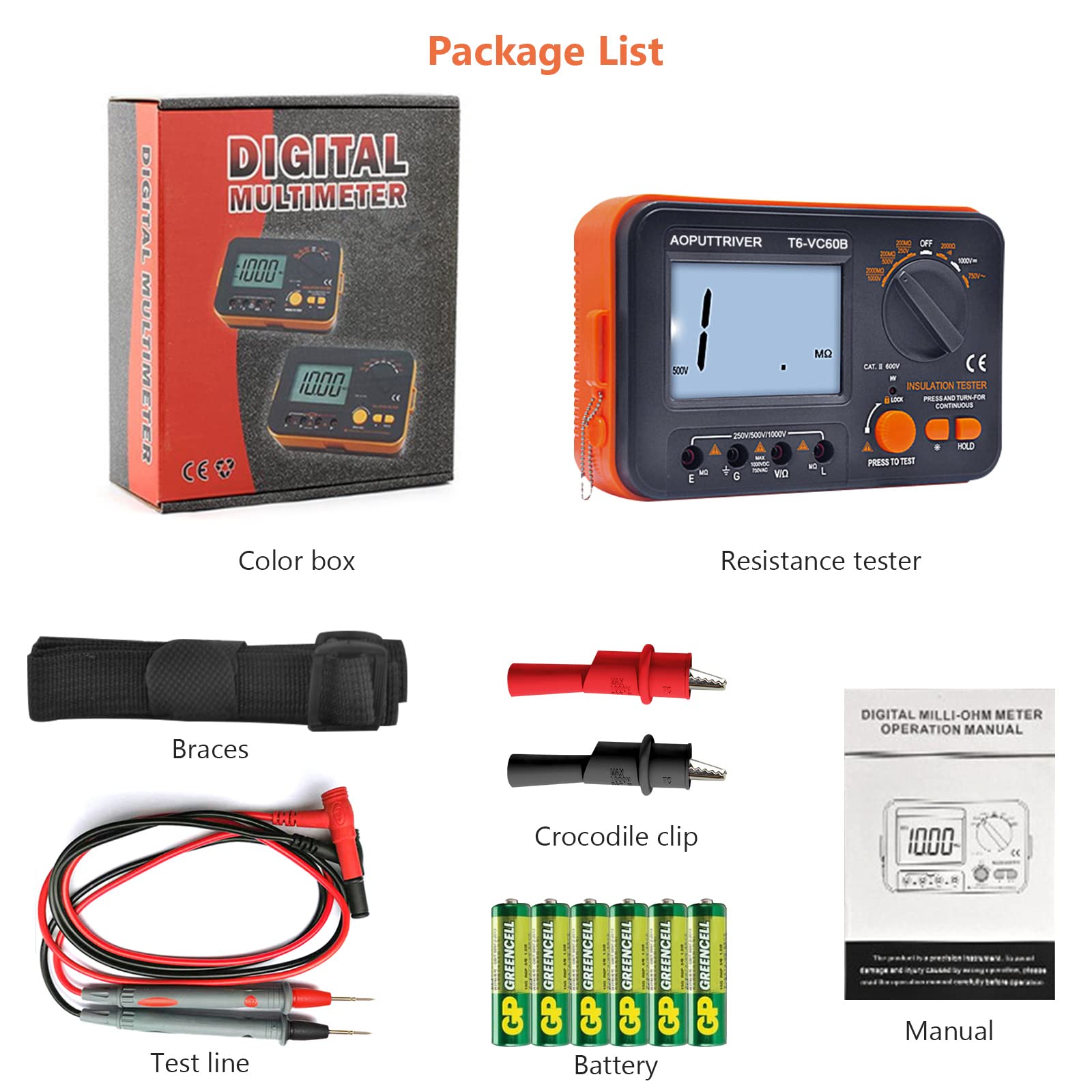

• ✅【Power Source】1.5V(AA)*6 batteries are included. You can also use DC 9V power source start to use, (NOTE: this is not included) AOPUTTRIVER provides 365 days warranty and lifetime technical support, if you have any problems about our products, please feel free to contact us!

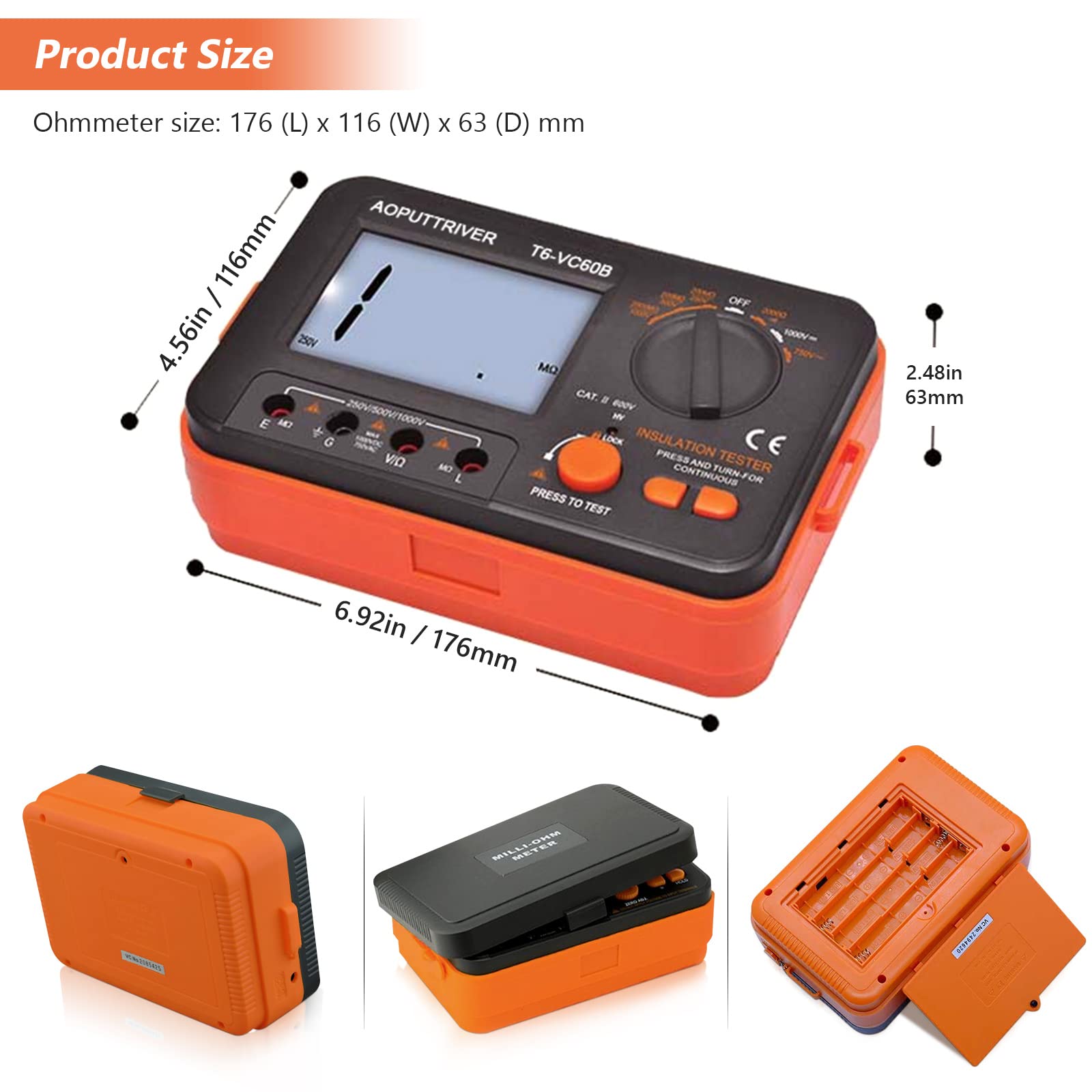

General Description With digital bridge, the instrument can test insulation and its main features include easy to operate,wide test range,highly stable performance,backlight LCD display,date hold and auto power off.Using a shoulder strap,it can be used by both hands. This Insulation testers are instruments used to measure the insulation strength and electrical safety performance of electrical equipment, widely used in power, industrial, construction, electronic and other fields to ensure the safe operation of equipment. Specifications: Insulation resistance: 250V/500V/1000V 250V 0 ~ 200MΩ ±(4.0%+2) 500V 0 ~ 200MΩ ±(4.0%+2) 1000V 0 ~ 2GΩ ±(4.0%+2) Resistance: 2000Ω ±(1.0%+5) DCV: 0-1000V (1.0%+5) ACV: 0-750V (1.5%+5) Special Functions: Data hold Manual range LCD backlight Max.display: 1999 Function protection Low battery indication Input impedance: 1MΩ Sampling rate: 3 times/Sec. Continuity alarm: Less than 30Ω±10Ω General Characteristic: Power source: 6 * 1.5V AA battery （INCLUDED）or external DC 9V power source(Not INCLUDED) LCD size: 75×52mm Weight: 580g Meter size: 176 (L) x116 (W) x63 (D) mm Color: Dark gray-yellow Package Size: 20.5 * 17 * 7cm / 8 * 6.7 * 2.7in Package Weight: 709g / 1.6lb Package List: 1 * T6-VC60B Insulation Resistance Tester 1 * Pair Test Lead 2 * Alligator Clips 1 * User Manual 1 * Shoulder strap After-Sale Guarantee: if you have any problems about our product after you received it, please get in touch with us through Email, and we will solve the problem for you with 24h ASAP, Your satisfied is our most motivation!
