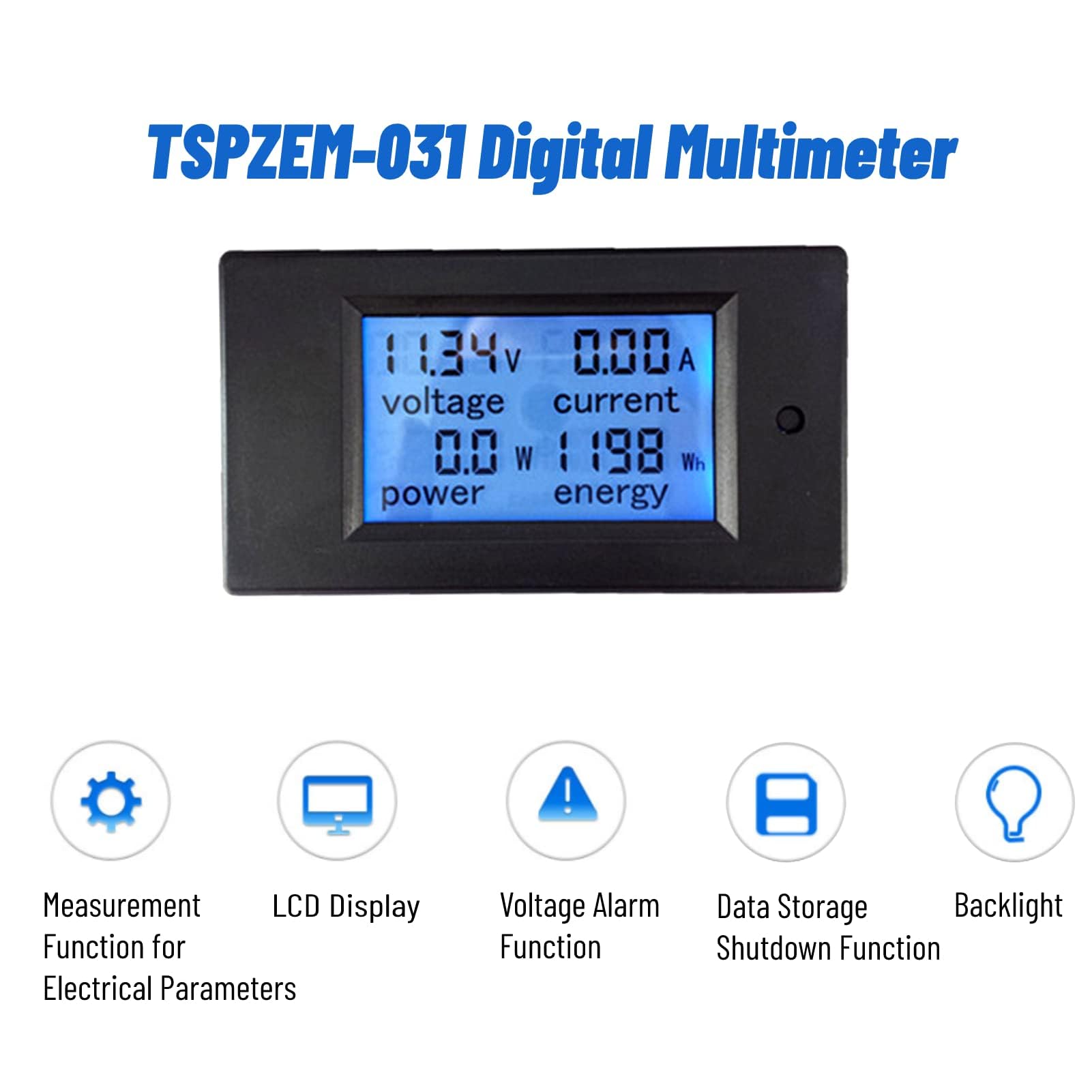

Digital Current Voltage Power Energy Meter TSPZEM-031 Multimeter Ammeter Voltmeter DC Multi Function LCD Digital Display Current Meter Tester Detector with Current Shunt

• Material: The current voltage is made of ABS material, and equipped with a large LCD screen, it can display voltage, current, power and power at the same time

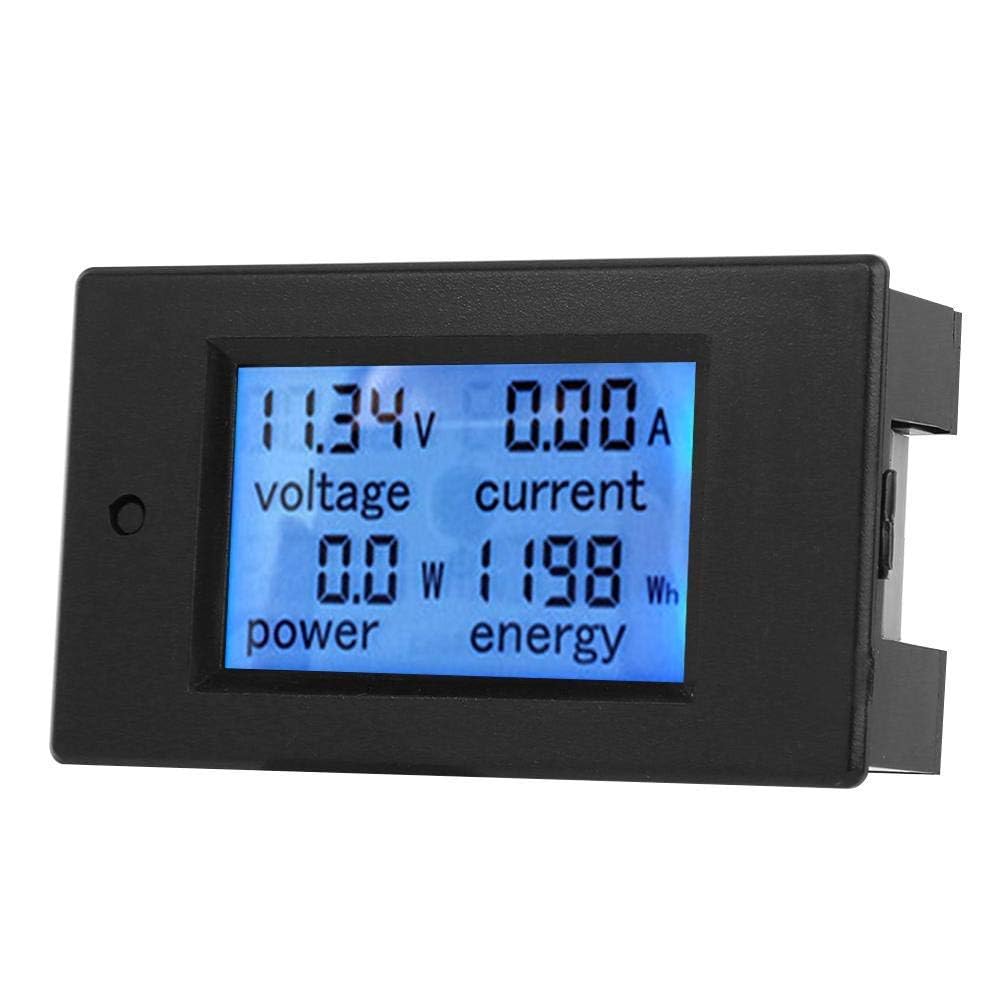

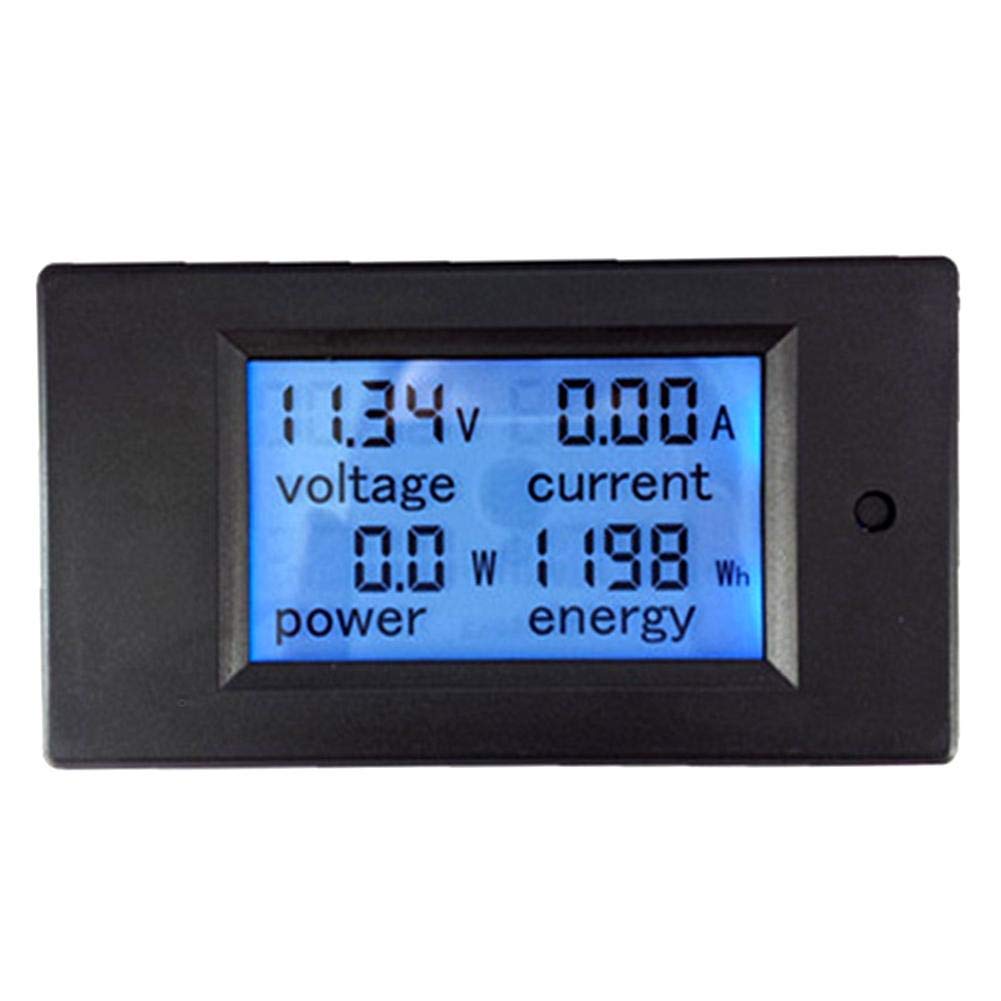

• LCD Display: The voltage current meter has full display function of large-screen LCD (display voltage, current, power and power at the same time) and power button reset function. It is designed to adapt to a poor light situation

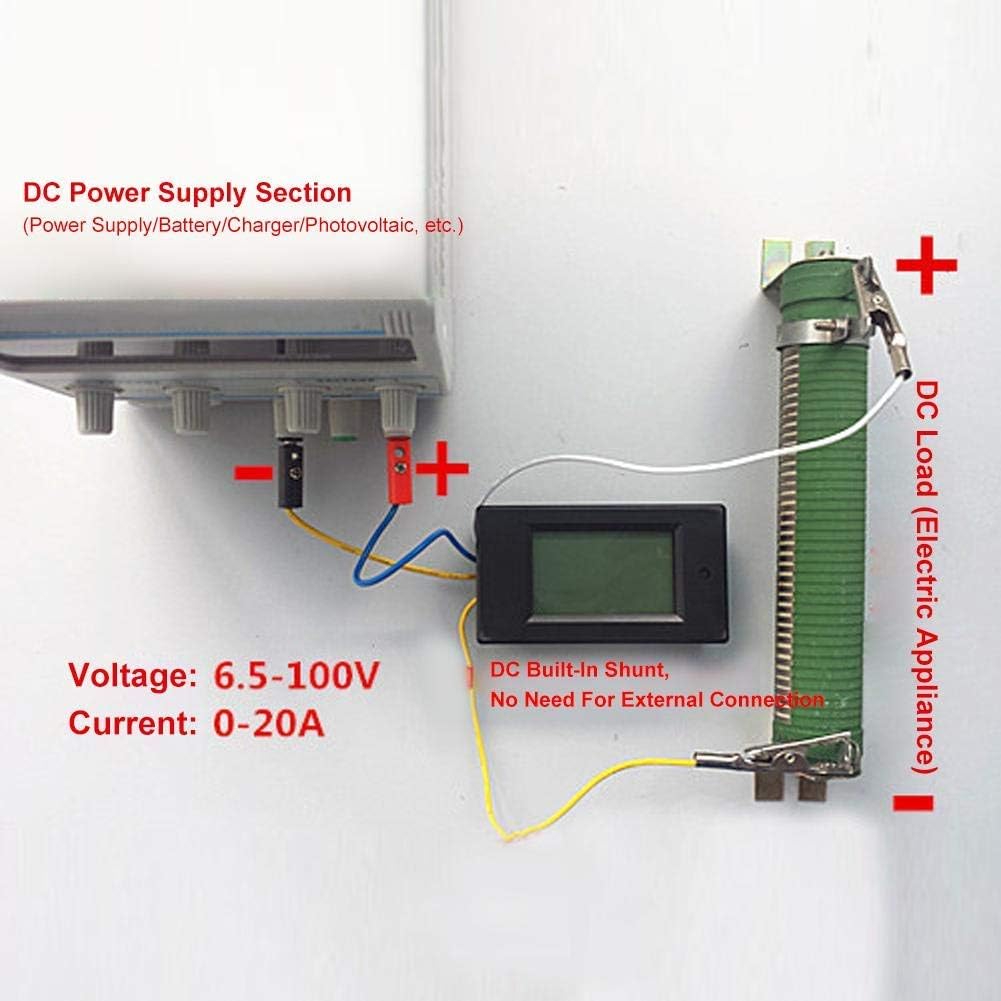

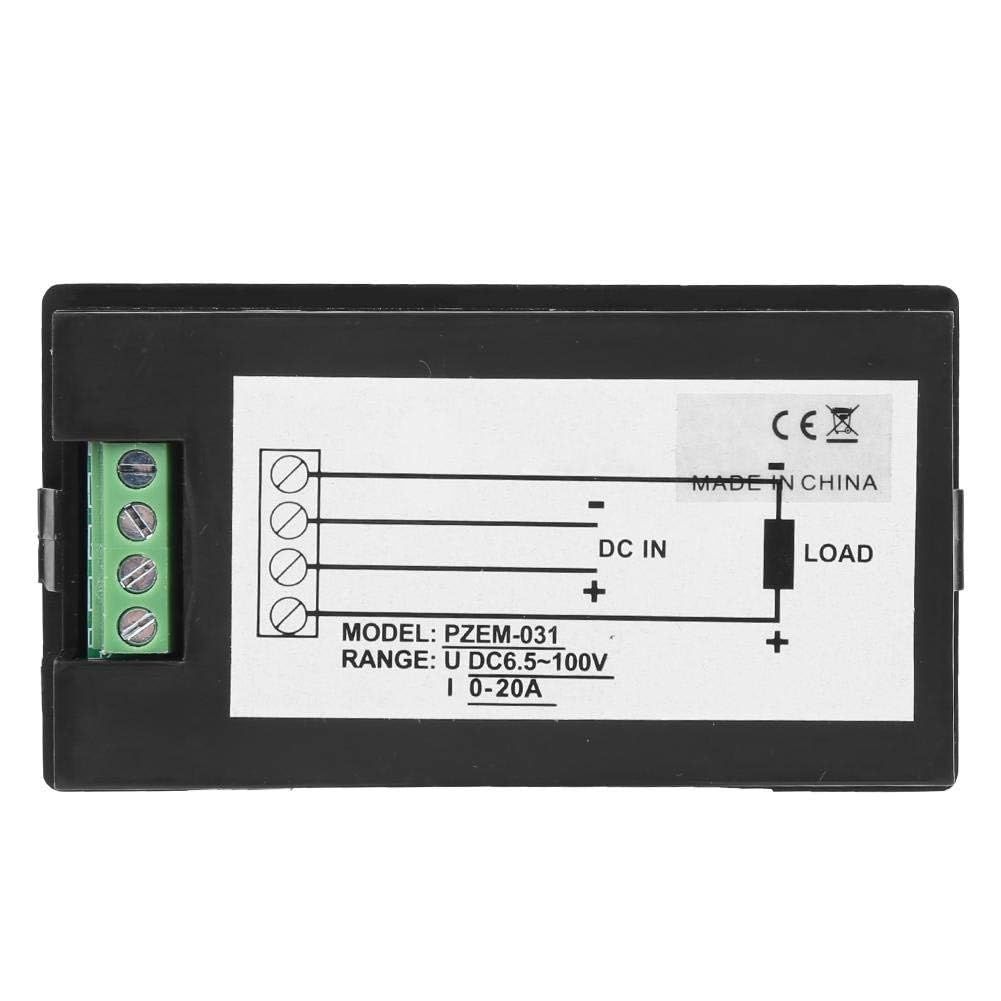

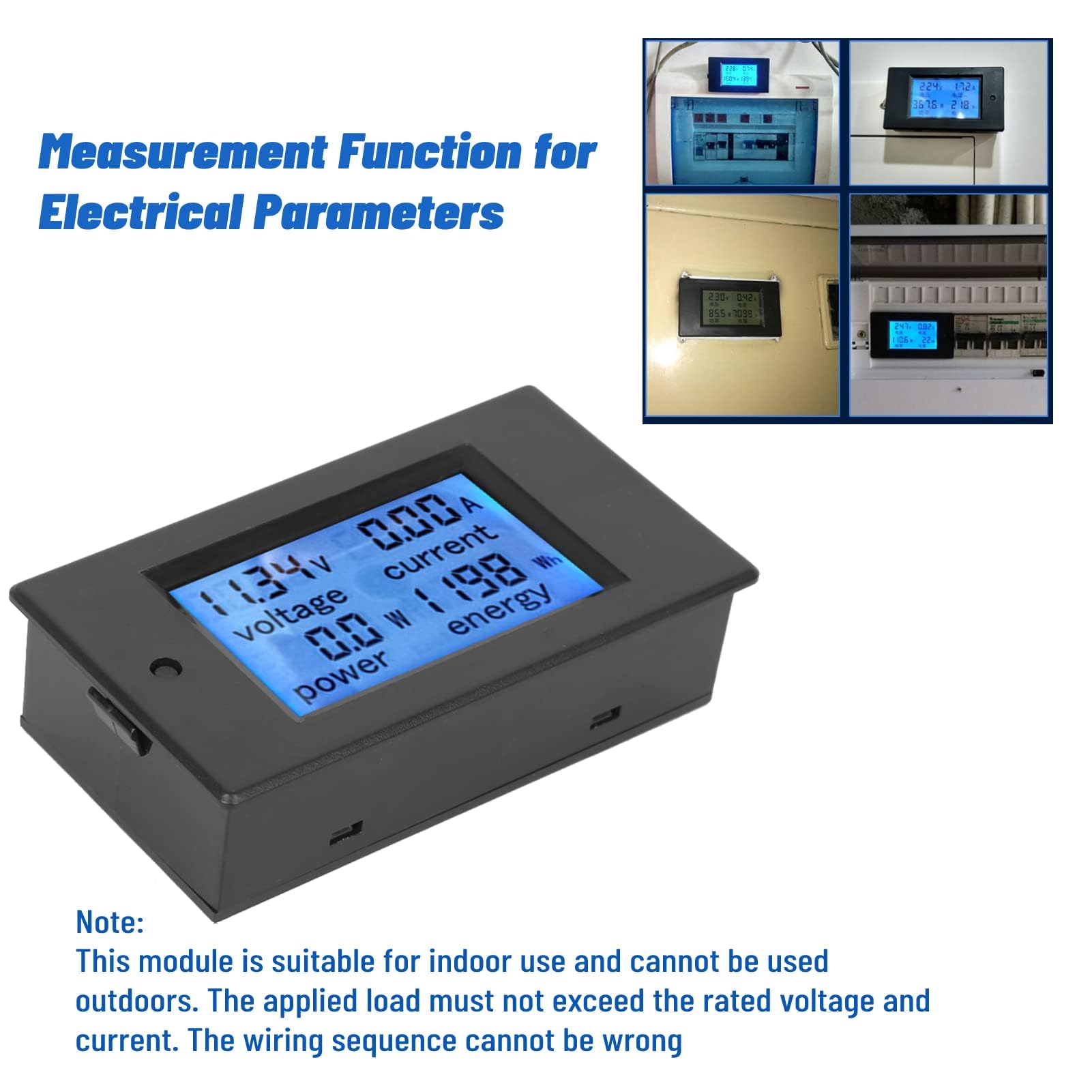

• Indoor Use: The amp volt meter is suitable for indoor use and cannot be used outdoors; The applied load cannot exceed the rated voltage and current; The wiring sequence cannot be wrong

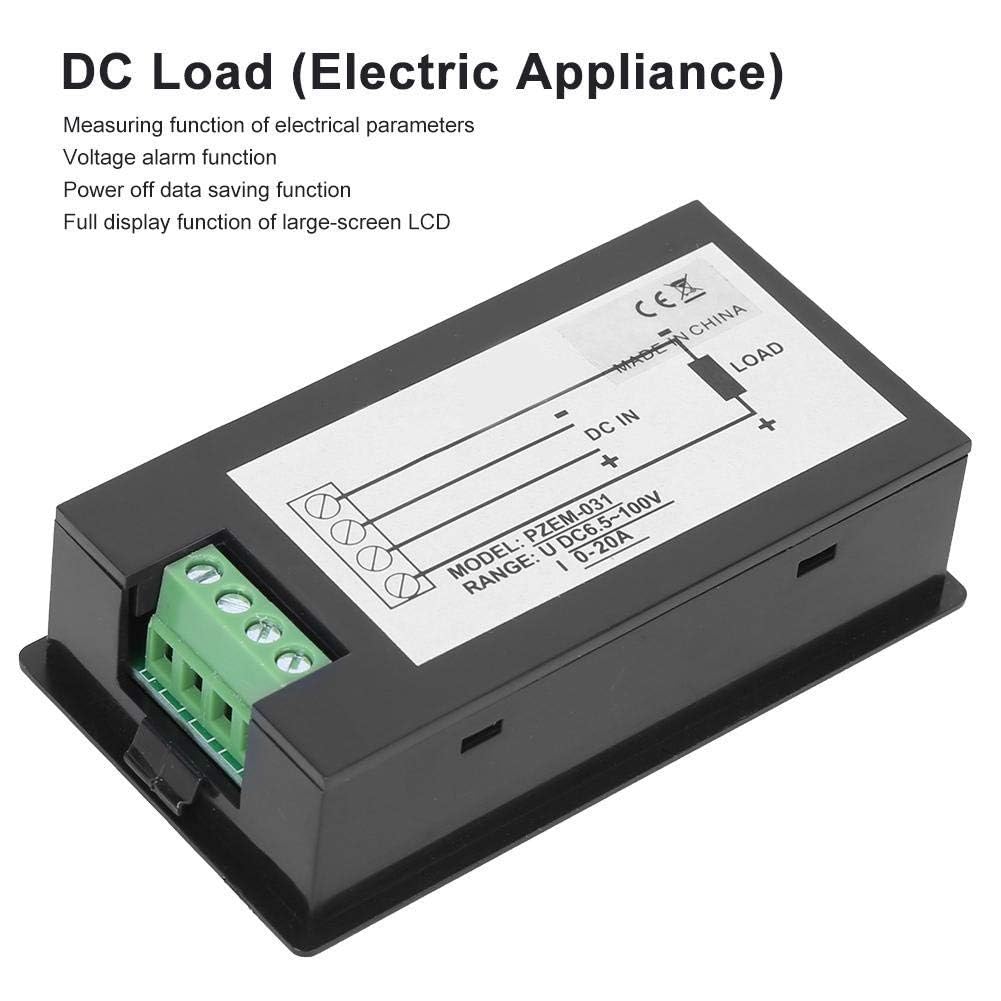

• Function: The current voltage has measuring function of electrical parameters (voltage, current, power, electric quantity) and voltage alarm function (over voltage alarm threshold, backlight and power flicker prompt), and power off data saving function, prevents from data losing when the off
• Specification: Item Type: DC Current Voltage Meter, Material: ABS, Working Voltage: 6.5~100VDC, Test Voltage: 6.5~100VDC, Rated Power: 20A / 2000W, Measurement Accuracy: Level 1.0

Display Format: 1. Power: Test range 0~2kW The display format within 1kW is 0.0~999.9W; The display format 1kW is 1000~2000W. 2. Electricity: Test range 0~9999kWh The display format within 10kWh is 0~9999Wh; The display format 10kWh is 10~9999kWh; Button: 1. Control of the backlight The backlight can be turned on or off by short pressing the button, and the poor light state is automatically saved when the power is turned off. 2. Reset the battery Step 1: Press and hold the button until the ''CLr'' character is displayed in the power display area, and then release the button; Step 2: At this time, the battery flashes to indicate that the battery is currently reset. If you press the button again for a short time, the power data is cleared and reseted and flashing; Step 3: If there is no pressing within 5 seconds, it means that the power data is not reseted and exits the reset state. 3. Voltage alarm value setting Step 1: Press and hold the button until the ''SET'' character is displayed in the power display area, and then release the button; Step 2: After entering this state, the current high voltage alarm value is displayed in the voltage area, and the current low voltage alarm value is displayed in the current area, and the lowest digit starts to flash. At this time, you can ''+1'' this digit by short pressing the button. When it is over 3 seconds, it will automatically switch the adjusted bit, from high voltage alarm value to low voltage alarm value, a total of 6 digits, the range of voltage alarm threshold setting is 6.5~99.9V; Step 3: After setting, press and hold the button until the screen displays ''PASS'' character to indicate that the setting is successful and automatically exits the setting state. Package List: 1 x DC Current Voltage Meter 1 x Instruction Manual
