DEWIN Timer Relay, Mini Asymmetric Cycle Timer GRT8-S1 AC240V/DC12V ON/OFF Repeat Cycle Time Relay for Electric Circuit Control

• 【High Quality Material】: The cycle time relay is made of High Quality material, which is corrosion-resistant, durable, stable performance and long service life.

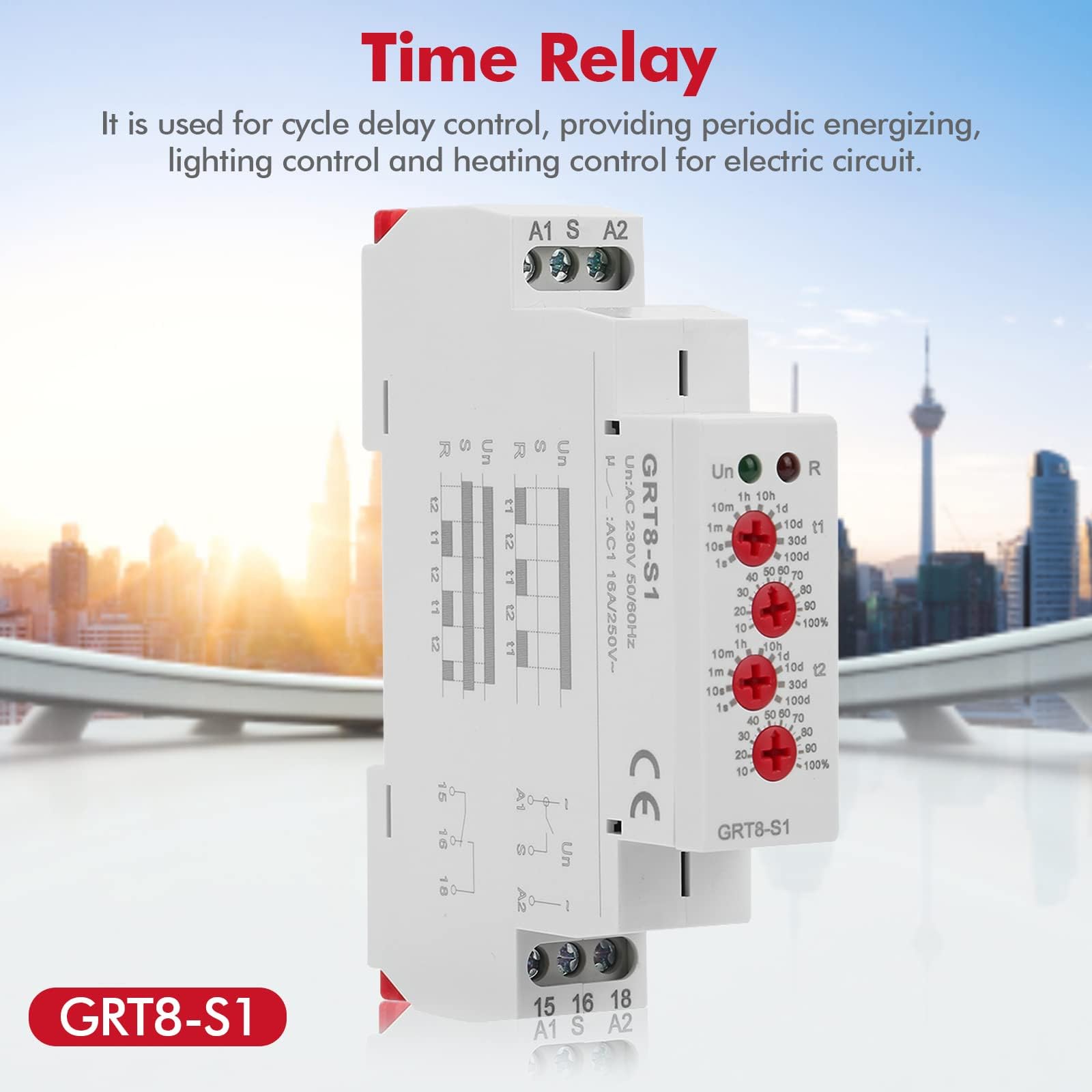

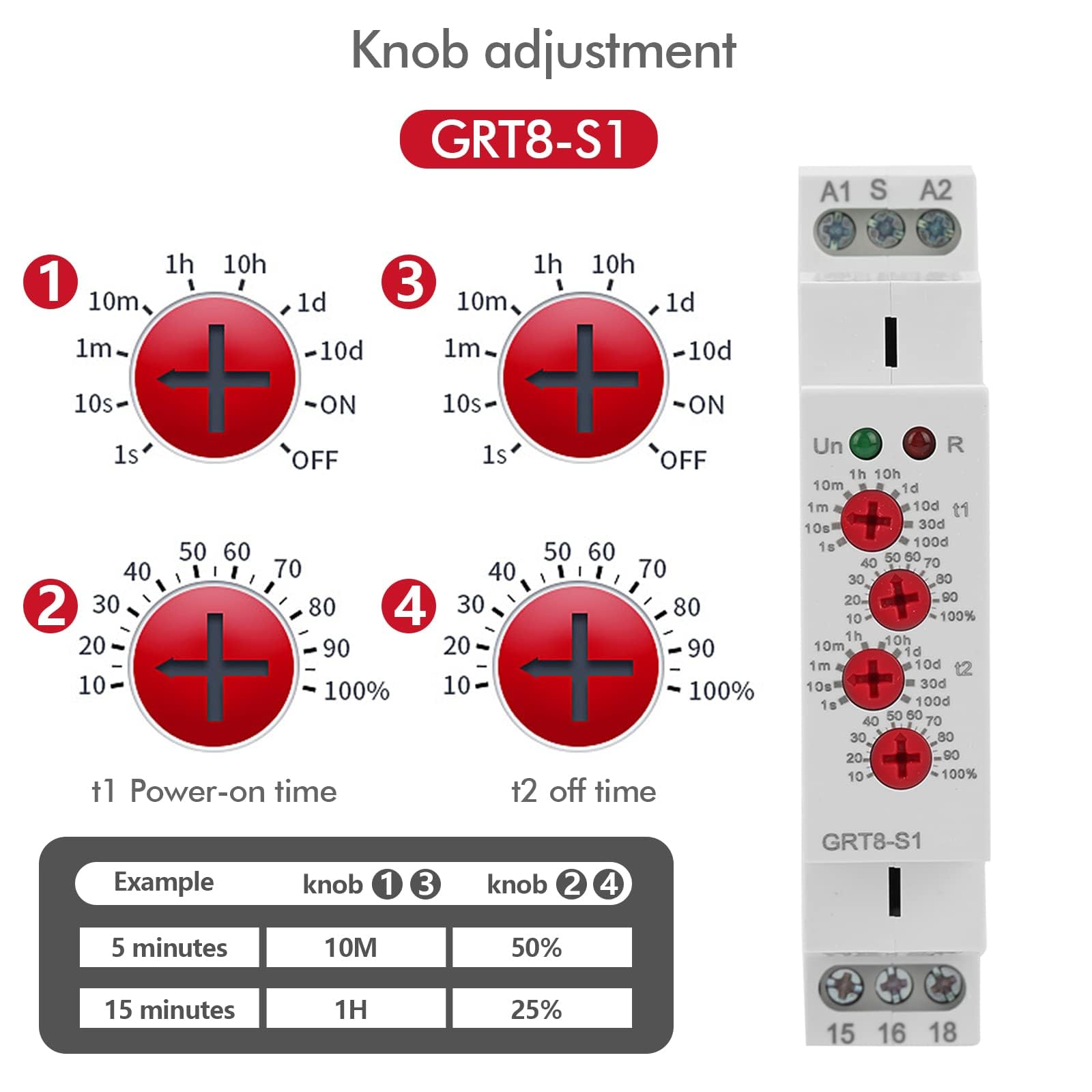

• 【Setting Method】: The timer relay can be set through the panel knob, which is used for cycle delay control, providing cycle power, lighting control, and heating control for the circuit.
• 【Ultra-wide Delay Range】: Asymmetric cycle timer has an ultra-wide delay range, which can be set from 0.1 seconds to 100 days (10 choices). The time settings for delay ON and OFF are separate, and different delay times can be set.

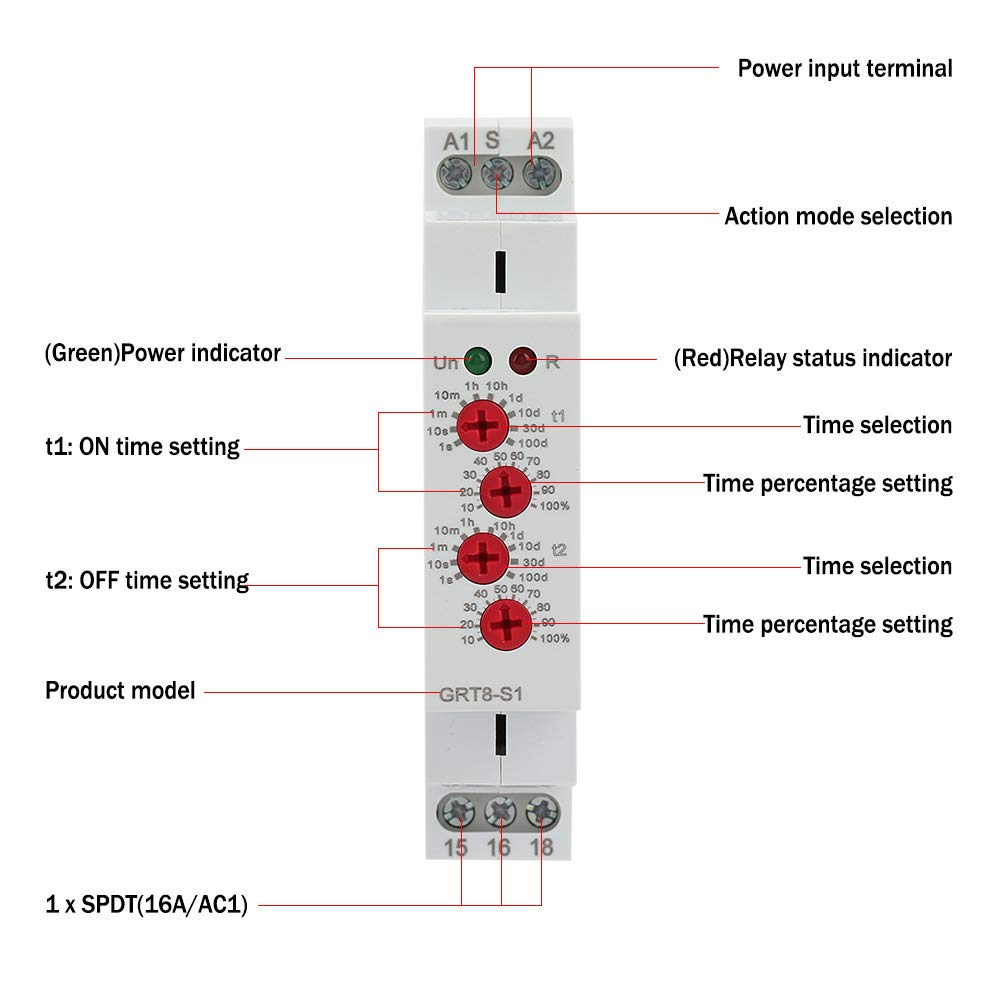

• 【Timer Relay】: The working status of the relay is indicated by the LED indicator light, which can clearly understand the working status of the relay and make judgments and adjustments in time.

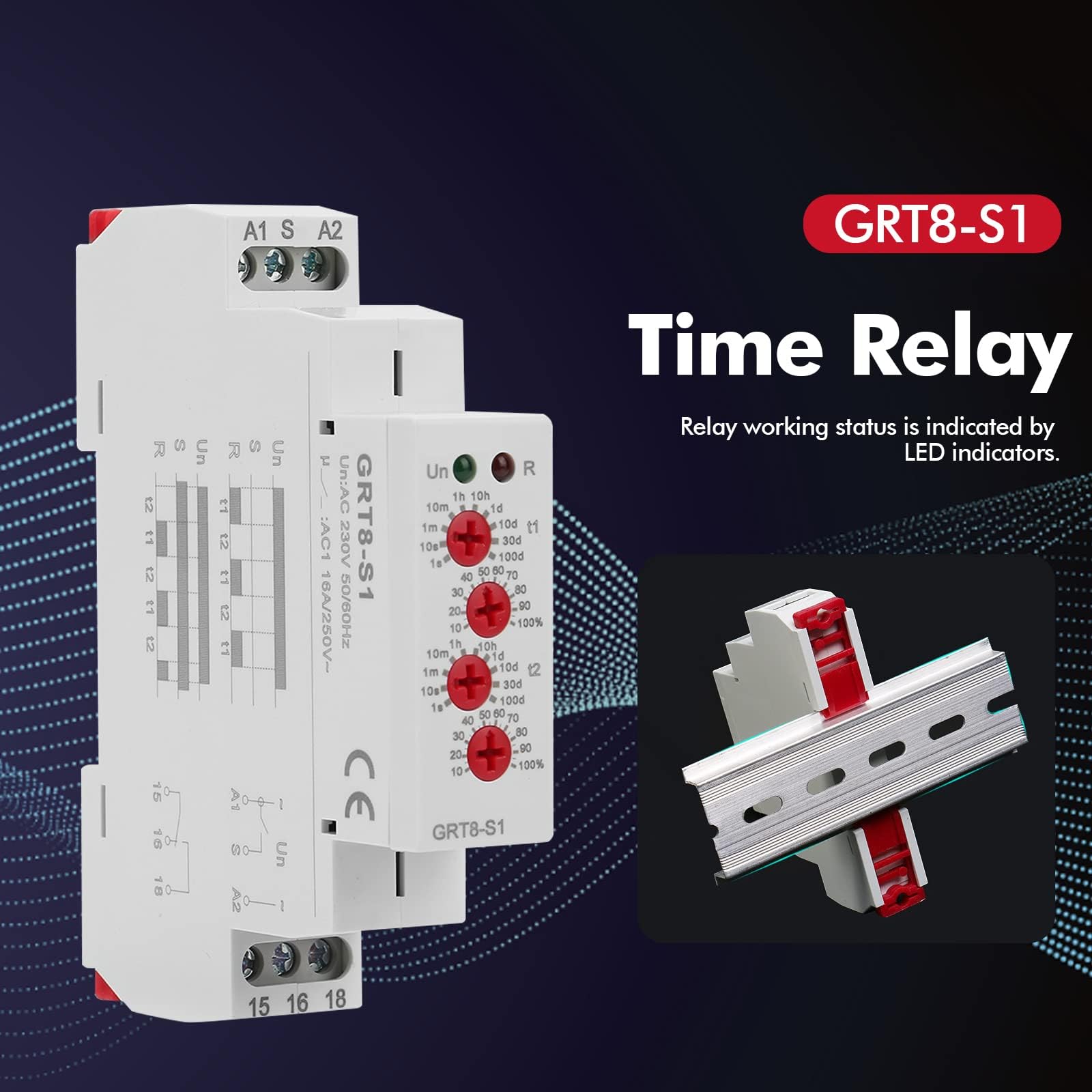

• 【Wide Application】: The timer relay is small in size and easy to install. It can be installed on a 35mm DIN rail. Used in industrial equipment, lighting controls, heating element controls, motors, fan controls, etc.

Features: 1.The cycle time relay is made of High Quality material, which is corrosion-resistant, durable, stable performance and long service life. 2.The timer relay can be set through the panel knob, which is used for cycle delay control, providing cycle power, lighting control, and heating control for the circuit. 3.Asymmetric cycle timer has an ultra-wide delay range, which can be set from 0.1 seconds to 100 days (10 choices). The time settings for delay ON and OFF are separate, and different delay times can be set. 4.The working status of the relay is indicated by the LED indicator light, which can clearly understand the working status of the relay and make judgments and adjustments in time. 5.The timer relay is small in size and easy to install. It can be installed on a 35mm DIN rail. Used in industrial equipment, lighting controls, heating element controls, motors, fan controls, etc. Specification: Model: GRT8-S1 Timer Relay Rated supply voltage: AC/DC 12V~240V (50-60Hz) Power consumption: AC 0.09-3VA / DC 0.05-1.7W Delay time range: 0.1s-100days, NO, NC Setting method: knob Setting accuracy: 10% Repeated accuracy: 0.2% Temperature fluctuation error: 0.05%/℃, at = 20℃ Output contact: 1 x SPDT, 16A/AC1 Minimum switching power: 500mW Power indicator: Green LED Output relay indication: Red LED Mechanical life: 1x107 Electrical life: 1x106 Reset time: Max. 200ms Working temperature: -20℃~55℃ Storage temperature: -35℃~75℃ Mounting method: 35mm DIN rail Protection grade: IP20 Wiring capability: 1x2.5mm2 / 2x1.5mm2 Dimensions: 90*18*64mm / 3.54*0.71*2.52in Package weight: Approx. 75g/2.6oz Package List: 1 * Cycle Timer Relay
