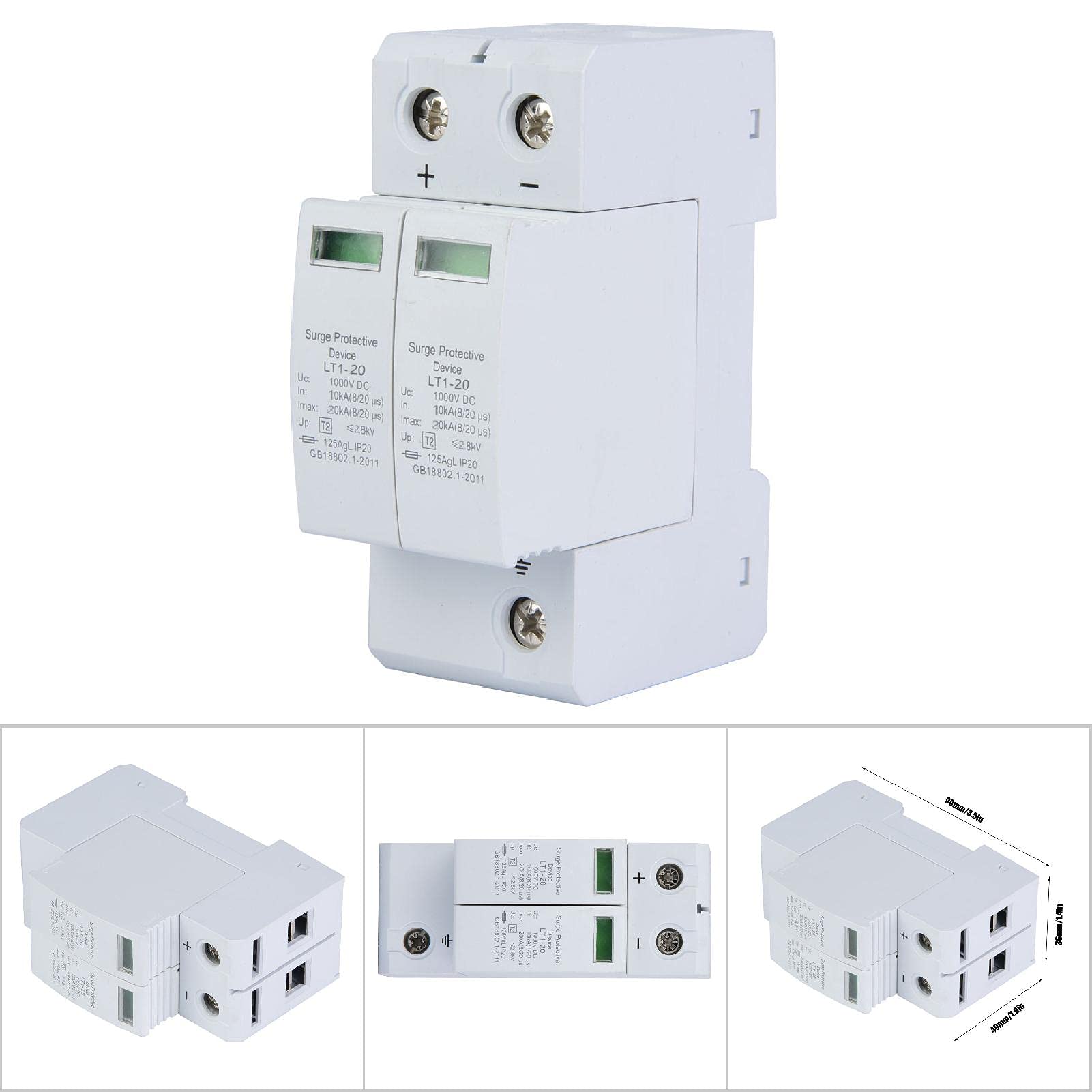

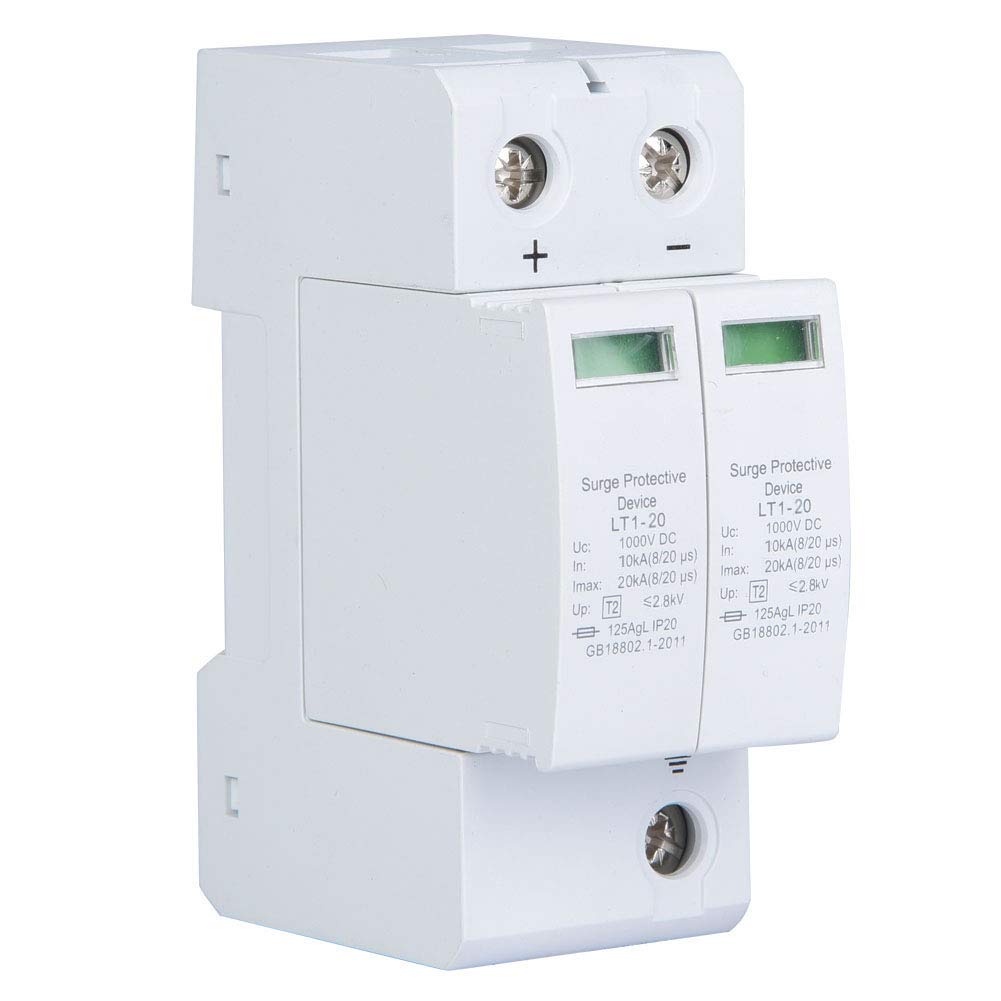

DEWIN Surge Protective Device, Arrester Device 2P 1000V DC Photovoltaic Lightning Protector Low Voltage Surge Protector (20KA)

• 【Premium Material】: The shell of the photovoltaic surge protector is made of PC flame-retardant material, which is fire-resistant and safer to use, minimizing the possibility of accidents.
• 【High Performance】: The photovoltaic surge protector is made of precision electronic components, with modular design, more stable performance, very simple operation and maintenance, and longer service life.

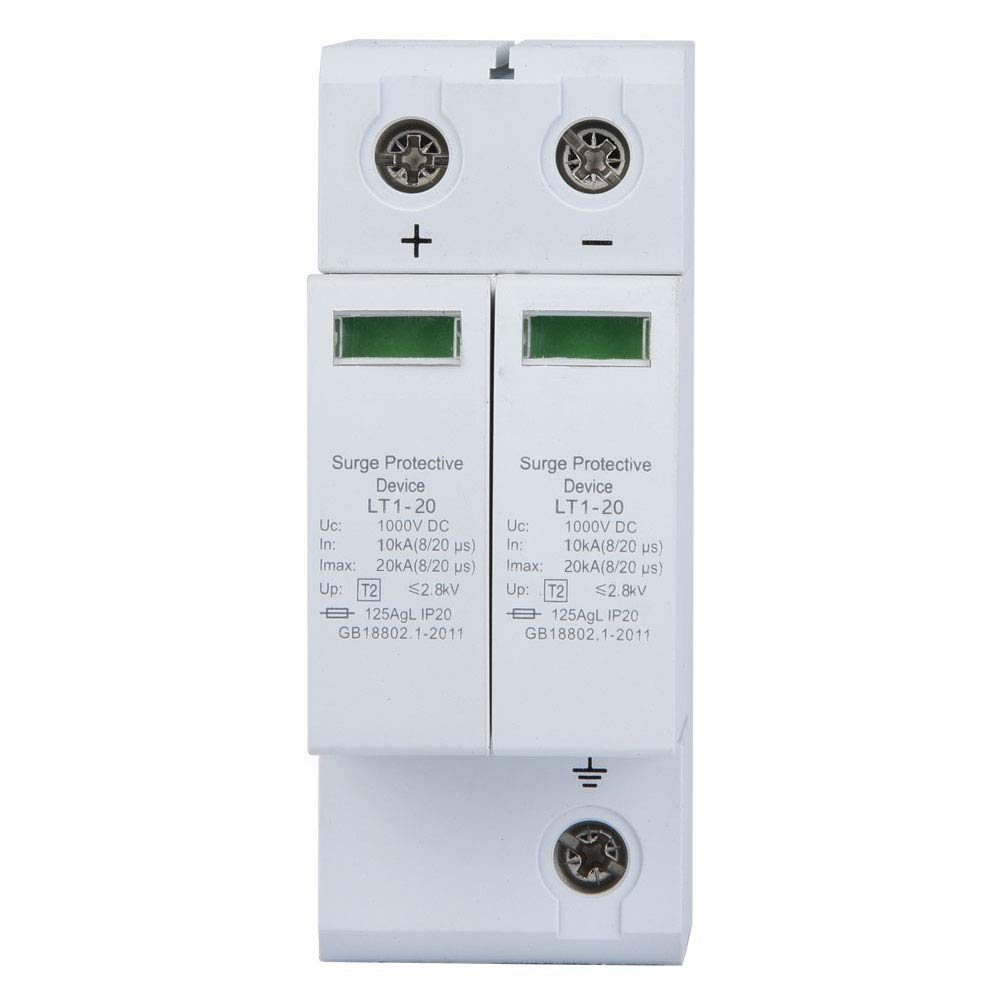

• 【Professional Design】: Built-in thermal tripper, temperature-controlled circuit breaker technology. The color of the visual alarm window indicates the working status of the protection, green (normal), red (fault).
• 【Easy installation】: Model: #1, 10/20KA; #2, 20/40KA (optional); this arrester device adopts 2P guide rail installation, and the standard 36mm guide rail is installed. The installation is very simple, and it is used together with the circuit breaker of the distribution box.
• 【Application】: The DC surge arrester is suitable for lightning protection of solar photovoltaic power generation systems or other DC power systems, and can be used normally in high altitude areas to protect DC power systems from lightning strikes or overvoltage.

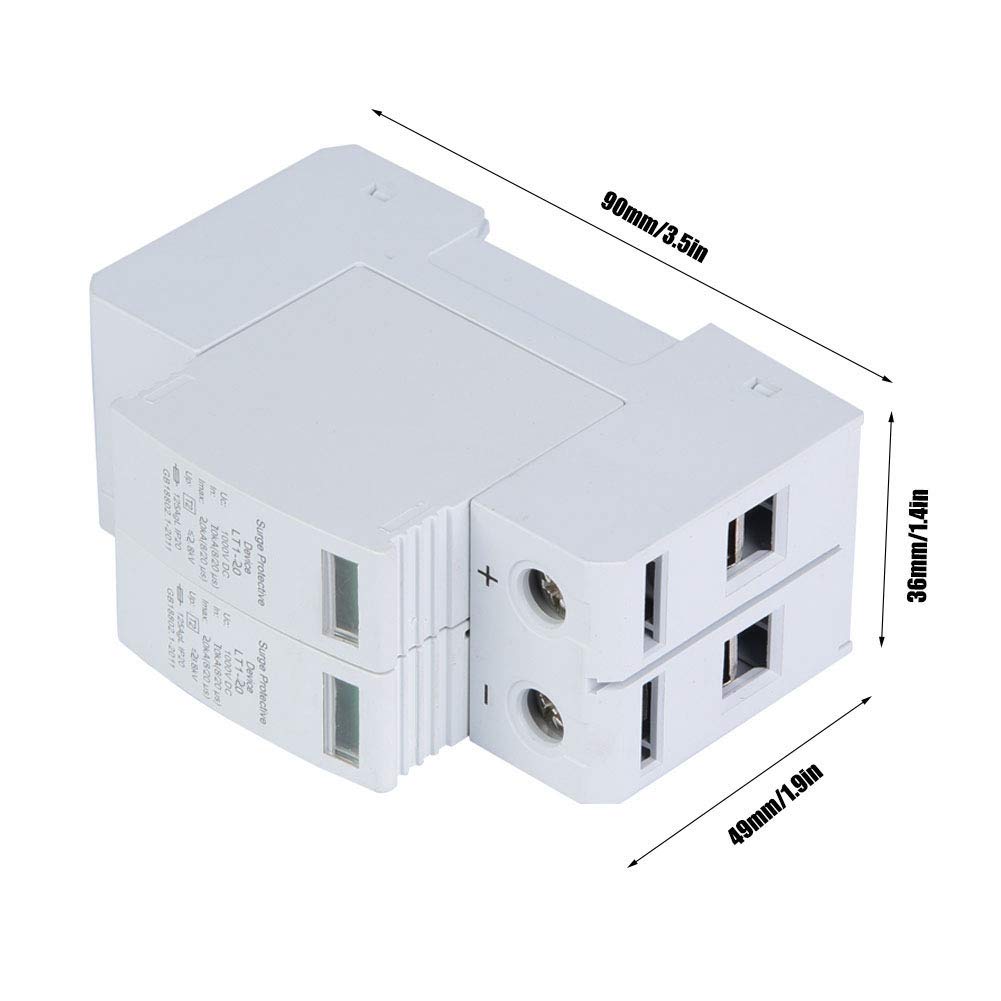

Features: 1.The product shell is made of PC flame retardant material, which is safer to use. 2.The product adopts modular design, and its use and maintenance are very simple. 3.The product is made of precise electronic components, with longer service life and more stable performance. 4.This product adopts 2P guide rail installation, installation is very simple. 5.Installation with standard 36MM guide rail and use with circuit breaker in distribution box. Specification: Material: PC flame retardant shell UC: 1000V Type: #1, 10/20KA; #2, 20/40KA(Optional) Nominal discharge current: 10KA(#1),20KA(#2) Maximum discharge current: 20KA(#1), 40KA(#2) Installation mode: 2P Guide rail mounting Residual voltage after unloading voltage: <3.0KV Rated connectivity and segmentation Ability: 1M Product dimension: 90*49*36mm / 3.5*1.9*1.4in Weight: 260g/9.2oz Package List: 1 * Surge Protective Device Note: The actual product color may deviate from the photo due to light. There may be a slight deviation in the measurement of product.
