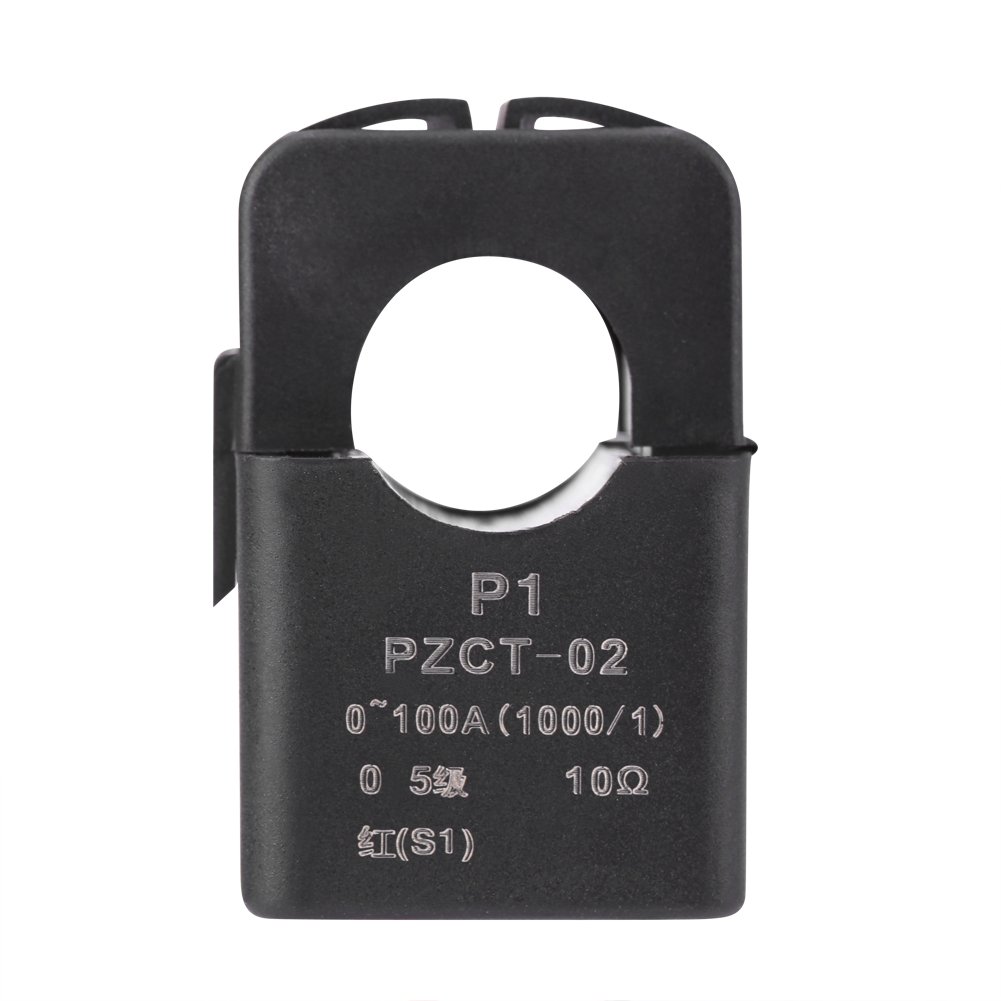

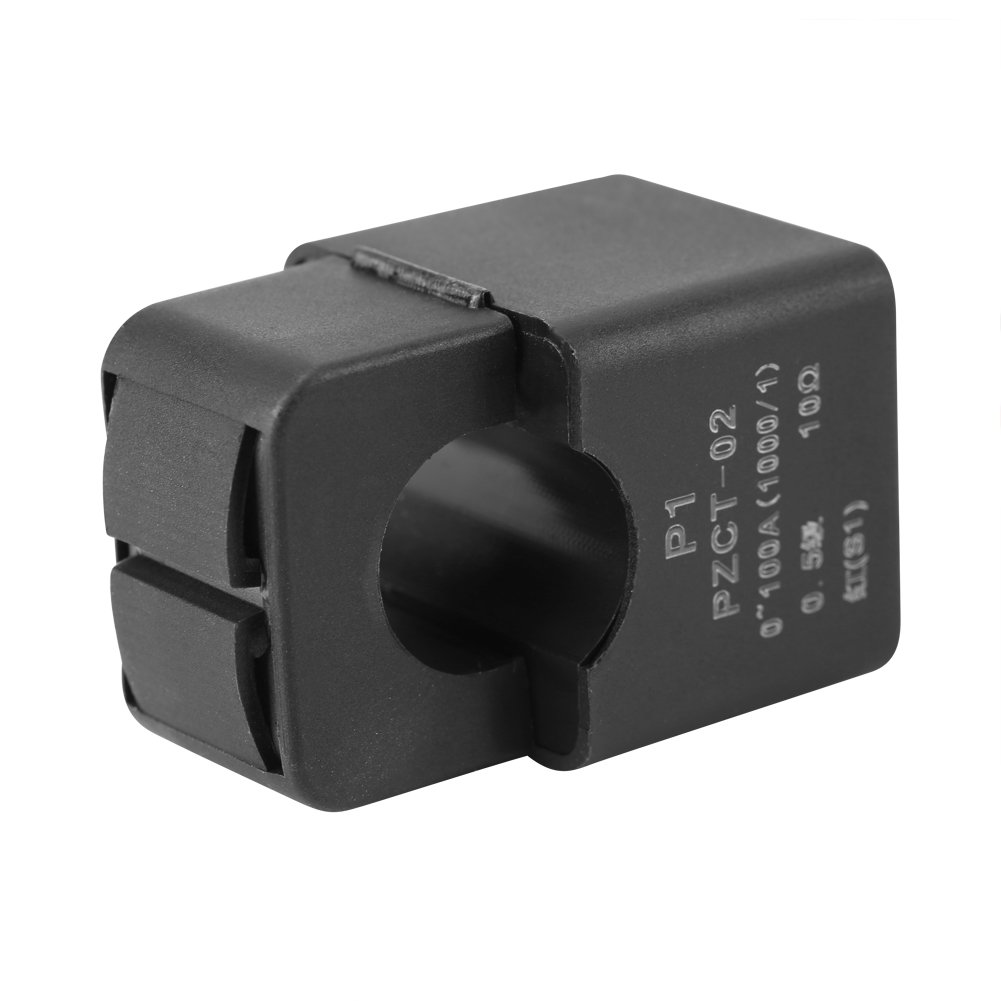

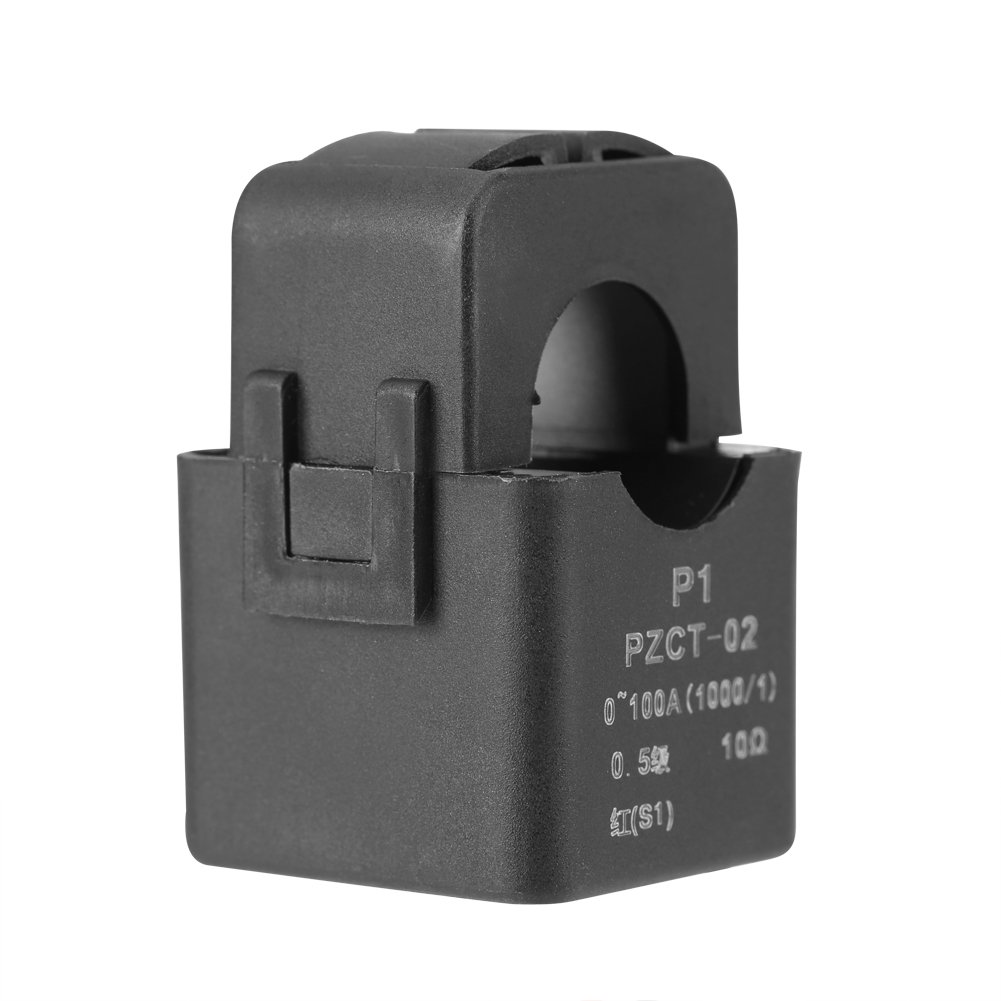

DEWIN Current Transformer, PZCT-02, 100A AC Mains, UL Listed

• 【Microcar Current Transformer】: PZCT-2 miniature open-handed current transformer, is the smallest transformer with the smallest size of similar products (output 100mA).
• 【Scope of Application】: This intestinal sensor supporting power meter is used for metering, and 220V 380V power supply line can be applied.

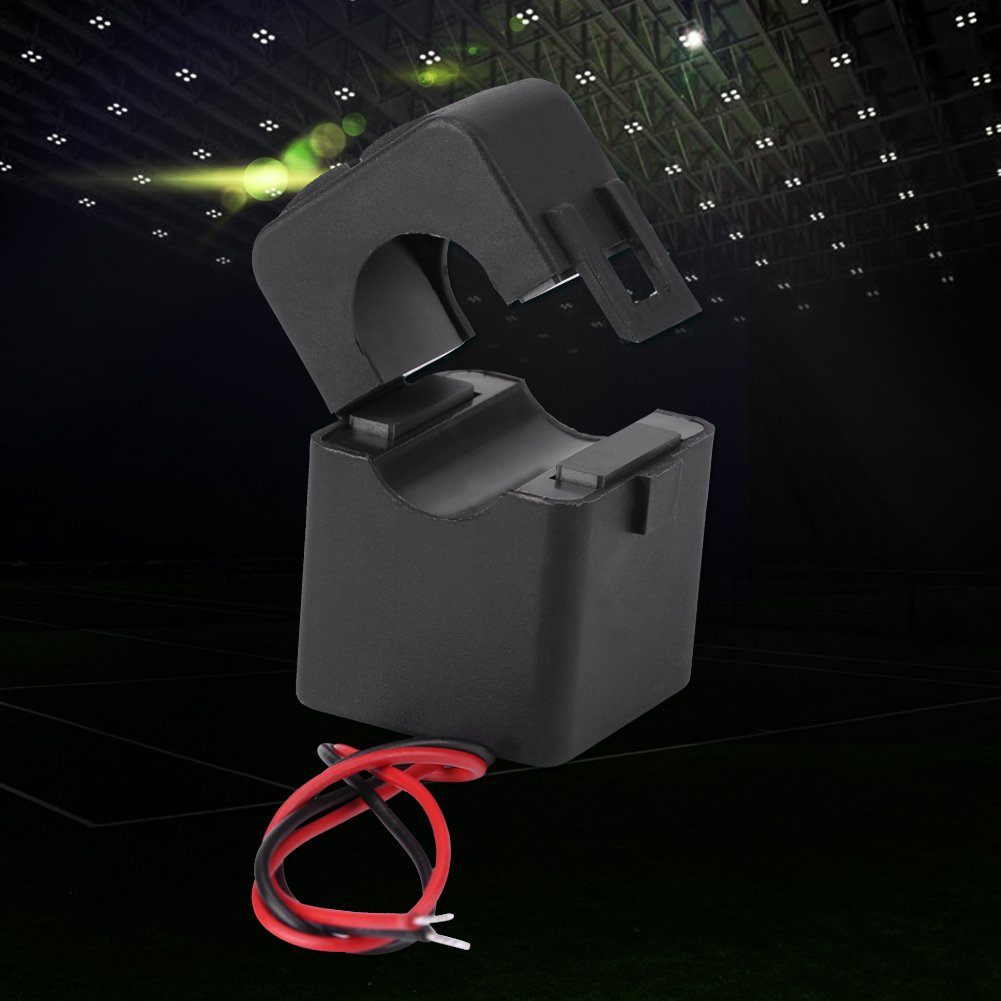

• 【Block Structure】: The diameter of the inner hole is 16mm, and the accuracy is ≤0.5. Using the buckle structure and using the fast connector structure, the overflowed core current transformer can be directly fixed on the cable.

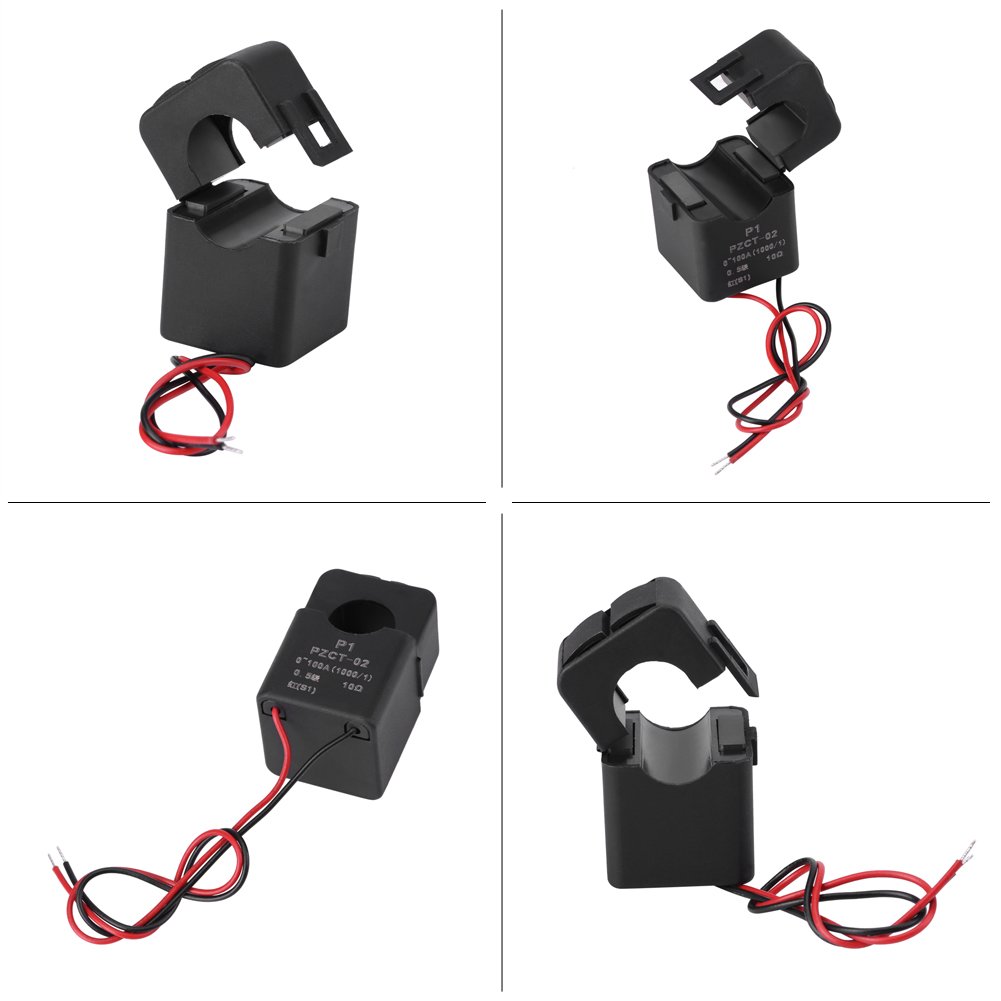

• 【Easy to Install】: Built -in input coil; transformer can be fixed directly to the cable with nylon tie, which is small and beautiful, occupying small space, and fast installation.
• 【Excellent Performance】: Completely closed, good mechanical performance and environmental performance, strong voltage isolation capacity, safe and reliable.

Descriptions: This is a mini split base current transformer; it's the smallest one compared to the similar products (output 100MA). Fully enclosed, good mechanical properties and environmental resistance, strong voltage isolation capability, safety and reliability. Used for energy meter in special; AC 220v, 380v power supply can both be applied. Specifications: Brand: PEACEFAIR Model: PZCT-02 Environment temperature: -40℃~+85℃ Relative humidity: ≤ 90%(40℃) Working frequency: 50Hz~60Hz Insulation endurance grade: B grade (130℃) Insulation resistance: >1000MΩ normally Dielectric strength: can afford power frequency 1000V/1minute Flame resistance: Conform to UL94-Vo grade Internal resistance: 10Ω  Measuring range: 0-100A Weight:59g Application: 1. The current transformer is used for energy meter in special; AC 220v, 380v power supply can both be applied. 2. When you fix the energy meter, you don't need to cut off the power if you use this product. Package Included: 1 x  Current Transformer Note: 1. The CT primary should be connected in series with the test current loop, the secondary should be as work in the short-circuit state. 2. The secondary circuit is not allowed open circuit, so please do not install fuse.
