Delay Timer Relay, H3CR-A Delay Timer Relay 0.5S-300H Knob Control Time Relay 11-Pin 100-240VAC 100-125VDC

• 【HIGH QUALITY】 High quality plastic case, waterproof and dustproof.
• 【PERFORMANCE】 Great contact capacity. Contact capacity: 250VAC 8A (resistive load). Stable performance, long life, mechanical 5000000 times, electrical 10000 times.
• 【TIMER RELAY】 Model: H3CR-A, this timer relay adjustable timing range from 0.5 to 300 hours, with high precision, voltage tolerance is ± 10%.
• 【APPLICATION】 Widely applied to the automated control circuit such as remote control, communication, automatic control, mechatronics and so on.
• 【SERVICE】 If you have any questions or need any suggestions about the products we have sold, please feel free to contact us, we will provide you with quality after-sales service.

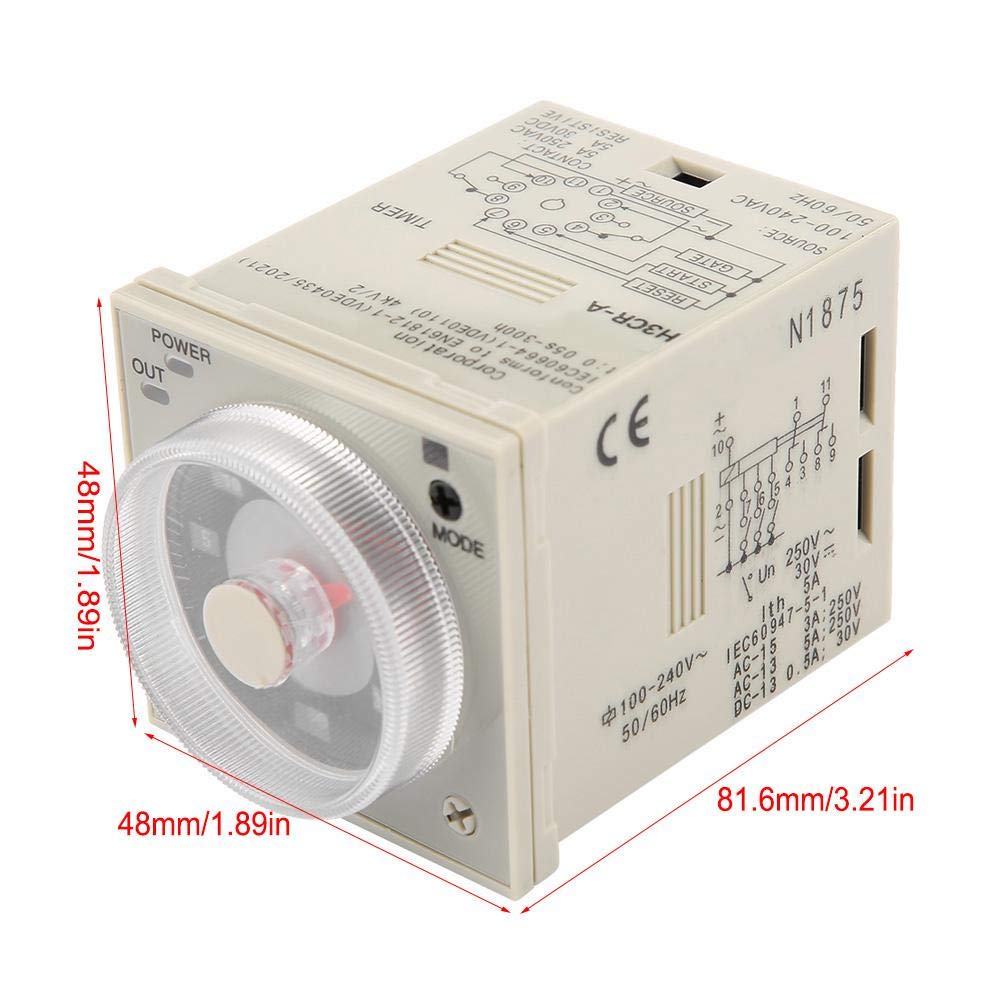

Features: 1. High quality plastic case, waterproof and dustproof. 2. 0.5 seconds to 300 hours adjustable timing range. 3. High precision, large contact capacity. 4. Stable performance, long service life. 5. Widely applied to automated control circuit such as remote control, communication, automatic control, mechatronics and so on. Specification: Model: H3CR-A Rated voltage: 100-240VAC 100-125VDC Voltage tolerance: ±10% Power consumption: about 1.9VA Time range: 0.5 seconds to 300 hours (adjustable) Contact capacity: 250VAC 8A (resistive load) Reset time: ≤0.55s Life: Mechanical 5000000 times, Electrical 10000 times Operating temperature: -10~50℃ Dimensions: 48*48*81.6mm / 1.89*1.89*3.21in Package weight: Approx. 120g/4.2oz Package list: 1 * Delay Timer Relay Note: 1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item. 2. Please allow slight error due to manual measurement. Thanks for your understanding.
