DCT Delta 2x Flush-Mounted Satellite Socket, 3 Outputs, Unicable & Cable TV Compatible, Junction Socket, Antenna Socket, DVB-C, DVB-S/S2, DVB-T/T2, DAB +, DC Pass, 5-2400 MHz

• Terminal socket (jigsaw socket) with 3 outlets, suitable for multi-users and individual systems, without lid and frame, for connection to multi-switch or LNB
• Frequency range: 0 2400 MHz
• Sat (F socket) 950 2400 MHz; connection reception 12.5 dB
• TV (coaxial plug IEC 169 2) 0 862 MHz; connection reception 6.0 dB
• HQ, cl A, satellite socket very easy to install thanks to intelligent clamping technology, DC p

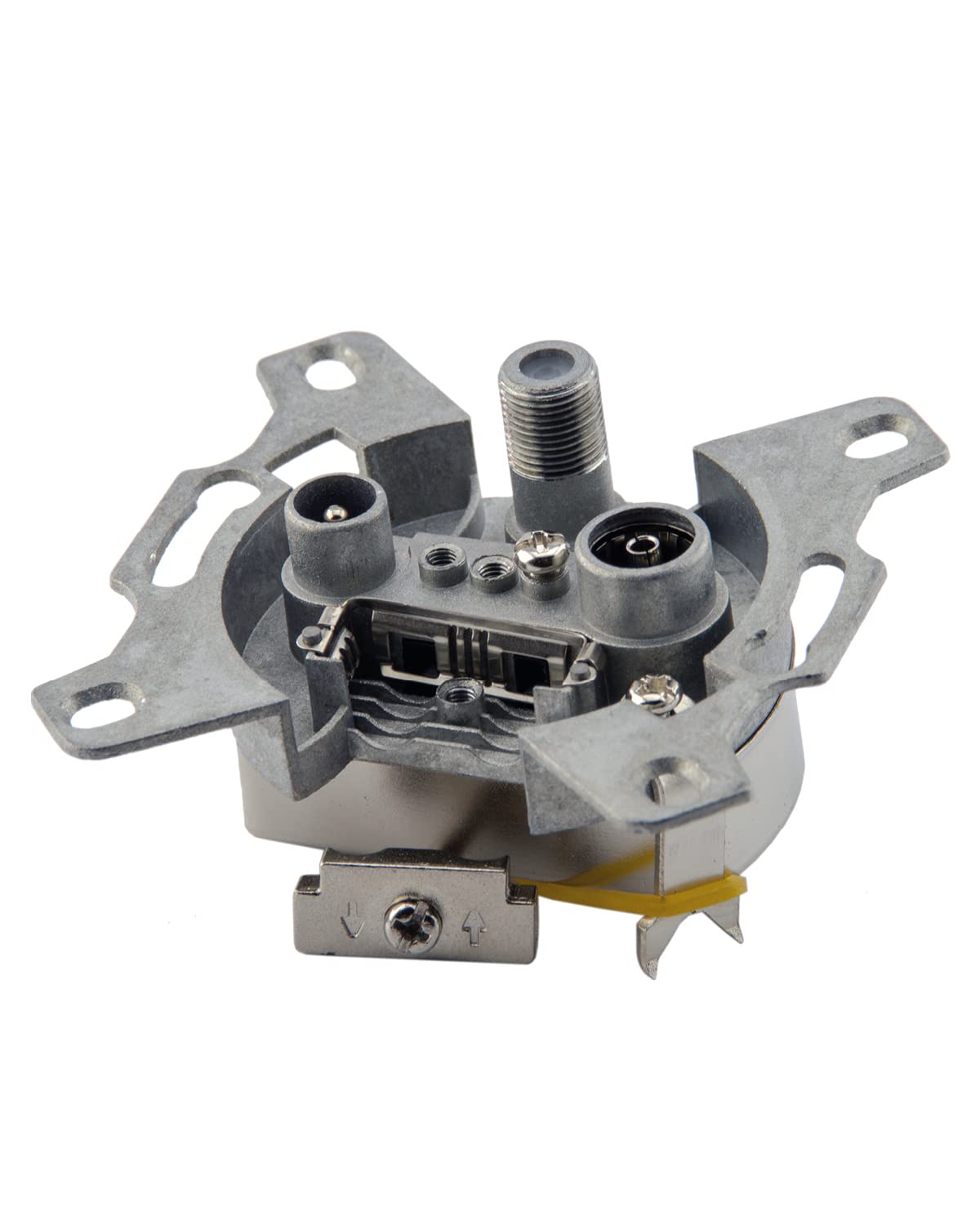

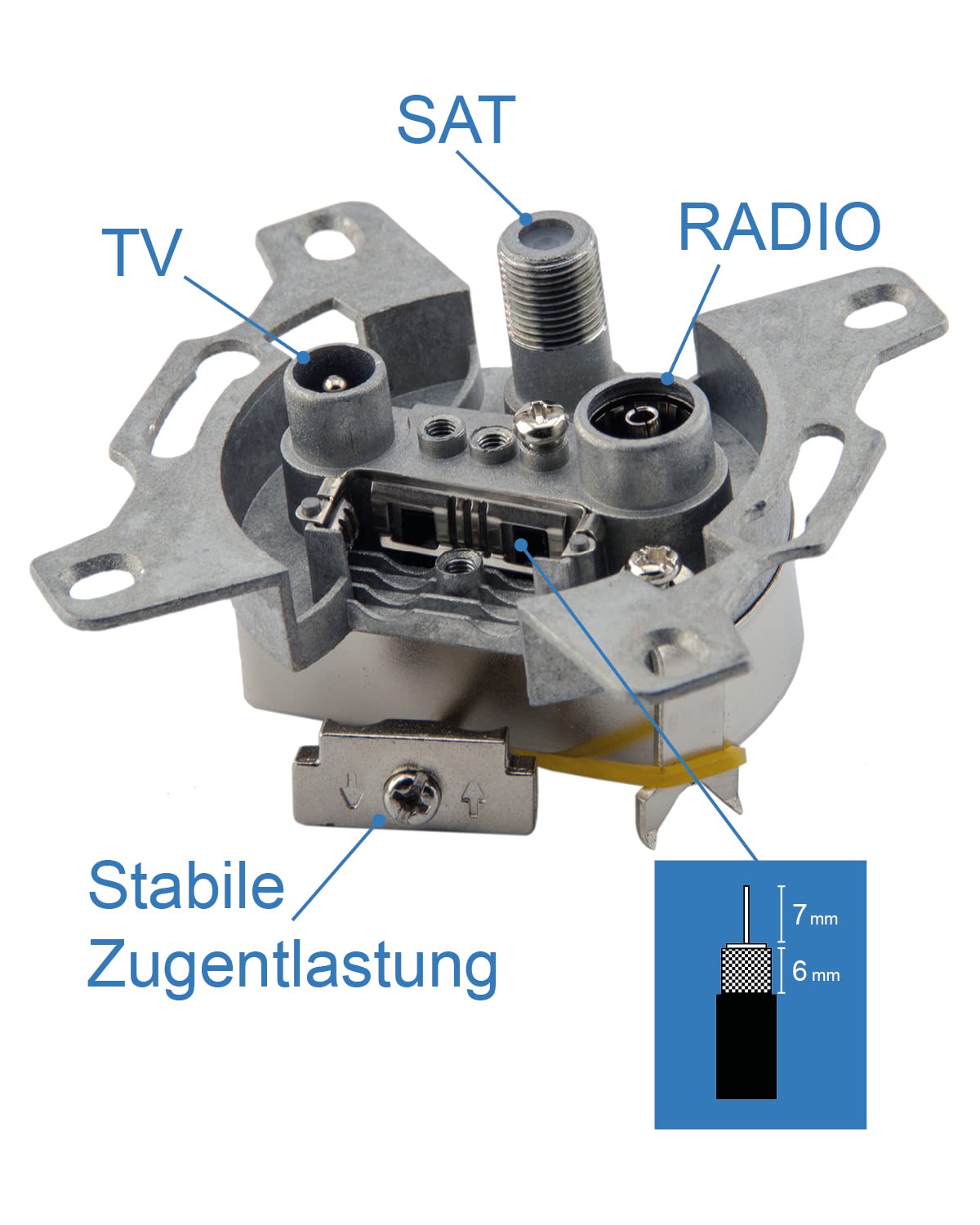

The Delta SEA 2400 is a high quality satellite junction box and is used in satellite systems as a single junction box. The antenna socket can be easily connected to your multi-switch or LNB. The terminal socket consists of three outputs - SAT, TV and radio. The satellite box can be used in multi-user and individual systems. Product information: has three outputs for use for stub cable, antenna and satellite sockets DC, HQ, class A - compatible. Wide application: suitable for group and individual systems. Connections in screw terminal technology for easy installation. Application information. Frequency range: 0 - 2400 MHz satellite (female) 950-2400 MHz; connection attenuation 2.5 dB TV (coaxial plug IEC 169-2) 0-862 MHz; connection attenuation 6.0 dB
