DC/DC Converter Regulator Reducer 36V/48V Step Down to 24V 30A 720W Waterproof Buck Converter with USB Port Protective Case for Auto Car Truck

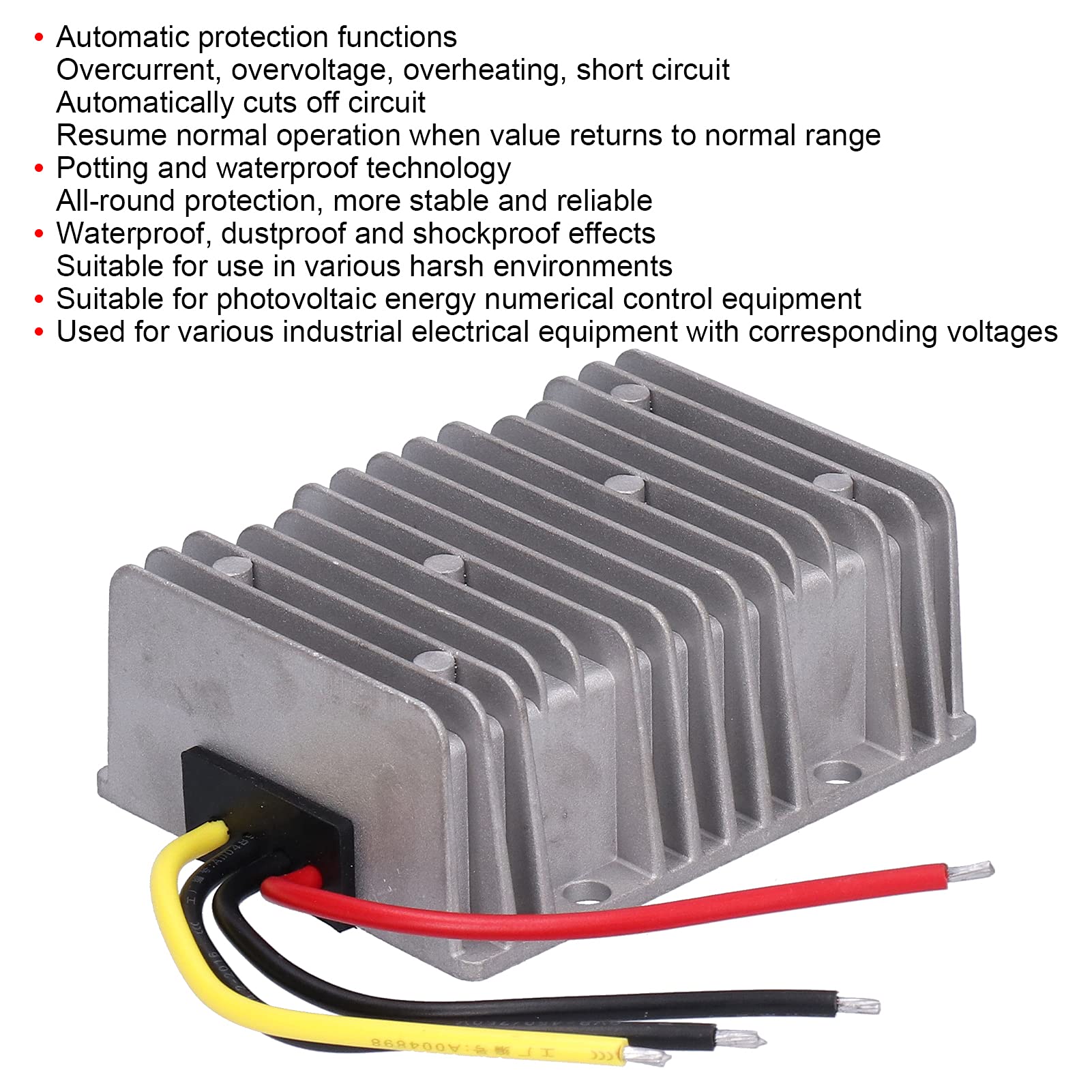

• AUTOMATIC PROTECTION: When the step-down device encounters problems such as overcurrent, overvoltage, overheating, short circuit, etc., the automatic protection function will be turned on. When the protected circuit enters an unsafe value, the built-in protector will automatically cut off the circuit. As long as it returns to the normal range, the buck will resume normal operation.
• HIGH QUALITY: The pressure reducer is made of high-quality cast aluminum, waterproof and rust-proof, and durable. The internal circuit structure is stable, the conversion efficiency is high, the heat dissipation is good, the long-term work is not easy to be damaged, and the service life is long.
• SOPHISTICATED TECHNOLOGY: The step-down device adopts SMT technology, with high integration and high stability, and can be quickly step-down conversion according to your requirements. Synchronous rectification technology has high conversion efficiency and good stability.

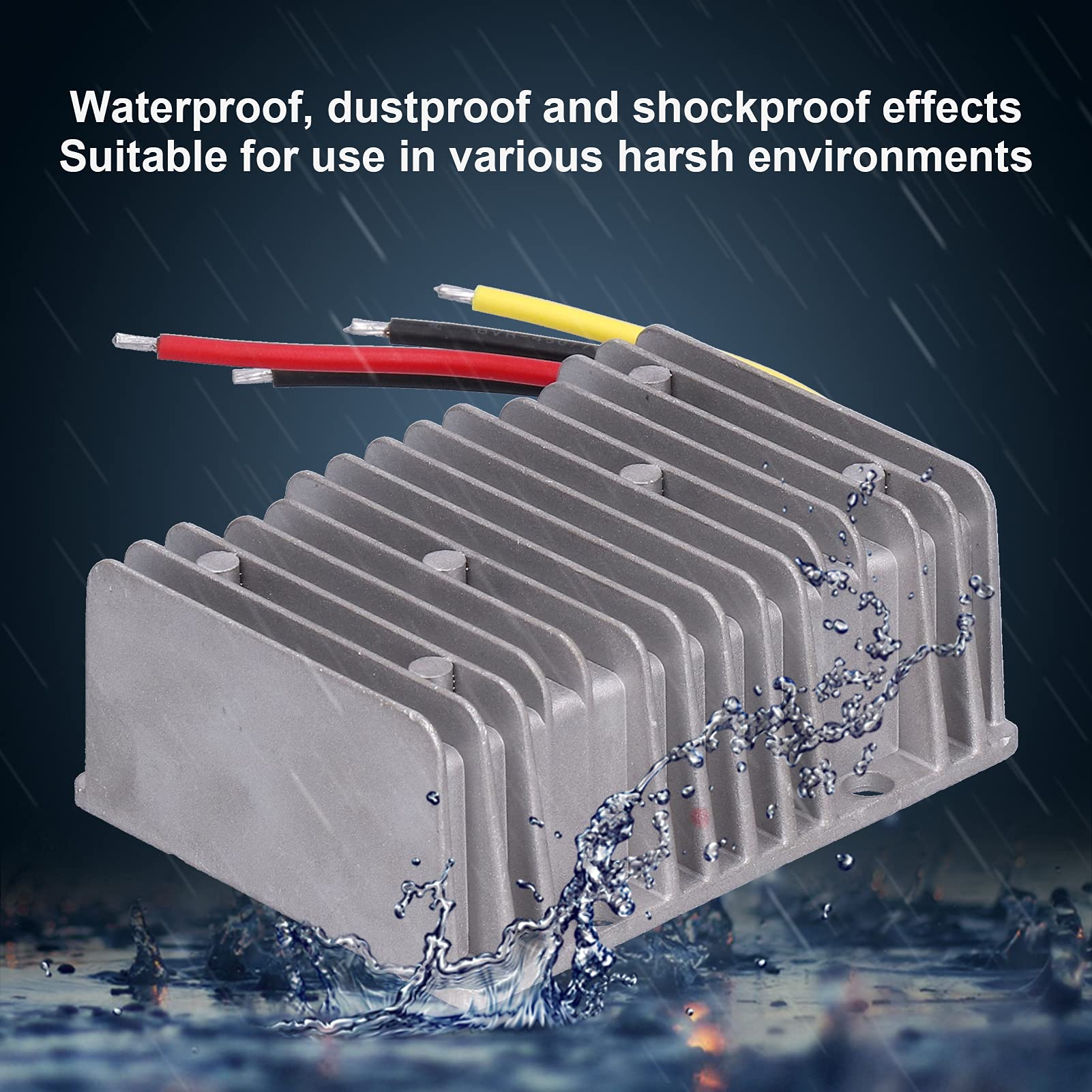

• GOOD SEALING: The pressure reducing device adopts sealing and waterproof technology, all-round protection, more stable and reliable. It has good waterproof and anti-vibration effects, and it can adapt to various harsh environments when used in vehicle power adapters. Maintain normal and stable work.
• APPLICATION SCOPE: The pressure reducing device is usually used in LED display, surveillance camera, electric fan, water pump, motor, photovoltaic energy numerical control equipment, water pump, LED light, digital photo frame, electronic refrigerator, portable DVD, audio, security system, etc. Electrical equipment of corresponding voltage.

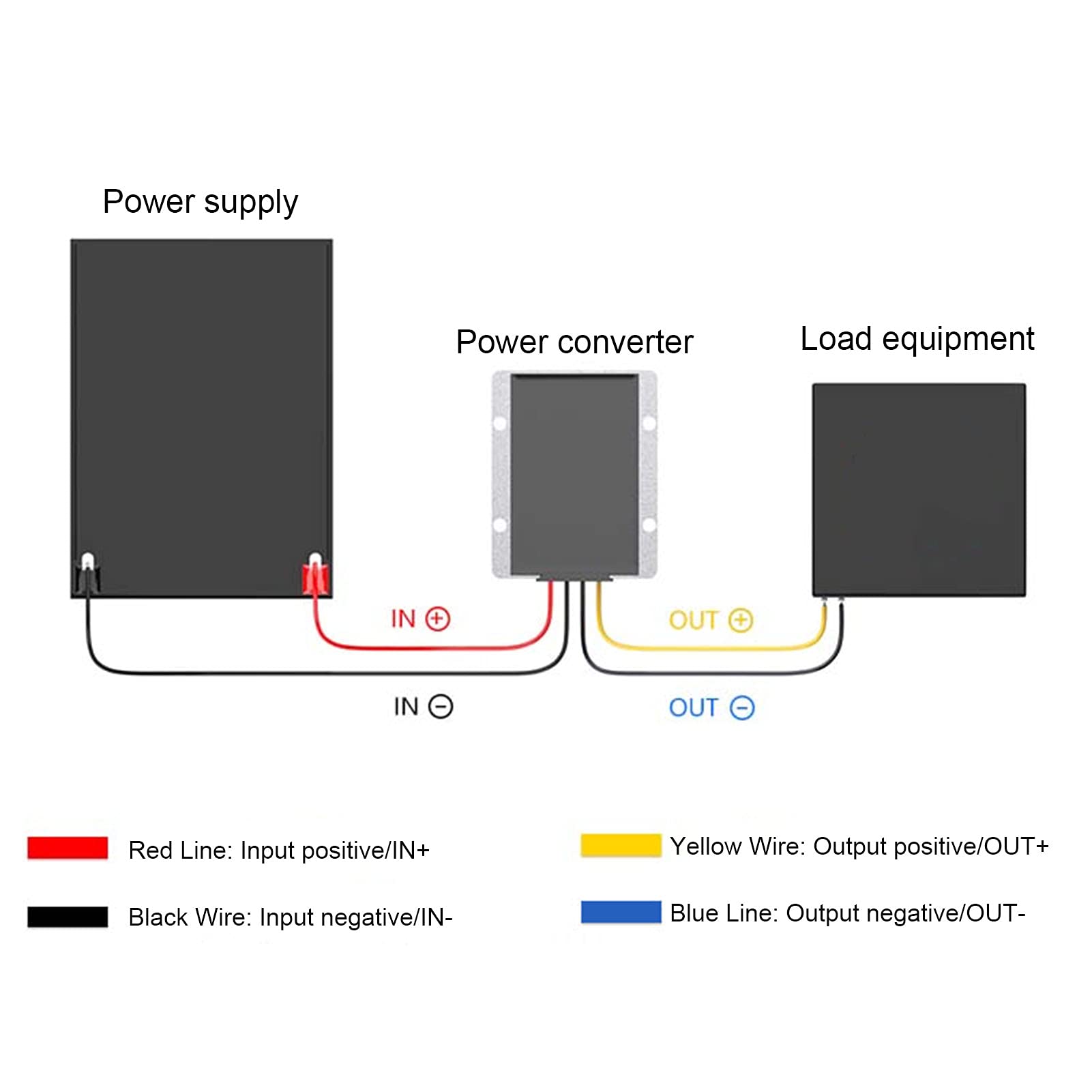

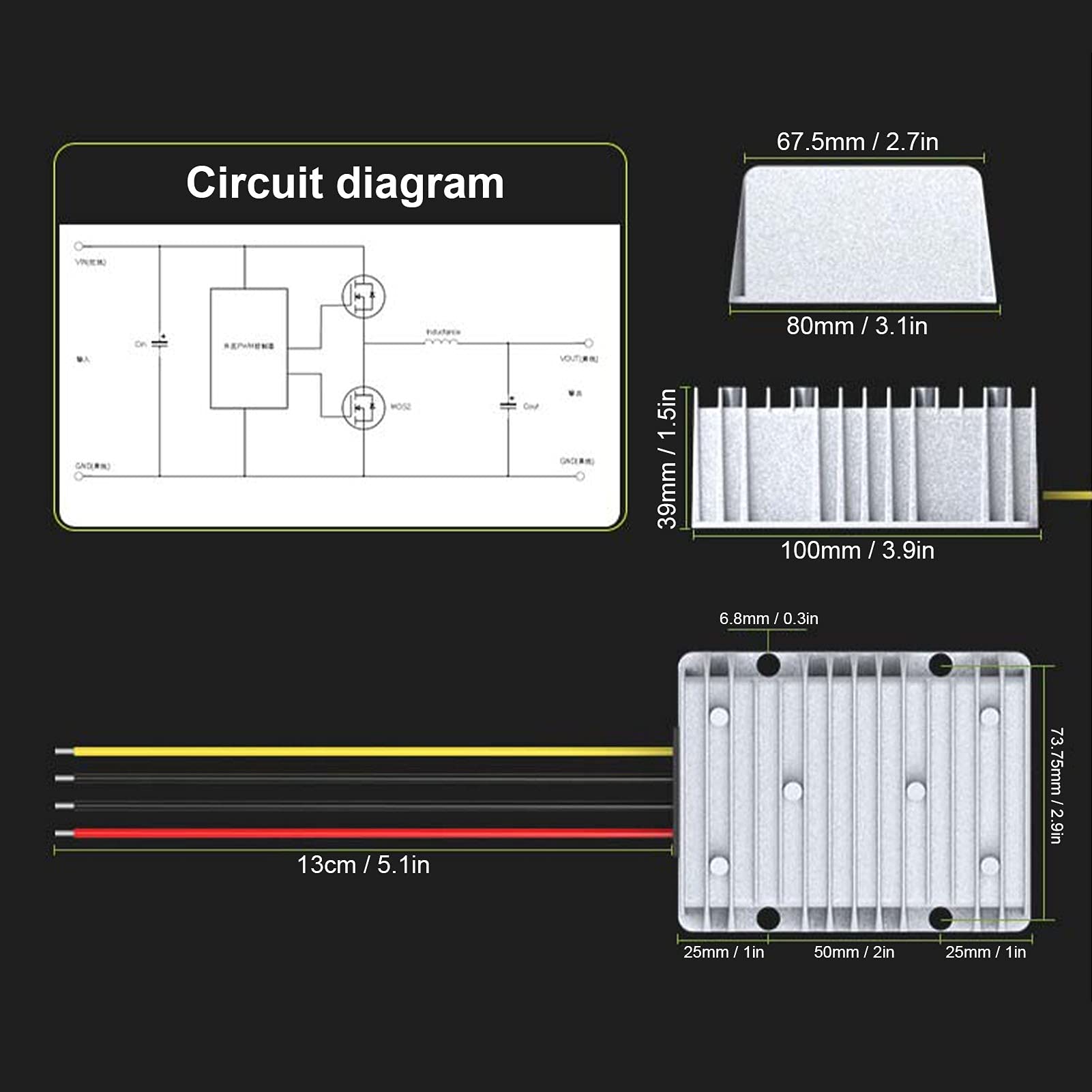

Specification: Item Type: Buck Converter Material: Organic silica gel + aluminum Model: GYVRM-JD1L482430 Input Voltage Range: 36V/48V (DC30-60V) Output Voltage: 24V Rated Output Current: 30A Output Power: 720W Protection Level: IP67 Conversion Efficiency: Up to 96% Working Temperature: -20℃~+80℃ Installation Line Length: Approx. 13cm / 5.1in Package List: 1 x Buck Converter 1 x Wiring Drawing Note: 1. In order to ensure the normal operation of the converter within the input voltage range, the input voltage must not be lower than the minimum or maximum input value restricted by the product during use, and the input voltage value must be higher than the output voltage value by more than 2V. If there is no voltage difference of 2v, the output value will be lower, but it will not damage (affect) the use of the converter. 2. The input current must be greater than or equal to the required power of the output load device (for example, if the power of the load device needs 100w, then the input power must be greater than or equal to 100w). When the converter is in use, the current of the load device should not be greater than the maximum current value that the converter can withstand, and leave as much margin as possible for the converter to ensure that the converter works normally and achieves the highest conversion efficiency. 3. The positive and negative poles of the converter cannot be reversely connected during use. Reverse connection may cause damage to the converter. It is recommended to add a suitable fuse to the input terminal during use.
