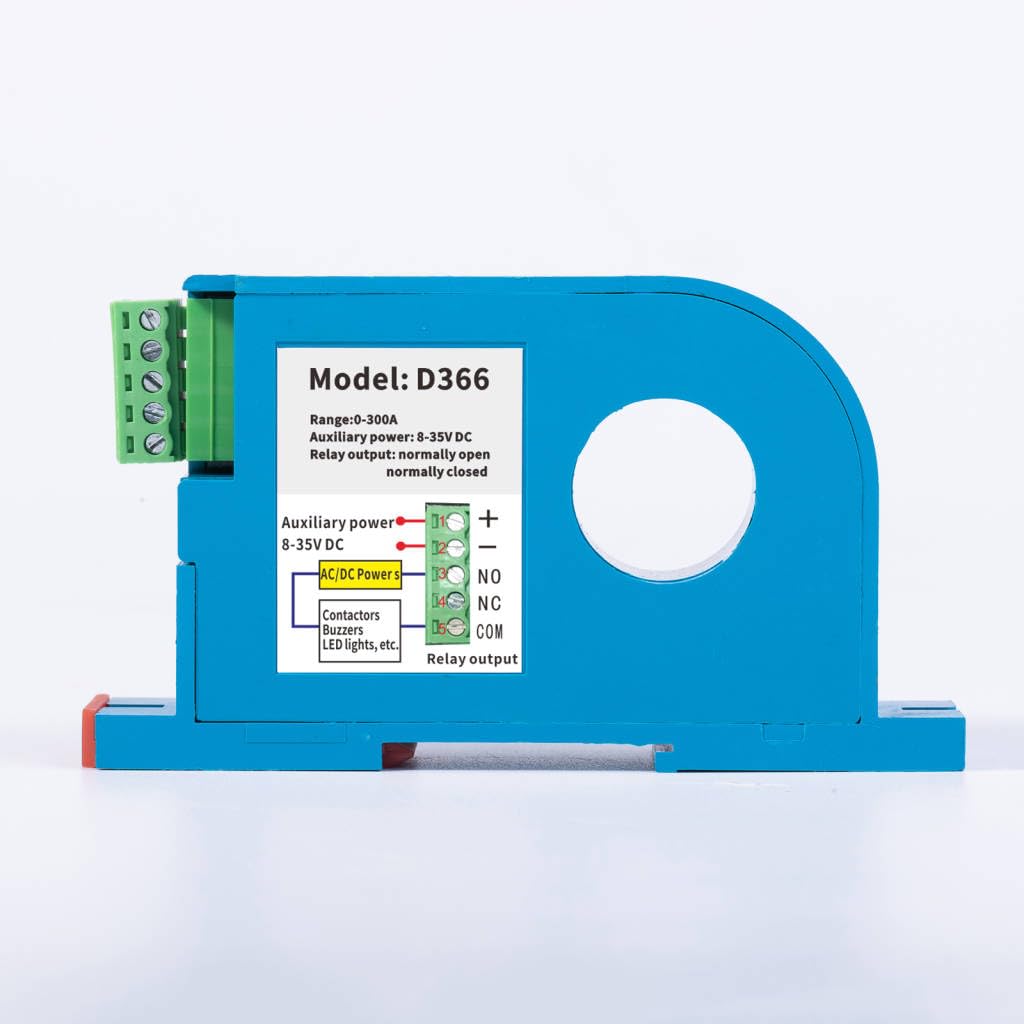

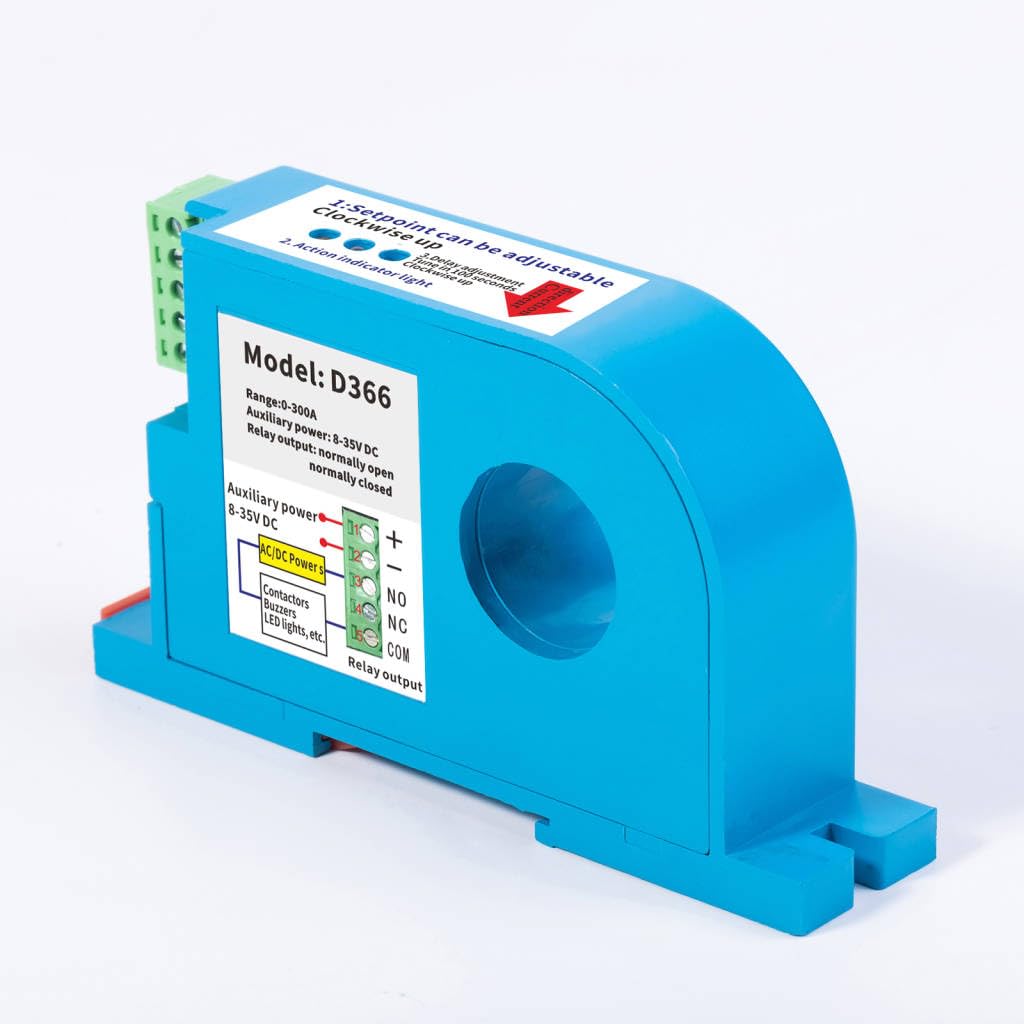

DC Current Switch,Current Sensing Relay DC Current Sensing Switch 0-300A Amp Sensor Monitoring Relay D366

• Basic Function:When the piercing current exceeds the set value, the output switch will act Automatically reset when the piercing current is less than the set value.

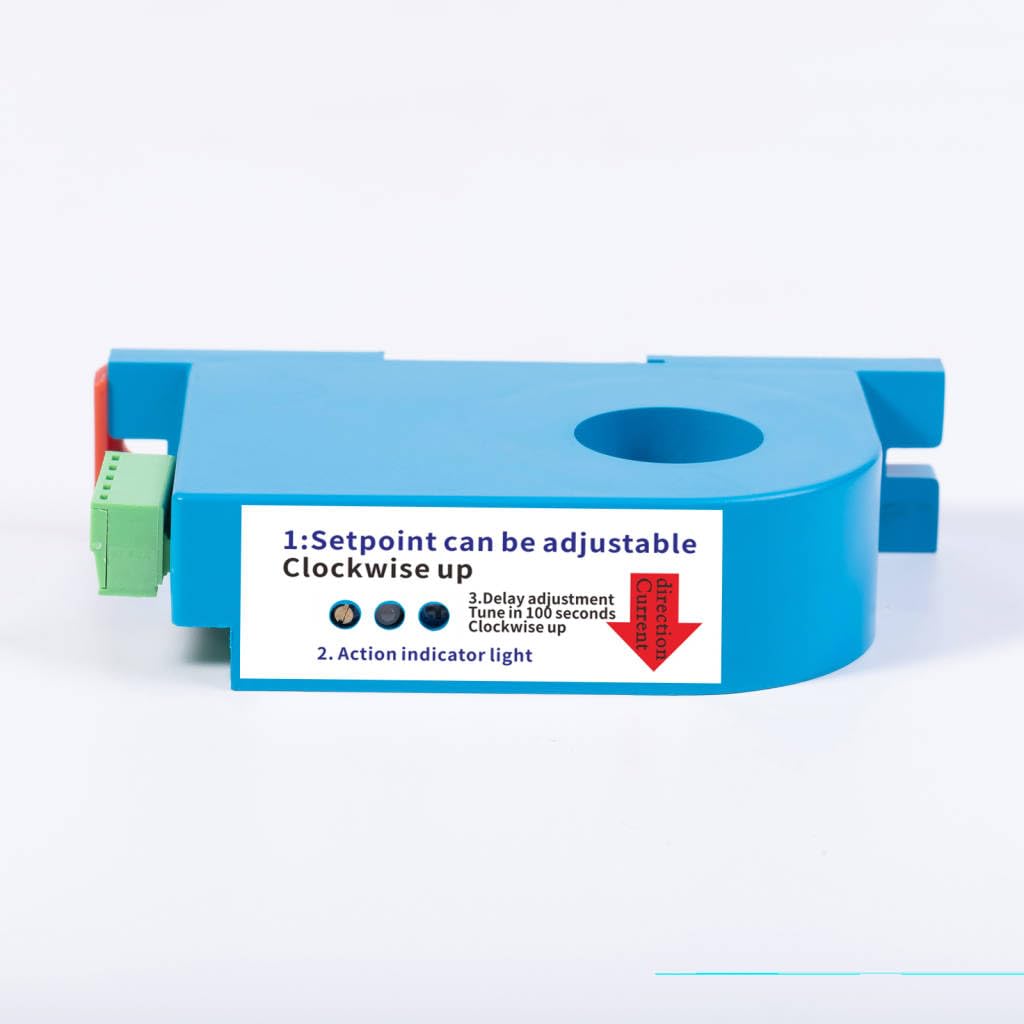

• Set threshold: set the threshold when the perforation current exceeds the threshold, the relay will work, and when the perforation current is lower than the threshold, the relay will reset
• Indicator light: the indicator light is off when there is no current, the green light is on when the current is lower than the threshold, and the red light is on when the current is higher than the threshold
• Delay adjustment: power-off delay can be set from 0 to 99 seconds, clockwise to increase and counter-clockwise to decrease
• Detection range: 0-50A, 6A@240V AC/DC contact capacity

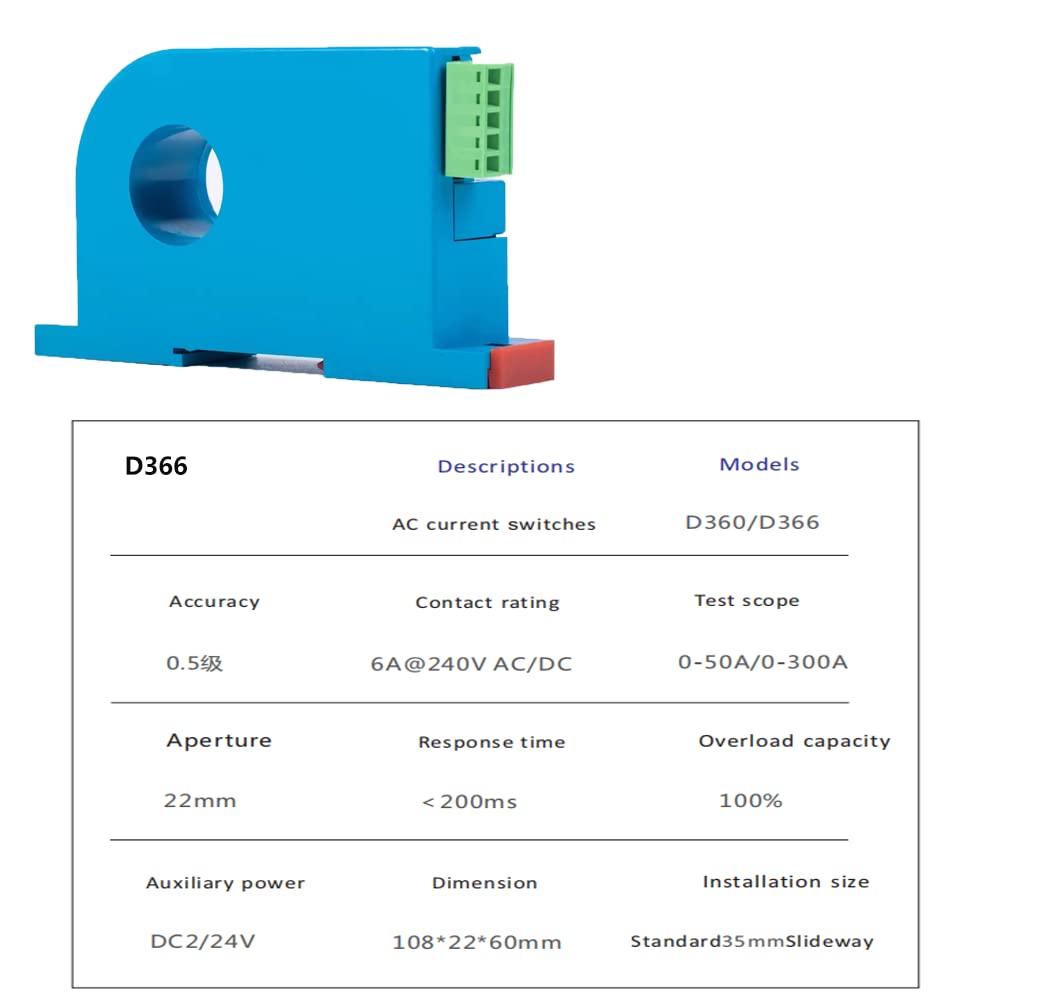

Product: DC Inductive Switch Accuracy: 0.5 class Contact capacity: 6A@240V AC/DC Detection range: 6A@240V AC/DC Aperture: 22mm Corresponding time: less than 200ms Overload capacity: 100% Auxiliary power supply: DC2/24V Product size: 108*22*60mm Installation method: standard 35mm guide rail Packaging: Switch X1
