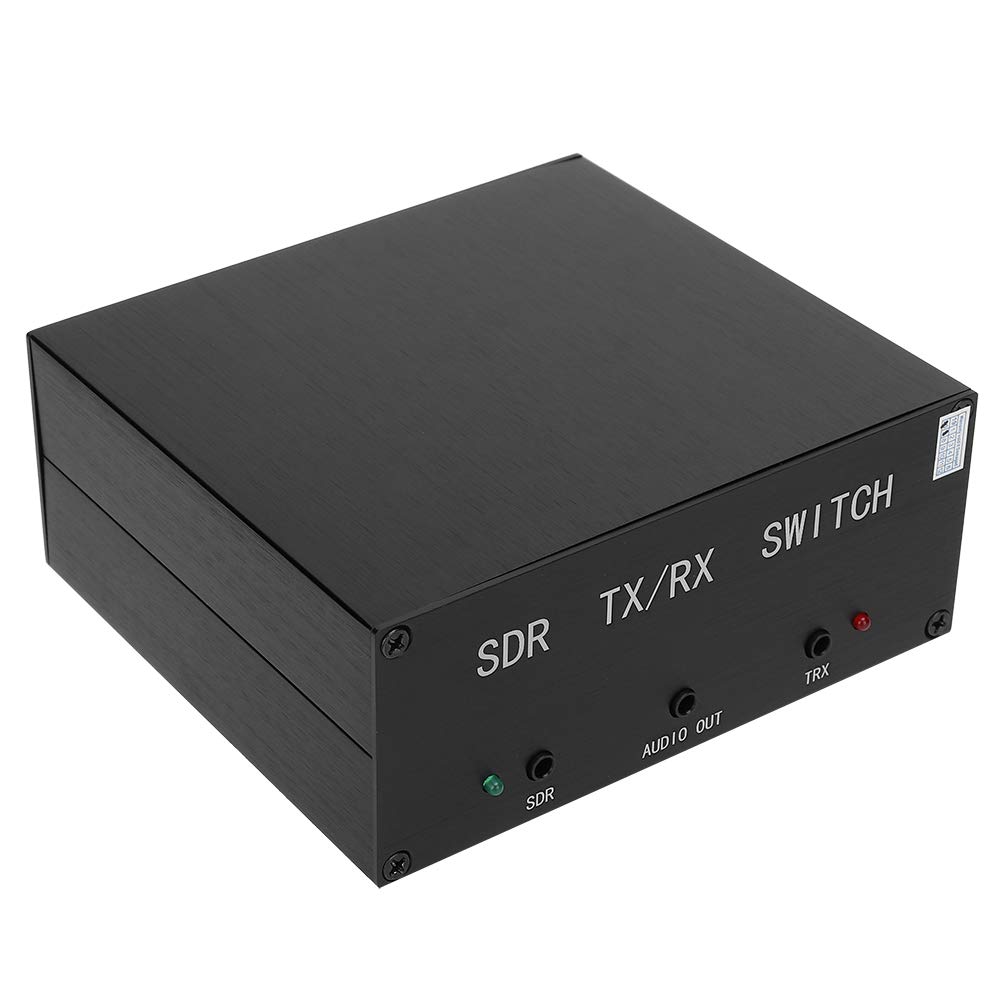

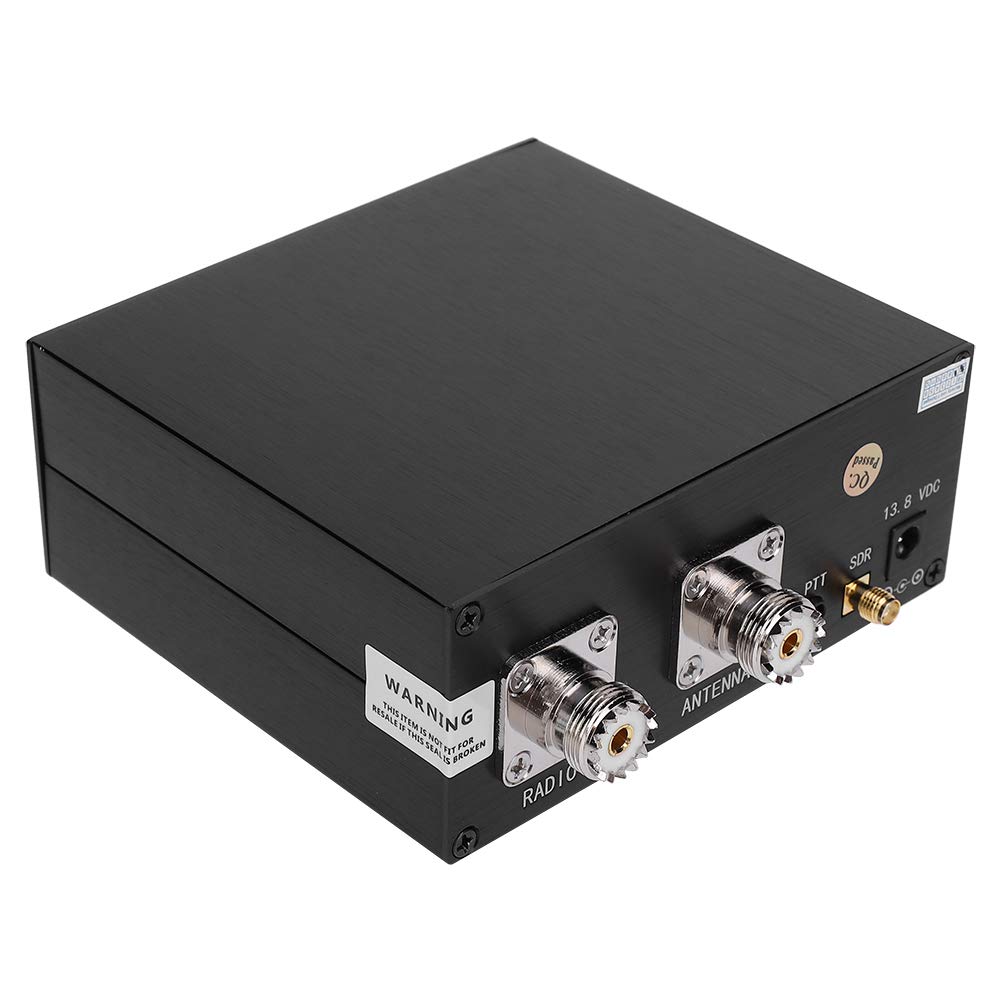

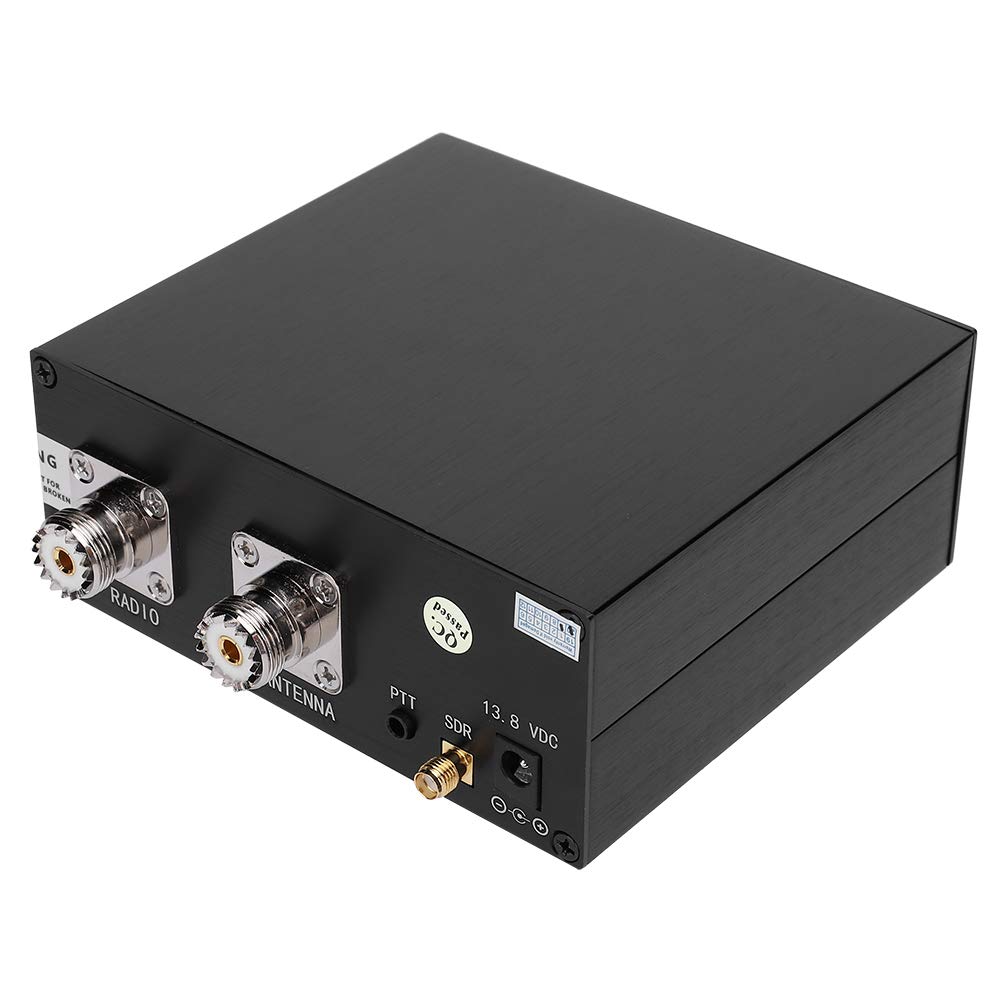

DC -160MHz Antenna Sharer,100W Antenna Sharer SDR Transceiver Switch TR Switch Box,Antenna Sharing Device Aluminum Alloy Box Device

• The shell is made of high‑quality aluminum alloy, strong and
• The shell is made of high‑quality aluminum alloy, strong and

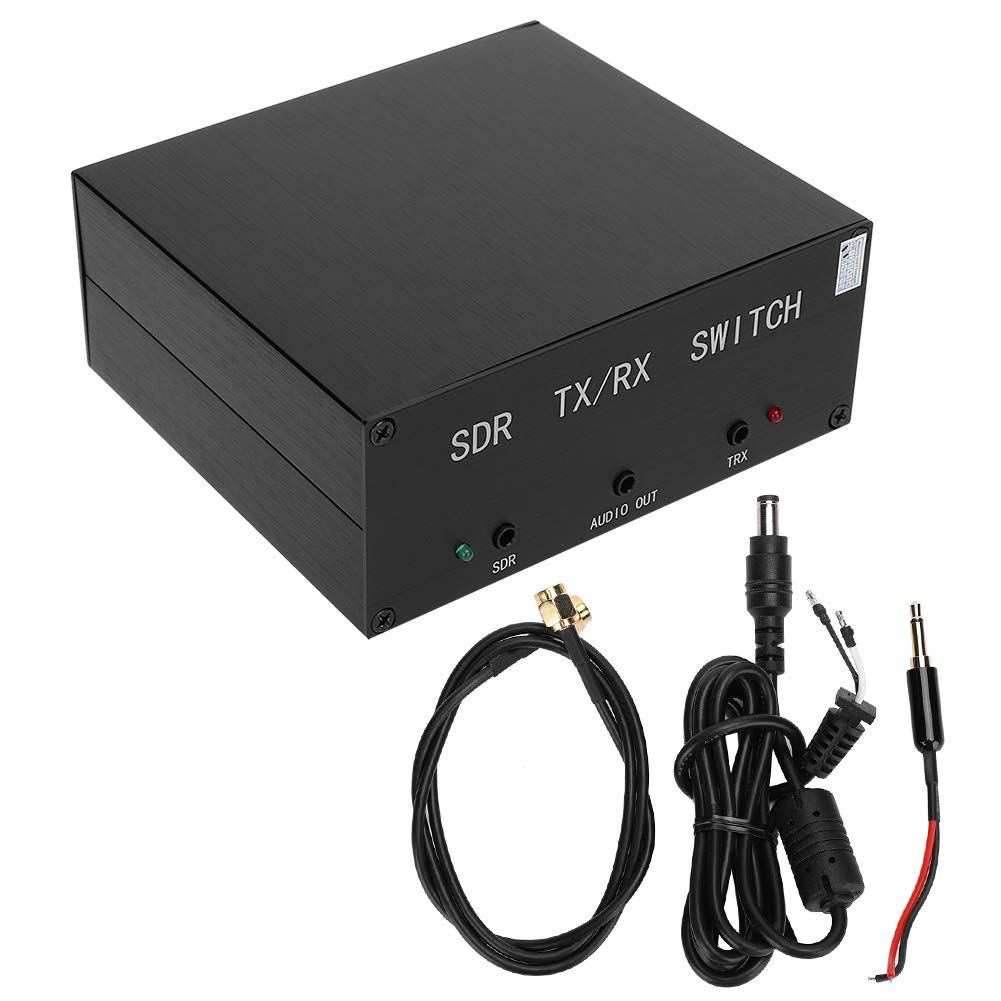

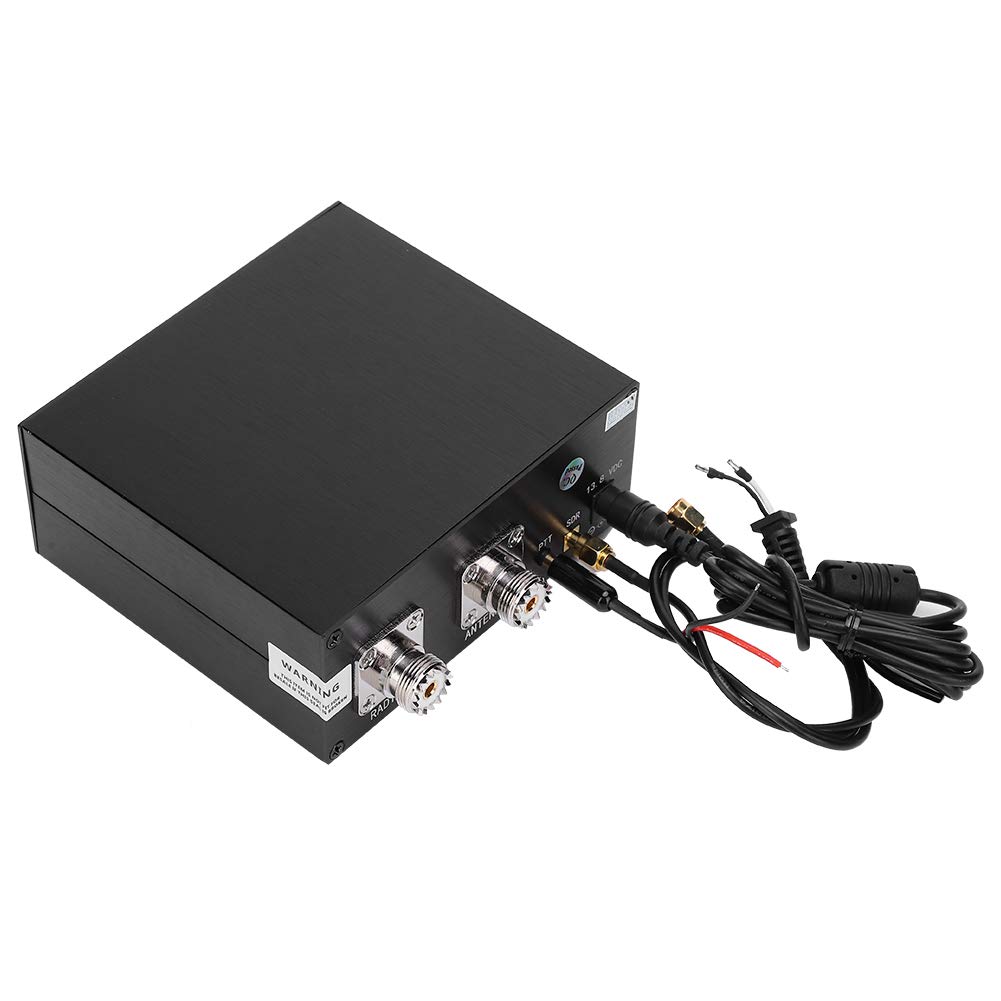

• With 1 x host ,1 x power cord, 1 x 60cm SMA to SMA cable, 1 x PTT control line.
• The maximum transmit power is 100W, and the frequency range is DC ?160MHz.
• Complete tools, you can operate it yourself, suitable for operating by yourself.

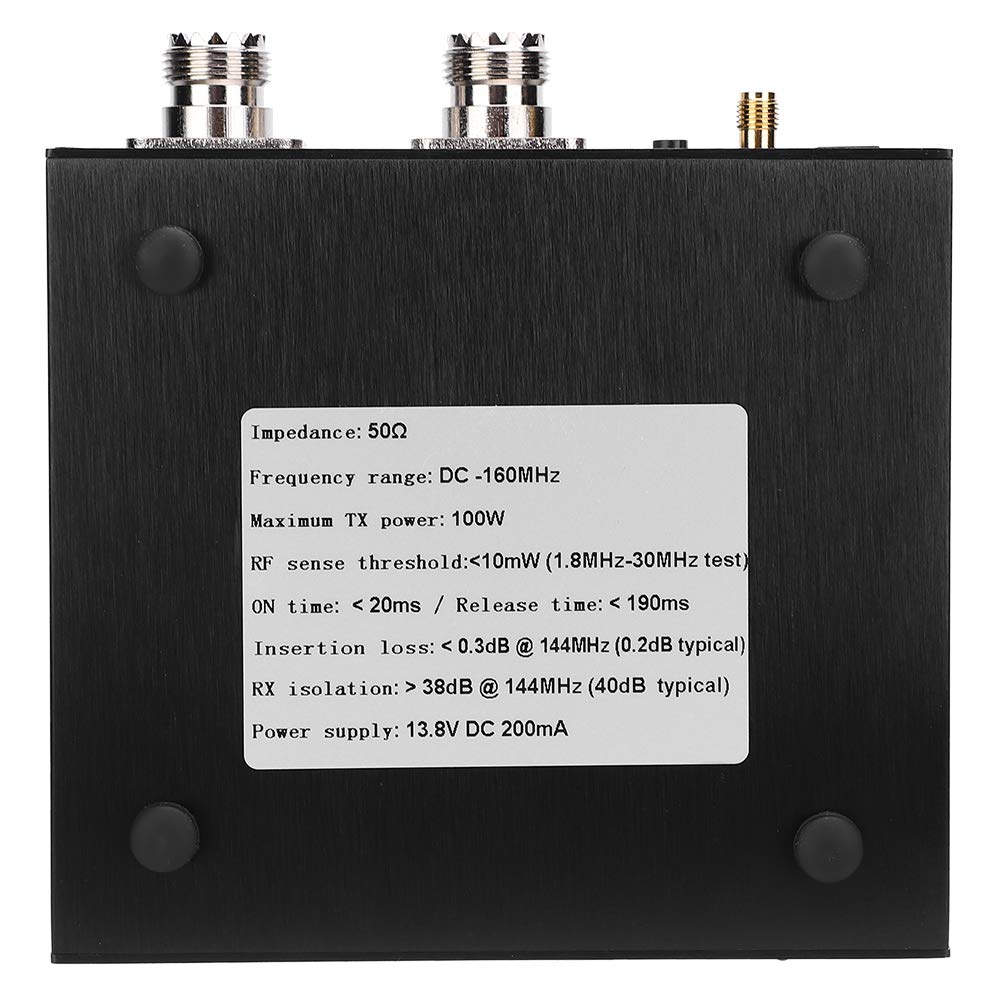

Description Specification: Item Type: Antenna Sharer Material: Aluminum alloy Impedance: 50¦¸ Frequency Range: DC -160MHz Maximum Transmit Power: 100W RF Sensing Threshold: <10mW (1.8MHz-30MHz tested) Opening Time <20ms /Release Time: <190ms Insertion Loss: <0.3dB at 144MHz (typical value is 0.2dB) Receiving Isolation: > 38dB at 144MHz (typical value is 40dB) Exhaust protection Power Supply: 13.8V DC 200mA SMA to SMA Cable: Approx. 60cm / 23.6in Package List: 1 x Host 1 x Power Cord 1 x 60cm SMA to SMA Cable 1 x PTT Control Line Note: Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering. 1. It is necessary to disassemble the product and remove the jumper on the circuit board and change it to the automatic control state, otherwise the product will not work. 2. Power LED light is not bright, may be wiring error, please carefully check the instructions to reconnect.
