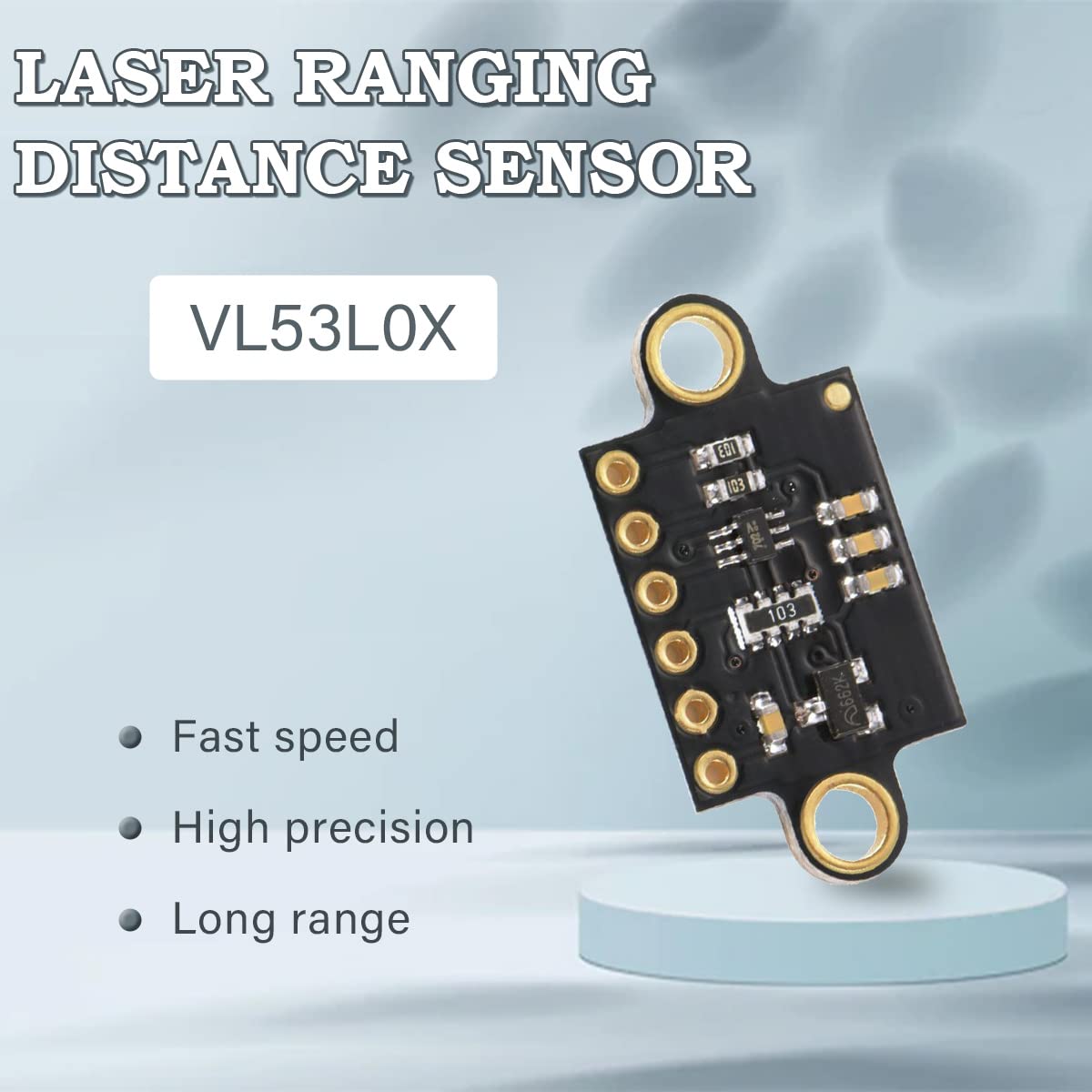

DAOKAI 2Pcs VL53L0X Ranging Sensor Time-of-Flight Laser Ranging Sensor 940nm Flight Distance Measurement Sensor Module GY-VL53L0XV2 with Pin, Cable

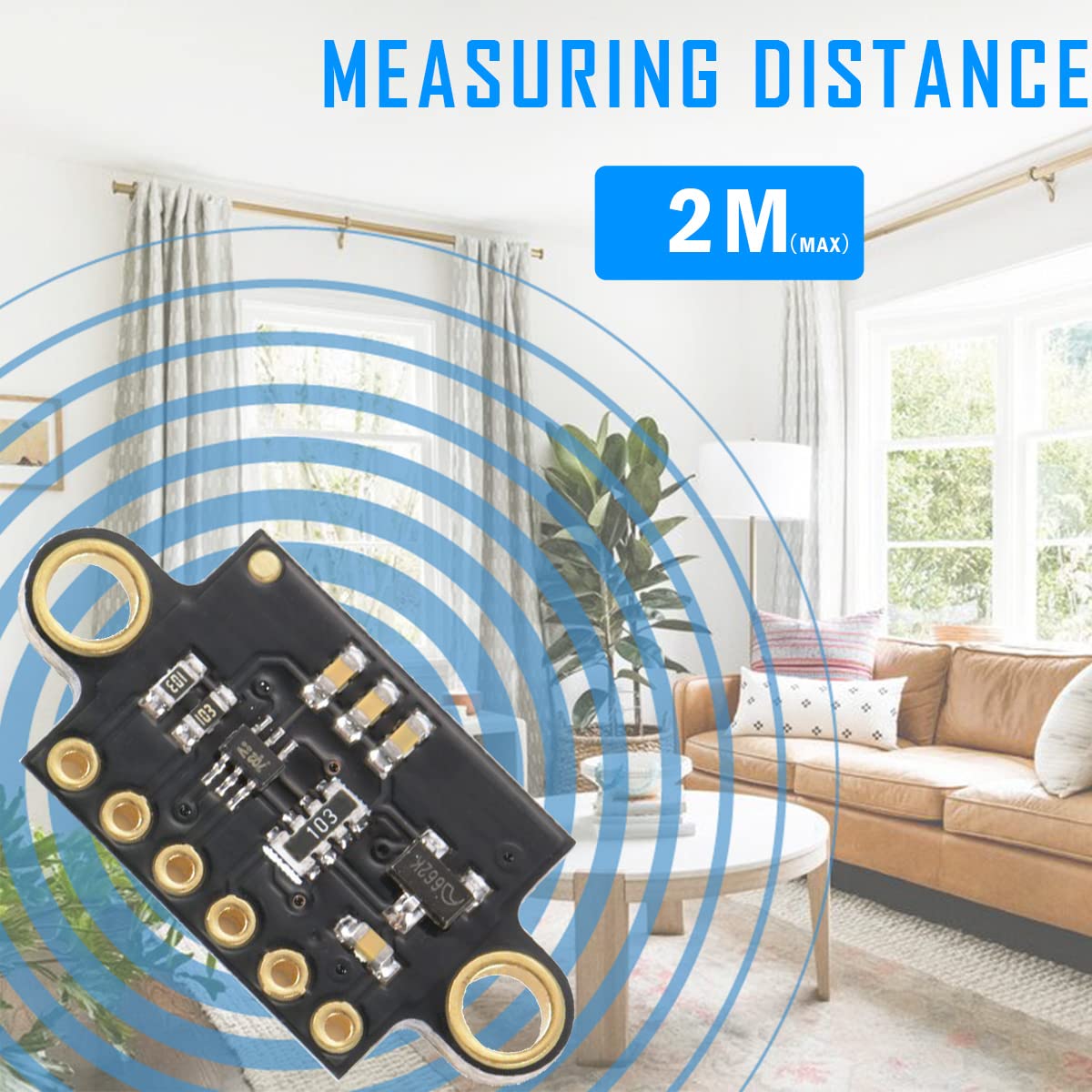

• Ranging performance: VL83L0 can complete all measurement operations in one frame, usually less than 30ms, and the distance is less than 2m. This ranging performance allows the camera system to focus instantly in video and burst modes, and maintain the same performance even in low-light or low-contrast scenes.

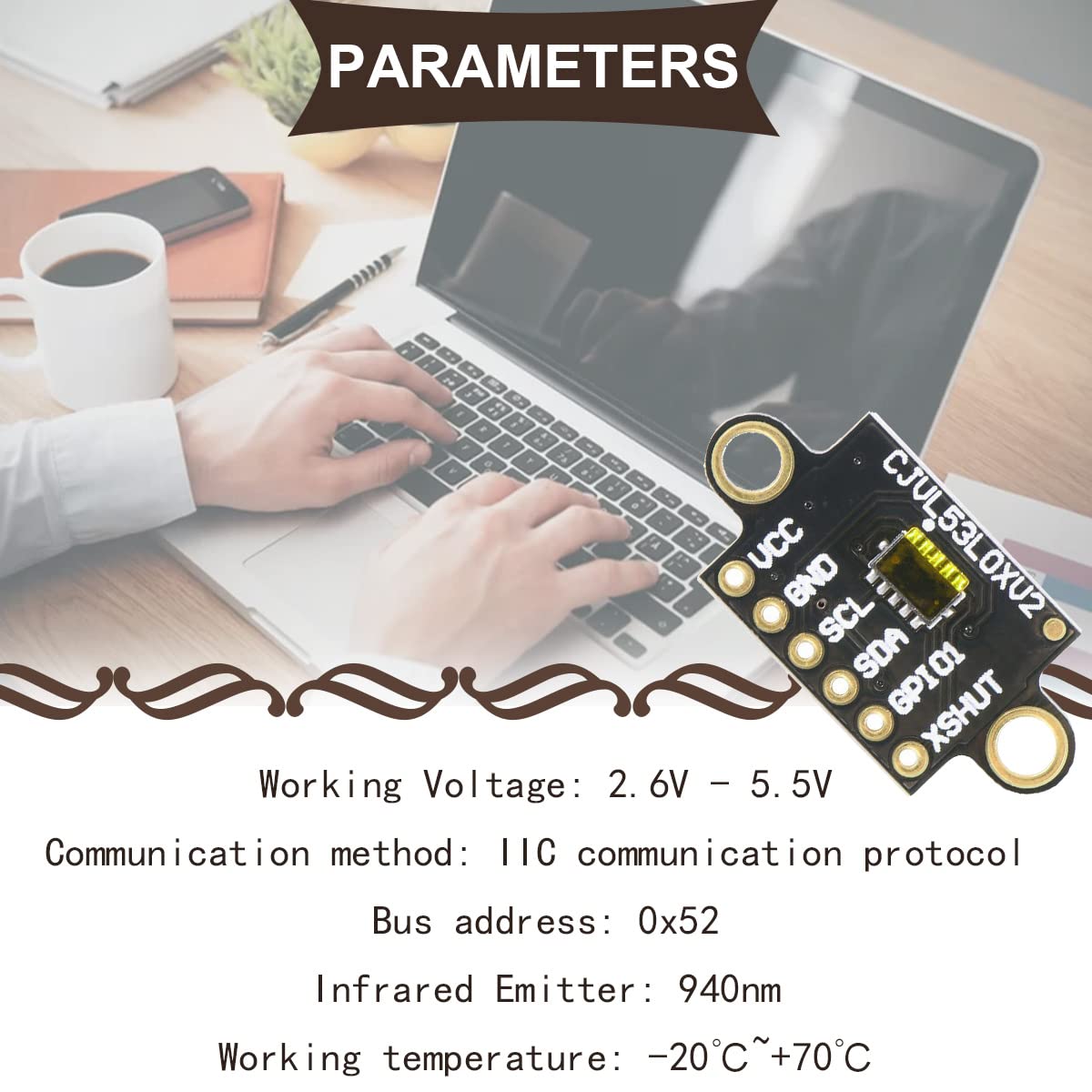

• Specification: Maximum Sensoring Distance: 2m, Working Voltage: 2.6V - 5.5V, Communication method: IIC communication protocol (compatible with 3-5V system), Infrared Emitter: 940nm.

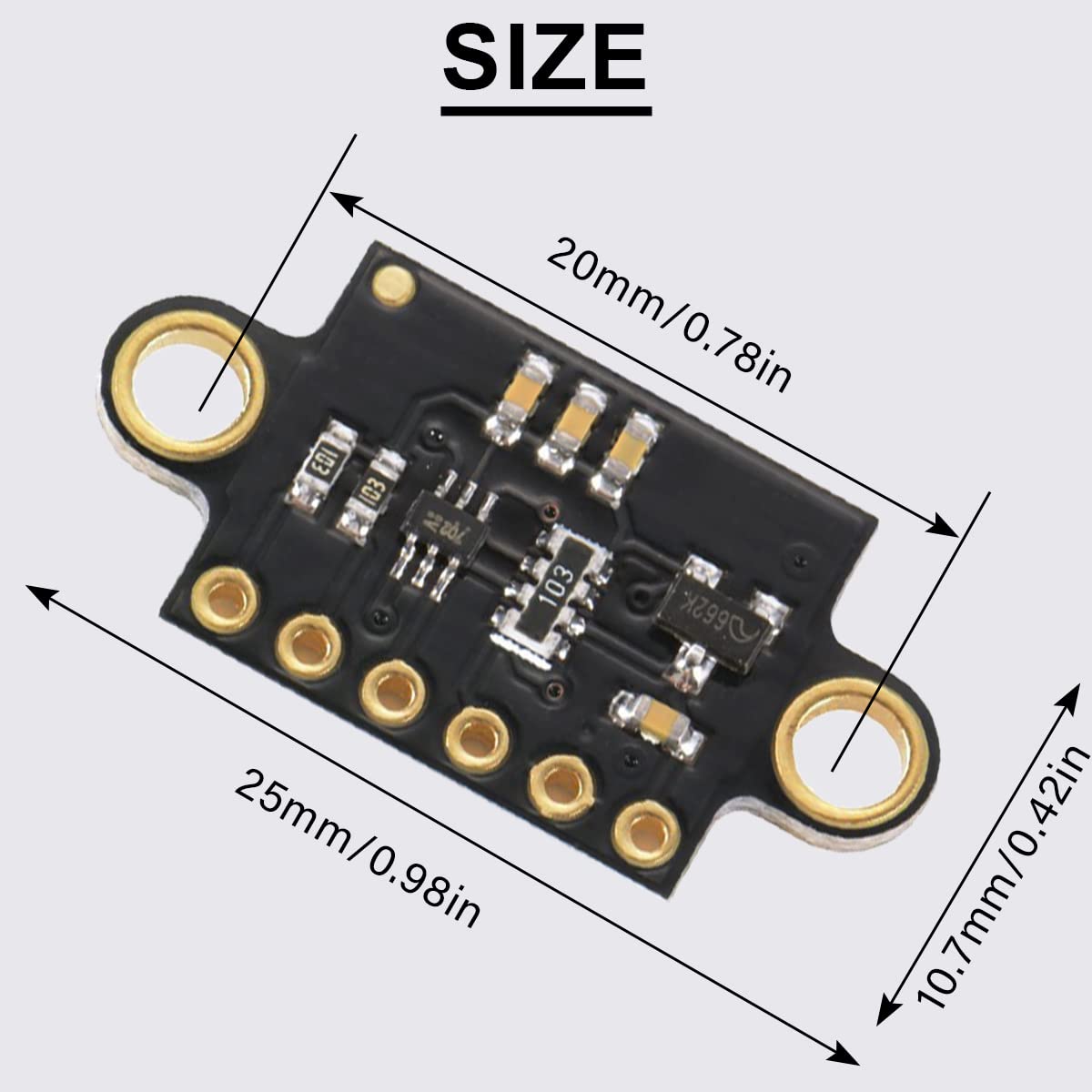

• Design compact: VL53L0 is a small, leadless ToF module. It is also a ranging smart sensor integrating 940nm, VCSEL, light source, SPAD photon detector and advanced microcontroller.
• Application: User Detection PC/Laptop/Tablet and IoT (Energy Saving), Robots, Drones (Obstacle Detection), White Objects (Hand Detection in Automatic Faucets, Soap Dispensers, etc.)
• Package includes: You will get 2 x VL53L0X Time-of-Flight Laser Ranging Sensor , 1 x 12Pin Female to Male Cable, 1 x 12Pin.

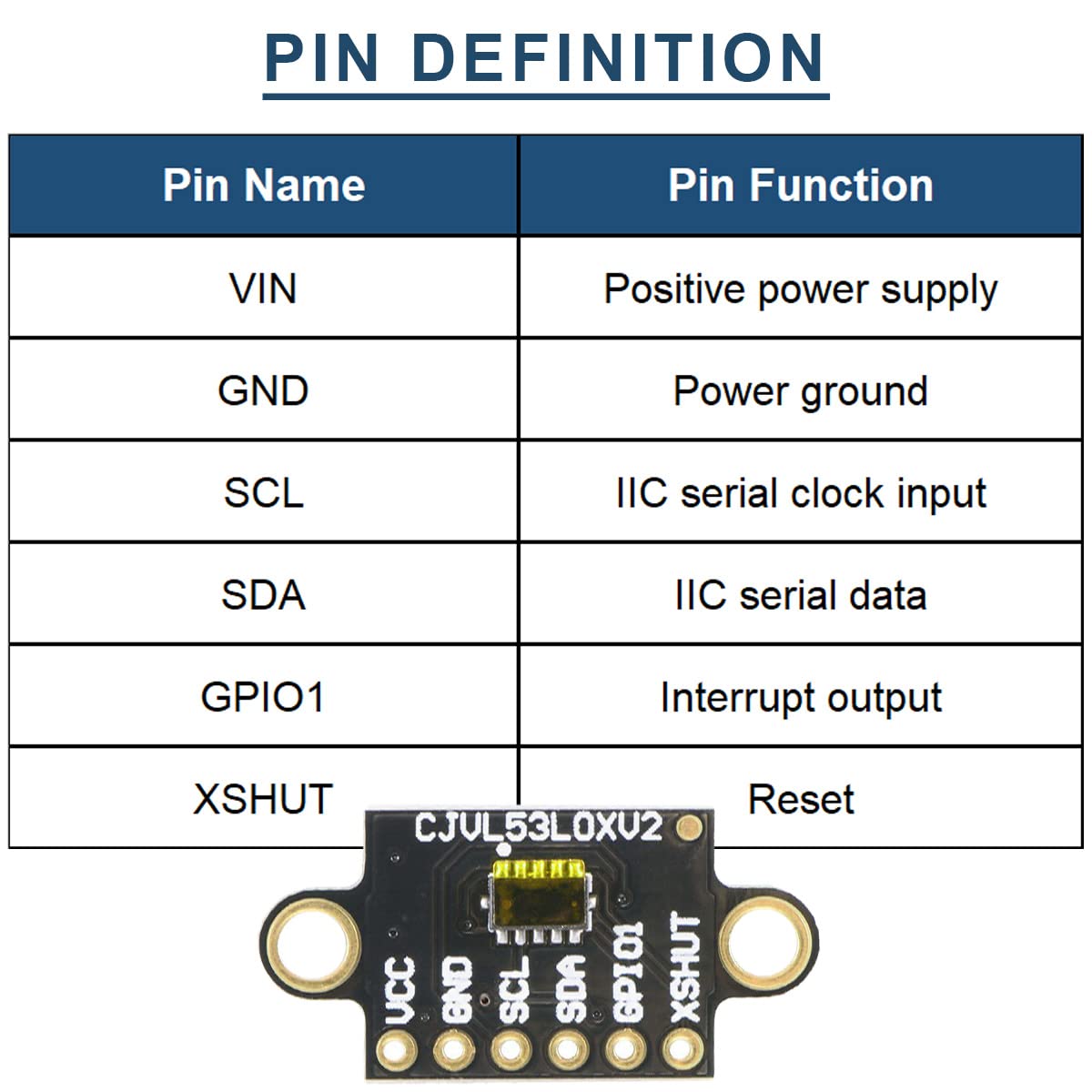

Description： 1.The VL53L0X from ST Microelectronics is a time-of-flight ranging system integrated into a compact module. 2.The VL53L0 uses ST's FlightSense technology to precisely measure how long it takes for emitted pulses of infrared laser light to reach the nearest object and be reflected back to a detector, so it can be considered a tiny, self-contained lidar system. PIN description: 1.VIN This is the main 2.8 V to 5.0 V power supply connection. The SCL and SDA level shifters pull the I2C lines high to this level. 2.GND The ground(0 V) connection for your power supply. Your I2C control source must also share a common ground with this board. 3.SDA Level-shifted I²C data line: HIGH is VIN, LOW is 0 V 4.SCL Level-shifted I²C clock line: HIGH is VIN, LOW is 0 V 5.XSHUT This pin is an active-low shutdown input; the board pulls it up to VDD to enable the sensor by default. Driving this pin low puts the sensor into hardware standby. This input is not level-shifted Product usage： 1. User Detection PC/Laptop/Tablet and IoT (Energy Saving) 2. Robots, UAVs (obstacle detection) 3. White items (hand detection in automatic faucets, soap dispensers, etc.) 4. One-dimensional gesture recognition 5. Laser Assisted Autofocus 6. Household appliances 7. IoT Products Package includes: 2xVL53L0X Ranging Sensor 1x12Pin Female to Male Cable 1x12Pin
