CYP AU-D3-192 AUDIENCE DIGITAL TO STEREO AUDIO CONVERTOR 192kHz

• Digital Audio to Left/Right Stereo Audio Converter (DAC)
• Integrated digital interpolator filter
• Supports digital audio signal (Coaxial/Toslink) input and analogue audio signal (L/R) output
• Accepts 32, 44.1, 48 and 96kHz sample rates
• Previously known as the DCT-3

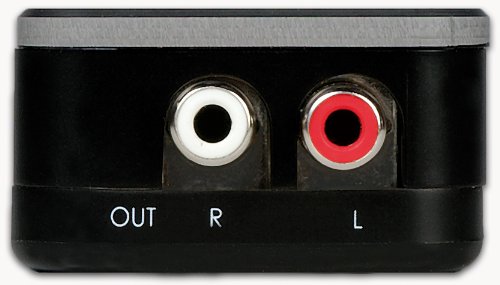

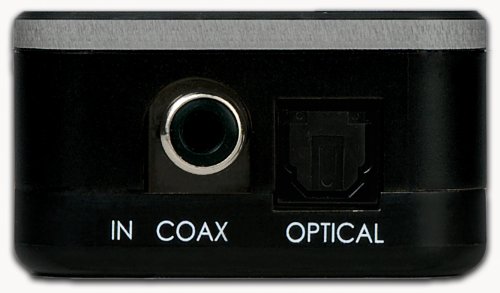

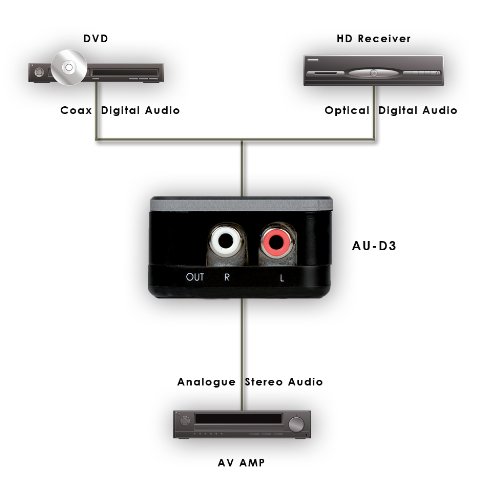

Product Description Instruction sheet (Acrobat pdf file) Digital Audio to Stereo Audio convertor (DAC) - 192kHz The AU-D3-192 is designed to convert either Coaxial or Optical signals from a digital stereo signal to analogue stereo audio. With an advanced 192kHz sampling rate this unit is particularly useful for enhancing sound reproduction when connecting digital sources to analogue amplifiers. Features Digital Audio to Left/Right Stereo Audio convertor (DAC) with improved 192kHz sample rate for enhanced sound reproduction Integrated digital interpolator filter Supports digital audio signal (Coaxial/Toslink) input and analogue audio signal (L/R) output Accepts uncompressed digital stereo audio input Accepts 16 or 24bit: 32 44.1 48 88.2 96 176.4 and 192kHz sample rates Specification Inputs 1x RCA [1x Coaxial 2 Channel LPCM] 1x Toslink [1x Optical 2 Channel LPCM] Outputs 2x RCA [1x Analogue Stereo (L/R)] Power 5V/1.2A DC (US/EU standards CE/FCC/UL certified) Dimensions 42mm (W) x 57mm (D) x 25mm (H) Gross Weight 210g Net. Weight 200g Box Contains 1x AU-D3-192; 1x Power Supply
