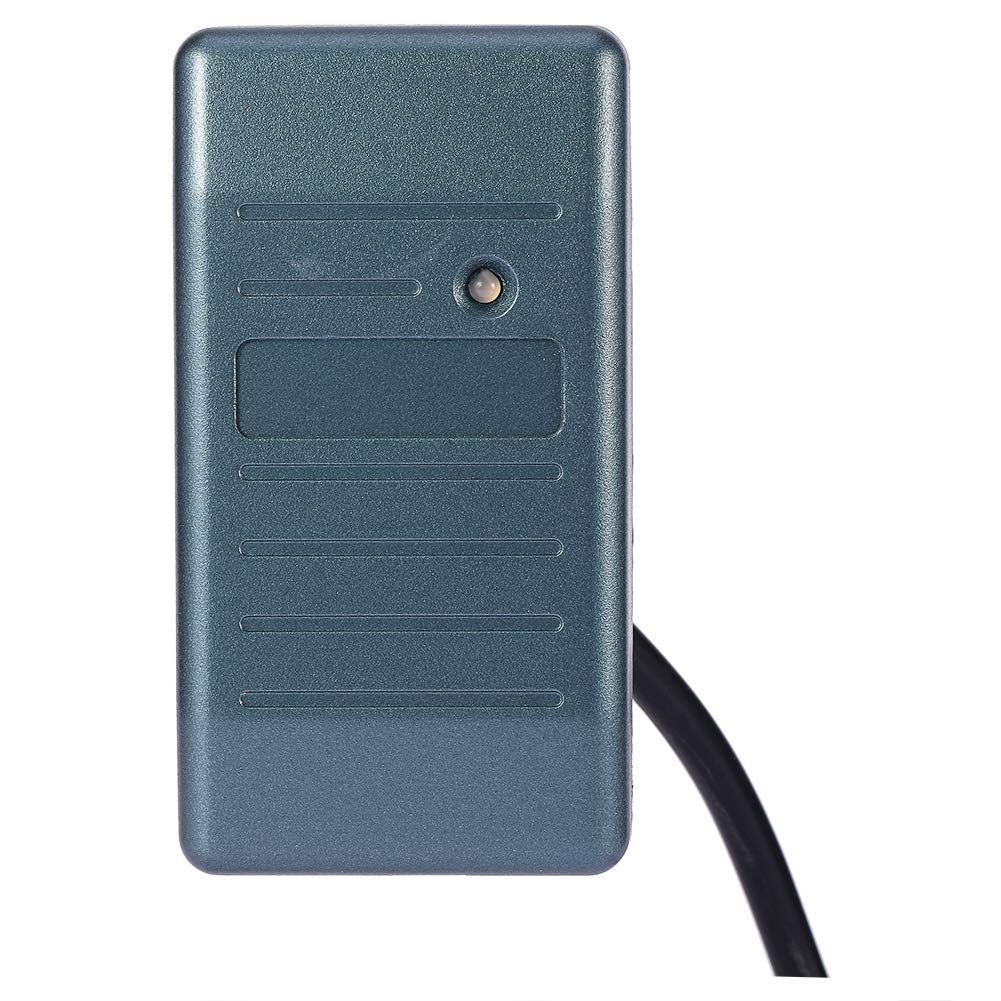

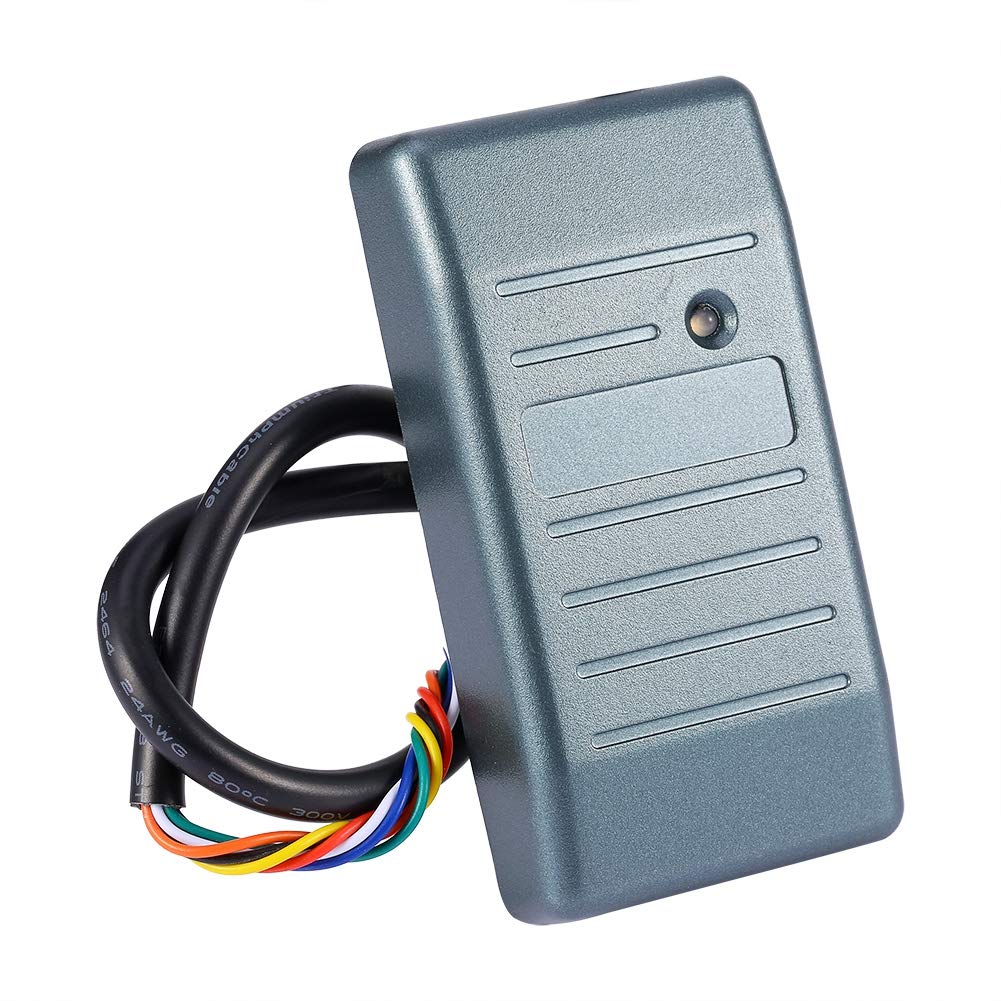

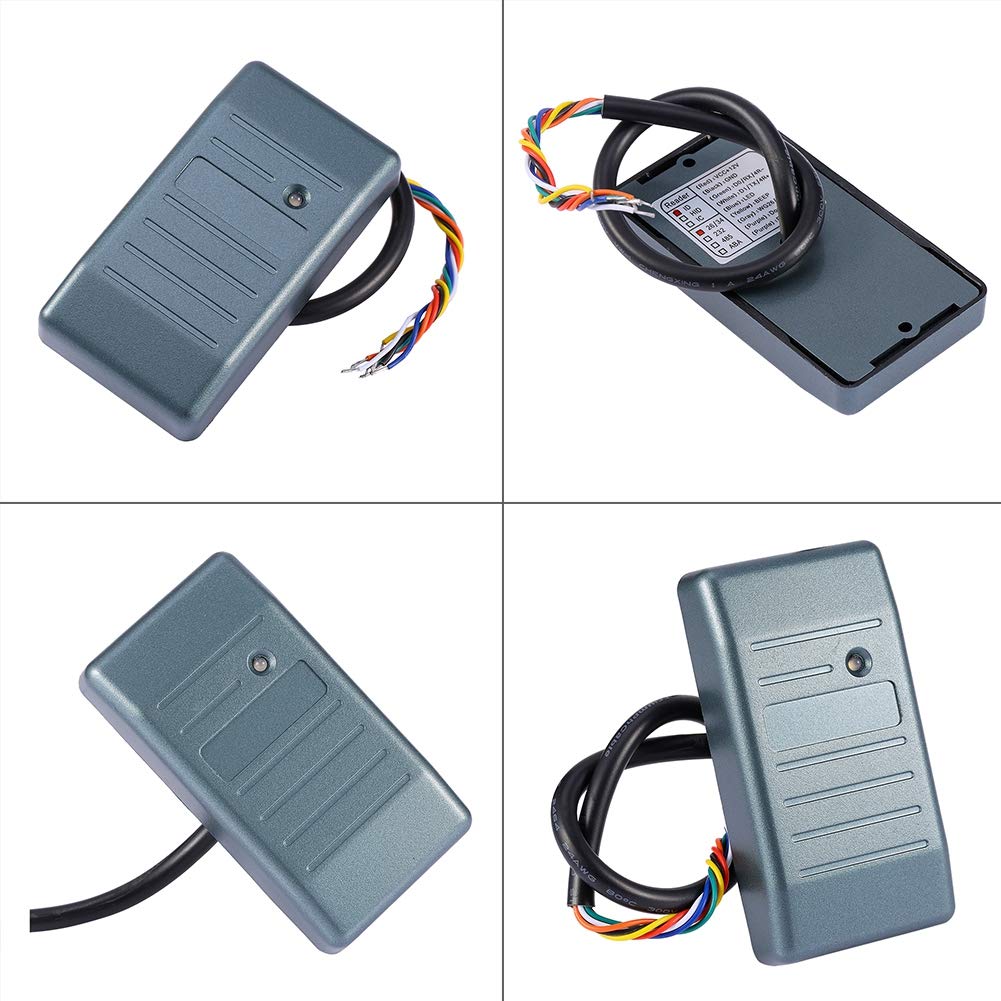

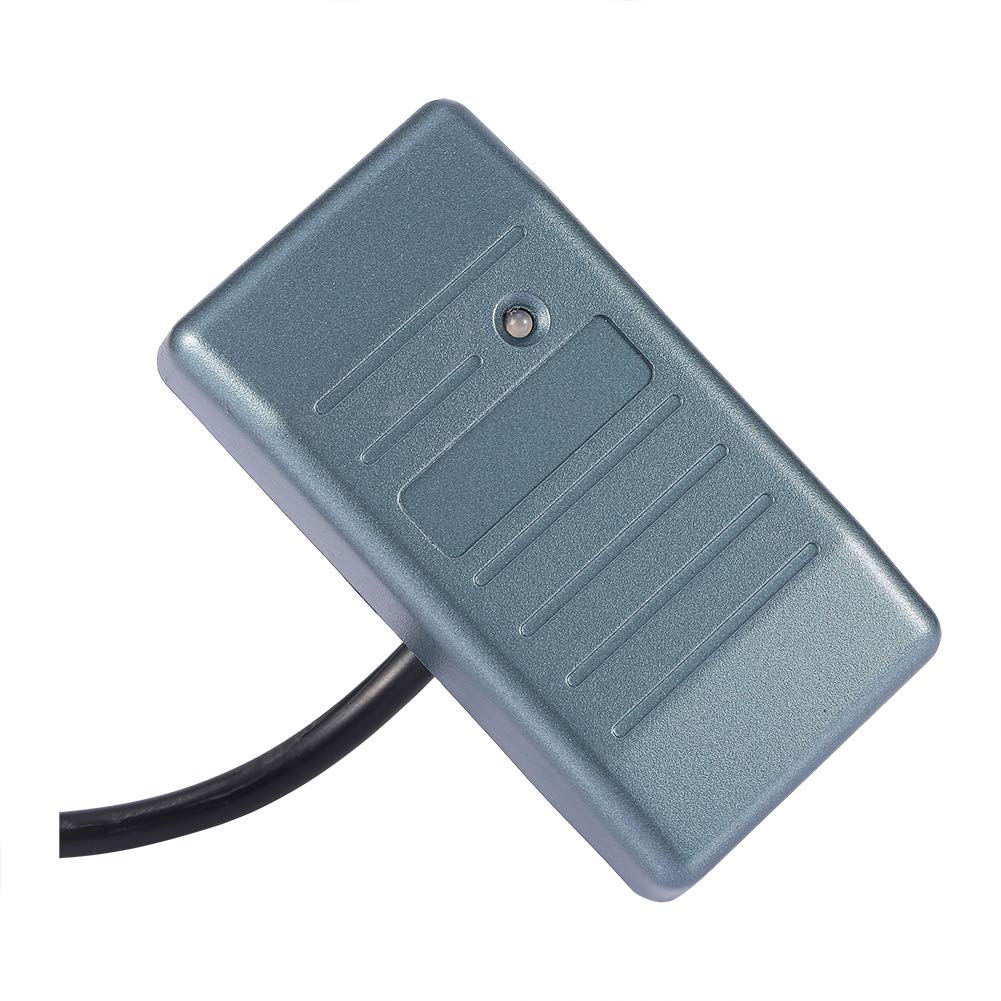

Cuifati Contactless Access Control Reader for Home Security, 125KHz RF Receiver Circuit Embedded Micro-controller, RFID EM ID Card Access Control Reader
About this item
- Led Indicator
- Advance Access Card Reader
- 125KHz Access Control
- Can be Used: Applicable to access control, attendance, fees, and other for RFID applications.
Product description

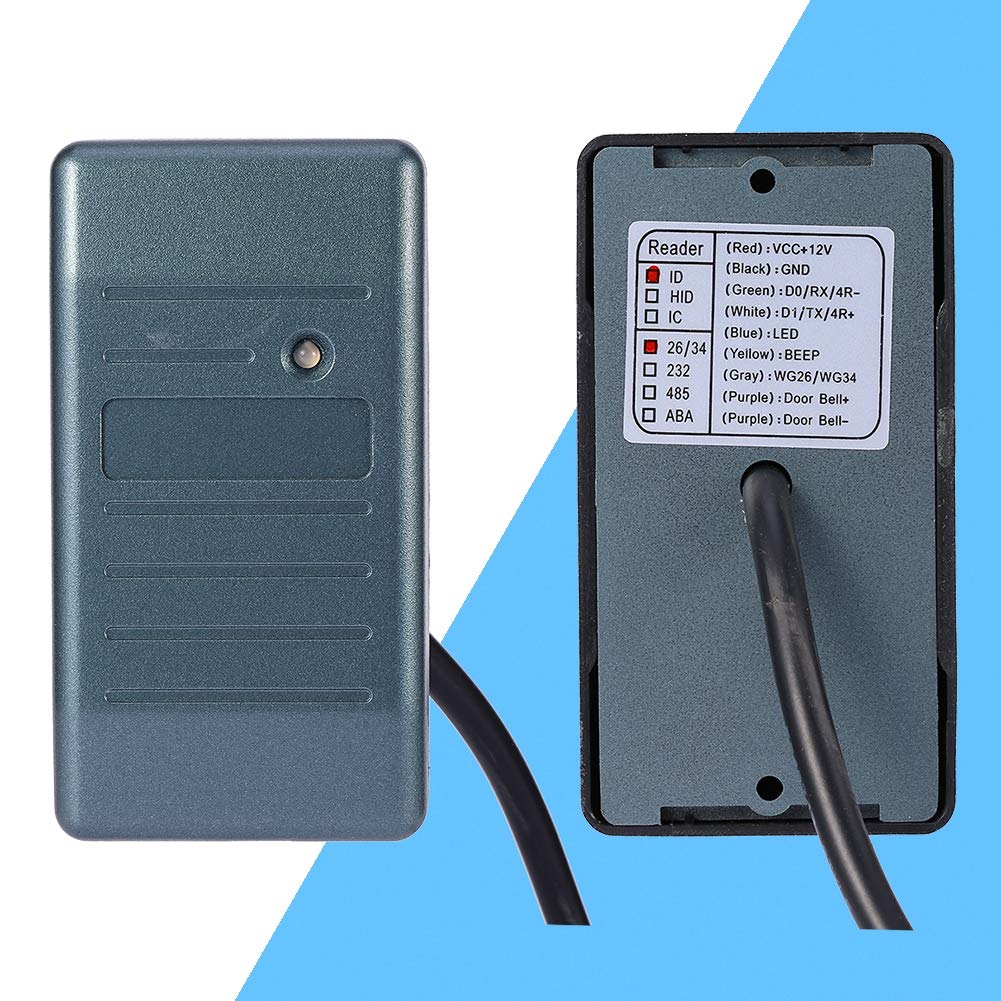

Specifications: Item Parameters Operating Voltage :DC 8V-15V Consumed Current :0-100mA Support cards :TK4001\EM4100 etc. Read Range :0mm-100mm(related to the card or the environment) reader interval :<0.5S Format :Wiegand 26/Wiegand 34(Setting by oneself) Distance of transmission :WG26/34≥100M Service Temperature :-25℃ ~ +75℃ Size :28mm x 80mm x 12mm Weight :About 60G Lead Length :180mm±5mm Material :PVC & Resin adhesive(it's waterproof) Status Indication :2PC LED (Blue means standby, Green means reader success) Line definition: Red: VCC(8V-15V) Black: GND White: Wiegand D1 Green: Wiegand D0 Grey: Green light and buzzer long ring Purple: Wiegand 26/Wiegand 34(The output format is WG34 when purple line connect with black line) Package Included: 1 x Card Reder
Product details
