CQRobot STS35 Temperature Sensor Compatible with Arduino and Raspberry Pi. IIC Interface, Automatic Calibration, Anti-interference. for Industrial Production, Agriculture, Gardening, Smart Home.

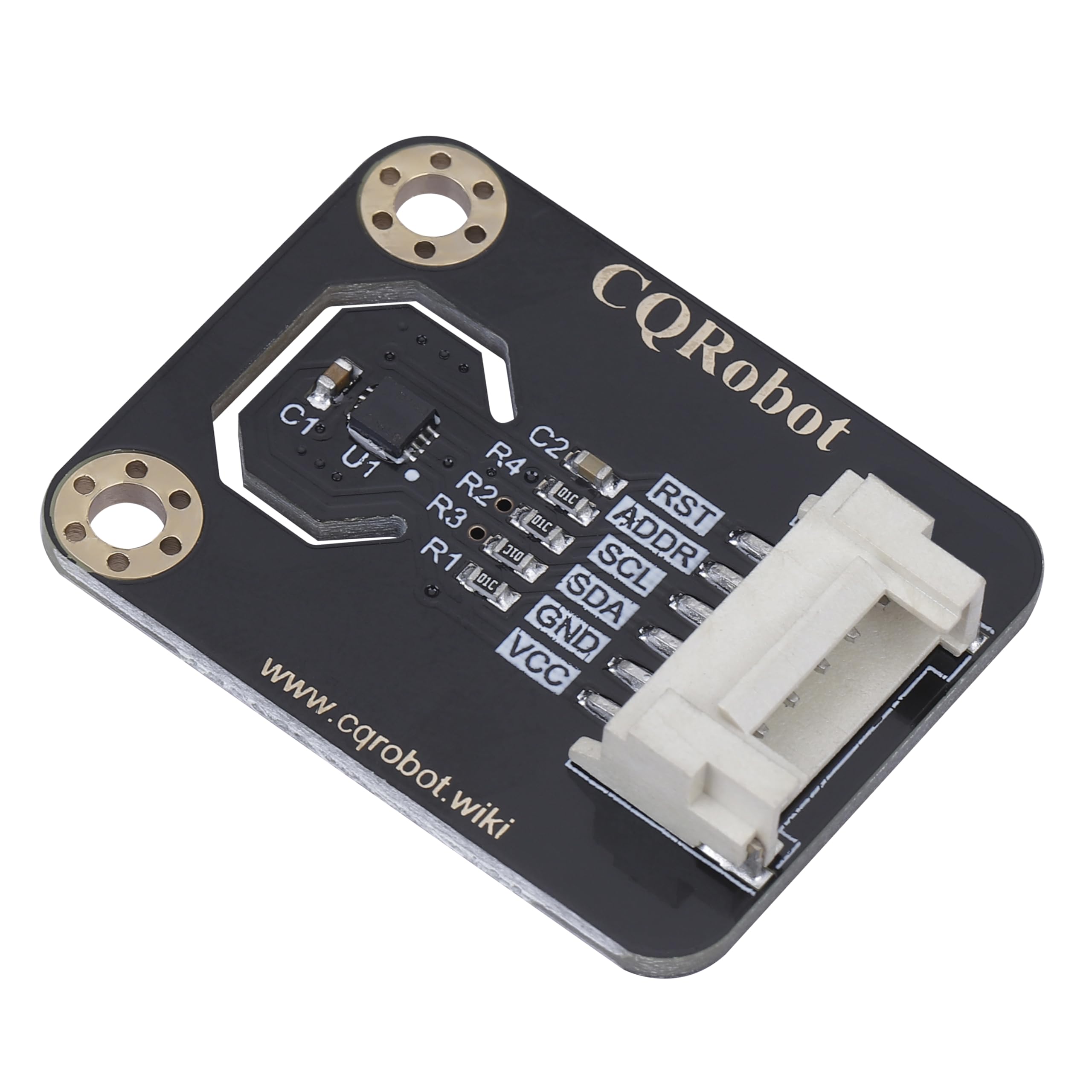

• The CQRSTS35A high-precision digital temperature sensor launched by CQRobot has a built-in STS35 sensor chip newly launched by Swiss Sensirion Company on the motherboard.
• It provides a fully calibrated, linear and supply voltage compensated digital output with an ultra-high measurement accuracy of plus or minus 0.1 degrees Celsius.
• The sensor has a wide measurement range of minus 40 degrees Celsius to 125 degrees Celsius, and has the function of automatic heating and dehumidification to keep the chip dry, which means that it can work in a certain humidity environment.
• At the same time, the I2C communication speed of the sensor can be up to 1MHz.

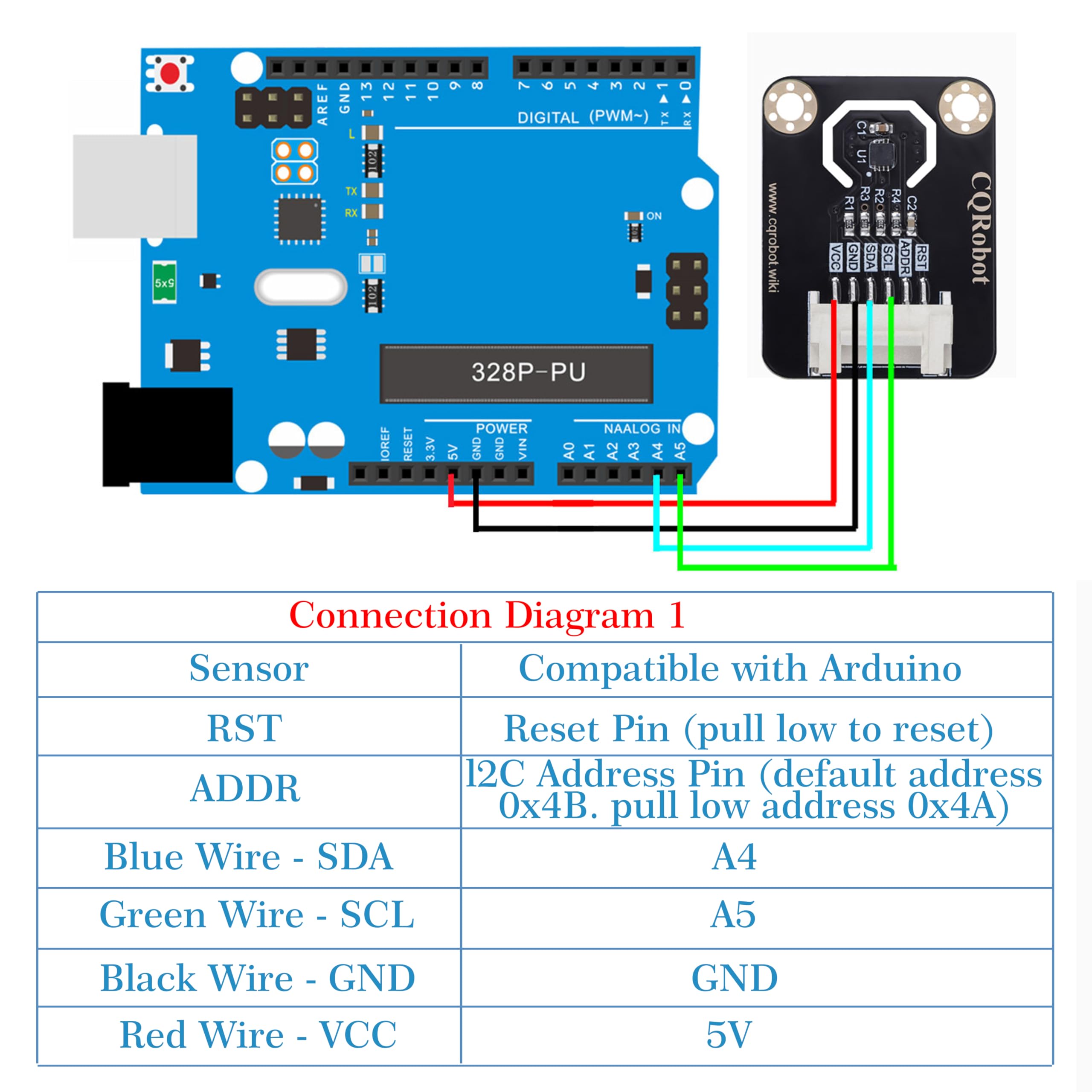

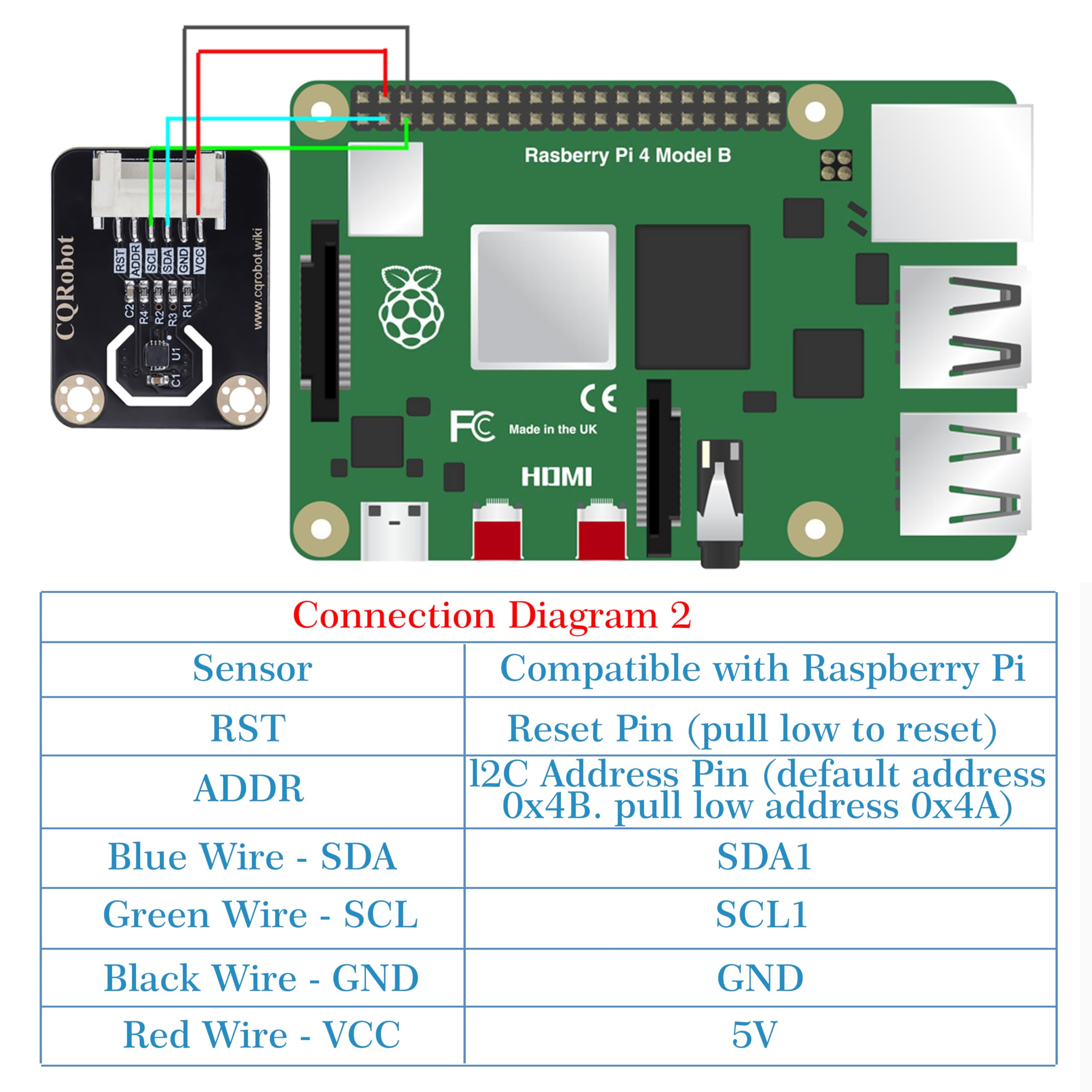

• Compatible with Arduino and Raspberry Pi boards, and the CQRobot wiki provides sample programs and user manuals.

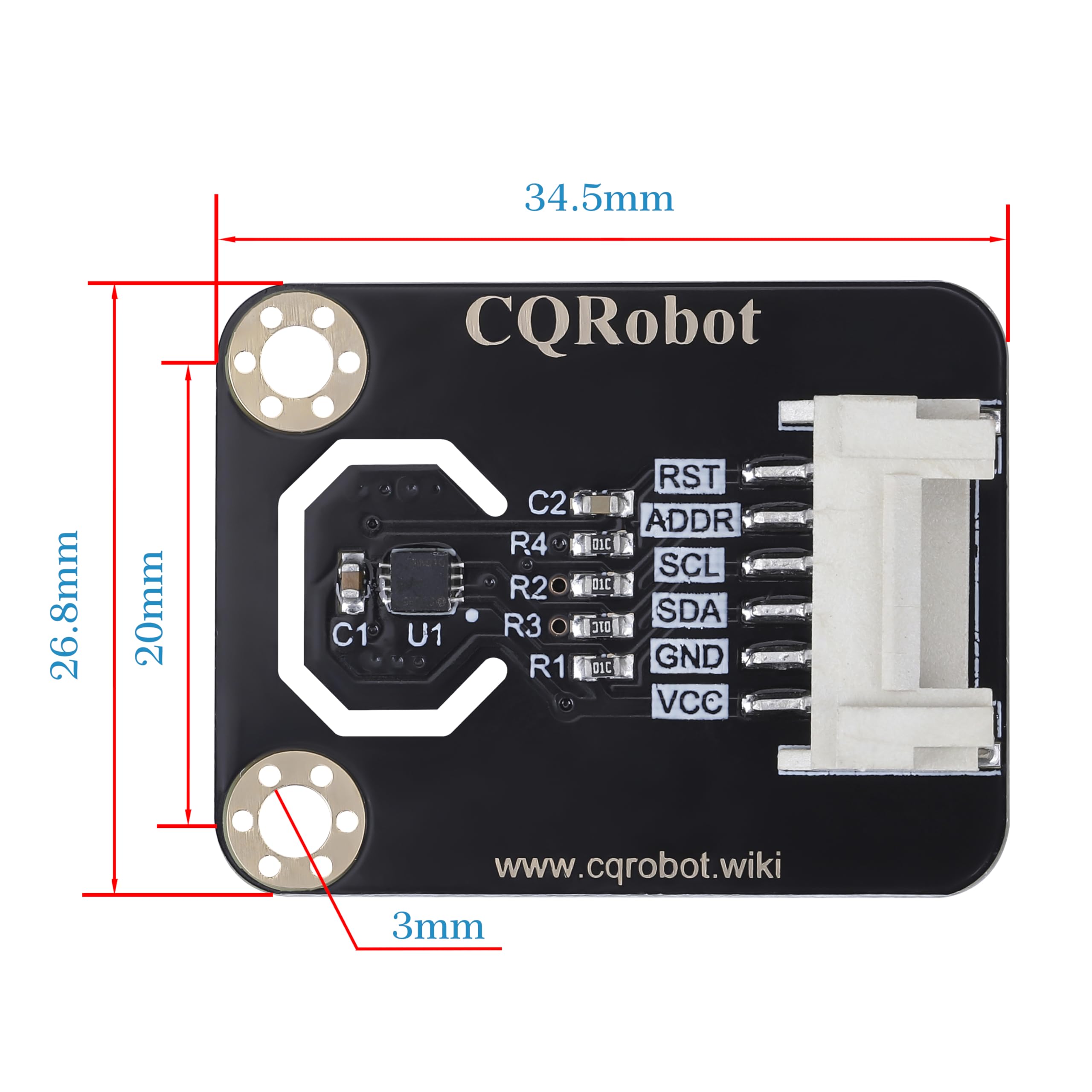

The CQRSTS35A high-precision digital temperature sensor launched by CQRobot has a built-in STS35 sensor chip newly launched by Swiss Sensirion Company on the motherboard. It provides a fully calibrated, linear and supply voltage compensated digital output with an ultra-high measurement accuracy of plus or minus 0.1 degrees Celsius. The sensor has a wide measurement range of minus 40 degrees Celsius to 125 degrees Celsius, and has the function of automatic heating and dehumidification to keep the chip dry, which means that it can work in a certain humidity environment. At the same time, the I2C communication speed of the sensor can be up to 1MHz. Note: For technical support, please refer to the CQRobot Wiki to provides sample programs and user manuals, SKU: CQRSTS35A. SPECIFICATION STS35 Temperature Sensor Board Specifications - Operating Voltage: 2.15V to 5.5V DC; - Heating Power Consumption: 3.6mW to 33mW; - Output Signal: I2C; - Measuring Range: -40 Degree Celsius to +125 Degree Celsius; - Accuracy: Plus/Minus 0.1 Degree Celsius; - Resolution: 0.01 Degree Celsius; - Preheat: Less Than or Equal to 1.5ms (Typical, 0.5ms); - Response Time: More Than 2s; - Operating Temperature: -40 Degree Celsius to +125 Degree Celsius; - Size: 34.5* 26.8 * 2 (mm) / 1.35 * 1.05 * 0.08 (inch); - Mounting Hole Size: M3 (3mm); Pitch 20mm. Cable Specifications - Cable specifications: 22AWG - Material: Silicone - Withstand Voltage: Less Than 50V - Withstand Current: Less Than 1000MA - Length: 21cm - Line Sequence: Black-Negative Power Supply; Red-Positive Power Supply; Green-SDA; Blue-SCL; Yellow-ADDR; Orange-RST. DISTRIBUTION LIST 1 * STS35 Temperature Sensor 1 * JST 6-Pin Cable
