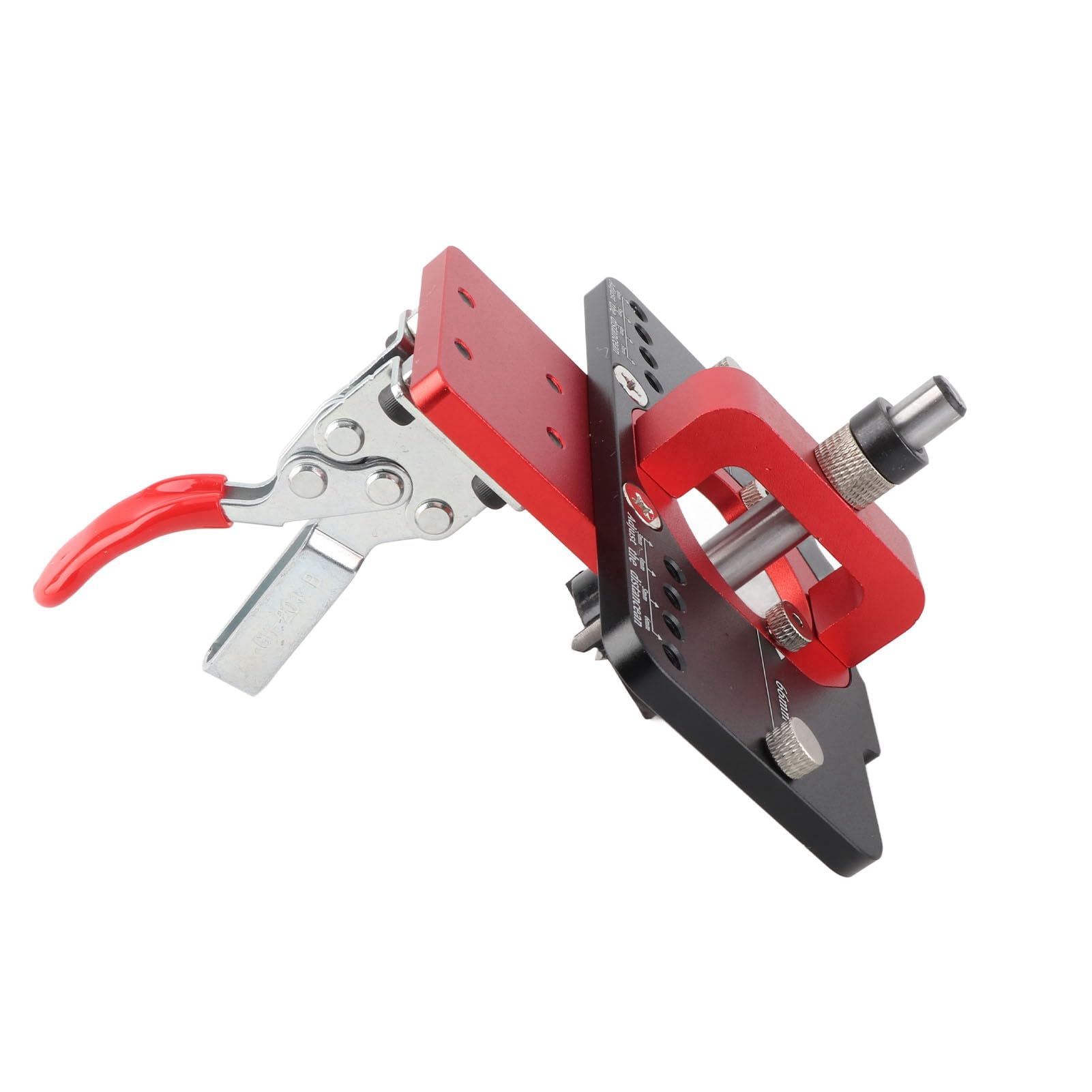

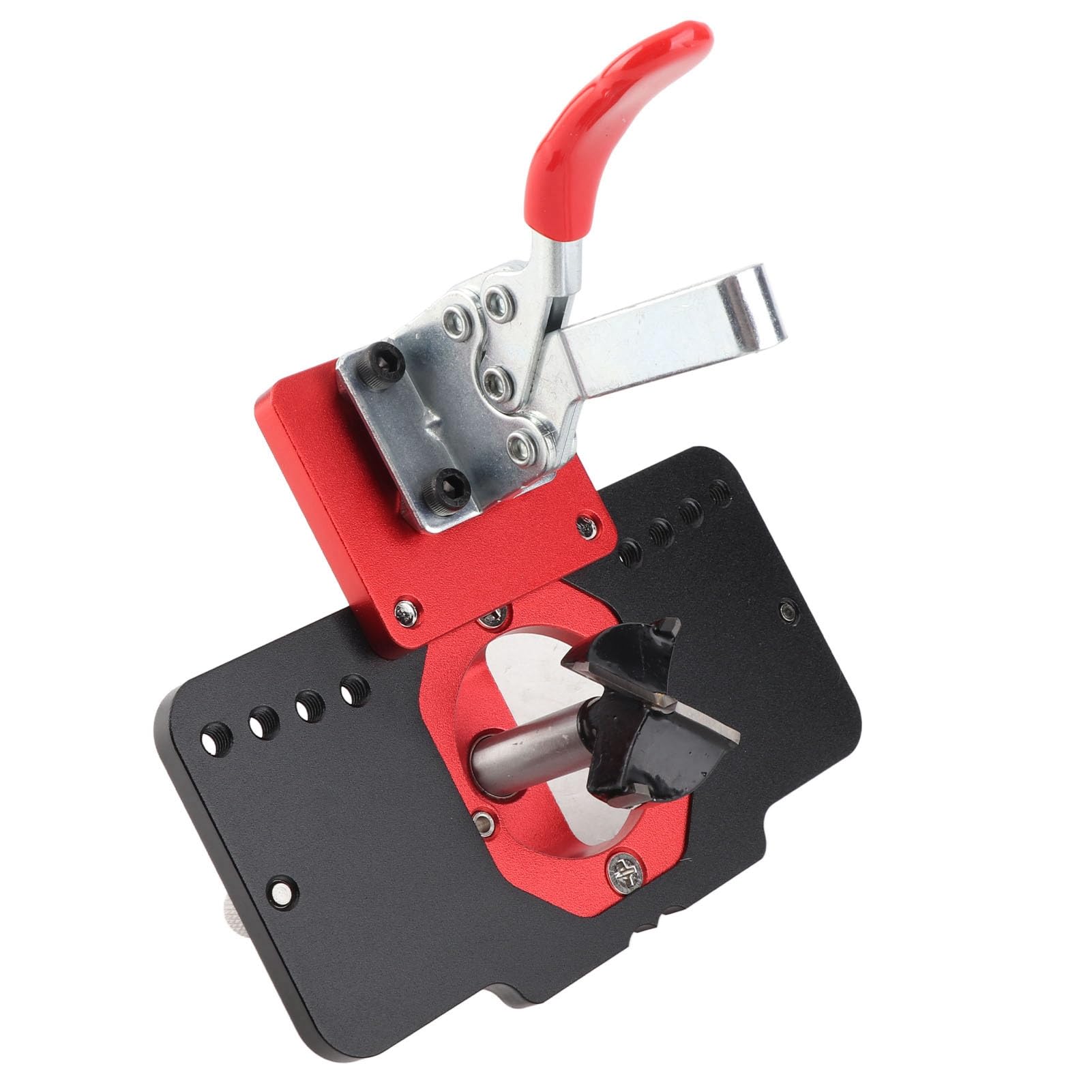

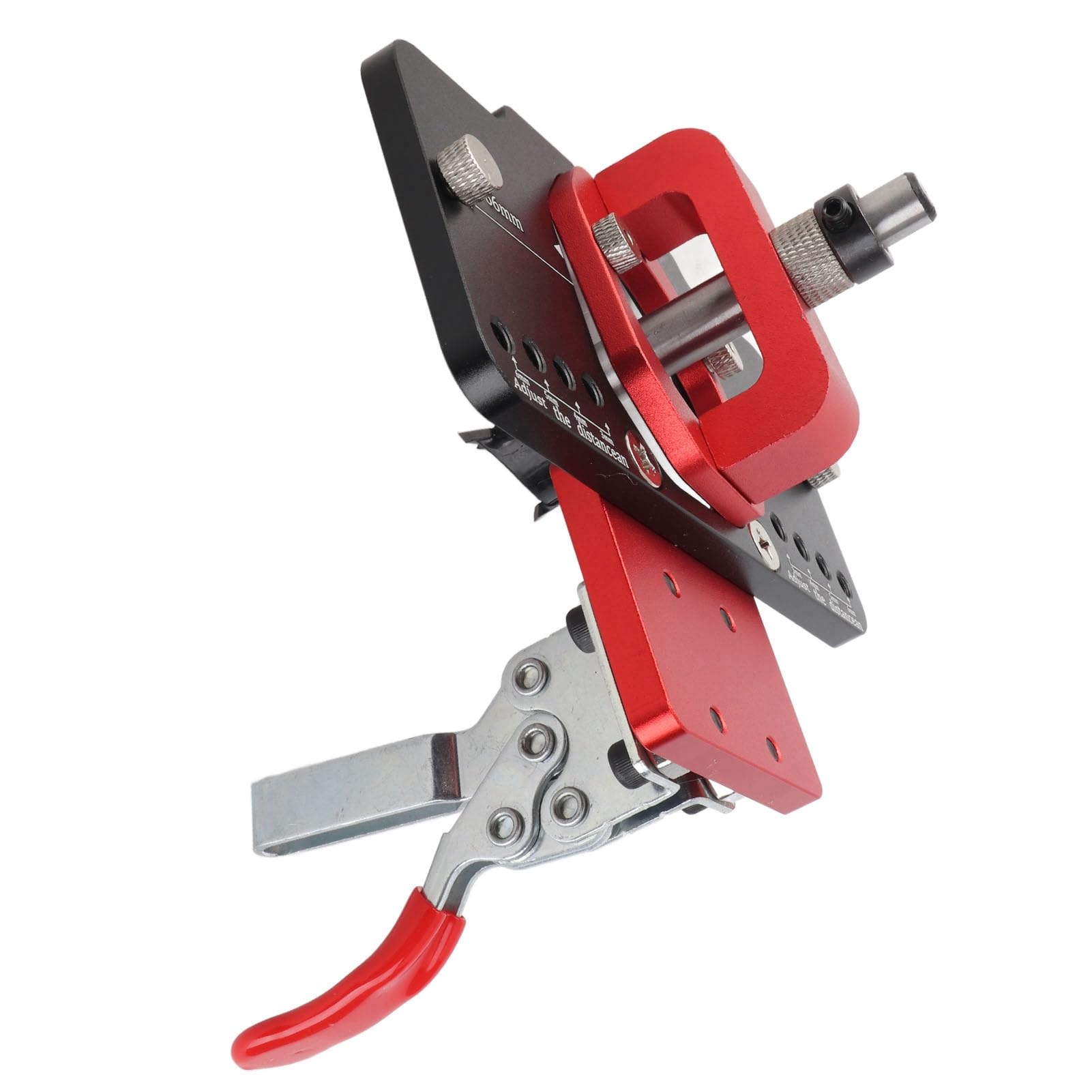

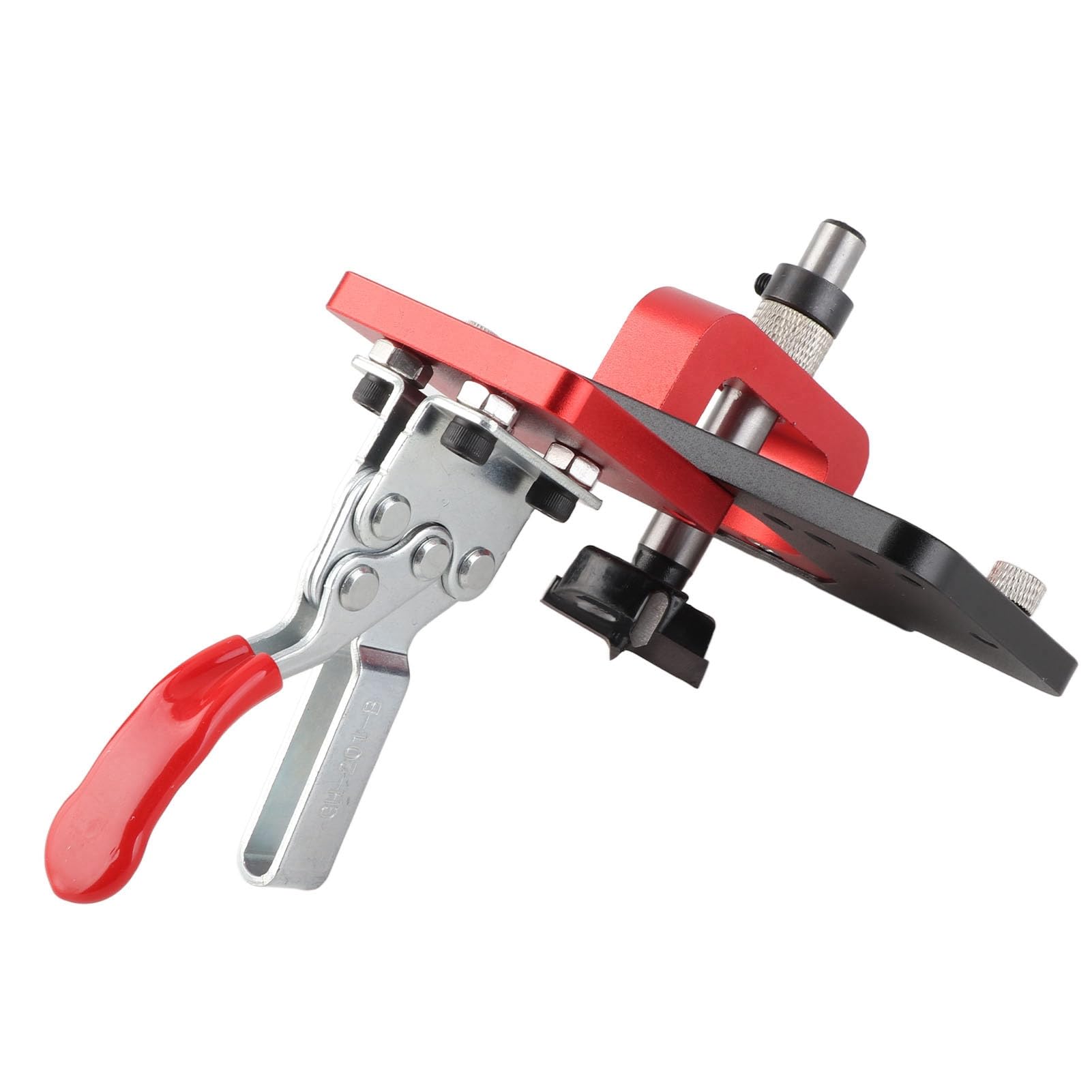

35mm Concealed Hinge Drilling Guide for Woodworking Cabinet Jigs - Drill Bit Locator Set with Cabinet Hinge Hole Template

• Enhanced Drill Bit: The Hinge cutout locator kit includes a 35mm carbon steel drill bit, equipped with a thick blade for high-efficient hole drilling and opening.
• Premium Aluminum Alloy Material: Crafted from premium aluminum alloy, our tool guarantees longevity. No more worries about hot melting

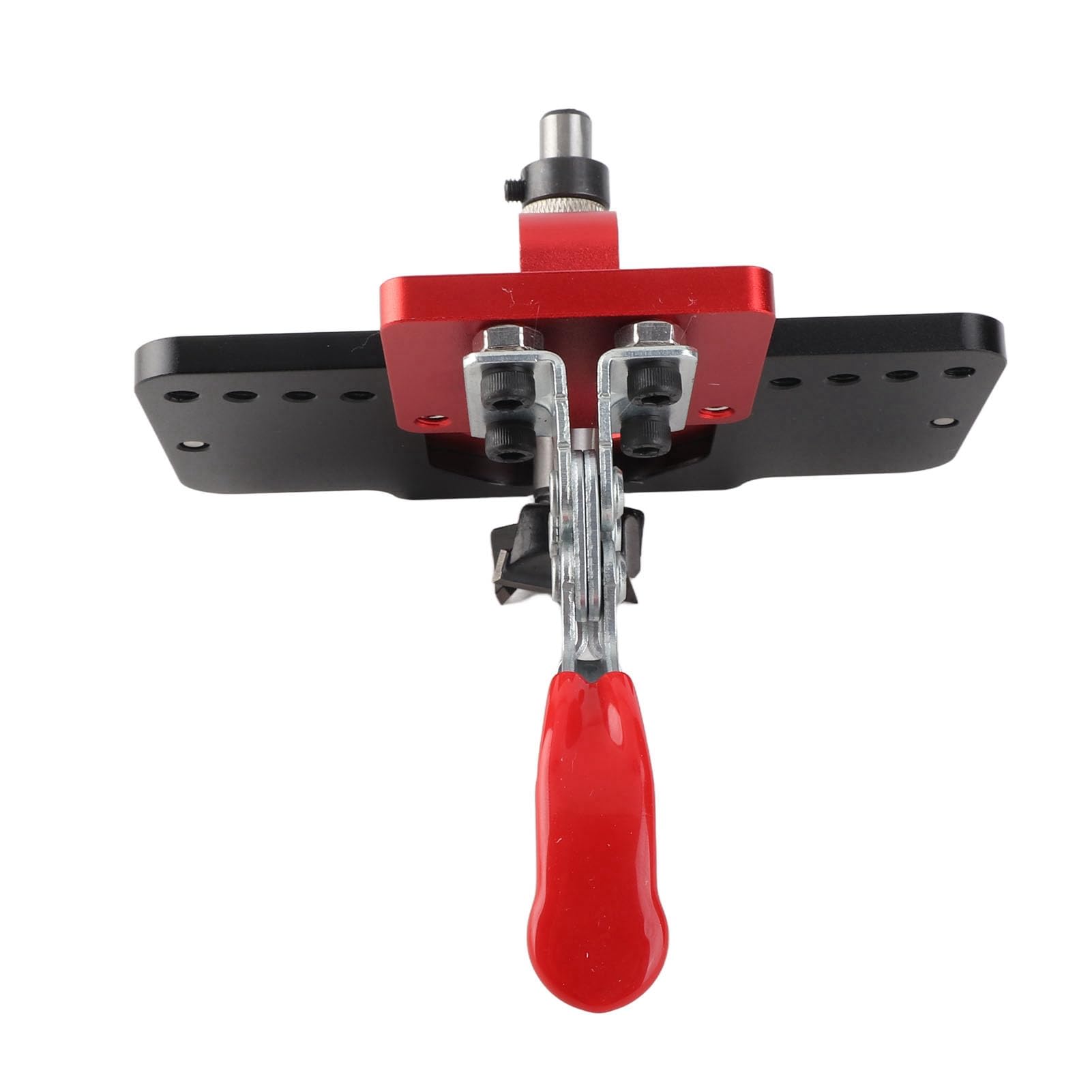

• Secure Clamping: Our Hole Drill Guide is designed to clamp 15-25mm plates safely. Its adjustable press plate coupled with a quick-fixing clamp ensures swift and easy

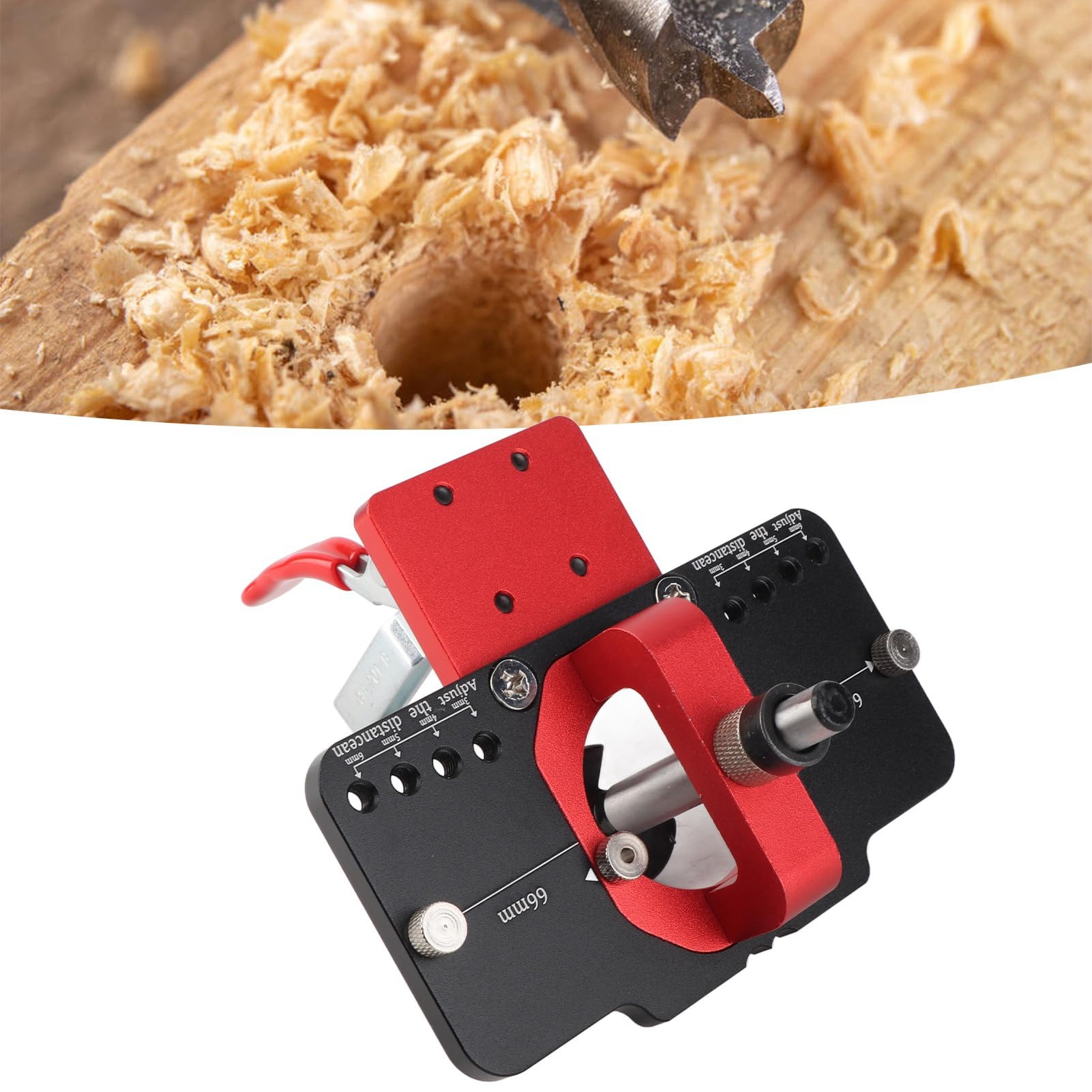

• Widespread Applications: Hole Drill Guide Locator Ideal for hinge positioning, opening, drilling, and installation jobs on doors, cabinets, and furniture. Our tool is a must-have for versatile operations.

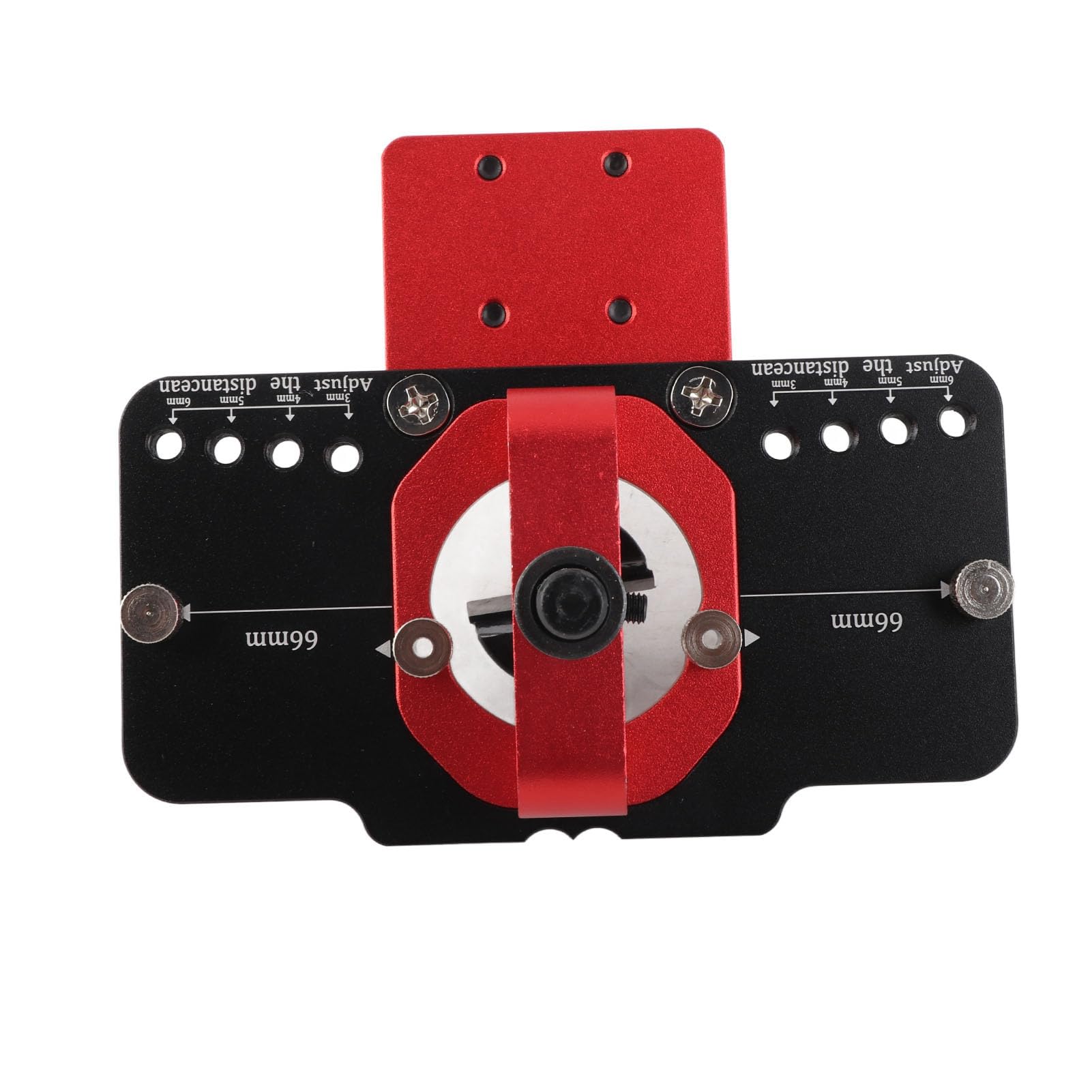

• Uncompromised Accuracy: Our cabinet hinge jig boasts a built-in indexing plate for the perfect hinge positioning. Experience effortless use with any drill bit – no specialty tools required.

1. Great Accuracy: The accurate hinge positioning of the built in indexing plate is easy to use with any drill bit without special tools. 2. With Drill Bit: Comes with a 35mm carbon steel drill bit with thick blade, which ensures high efficiency in hole drilling and opening. 3. Extensive Uses: Widely applied to the hinge positioning, opening, drilling and installation on door, cabinet, furniture, and so on. 4. Safer Clamping: Used to clamp 15-25mm plate, the adjustable press plate and quick fixing clamp enables quick and simple operation. 5. Aluminum Alloy: Adopting premium aluminum alloy material, you don't need to worry about hot melting. Spec: Item Type: Concealed Hinge Jig Material: Aluminum alloy Color: Red, black. Hole Opener Size: Approx. 35mm / 1.38in Drill Bit: Approx. 2mm / 0.08in Clamping Thickness: Approx. 15 ~ 25mm / 0.59 ~ 0.98in Hinge Offset: Approx. 3mm / 0.12in, 4mm / 0.16in, 5mm / 0.2in, 6mm / 0.24in Usage: Widely used for hinge opening and installation, door hinge drilling and position, hole woodworking auxiliary tool. packing list: 1 x Hinge Boring Drill Guide 1 x Drilling Guide Locator 1 x 35mm Hole Opener 1 x 2mm Drill Bit 1 x Set Screw 1 x Limit Ring 2 x Hex Wrench 2 x Wrench 1 x Bearing
