CoCud Toggle Clamp, GH-22185 550Lbs Holding Capacity, Horizontal Quick Release Down Clamp Duty with Rubber Pressure Tip - (Applications: for Woodworking)

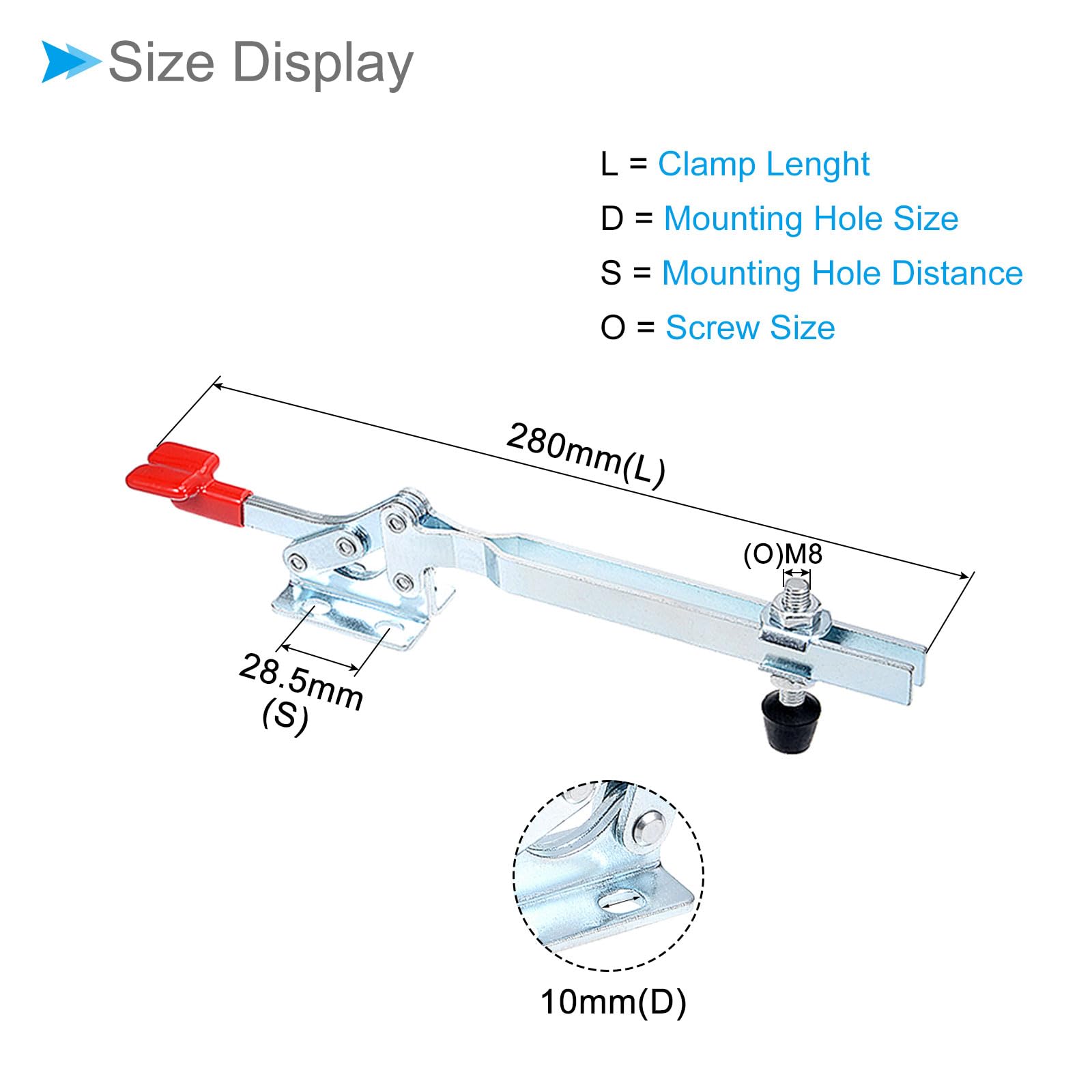

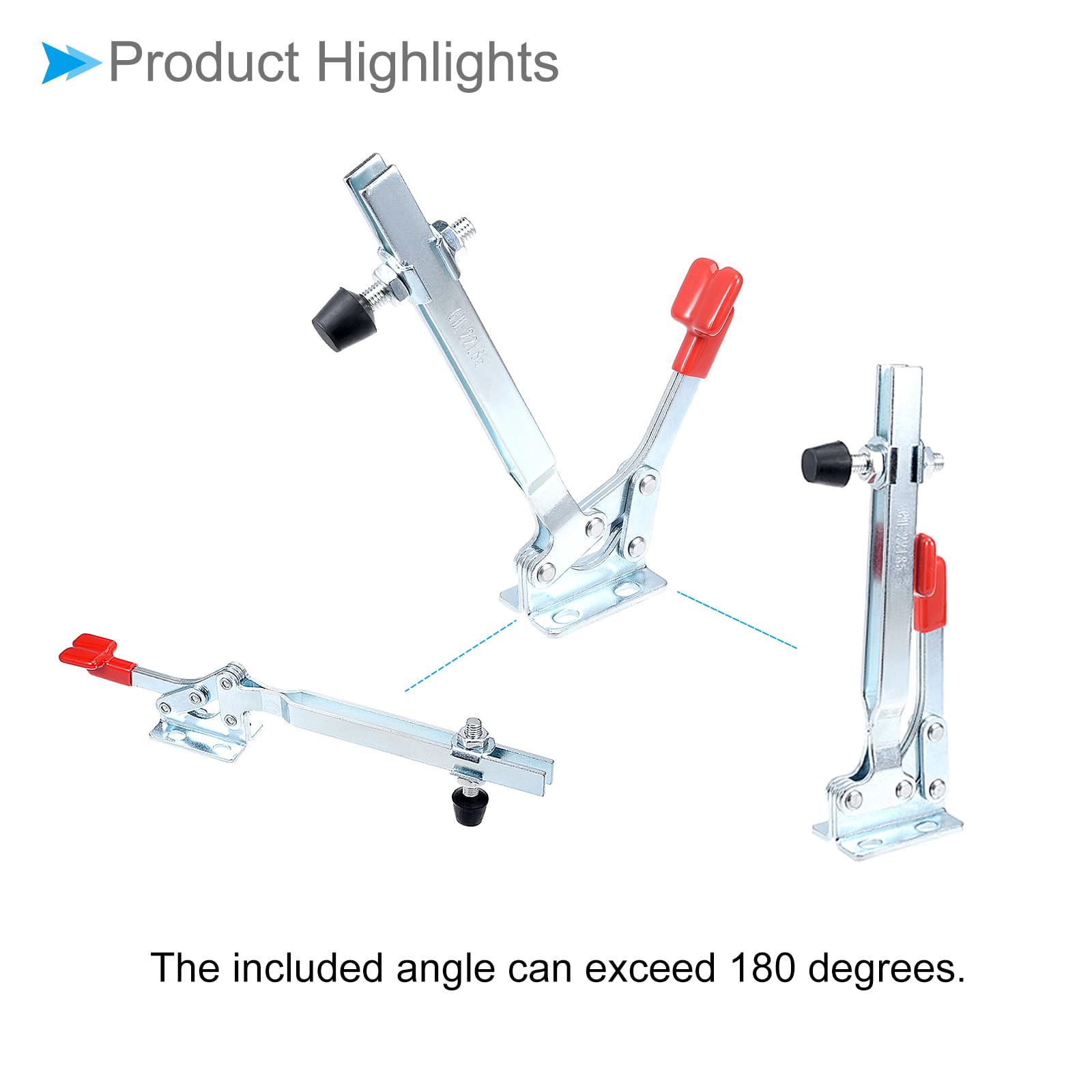

• ★ Toggle Clamp Size --- Bar Opens Angle: 96°; Handle Opens Angle: 88°; Holding Capacity: 250Kg/550lbs; Mounting Hole Size: 10 x 6.5mm(L*W); Mounting Hole Distance: 28.5mm x 22mm(L*W); Screw Size: M8 x 42mm; Clamp Size: 280x36x52mm(L*W*H)
• ★ Wide Applications --- Toggle Clamps are an everyday replacement for hand tool and fixture assemblies, providing a rock solid grip on your workpieces, jigs and fixtures while drilling, welding or milling.
• ★ Ease of Use --- Toggle clamps can be mounted on jigs, tool fixtures or removable bases, screwed to the surface of the sheet.
• ★ Carbon Steel --- Press-down toggle clamps and pressure adapters are made of carbon steel, cold-rolled steel surface with electroplated anti-rust treatment, toggle clamp set design is an efficient, strong structure, higher strength and wear resistance, easy depth adjustment, and maximum clearance.
• ★ Useful Tips --- Please pay attention to the load-bearing capacity of the toggle clamp when purchasing.

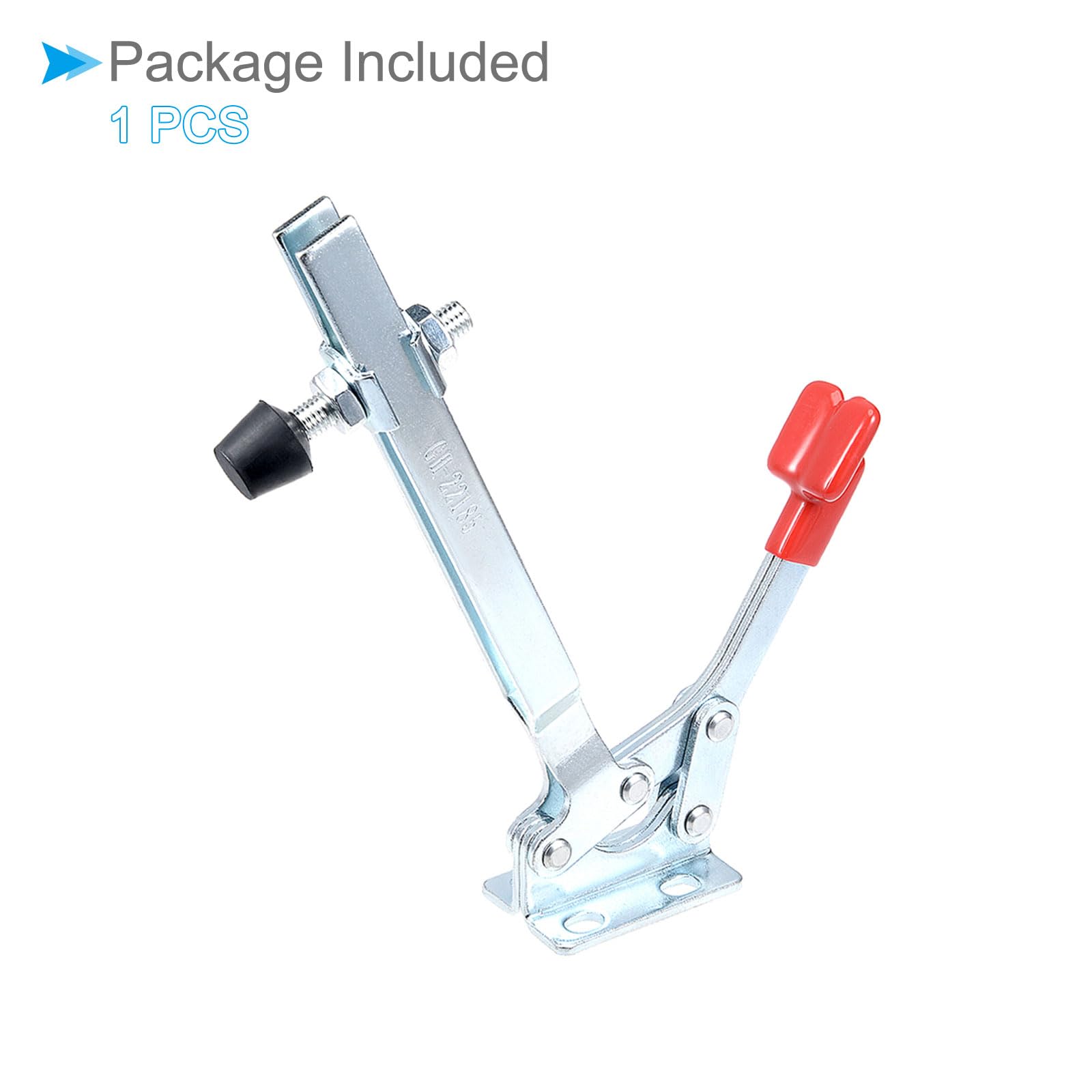

Attributes: * Bar Opens Angle: 96° * Handle Opens Angle: 88° * Holding Capacity: 250Kg / 550lbs * Finish: Zinc Plated * Material: Metal, Plastic, Rubber Cushion * Mounting Hole Size: 10x6.5mm(L*W) * Mounting Hole Distance: 28.5mmx22mm(L*W) * Screw Size: M8x42mm * Clamp Size: 280x36 x52mm(L*W*H) What Is Included: * 1 Piece x Toggle Clamp Applications & Features: --- Press-down toggle clamps and pressure adapters are made of carbon steel, cold-rolled steel surface with electroplated anti-rust treatment, toggle clamp set design is an efficient, strong structure, higher strength and wear resistance, easy depth adjustment, and maximum clearance. --- Toggle Clamps are an everyday replacement for hand tool and fixture assemblies, providing a rock solid grip on your workpieces, jigs and fixtures while drilling, welding or milling. --- Toggle clamps can be mounted on jigs, tool fixtures or removable bases, screwed to the surface of the sheet. Useful Tips: --- Please pay attention to the load-bearing capacity of the toggle clamp when purchasing.
