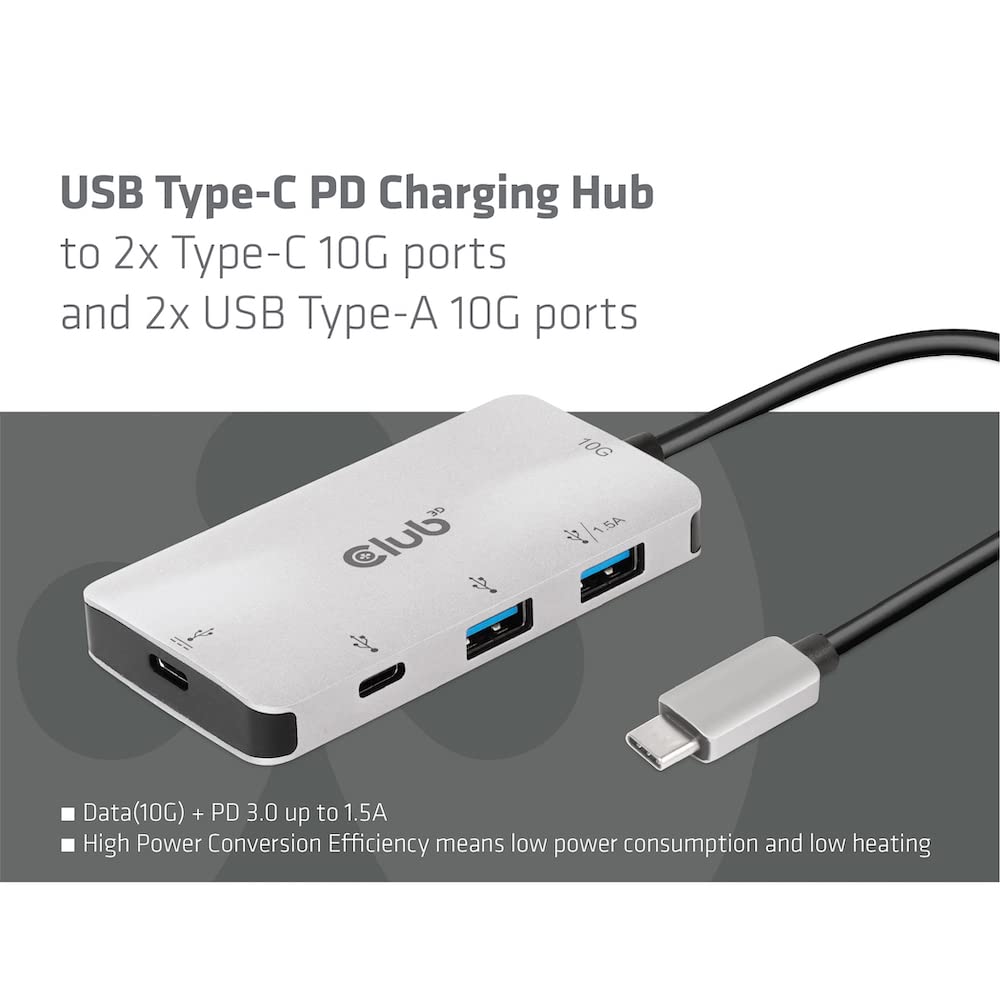

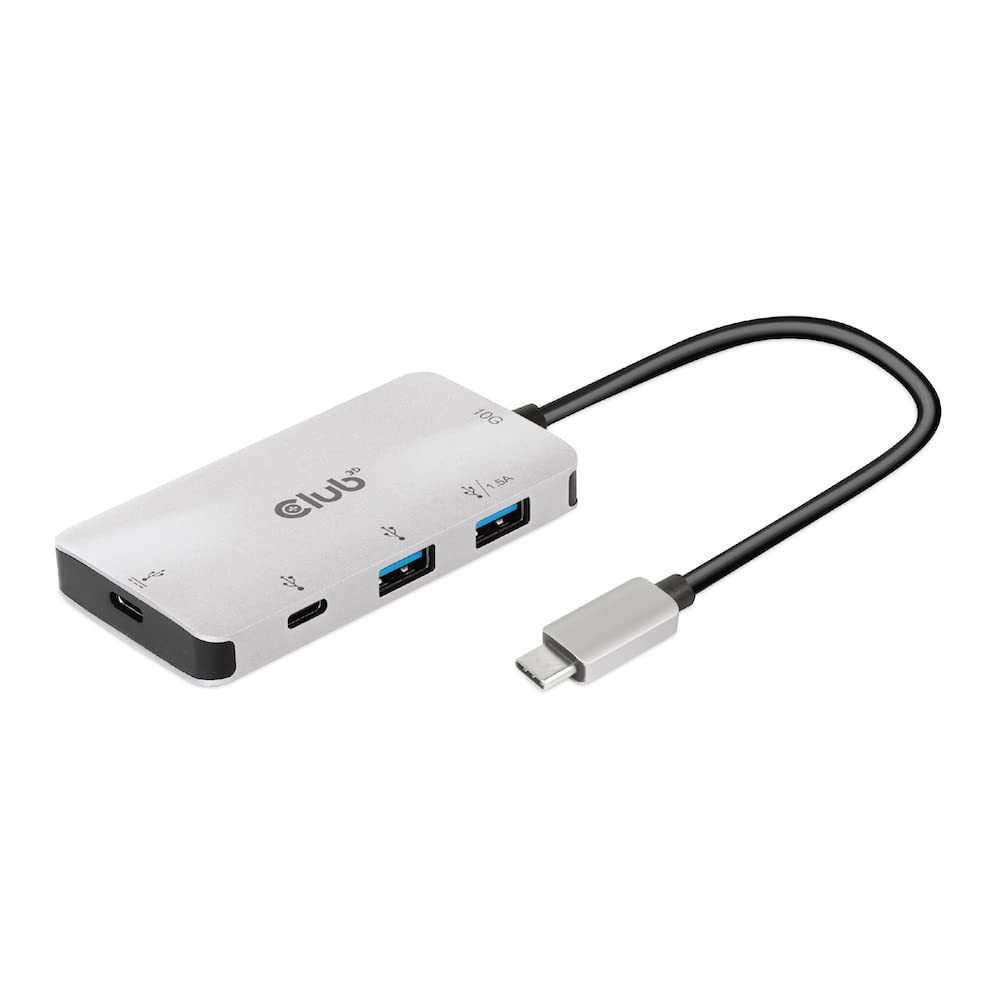

Club 3D USB Type-C PD Charging Hub to 2X Type-C 10G Ports and 2X USB Type-A 10G Ports

• High power conversion efficiency, means low power consumption and low heating, 98.2% @Vin=5V, 92.5% @Vin=20V
• Advanced power management
• Supports Fast Role Swap (roll exchange) at PD 3.0

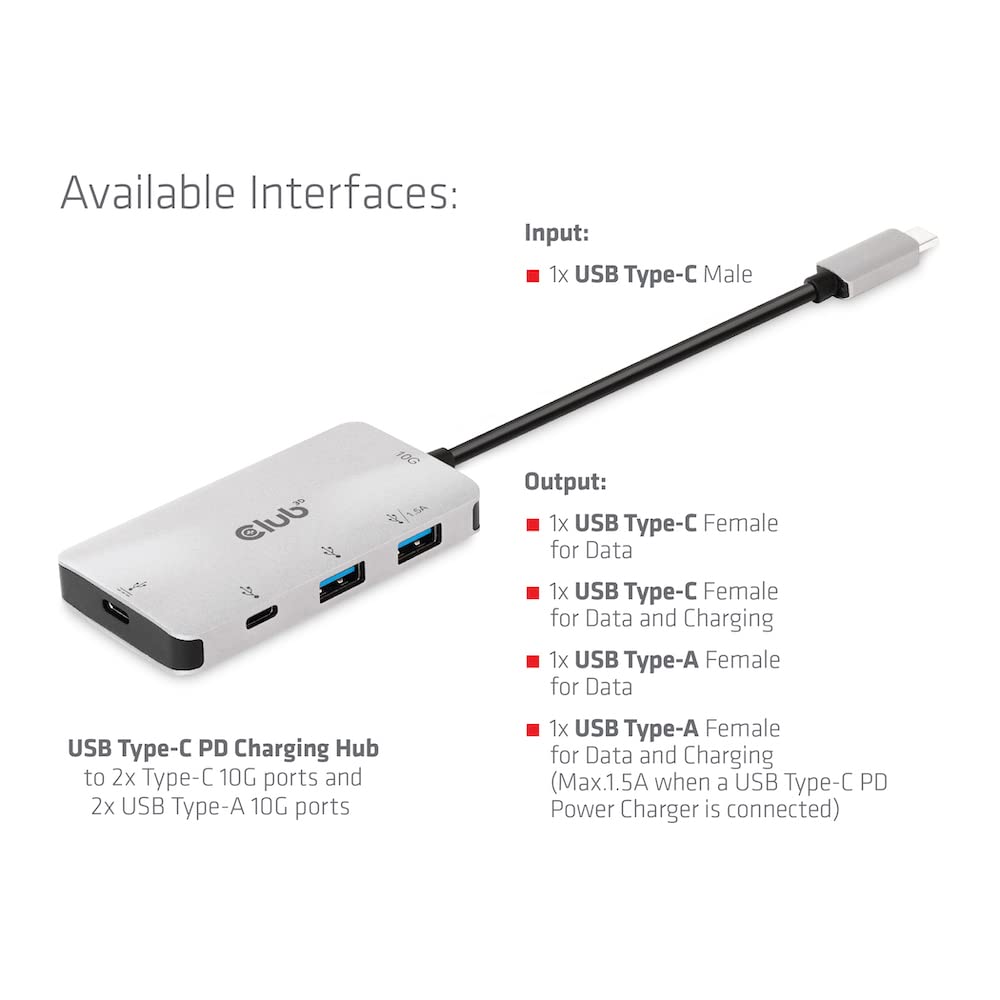

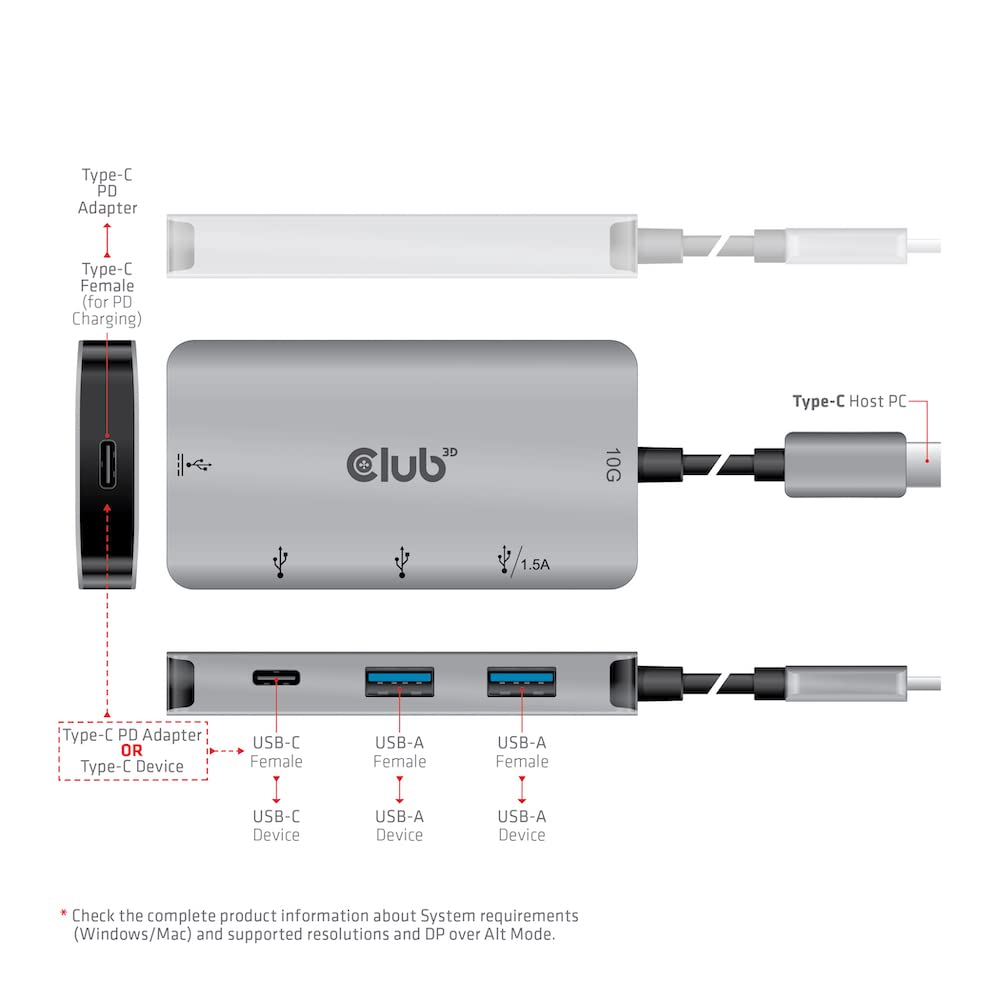

• Supports USB Type-C input, 2x USB Type-C + 2x USB Type-A output
• Compliant with USB 3.1 specification and backwards compatible with older versions

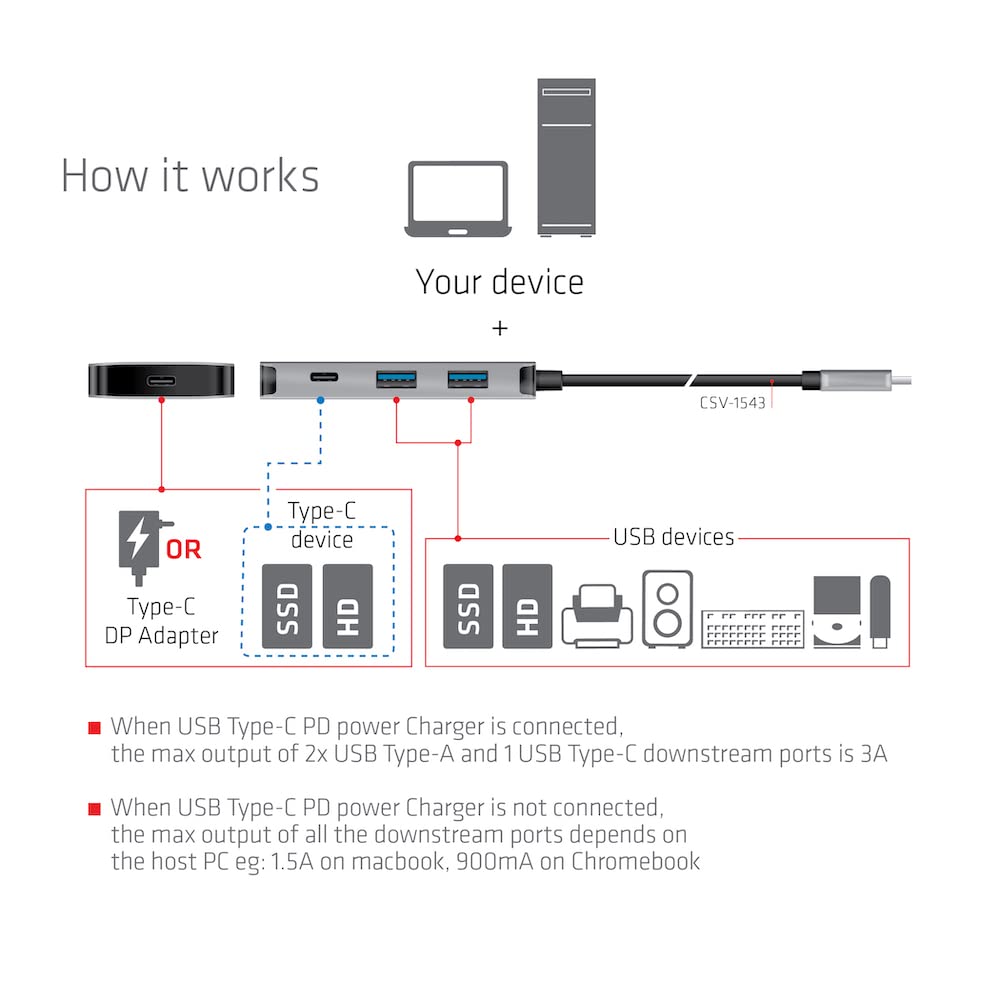

The Club 3D CSV-1543 is a USB Type-C PD charging hub on 2x Type-C 10G ports and 2x USB Type-A 10G ports. The two Type-A ports are designed for data transfer and one of them can charge the connected USB Type-A devices (mobile phones, tablets, U disk, etc.) at 1.5A. One of the two USB Type-C ports is designed for data transfer and charging of the connected USB Type-C device, the other USB Type-C port supports both data transfer and PD3.0 charging. It can be used on any USB Type-C host (PC, notebook, tablet, mobile phone, etc.) that supports DP Alt mode. High power conversion efficiency means low power consumption and low heating 98.2%@Vin=5V; 92.5% @Vin=20V. Advanced power management. The power supply via the outputs will guarantee uninterrupted work of USB Type-A SSD and U-disk when the Vin is between 5; 20V, so that the connected USB product is not disconnected when the PD charger is plugged in and removed from the USB Type-C charging port. The supported USB device current is as follows: 1.5A @PD3.0 product
