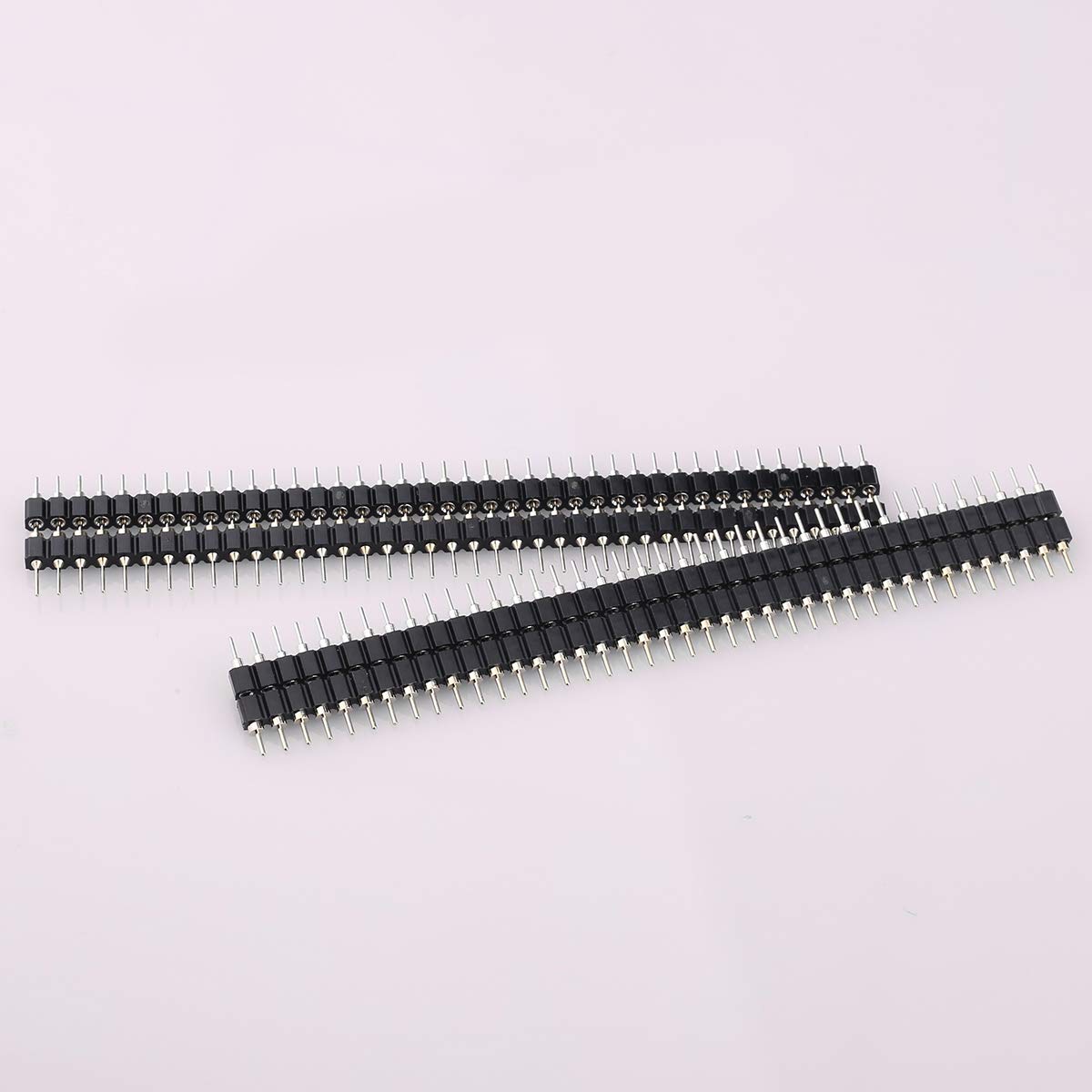

CLDIY 5 Pairs Gold Plated ROHS Single Row Round Pin 140P 40P Straight Pin Header for PCB Board 2.54mm Pin Header for Computer Breadboard Gold
About this item
- Position: 1 x 40 40P
- Row:1;Mounting Angle: Straight Needle
- Pin Pitch: 2. 54 mm
- Material: plastic, metal; colour: black, gold
- Package Content: 5 x Pin and Female Header
Product description
Note: 1. Material: Housing: glass fibre reinforced thermoplastic UL 94v-0. Contact: Copper Alloy Contact Plating: Gold or Pewter over Nickel 2. Electric. Current rating: 3AMP Dielectrc Dielectric Strength: 500V AC. Contact resistance: 20mΩ Max. Insulation resistance: 1000mΩmin 3: Environment Temperature range: -40°C to + 105°C. Single angle mounting bracket, pin header, electrical component, is easy to install. This pin header is an ideal female connector for the PCB and integrated circuit, which is widely used in computer and breadboard fields. These are excellent quality header pins in 0.1 centers. They can be cut to any size if needed. Single Row Straight Mount Female Header Electrical Component Easy to Install This pin header is an ideal connector for the circuit board and the integrated circuit, which are widely used in the computer and breadboard.
Product details
