ciciglow HiFi Sound Card, Printed Circuit Board 3.5mm Jack Audio HAT Module for RasPi Motherboard Decoding I2S Interface I2C Control WM8960 Chip

• Speaker Interface: This audio HAT card has onboard dual channel speaker interface, which can directly drive speakers.
• Designed for RasPi: This HiFi sound card is specially designed for RasPi series motherboard, for VisionFive2.
• WM8960 Chip: This audio HAT module for RasPi adopts WM8960 chip, controls via I2C interface and communicates via I2S interface.
• Onboard 3.5mm Jack: This WM8960 HiFi sound card has onboard standard 3.5mm earphone jack, play music via external earphone.
• Recording Supported: This audio HAT expansion board supports stereo, 3D surrounding sound output, MEMS silicon microphone, support stereo recording, left and right channel recording.

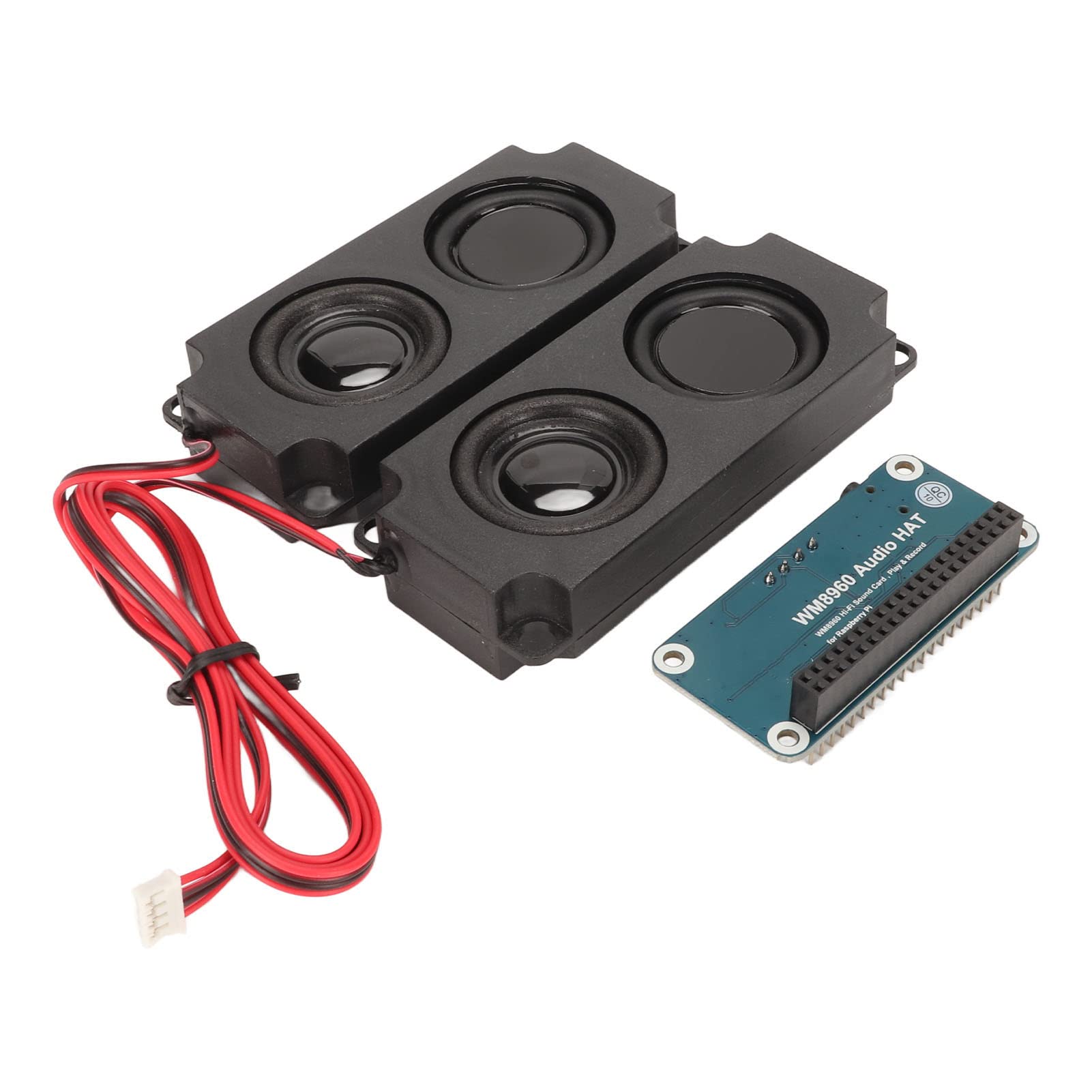

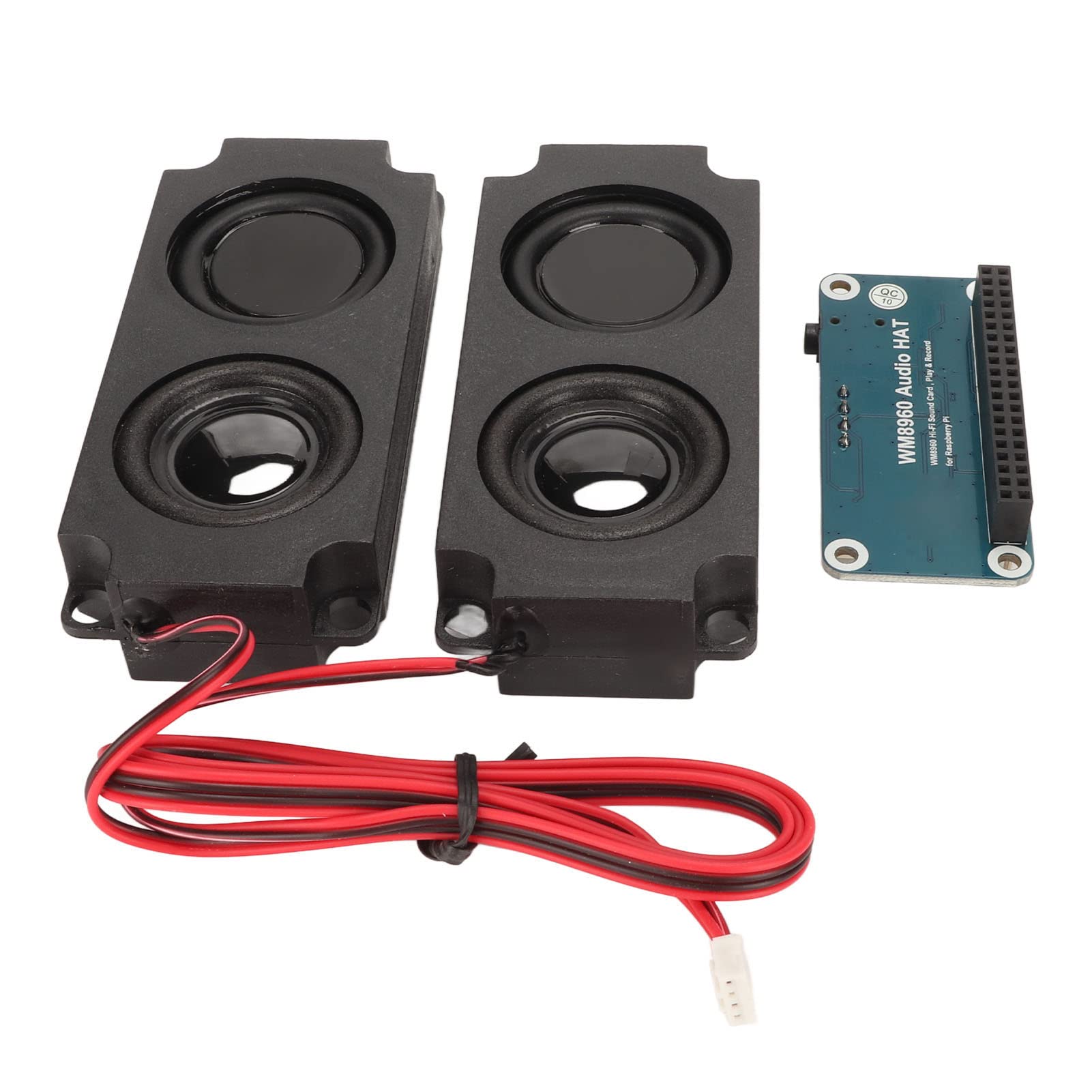

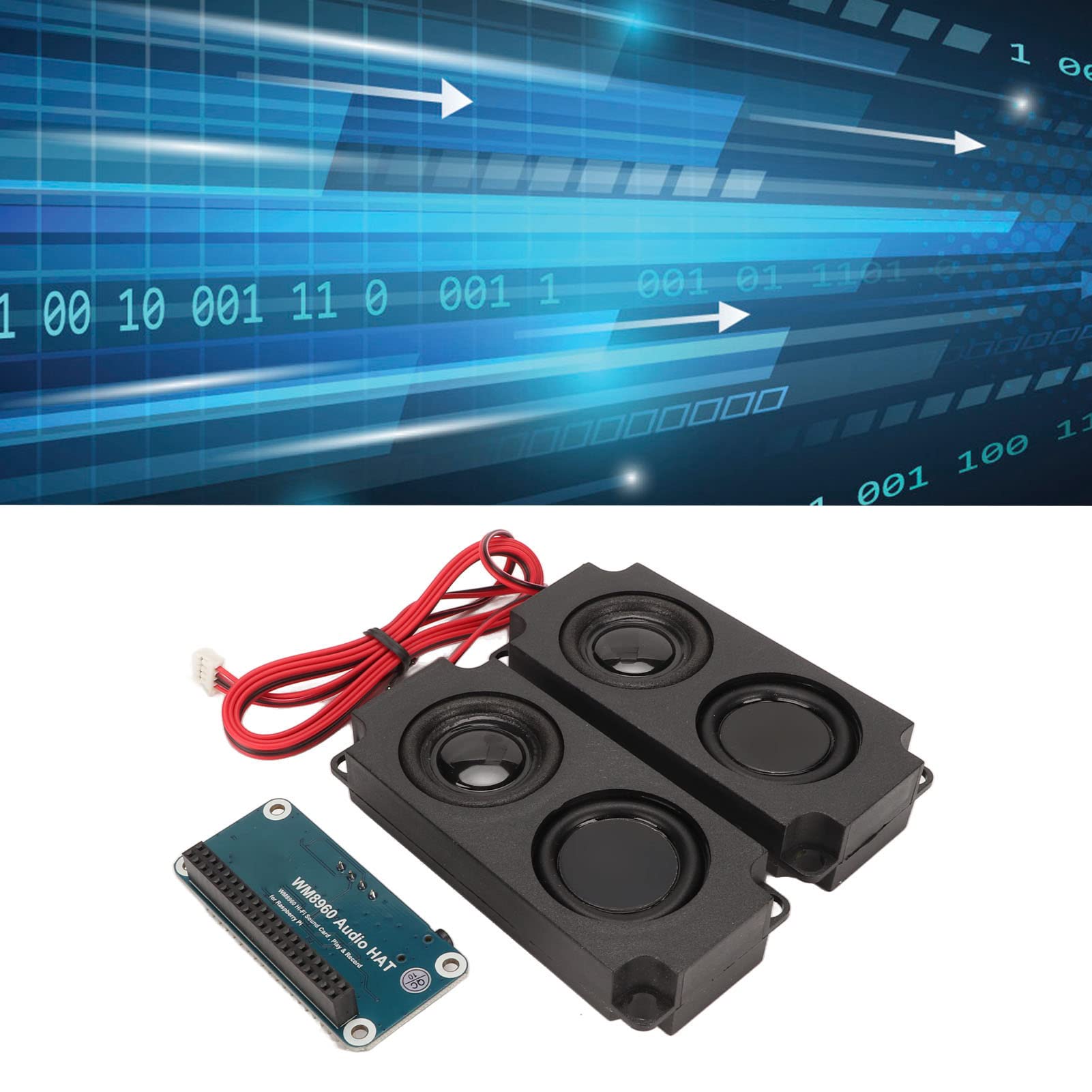

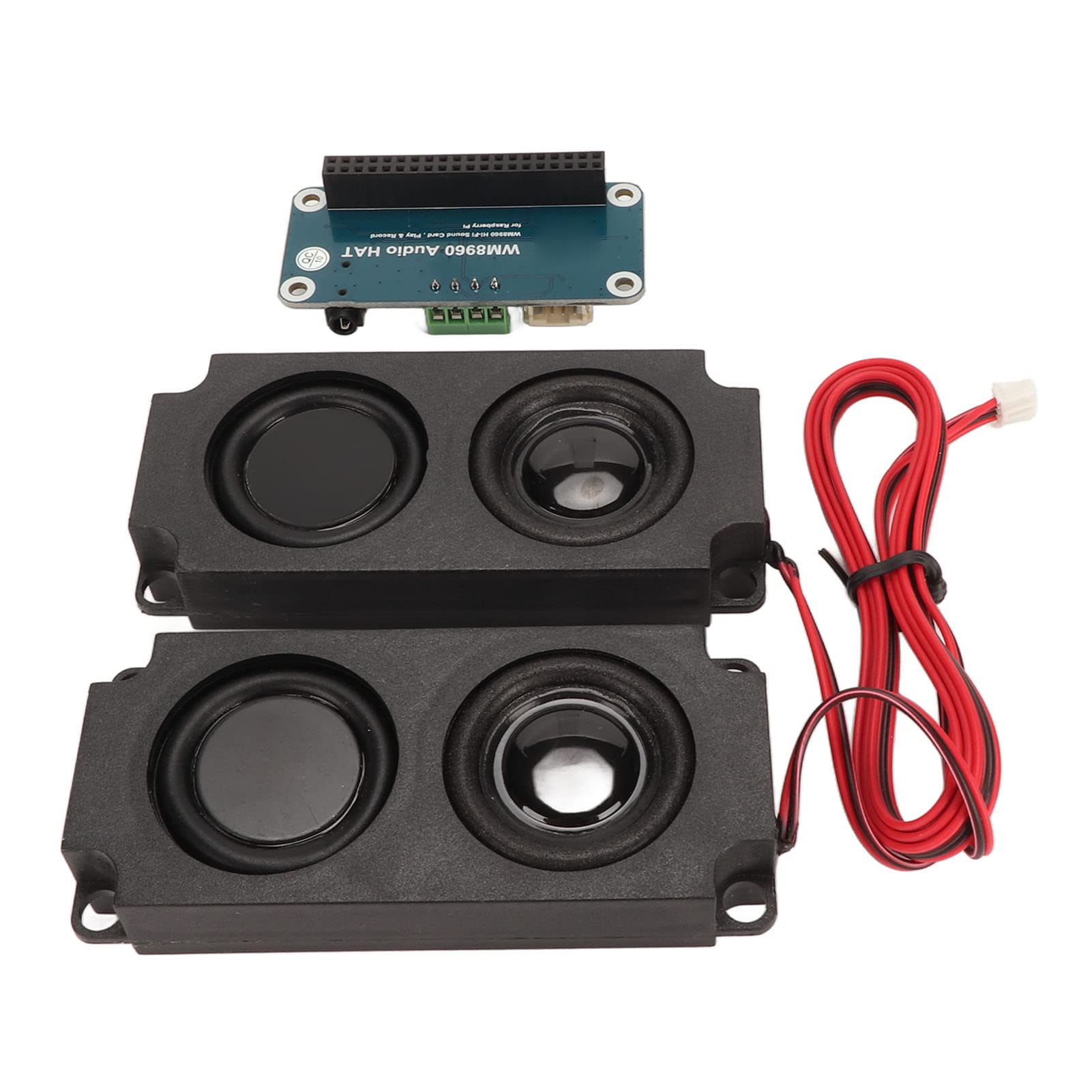

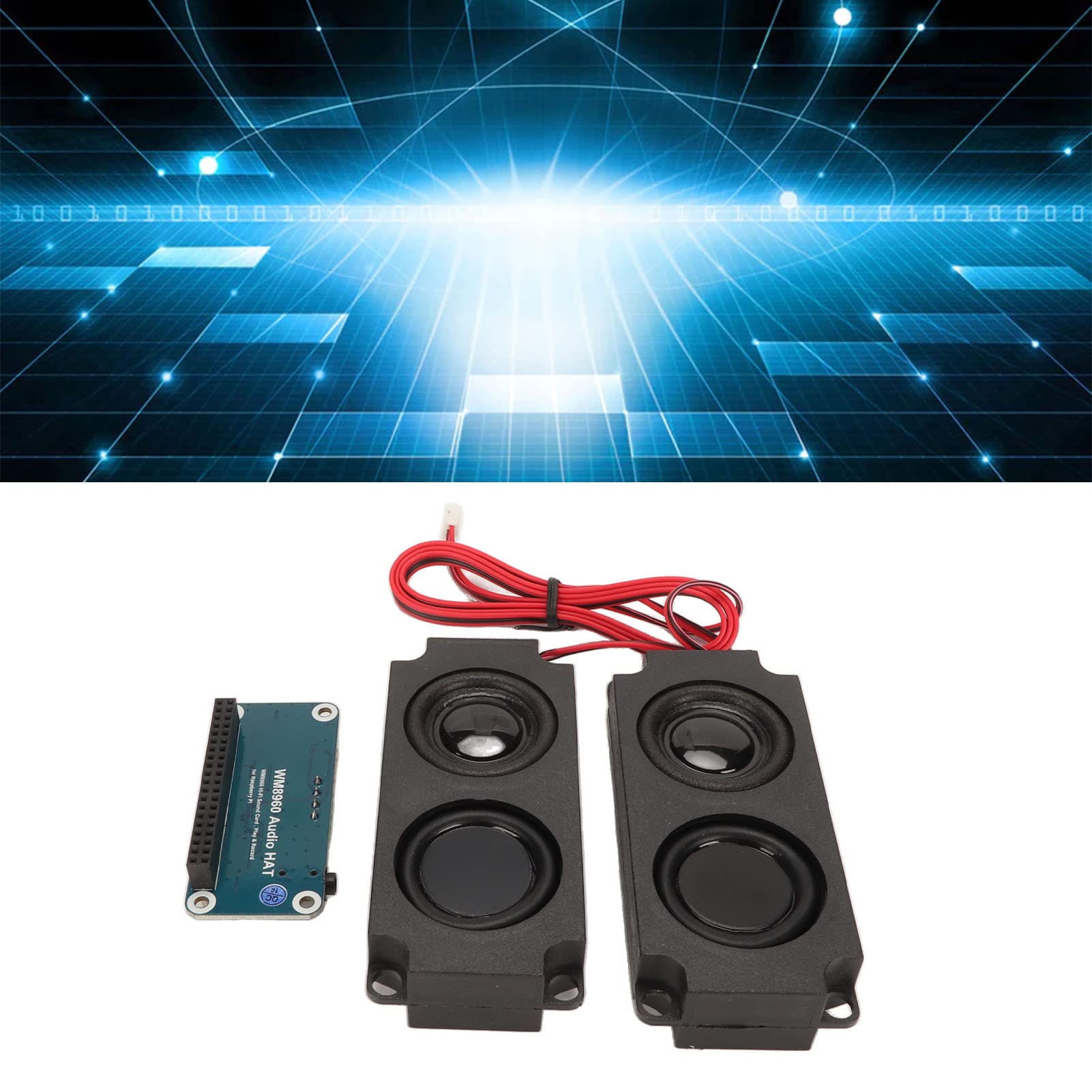

1. Designed for RasPi: This HiFi sound card is specially designed for RasPi series motherboard, for VisionFive2. 2. WM8960 Chip: This audio HAT module for RasPi adopts WM8960 chip, controls via I2C interface and communicates via I2S interface. 3. Onboard 3.5mm Jack: This WM8960 HiFi sound card has onboard standard 3.5mm earphone jack, play music via external earphone. 4. Speaker Interface: This audio HAT card has onboard dual channel speaker interface, which can directly drive speakers. 5. Recording Supported: This audio HAT expansion board supports stereo, 3D surrounding sound output, MEMS silicon microphone, support stereo recording, left and right channel recording. Specification: Item Type: HiFi Sound Card Material: Printed Circuit Board Supply Voltage: 5V Logical Voltage: 3.3V Audio Codec Chip: WM8960 Control Interface: I2C Audio Interface: I2S DAC Signal to Noise Ratio: 98dB ADC Signal to Noise Ratio: 94dB Earphone Driver: 40mW (16Ω At 3.3V) Speaker Driver: 1W Per Channel (8Ω BTL) How to Use: Install and use Package List: 1 x HiFi Sound Card 3 x Screw 2 x Stud 3 x Nut 2 x Speaker Note: LP and LN correspond to the positive and negative poles of the left speaker respectively. RP and RN correspond to the positive and negative poles of the right speaker respectively.
