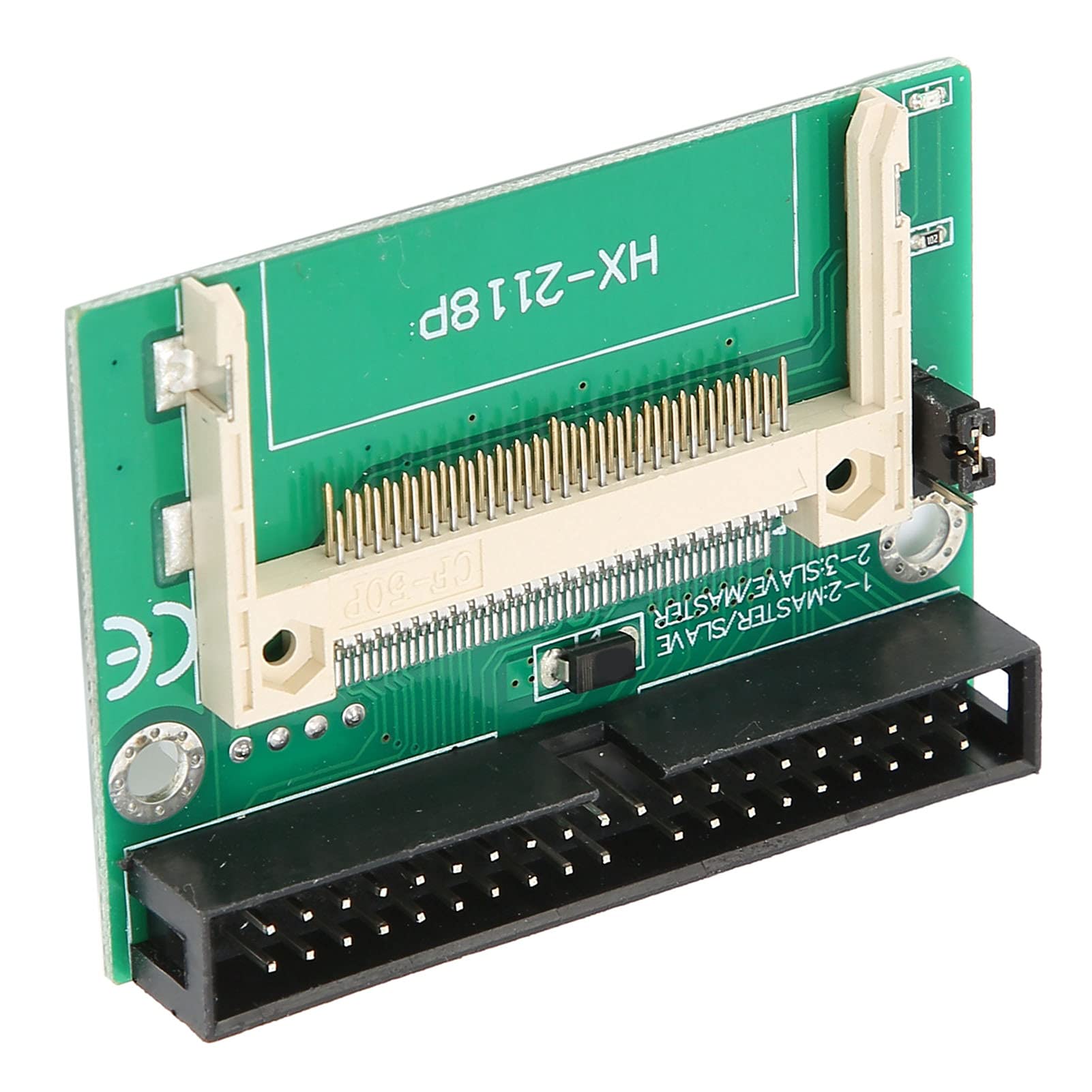

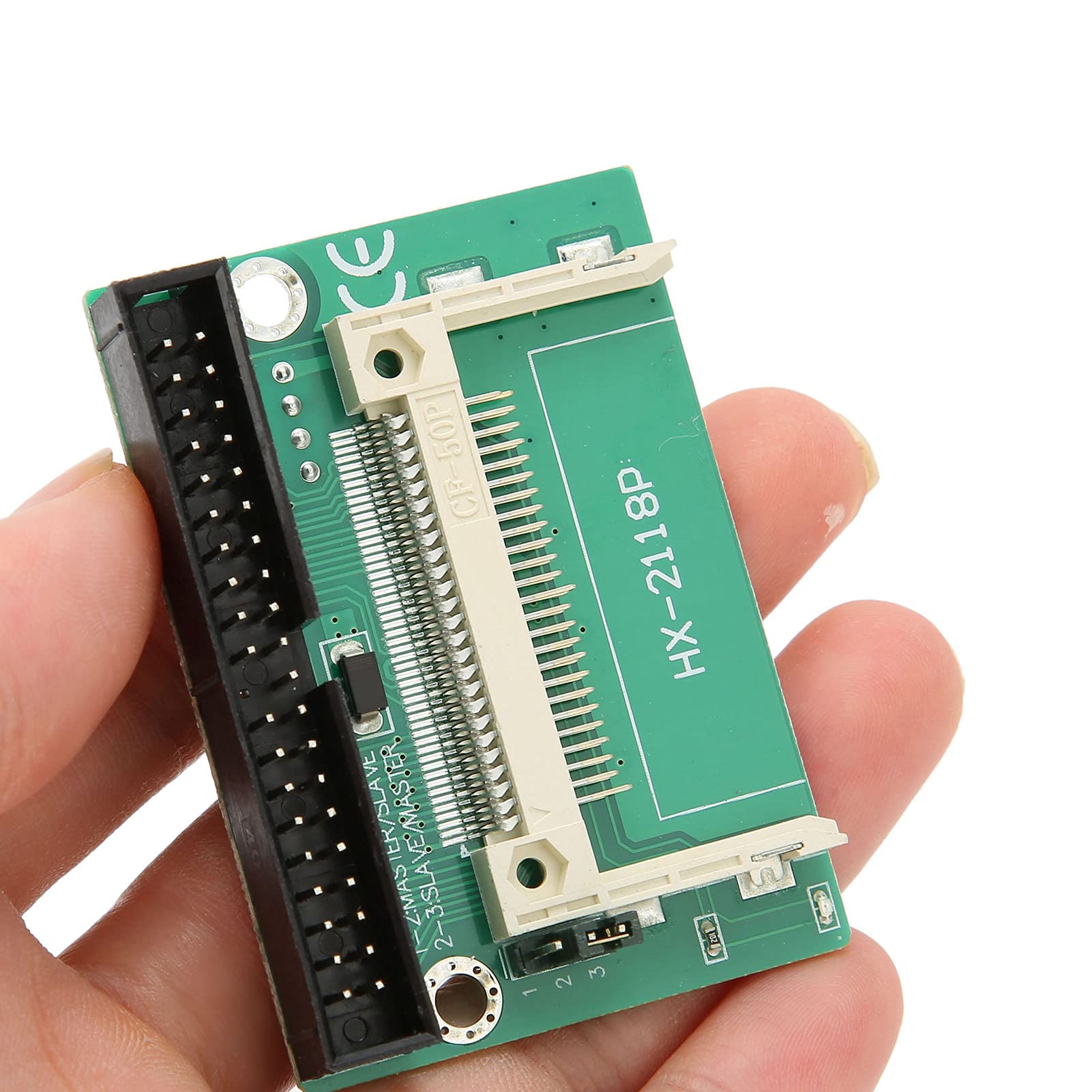

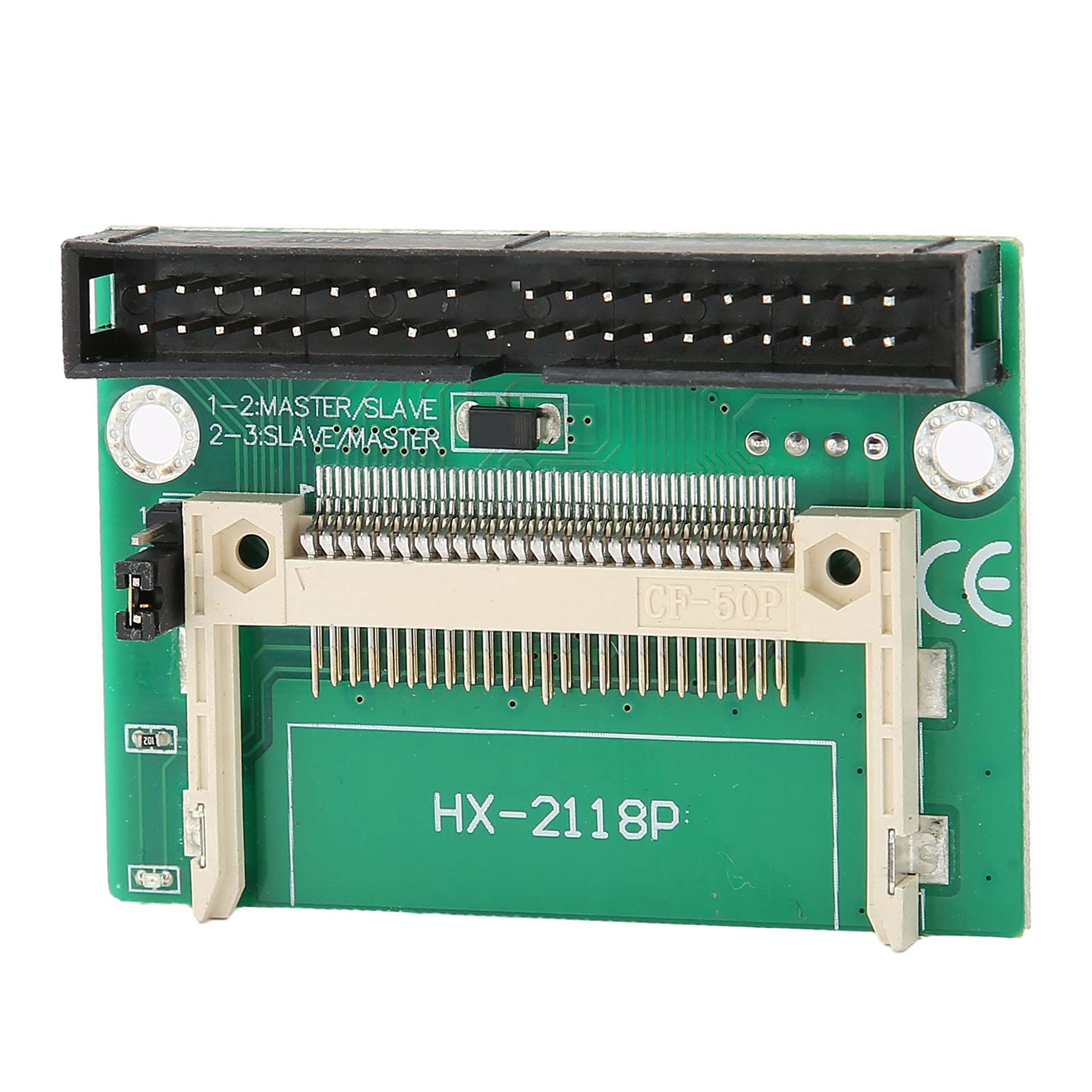

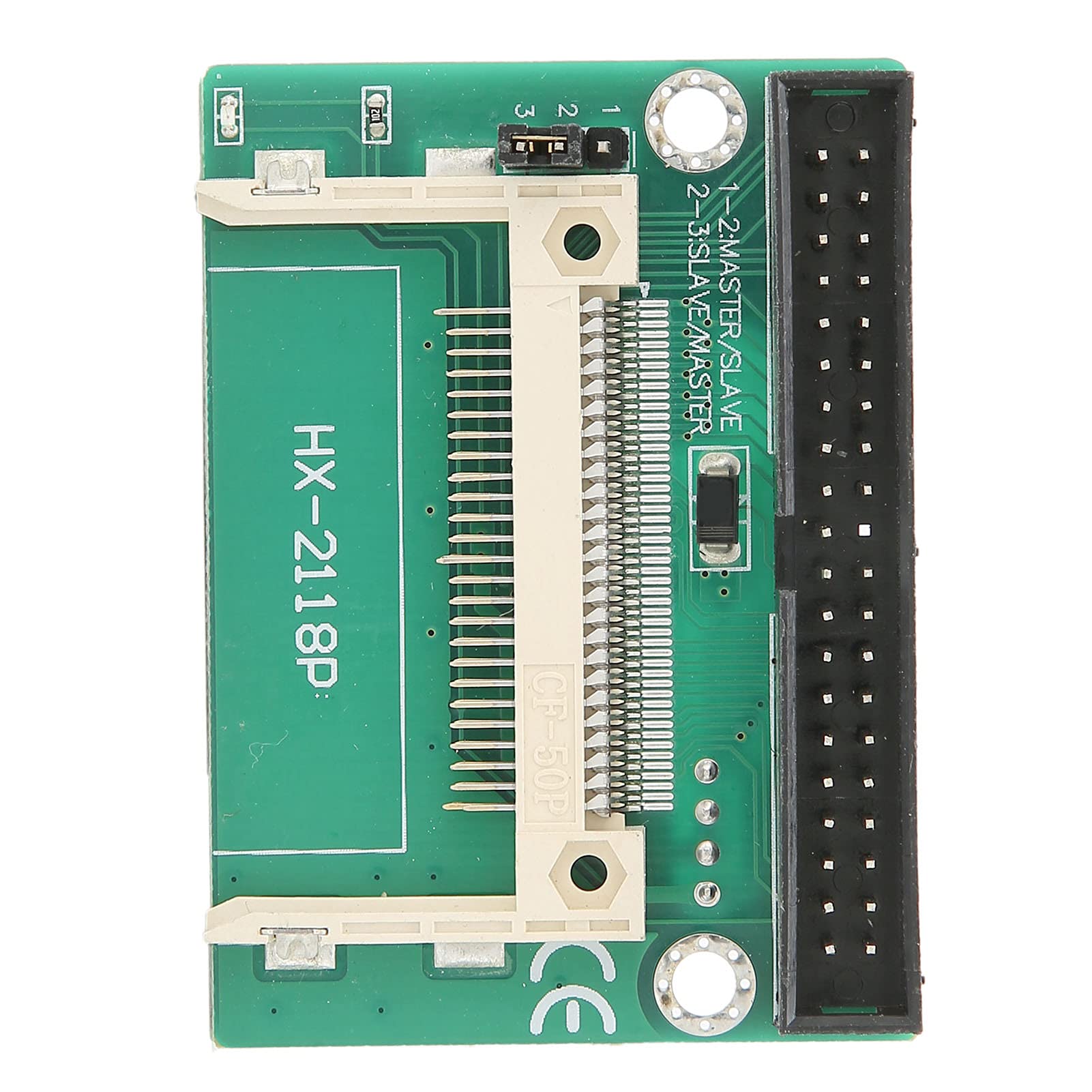

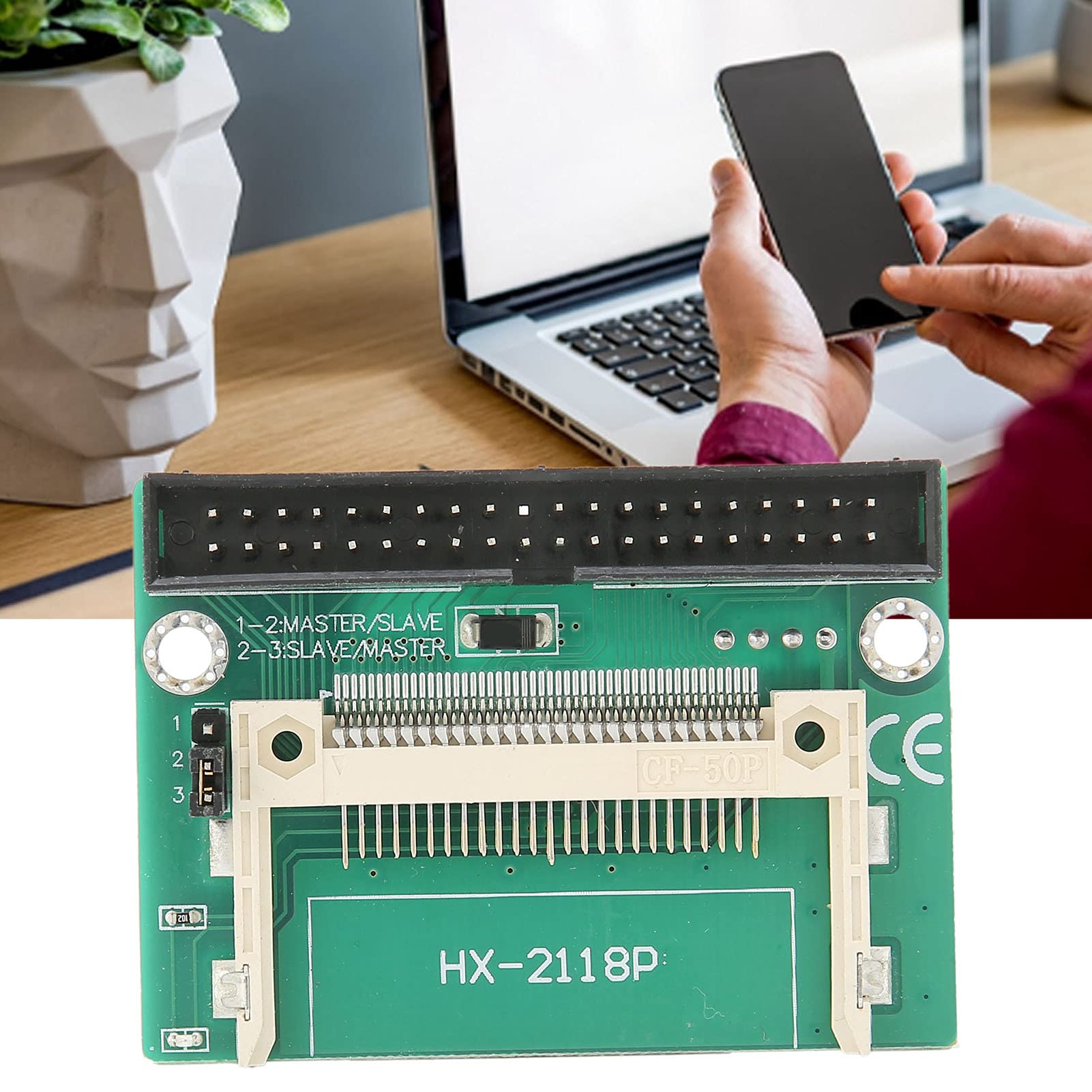

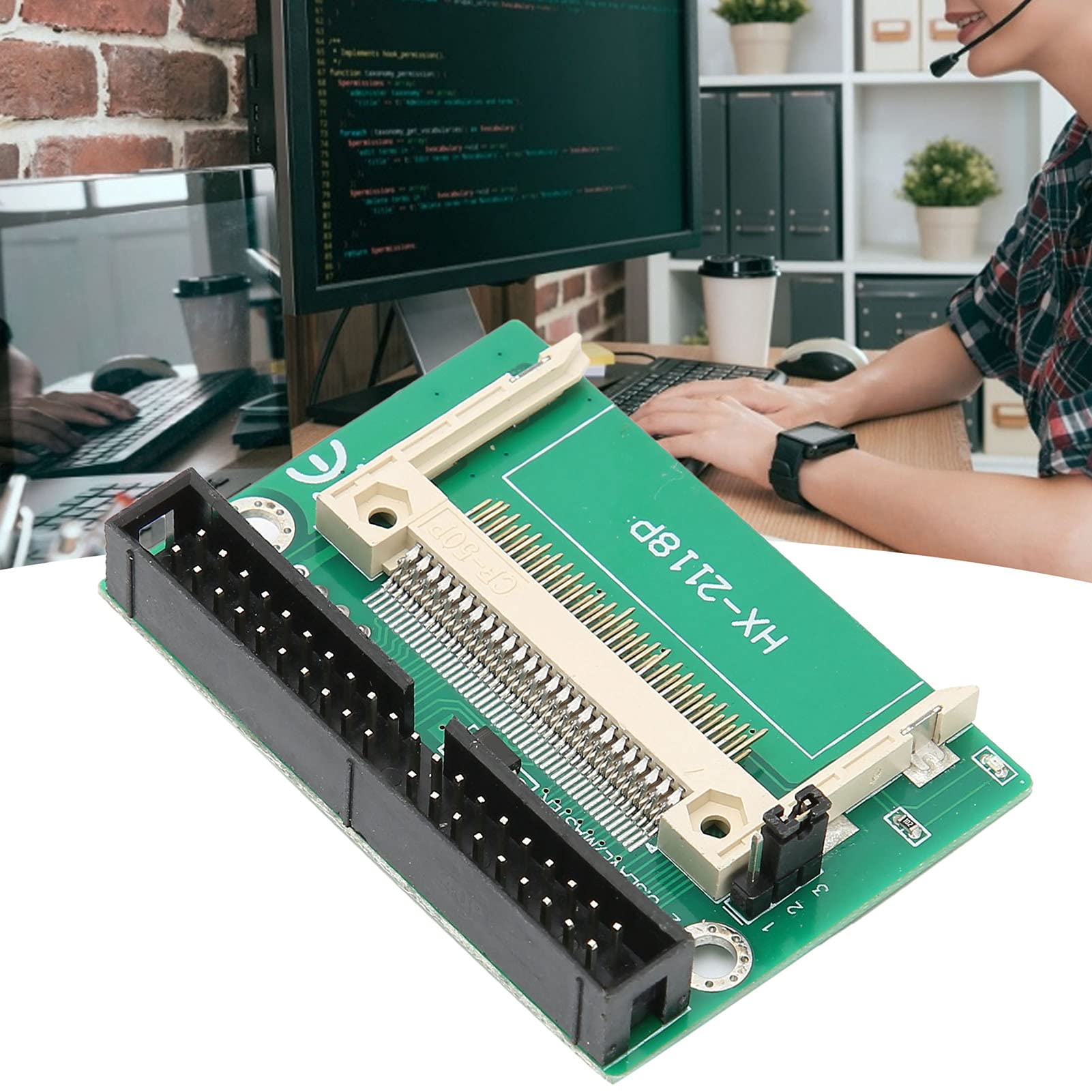

CF to IDE Adapter, 40-Pin/2.5mm True‑IDE Female Anti‑EMI Disk Desktop Adapter Card for Windpws CE/LINUX

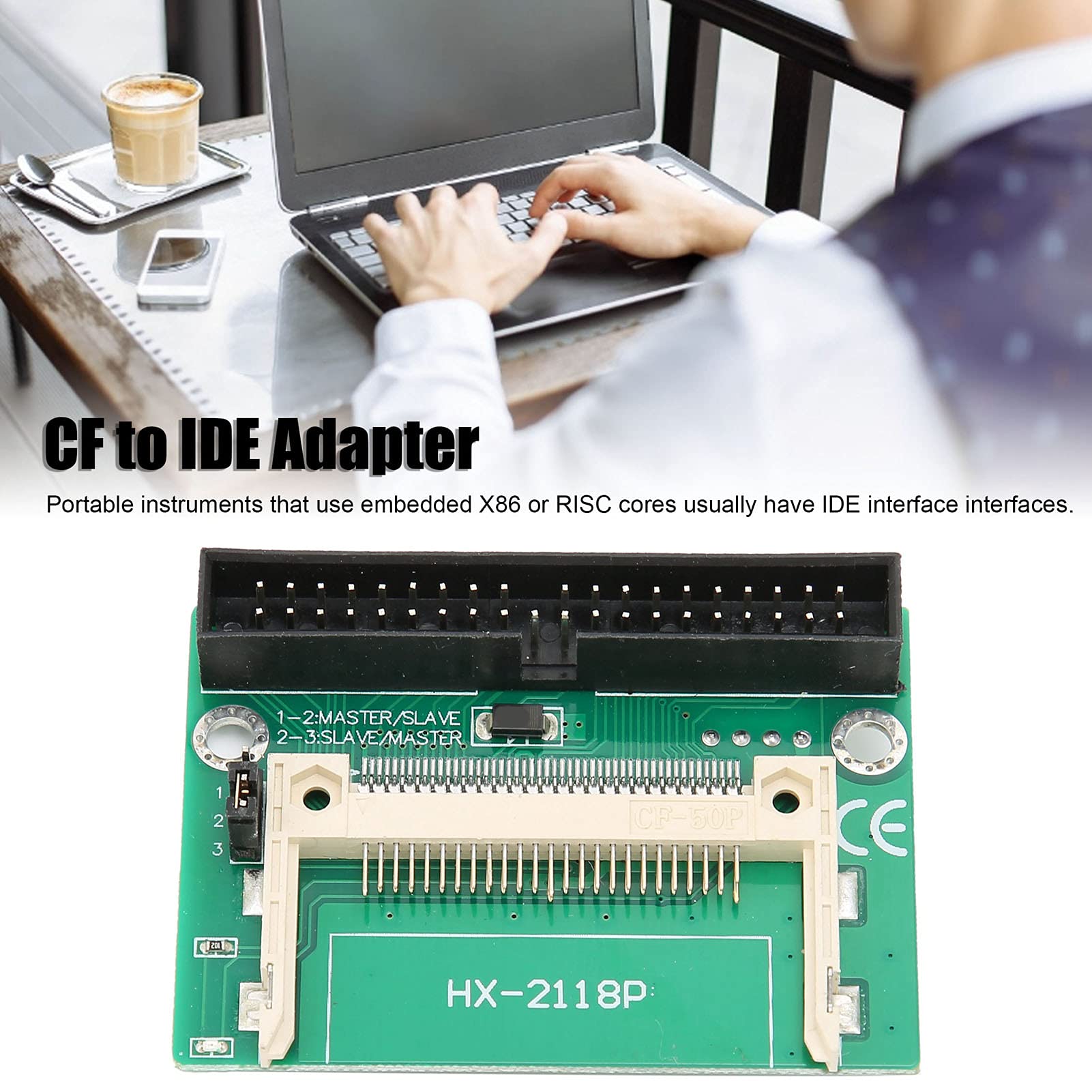

• Portable instruments that use embedded X86 or RISC cores usually have IDE interface interfaces.
• If the CF card cannot be directly connected to these instruments, you can use this adapter to complete the transfer.
• This card is mainly used in X86 kernel computers. Some digital cameras have a CF card interface, and you can access your picture data through this card on your desktop.

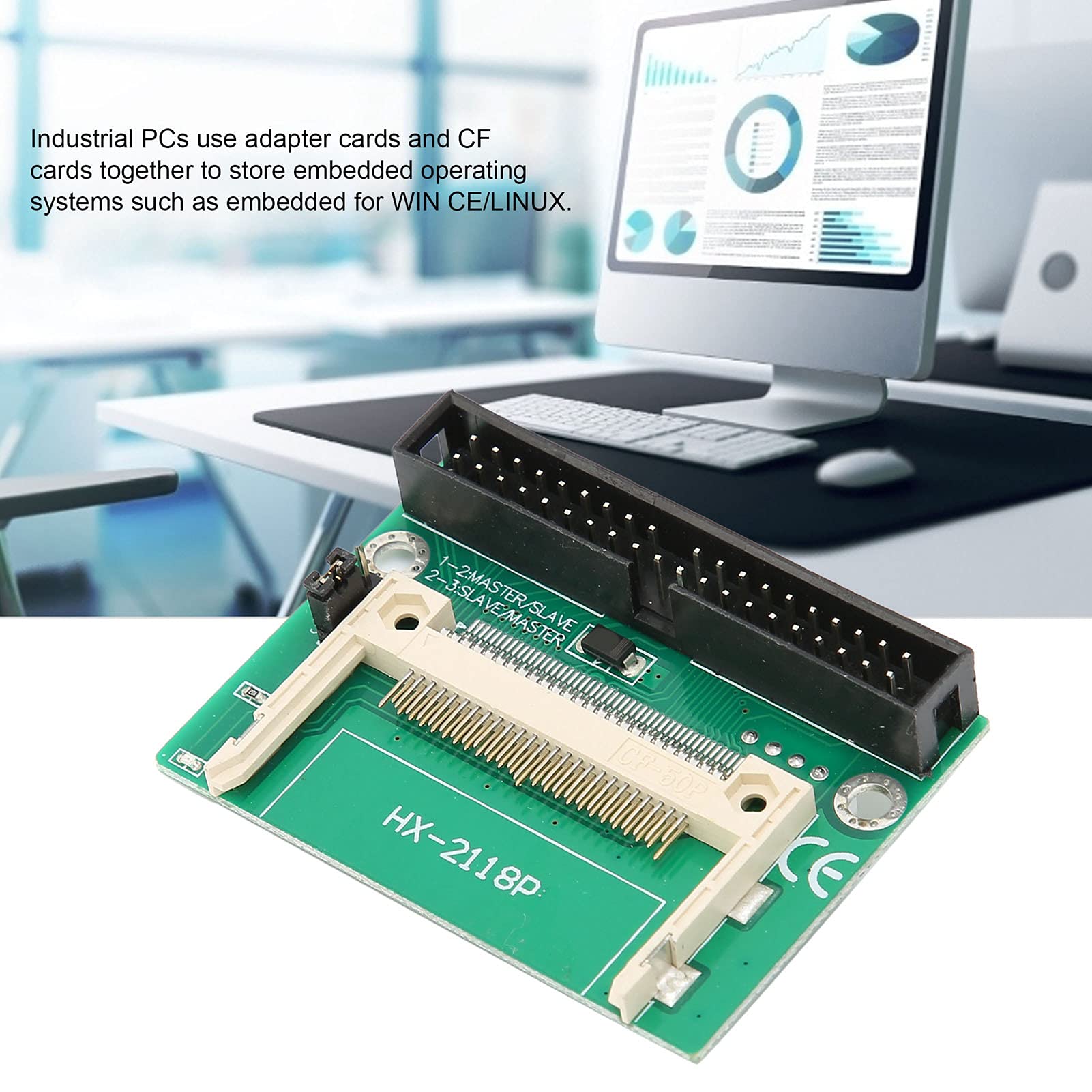

• Industrial PCs use adapter cards and CF cards together to store embedded operating systems such as embedded for CE/LINUX.
• Multi‑layer board design in line with industry standards, strong anti‑EMI ability.

Specification: Item Type: CF to IDE Adapter Material: PCB Interface: 40 Pins Compliant With Standards: CF Specification Ver2.0, IDE/ATA-33 Specification Standard IDE Interface Interface: True-IDE Mode Support Card Type: CF-I and CF-II IDE Interface: 40-Pin/2.5mm Female Connector (Plug the Card Directly into the IDE Socket) Master/Slave Jumper Setting: Can Be Configured as Master or Slave Use CF Card as DOM: Power Supply from External Floppy Drive Power Socket Package List: 1 x Adapter Card
