CB TTi TCB-H100 radio and TTI AK-H100 accessory kit

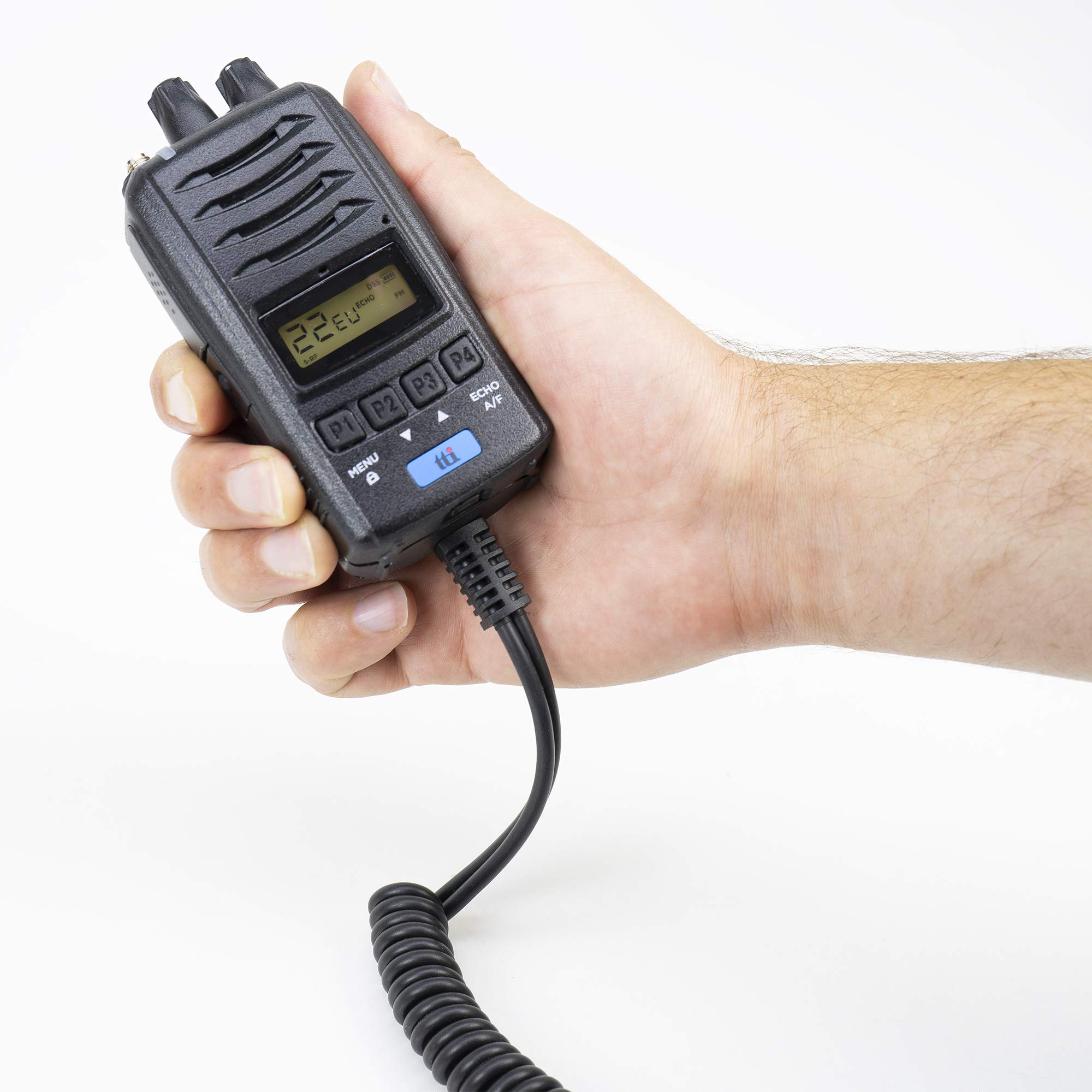

• Similar to a walkie-talkie in size and portable design, the CB TTi TCB-H100 radio station retains all the features of a CB radio station: 26-28MHz frequency range, 4W transmission power, AM / FM modulation, 12V or 24V power supply .
• CB TTi TCB-H100 radio can be powered both at 12V or 24V through the car adapter included in the package, and at 7.4V through the Li-Ion battery available in the package with TTi H100 accessories that can be purchased separately.
• CB TTi TCB-H100 radio was created taking into account the basic needs of a CB band user: DSS (Dynamic Squelch Tuning System) - the station squelch is dynamically adjusted to an optimal level to get the best reception; Adjustable squelch - which reduces background noise to a minimum; Channel scan; Key lock; Sound key; Echo on broadcast function; Roger beep (an acoustic signal at the end of the show); Vox (broadcast without pressing the PTT button)
• By pressing the MENU button (P1) on the station you can access the settings menu that allows activating and deactivating the station functions, as well as selecting the norm. By selecting one of the 10 available standards (EC, EU, d, I1, I, EU, UK, PL, F and E) you can use the TTi TCB-H100 station anywhere in Europe.

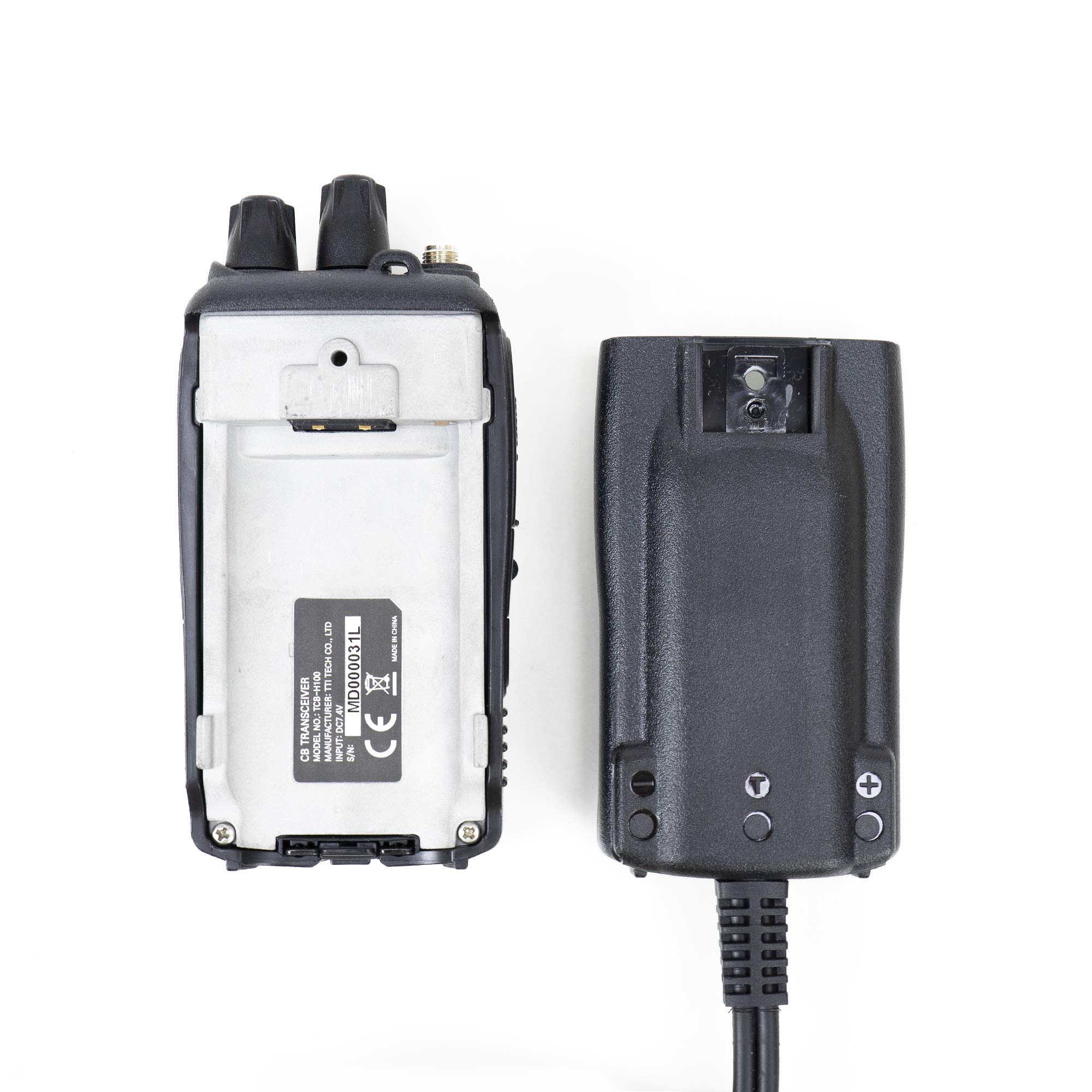

• The optional TTi H100 accessory package (product code PNI-AK-H100) includes a 2600mAh Li-Ion battery, a desk charger, BNC antenna and belt clip. The TTi TCB-H100 thus becomes portable, and can be used outside the vehicle.

Product identification Product code TTI-PACK33 General features CB Radio Portable Model AM-FM band type Frequency 26.565-27.99125 MHz Channel 40 1 W audio speaker power Sensitivity (20dB SINAD) 1.4㎶ for 10dB (S + N) / N in AM; 0.8㎶ for 20dB SINAD in FM Audio signal distortion less than 8% @ 1 KHz 4 W emission power FM modulation: 1.8KHz ± 0.2KHz, AM: 85-95% Power supply 12 -24 V Consumption max. 1.6A Dimensions / Weight 57 X 35 X 120 mm / 224 g Desk charger: 83 X 105 X 40 mm Cable length: 1.2 m Antenna: 17 cm Special features radio station Scan channel Beep keyboard 9/19 emergency channel button SQ - Squelch and meter Operating temperature -26 C - +60 C The package contains CB Radio CB Radio power cord Fixed mounting mount Lighter plug Station support Battery holder Antenna and power adapter 12 V Yes 230V power supply BNC antenna CB radio mounting bracket and screws User manual
