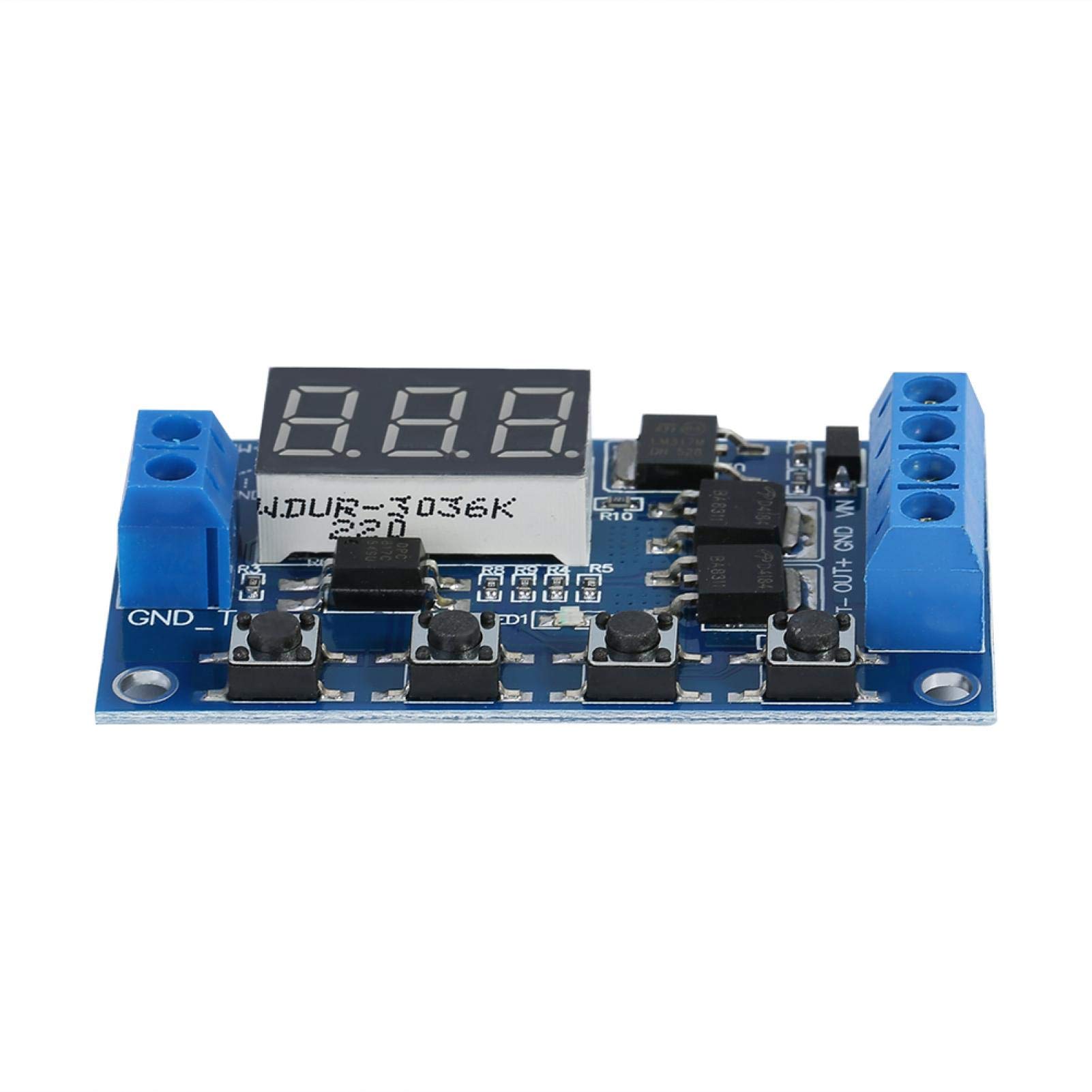

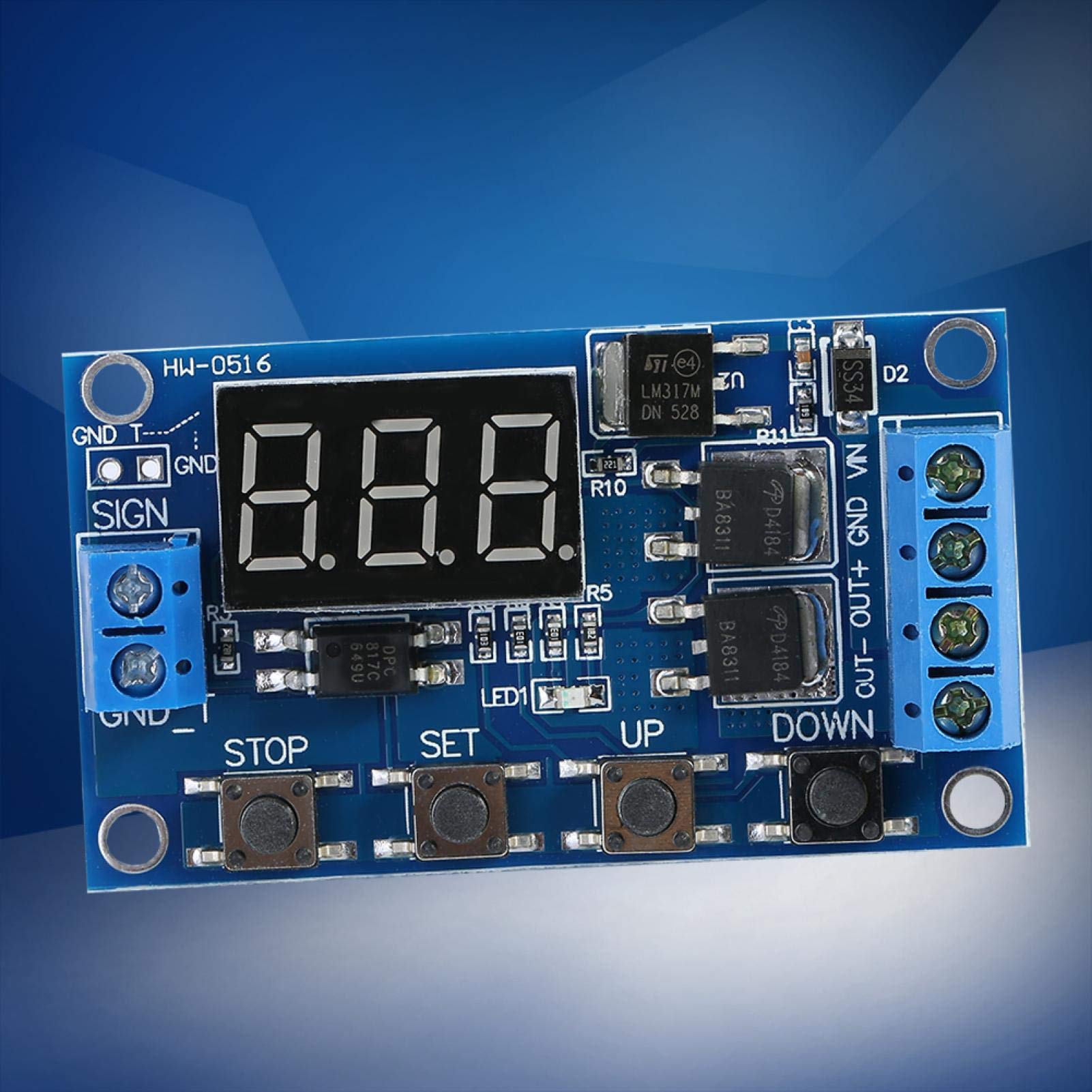

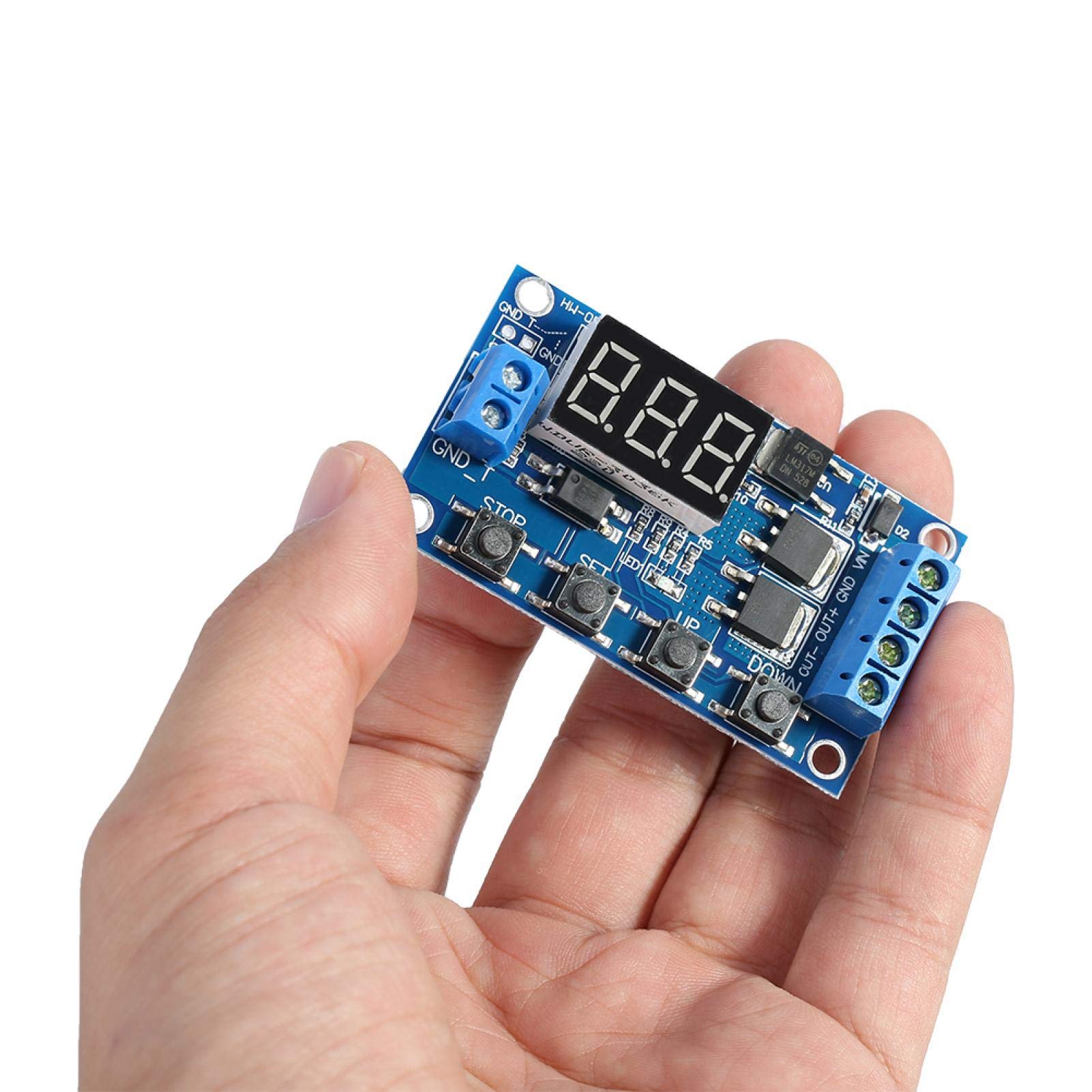

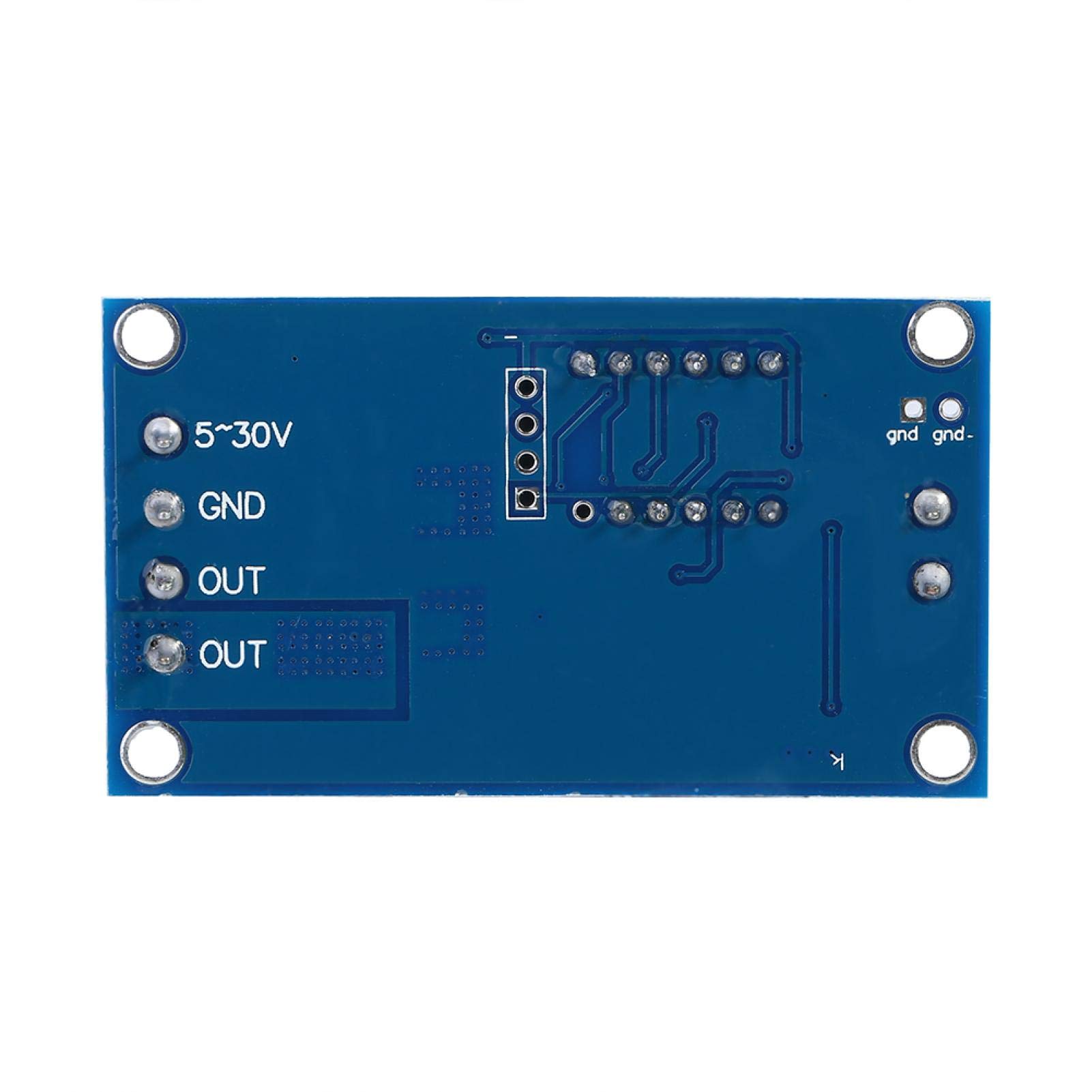

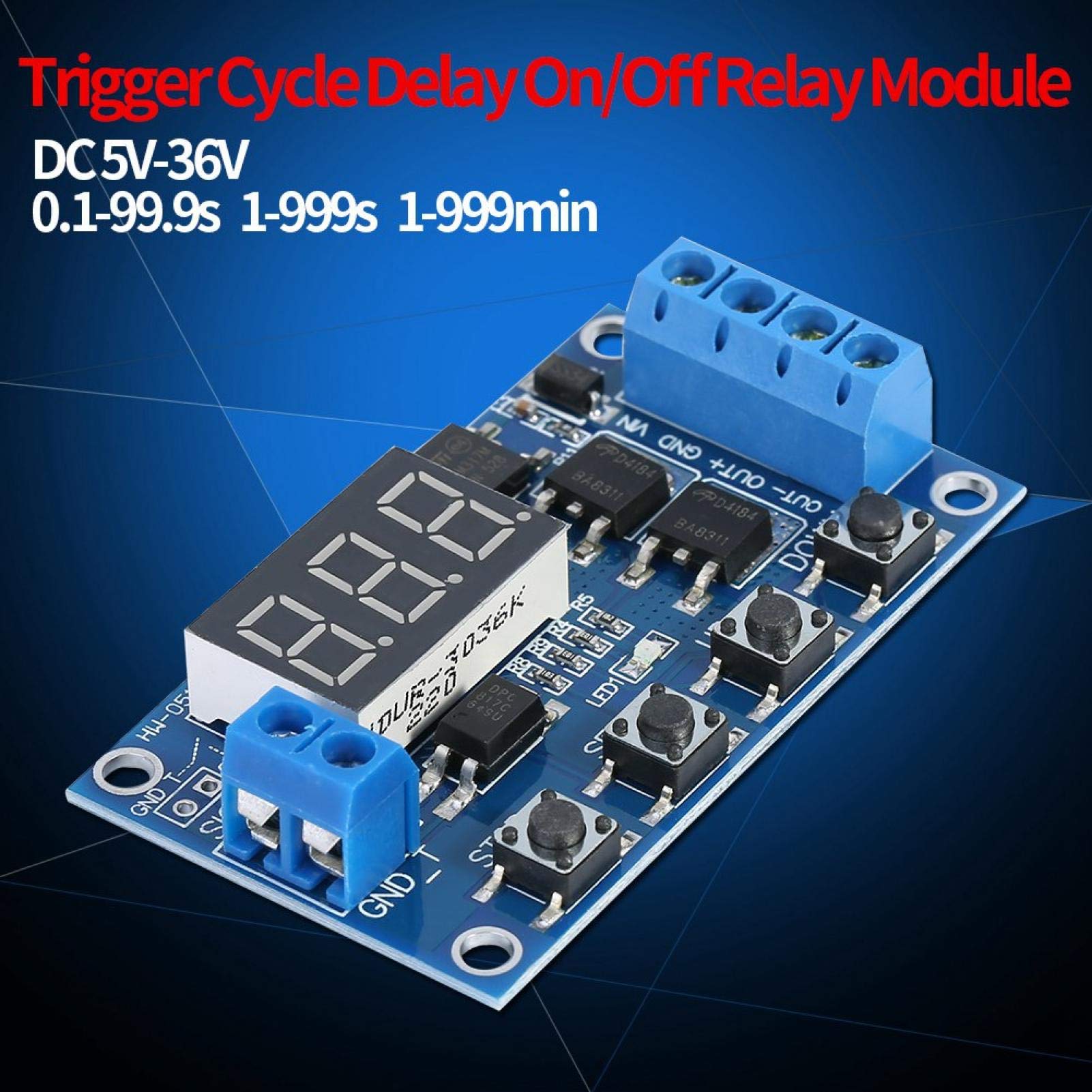

Candeon Timer Module DC 5V-36V Trigger Cycle Delay Timer Switch Turn On/Off Relay Module with LED Display

• Compared to normal electromagnetic relay modules, it has a longer service life
• No noise was made during turning on/off, no spark, and no electromagnetic interference
• To achieve fast high frequency turn-on and off circuit, an unlimited number of switching times
• Dual-MOS in parallel active output, lower inner resistance, larger current, strong power; at room temperature, operating current is up to 15A, power up to 400W, that can be used for most equipment
• Wide voltage input from 5V to 36V, normally used for controlling DC motors, lights, LED strips, micro-pumps, solenoid valves, etc., very convenient

Specifications: Voltage: DC 5V~36V. Trigger Signal Source: High voltage level trigger (3.0V~24V), signal ground and system ground are not on common ground to improve the system's anti-jamming capability (you can also connect them on common ground). Output Capacity: DC 5V~36V, at room temperature, continuous current is 15A, power 400W. With enhanced heat dissipation, the current can be up to 30A. Quiescent Current: 20mA Operating Current: 50mA Working Temperature: -40℃~85℃ Clocking (Time Delay) Range: 0.1seconds to 999minutes Size: 60*34*12mm / 2.36*1.33*0.47"
