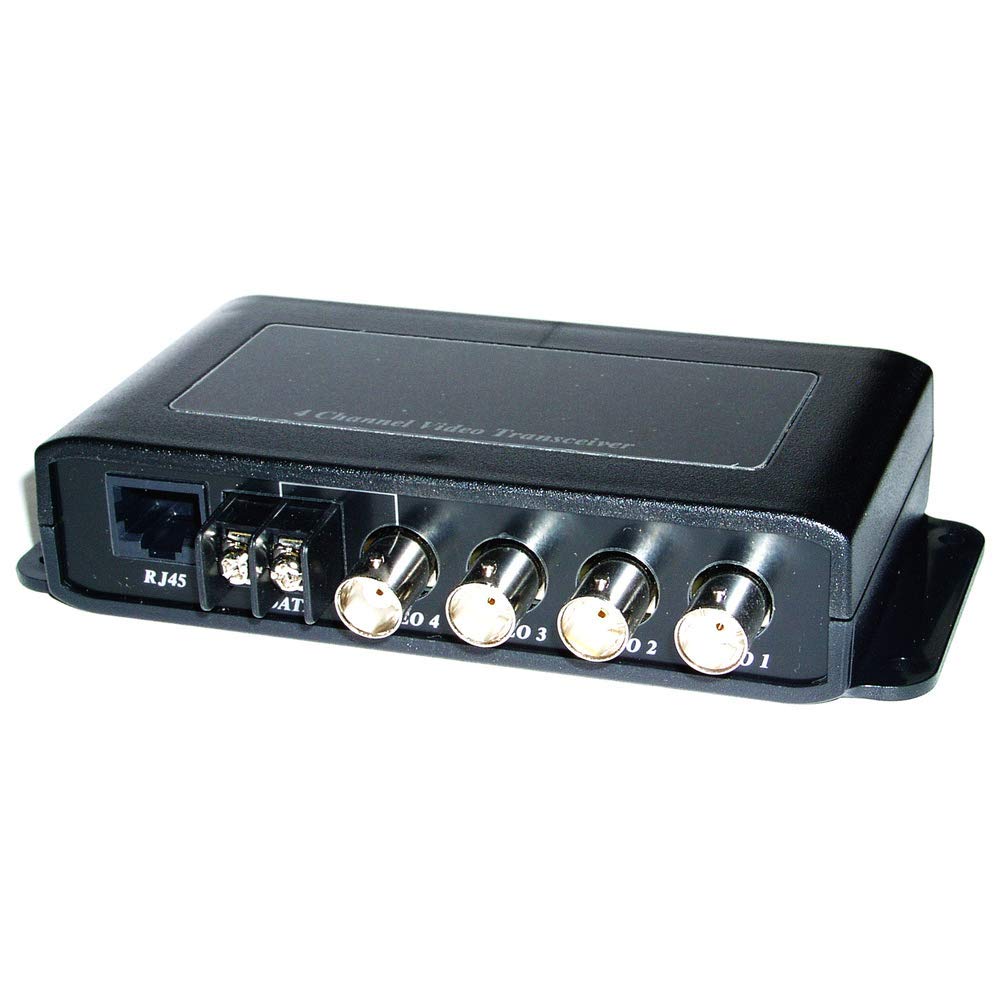

Cablematic - Passive video transceiver with RJ45 DATA 4BNC TTP414VD

• Video balun and passive video transmitter.
• 4 independent transmitters/receiver in one device.
• Small module built in size plastic frame in 138 x 66 x 28 mm.
• It allows you to transport RS422 or RS485 signal type of data. Because it has endsl buildings with 2 screw terminals.
• For each transceiver has a BNC-female (coaxial).

Transceiver of passive video of 4 ports ( video transceiver ) of composite video (coaxial BNC-Female) to twisted pair cable (UTP RJ45-Female). In the same device has 4 independent ports or what is the same, 4 transceivers from coaxial to twisted pair. It performs the functions of video balun. Designed to allow the transmission of video signals through twisted pair cable (UTP). The twisted pair cable facilitates the insIt is cheaper and allows longer transmission distances without loss of quality. Specifications Video balun and passive video transceiver. It has 4 independent transceivers in the same device. Small module mounted on a plastic housing, size 138 x 66 x 28 mm. It allows transporting a data signal type RS-422 or RS485. For this, it has Terminal 2-Terminal Block. For each transceiver it has a BNC-Female connector (coaxial). It has a single RJ45-Female connector that concentrates in the same twisted pair the 4 video signals or 3 video signals and one RS-422/485 data. It allows two operations: 3 video signals and 1 data signal or 4 video signals. Does not require feeding (passive). Transmission range throughUTP cable: 400m (color) and 600m (B/N). .
