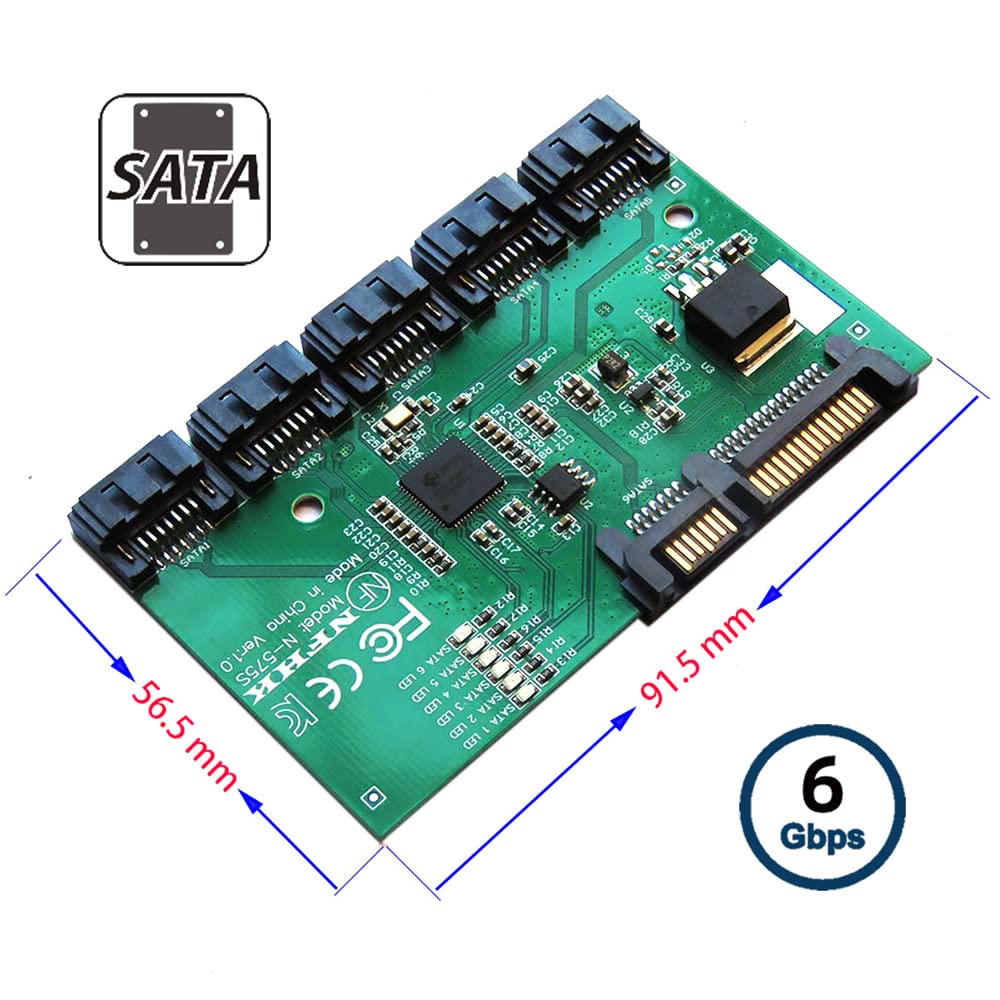

cablecc 6Gbps SATA 3.0 1 to 5 Splitter Ports HUB Adapter Converter PM Multiplier Port Selector JMB575

• Support 5 port SATA 6Gbps interface
• Comply with Serial ATA Port Multi Spec. Revision 1.2
• Support command-based and FIS-based switching
• Comply with Serial ATA Port Select Spec. Revision 1.0
• Supports BIST and loopback mode

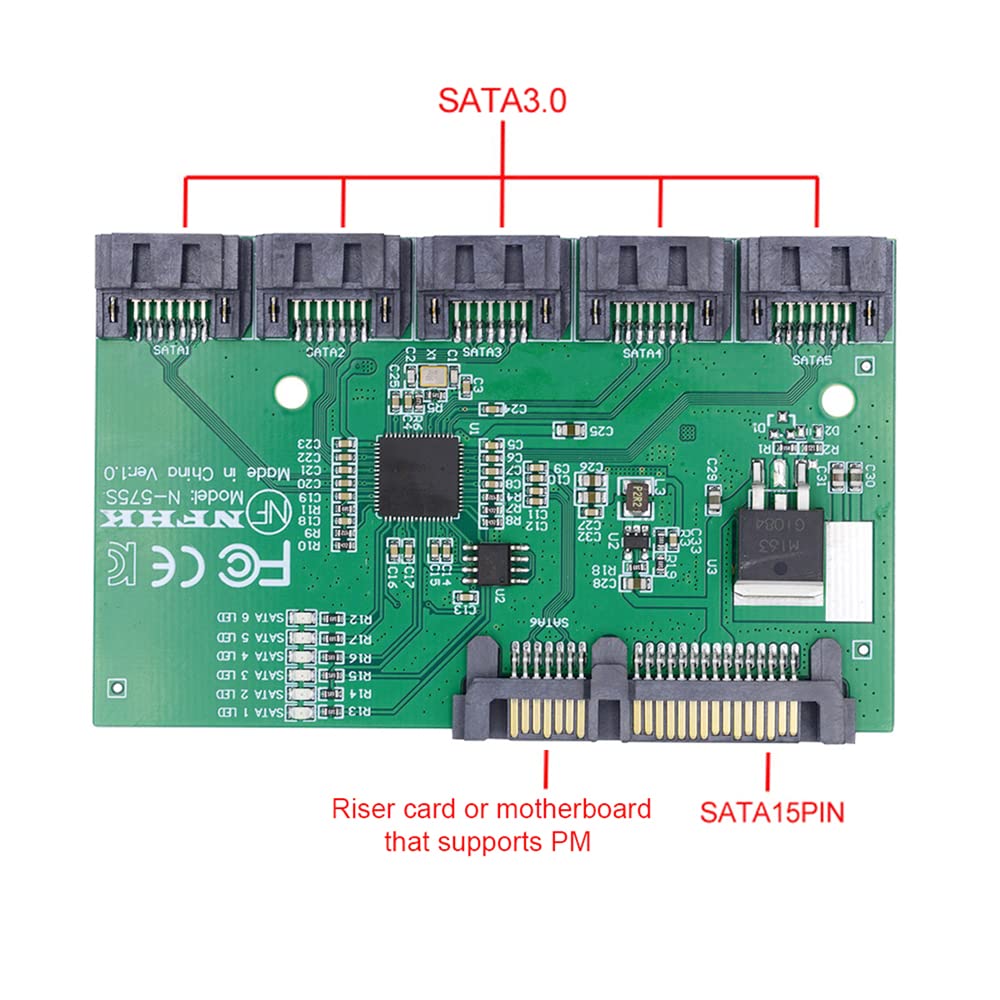

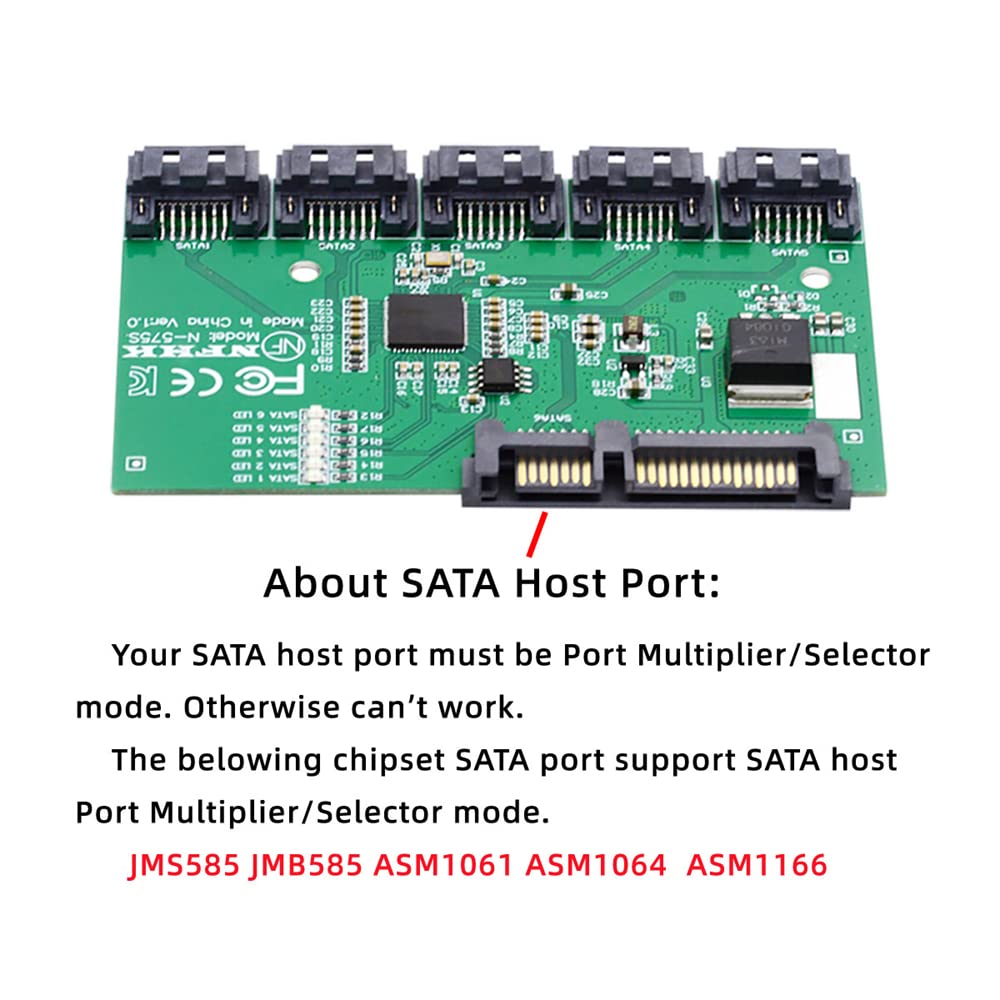

SATA 3.0 6Gbps 1 to 5 Splitter Ports HUB Adapter Converter PM Multiplier Port Selector JMB575 Your SATA host port must be port Multiplier / Selector mode. Otherwise can't work. The belowing chipset SATA port can be supported: JMS582 JMB585 ASM1061 ASM1064 ASM1166. JMB575 is a single chip solution. It integrated 5 independent SATA channels and a micro-processor. With proper setting, the chip can be configured as 1 to 5 ports SATA 6Gbps Port. JMB575 supports cascaded mode which enables maximum 5 drives connected to one host. Key Features Comply with Serial ATA Port Multi Spec. Revision 1.2 Comply with Serial ATA Port Select Spec. Revision 1.0 Support 5 port SATA 6Gbps interface Supports BIST and loopback mode Support command-based and FIS-based switching Support PM aware and non-PM aware host Main control chip: JMB575 Interface: 5 * SATA3.0 interface Applicable slot: SATA port with PM function.
