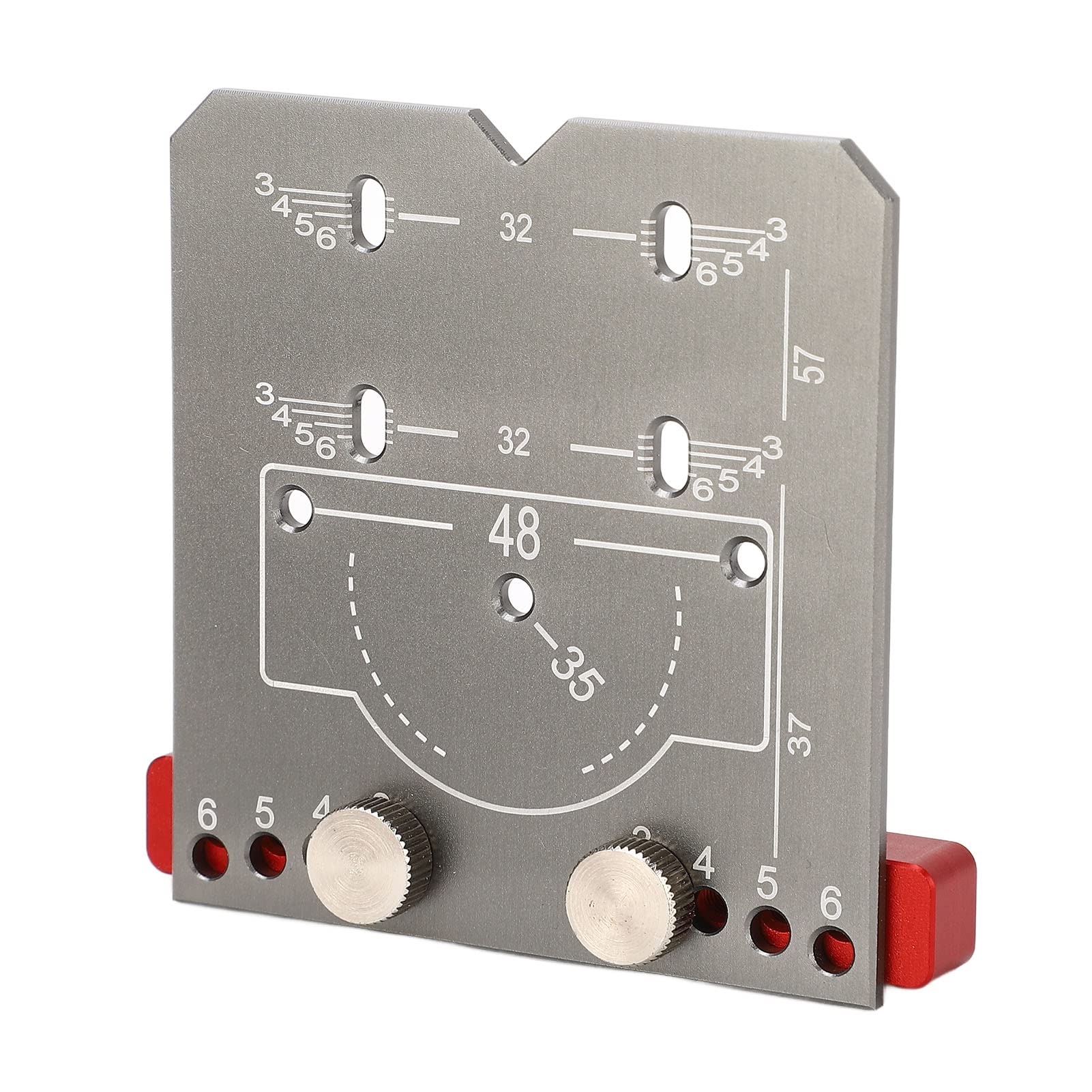

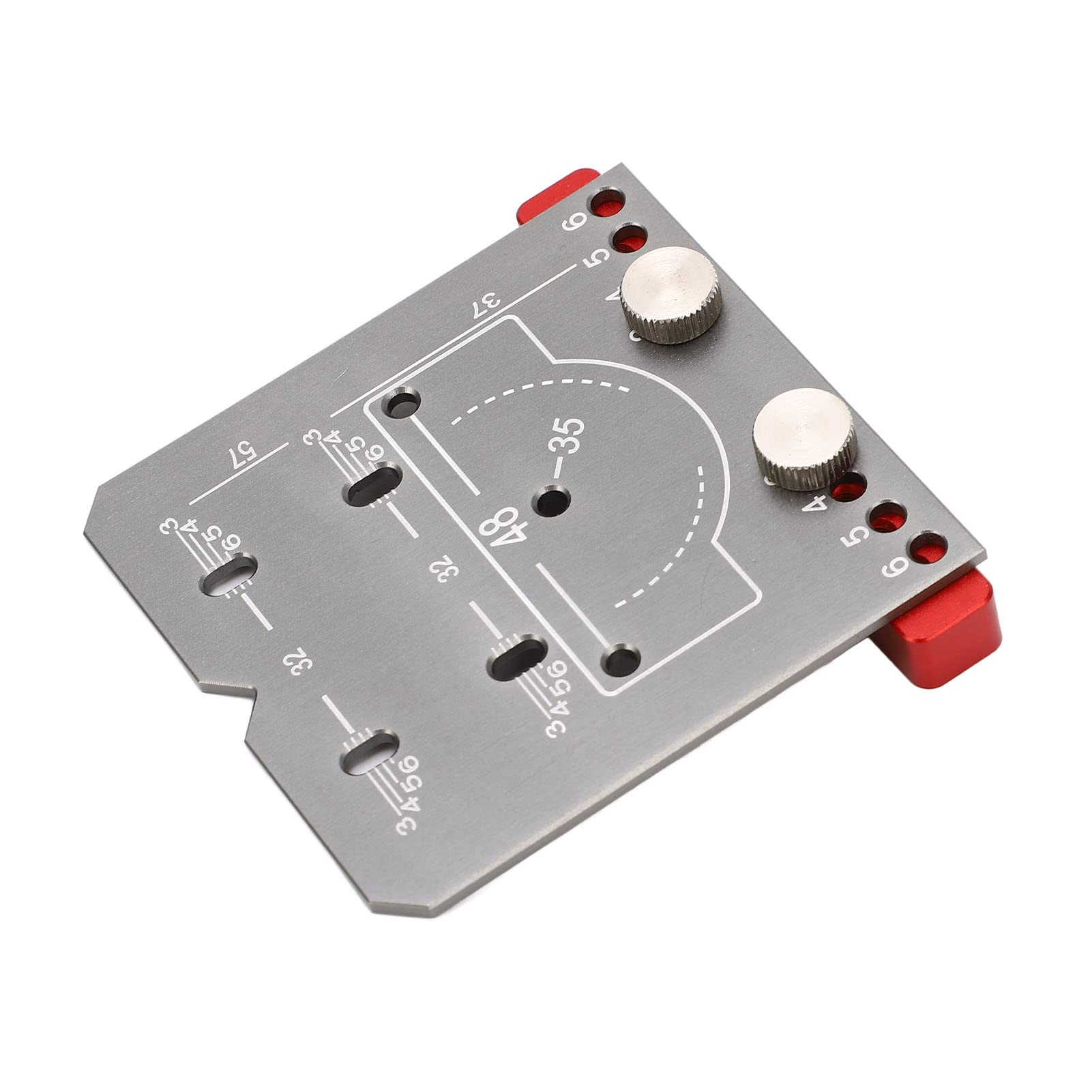

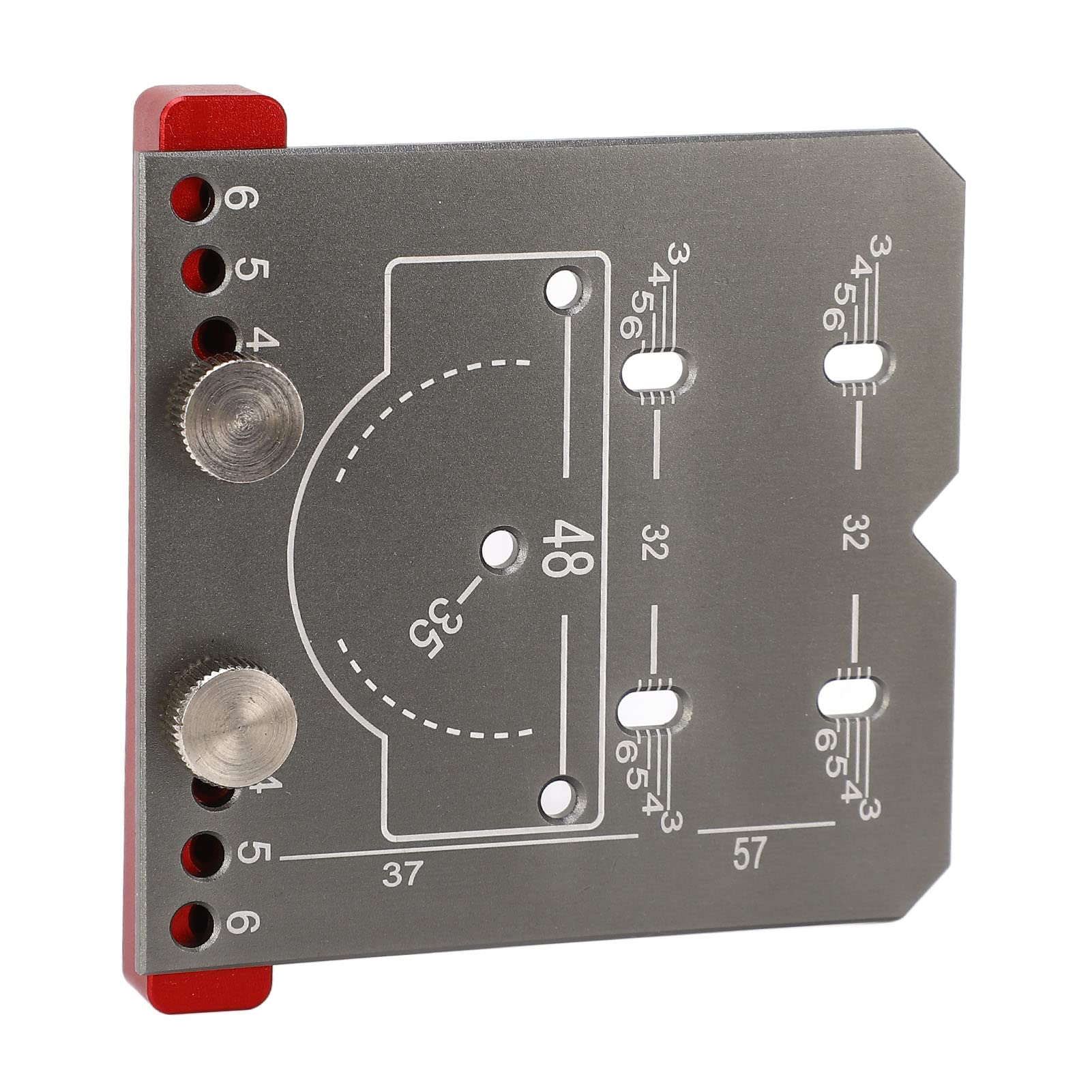

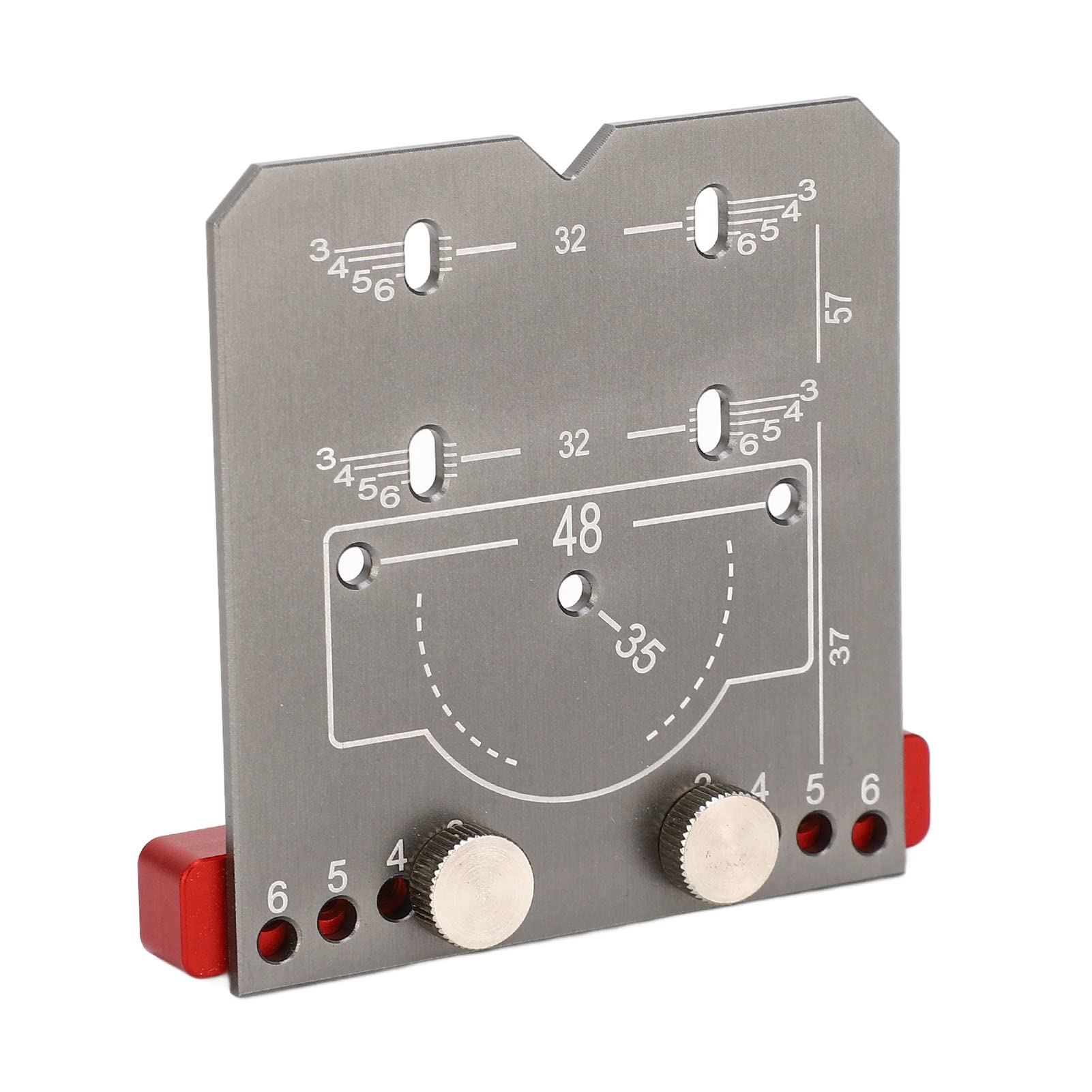

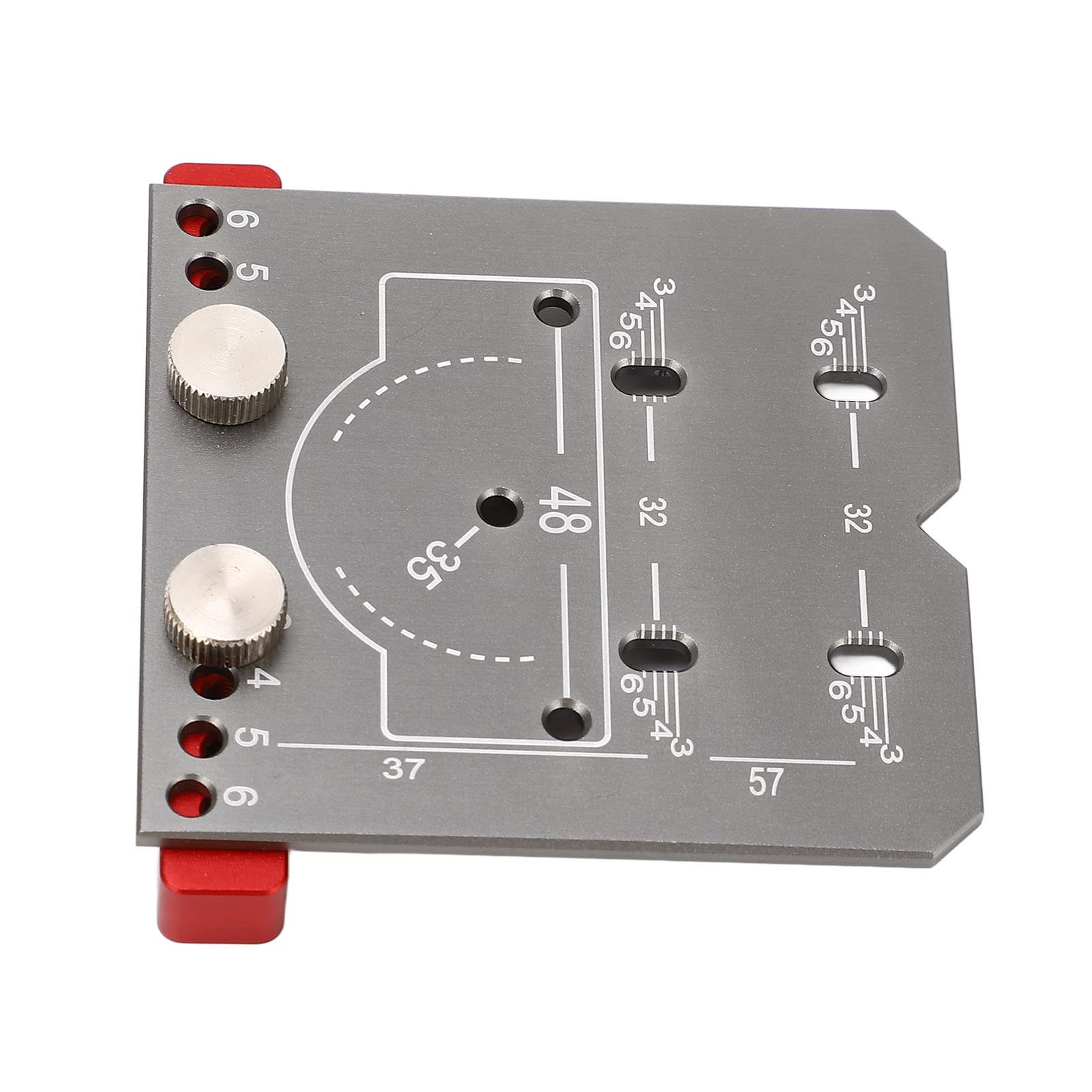

Cabinet Door Hinge Jig, Aluminium Alloy Drilling Guide, 4-Gear Adjustable Mounting Tool Kit

• EFFICIENT INSTALLATION: Our cabinet hinge jig greatly enhances the efficiency in mounting common 35mm straight arm and mid-bend hinges. This tool is great for making your installation process smoother and easier, eliminating the hassles of traditional methods
• UNMATCHED DURABILITY: Made from an aluminum alloy body and a stainless steel drill bushing, this door hinge jig boasts incredible durability. The sandblasted increases proof to wear and tear, promising long-term use and extending the life of your drilling tasks
• PRECISE POSITIONING: Our hinge hole locator is designed to greatly fit the commonly used 40mm connecting rod. With the innovative eccentric wheel hole positioning design, which enables a 1.5mm upward movement, you achieve a tighter and more accurate splice
• EASY APPLICATION: Align the cabinet hinge jig with the marking line on your cabinet door, cover the edge with the red baffle, and mark the center hole and the two screw holes with the marking tool. The ease of ensures accurate positioning every time you drill

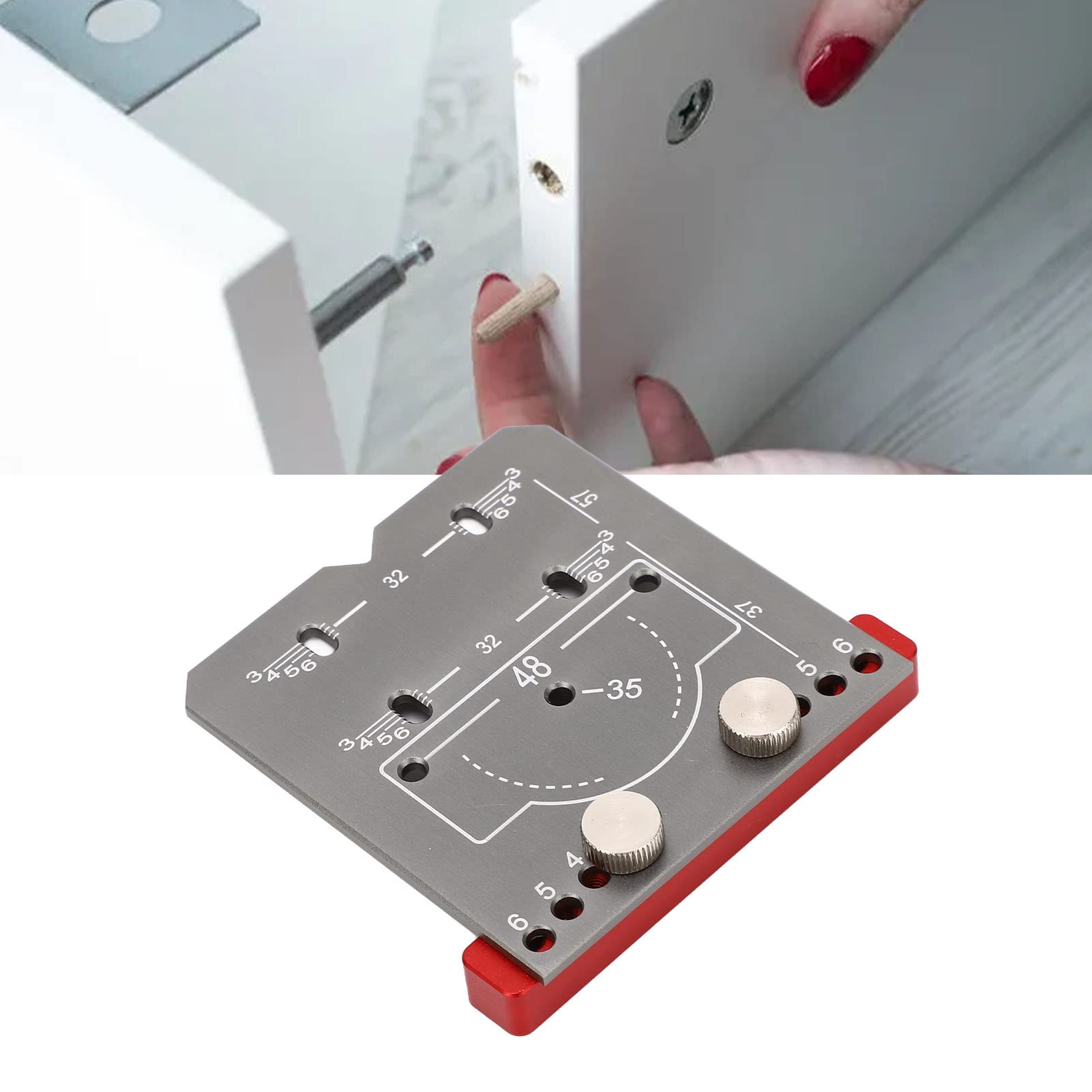

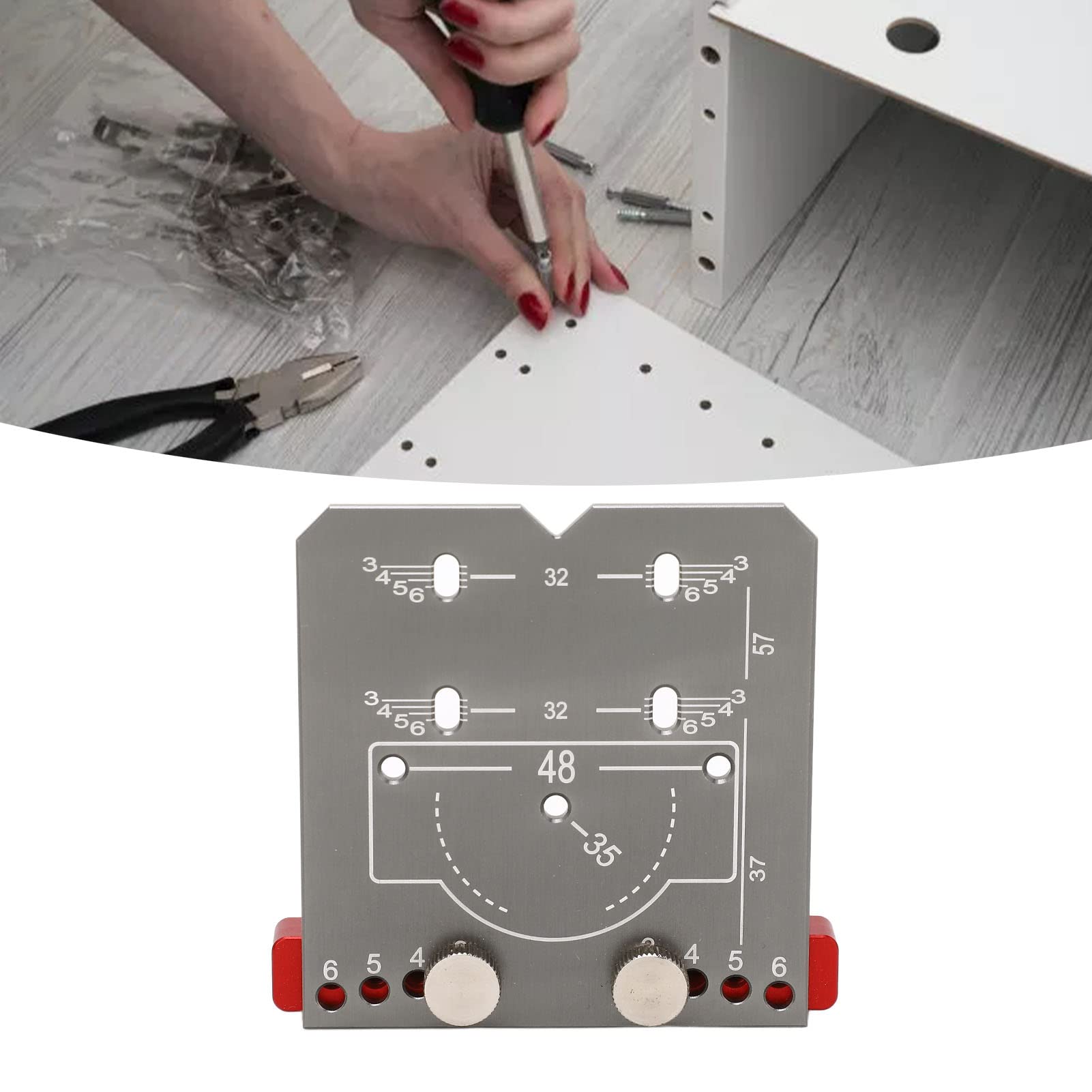

• VERSATILE USAGE: This hole drill guide is a practical tool, widely used in different installation scenarios like hinges for cabinets, doors, , folding tables, and other furniture. With its wide usability, it becomes an essential tool for any woodworking task

Features EFFICIENT INSTALLATION: Our cabinet hinge jig greatly enhances the efficiency in mounting common 35mm straight arm and mid-bend hinges. This tool is great for making your installation process smoother and easier, eliminating the hassles of traditional methods. UNMATCHED DURABILITY: Made from an aluminum alloy body and a stainless steel drill bushing, this door hinge jig boasts incredible durability. The sandblasted increases proof to wear and tear, promising long-term use and extending the life of your drilling tasks. PRECISE POSITIONING: Our hinge hole locator is designed to greatly fit the commonly used 40mm connecting rod. With the innovative eccentric wheel hole positioning design, which enables a 1.5mm upward movement, you achieve a tighter and more accurate splice. EASY APPLICATION: Align the cabinet hinge jig with the marking line on your cabinet door, cover the edge with the red baffle, and mark the center hole and the two screw holes with the marking tool. The ease of ensures accurate positioning every time you drill. VERSATILE USAGE: This hole drill guide is a practical tool, widely used in different installation scenarios like hinges for cabinets, doors, , folding tables, and other furniture. With its wide usability, it becomes an essential tool for any woodworking task. Specification Material: Aluminum Alloy Positioning Function: 35mm Straight Arm or Middle Bending Hinge Hole Positioning 32mm Connector Hole Positioning Hinge Cup Edge Distance: 3 4 5 6mm Four Gear Adjustable Drill Bushing Size: Approx. 8mm/0.3in Hole Spacing: Approx. 28mm/1.1in Scale Parameters: English Range: 3-11/16in, Minimum Scale: 1/16in Range: 94mm, Minimum Scale: 1mm Package List 1 x Hinge Hole Drilling Locator
