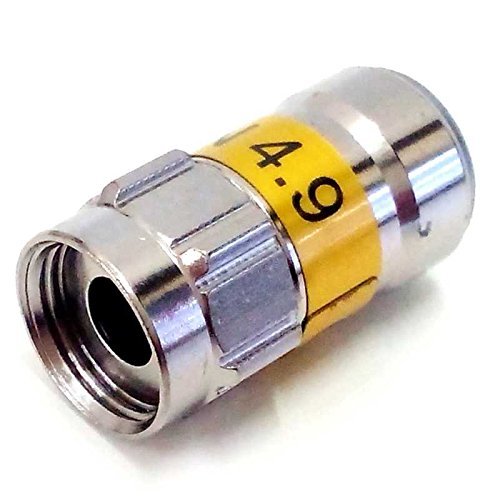

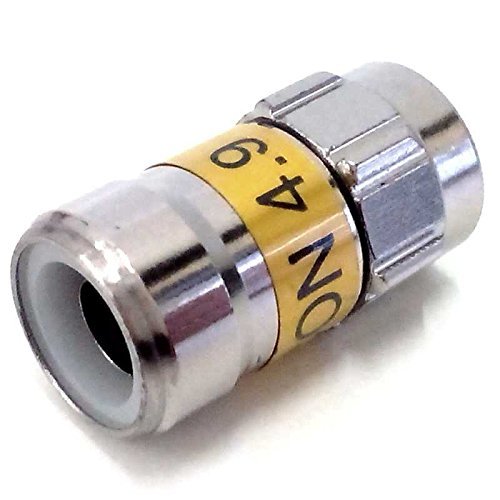

Cabelcon Pack of 16 F-56 4.9 Self Install F-Compression Connectors Yellow RG6 / 7 mm NiTin

• Pack of 16 Cabelcon compression plugs in all-metal design for quality coax cable 7 mm with dielectric up to (!) 4.65mm diameter (most cables with 1.0mm inner conductor)
• To attach to the cable, the plug is simply attached to the stripped cable. When pulling the cable, the plug is pressed; when tightening on the F-socket, the plug finally slides together and the compression connection is in place. Please make sure that the innermost screen film is glued to the dielectric!
• Tested cables: Ören HD 103, Televes (Preisner) SK2000plus, Sytronik 75100 AKZ 1.0/4.6 115 dB, AXING SKB395 xx (xx-type of presentation), Draka Coax 10 1.0/4.6, Belden H126 DB+ 1.. 6/4.6, WISI MK 96
• Shielding rate: 30-862 MHz 110 dB / 862-3000 MHz 90 dB; return loss: at 1000 MHz 37 dB / at 3000 MHz 28 dB
• Transfer Impedance 5-30 MHz < 5 mOhm/m; Approved up to 3 GHz / Wave Resistance 75 Ohm; IMD: 3. Order at 2 x 100 mW -120dBc / IP3 value +80 dBm

Pack of 16 Cabelcon F-56 4.9 Self Install F Compression Connector Yellow RG6 / 7 mm NiTin. Pack of 16 Cabelcon compression plugs in all-metal design for quality coax cable 7 mm with dielectric up to (!) 4.65 mm diameter (most cables with 1.0 mm inner conductor). To attach to the cable, the plug is simply attached to the stripped cable. When pulling the cable, the plug is pressed; when tightening on the F-socket, the plug finally slides together and the compression connection is in place. Please make sure that the innermost screen film is glued to the dielectric! Tested cables: Ören HD 103, Televes (Preisner) SK2000plus, Sytronik 75100 AKZ 1.0/4.6 115 dB, AXING SKB395 xx (xx-type of presentation), Draka Coax 10 1.0/4.6, Belden H126 DB+ 1.. 6/4.6WISI MK 96 shielding factor: 30-862 MHz 110 dB / 862-3000 MHz 90 dB; return loss: at 1000 MHz 37 dB / at 3000 MHz 28 dB transfer impedance 5-30 MHz <5 mOhm/m; approved up to 3 GHz / waves. 75 Ohm;IMD:3 Order at 2 x 100 mW -120dBc / IP3 value +80 dBm
