C302 Mini Winch for Roller Shutter End of Stroke Hexagonal Inlet 7 mm Square Outlet 10 mm
★★★★★
$37.12
Quantity
1
Worldwide shipping
Fast tracked delivery
30-day returns
Hassle-free returns
Secure checkout
Safe & protected
Great service
Thousands of happy customers
About this item
- ⚙️ End of travel winch 6-sided entry 7 The winch is a piece that allows you to rotate the roll tube of the apron. It is the mechanism that operates the raising or lowering of the shutter, via a crank. This part is essential to ensure the connection between the crank and the axis of the flap.
- Installation tips: Start by opening your shutter box first. Remember to lower the flap apron (the blades) so that you can maneuver in the trunk and access the axis. The winch is located on the side of the mechanism. Separate the rod from the winch box outlet. Remove the winding shaft from the winch. You can now replace the winch with a new one, reattach the shaft and the box outlet, then reassemble the apron by hand and close the trunk.
- ✅ Thanks to its carbonitrided steel composition and fibreglass, the 10 square winch is durable and durable. It is also a robust and quality product made in France! 2.0
- ✅ A central piece for the articulation and safety of your flaps, this ball joint of great resistance can endure many drive of the shutters and this, with a lifting capacity of up to 17 kg! It also has an end-of-stroke with a capacity of 11 laps.

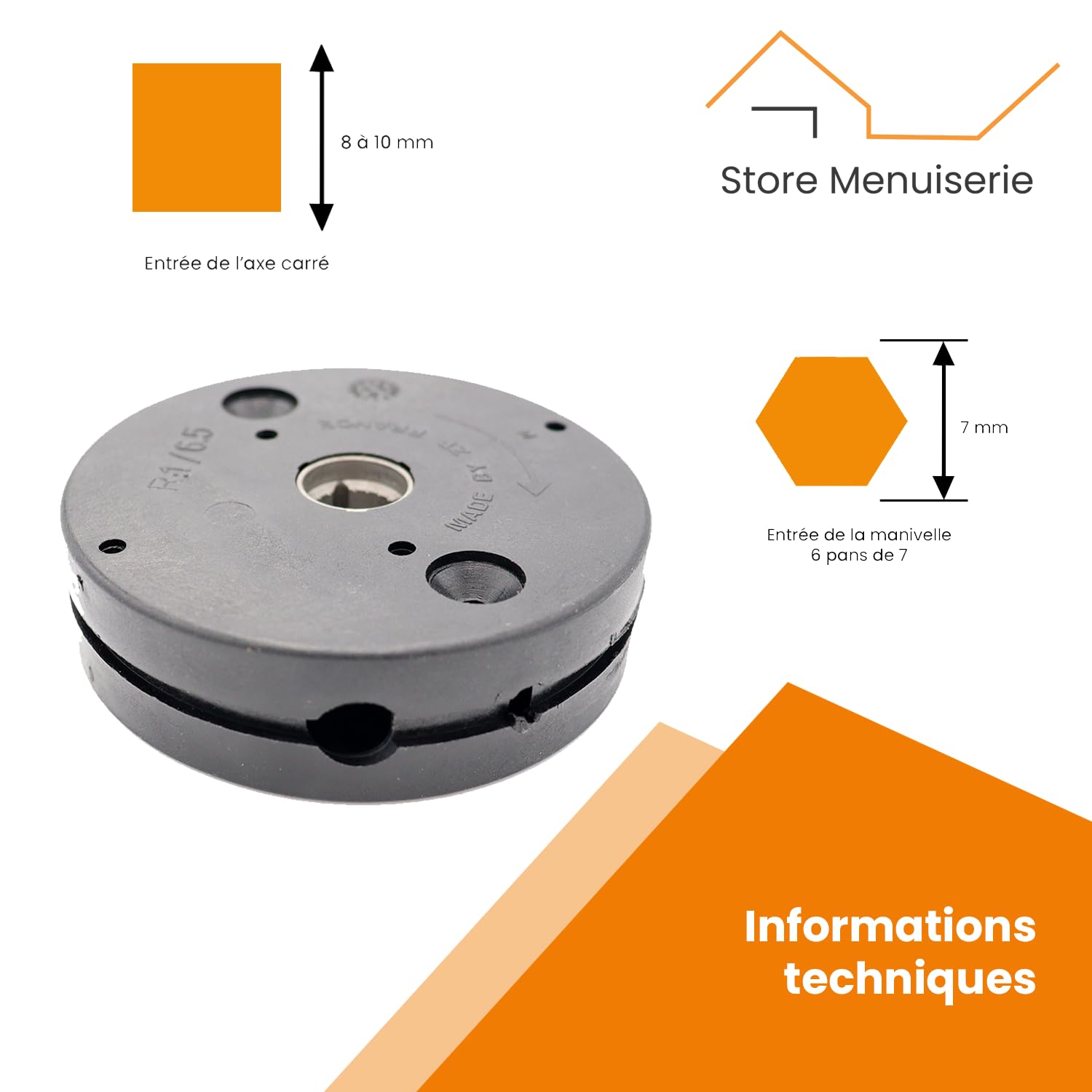

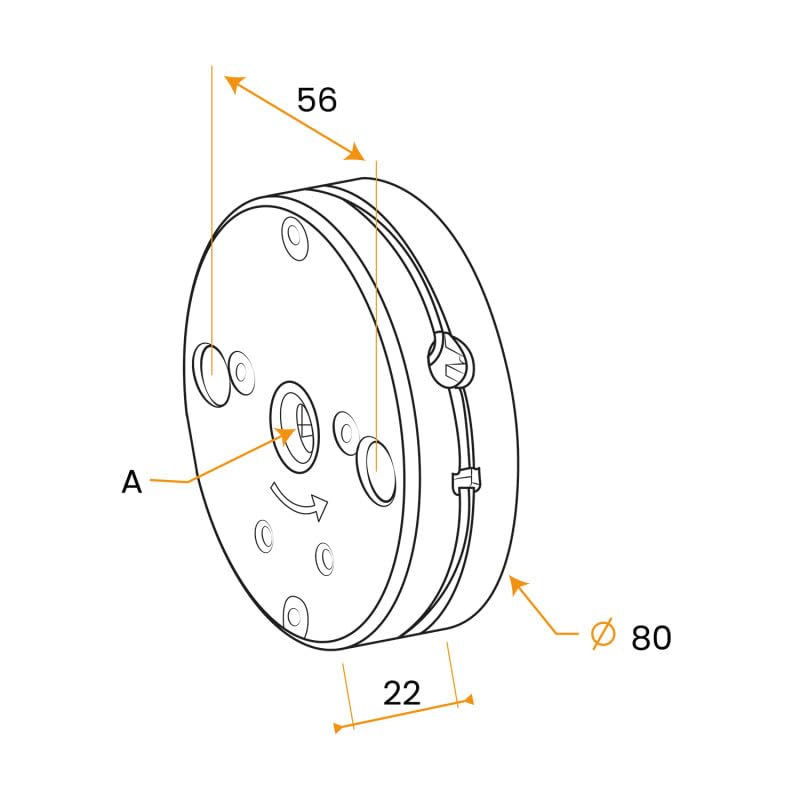

- ⚙️ TECHNICAL INFORMATION This trainer winch measures 80mm in diameter by 22mm thick. (dimensions) Under inlet torque winch of 4.5 Nm obtained for example with 2.5 kg load force on a crank arm 180; output under chest aligned toggle. It is suitable for 10mm square outlets. Comes in one piece, no extra spare parts.
