BYS459‑1500 DIY Hertz Tester 1‑500MHz Frequency Counter Meter Testing Module

• Powered by 9V battery (not included), low power consumption, easy to use.
• Standard interface, can easily connect to other test line or antennas.
• LCD display with backlight, the backlight color is usually yellow‑green.
• The frequency test range is wide, ranging from 1 to 500 MHz, with a resolution of 100 Hz.
• Through the SMA jacks (female) input, higher reliability and durability.

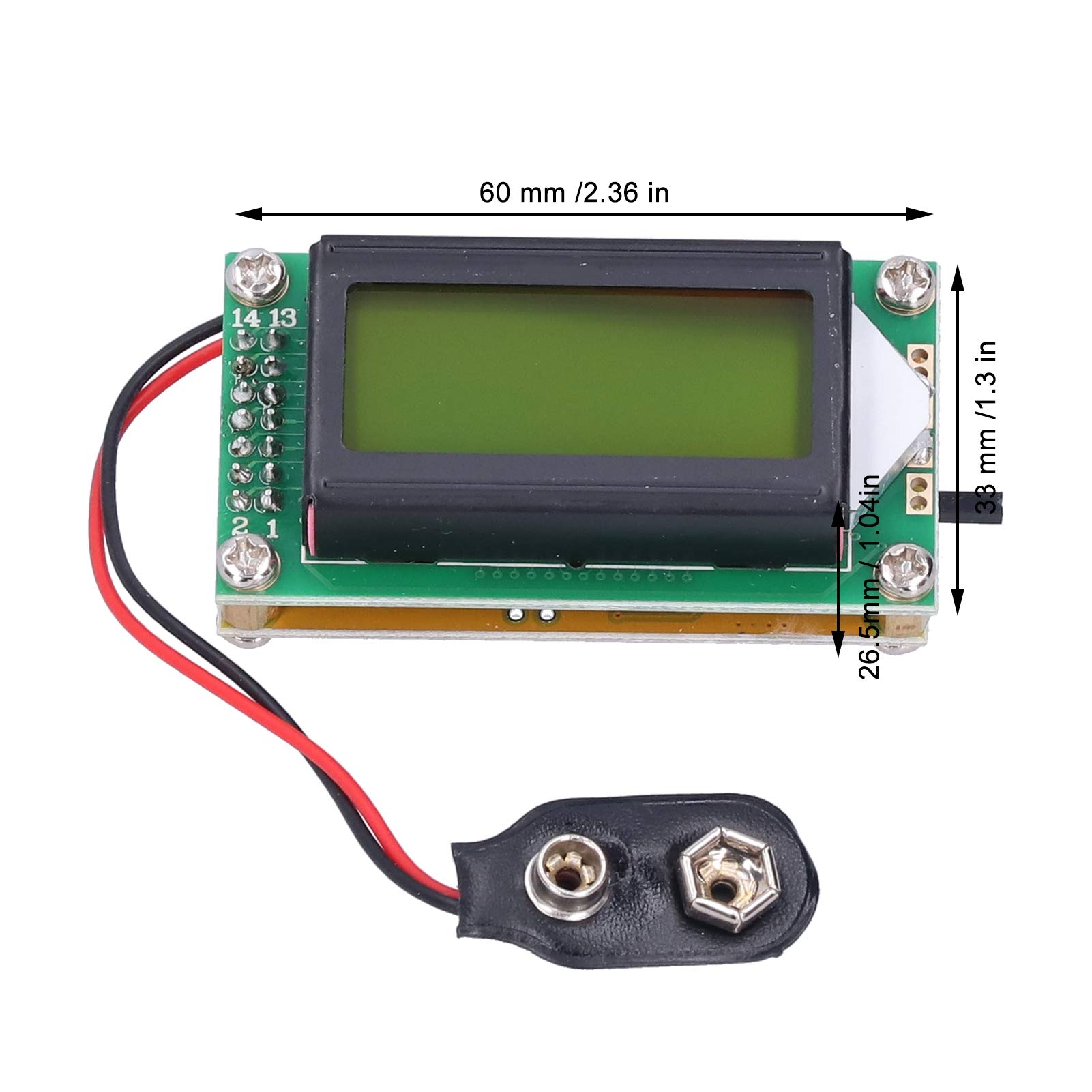

Feature: 1. Through the SMA jacks (female) input, higher reliability and durability. 2. The frequency test range is wide, ranging from 1 to 500 MHz, with a resolution of 100 Hz. 3. LCD display with backlight, the backlight color is usually yellow‑green. 4. Powered by 9V battery (not included), low power consumption, easy to use. 5. Standard interface, can easily connect to other test line or antennas. Specification: Item Type: Frequency Meter Material: PCB+FR4 Color: Dark Green Power Mode: 9V Battery (Battery Not Included) LCD Display Screen Size: Approx. 38 x 16mm/1.5 x 0.6in Product Size: Approx. 60 x 33 x 26.5mm/2.36 x 1.3 x 1.04in Frequency Range: 1~ 500 MHz, Resolution 100Hz Package List: 1 x Frequency Meter
