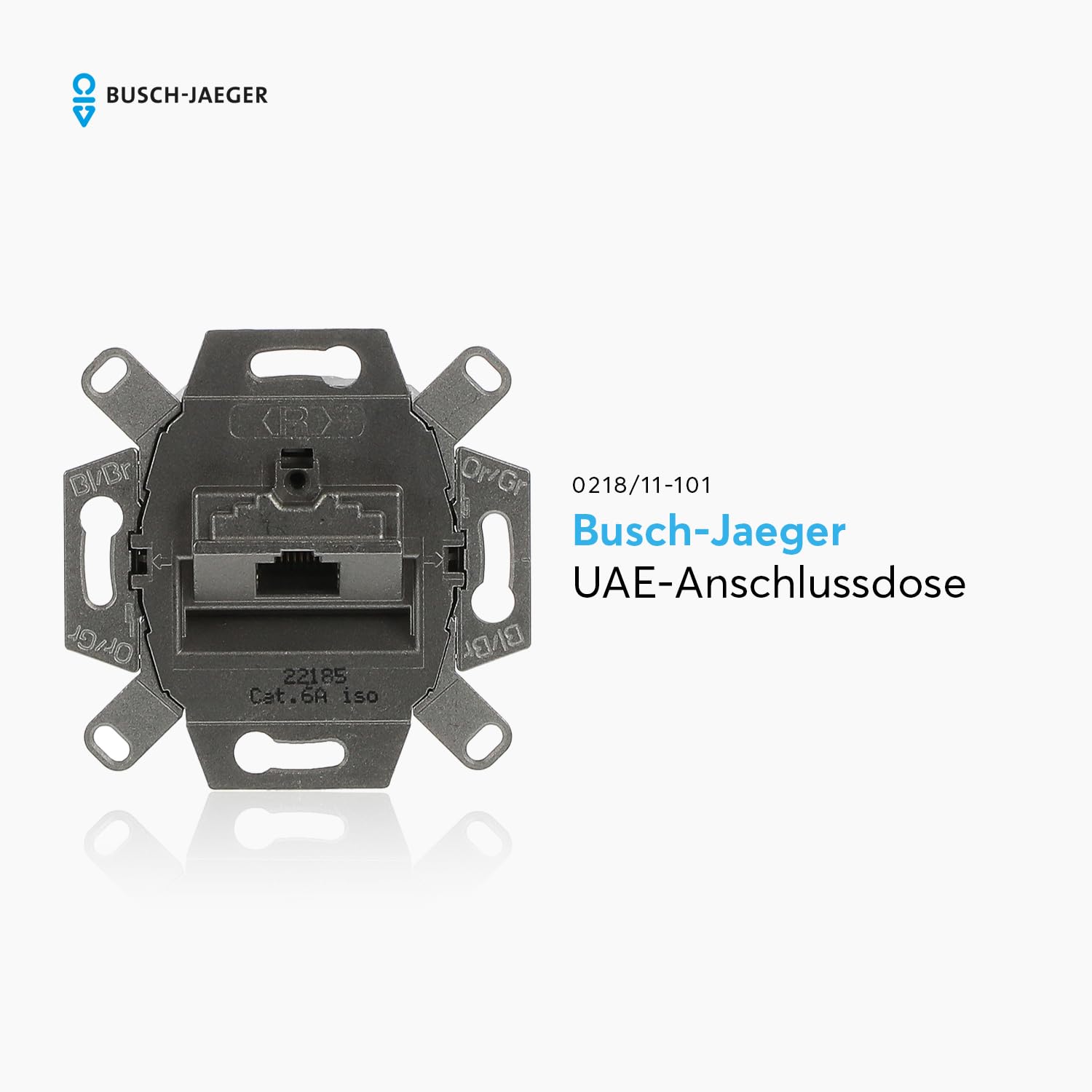

Busch-Jaeger 0218/11-101 UAE Wall Socket RJ 45 Cat. 6A ISO Shielded

• Installing UP
• ON/OFF button
• 0218/11-101

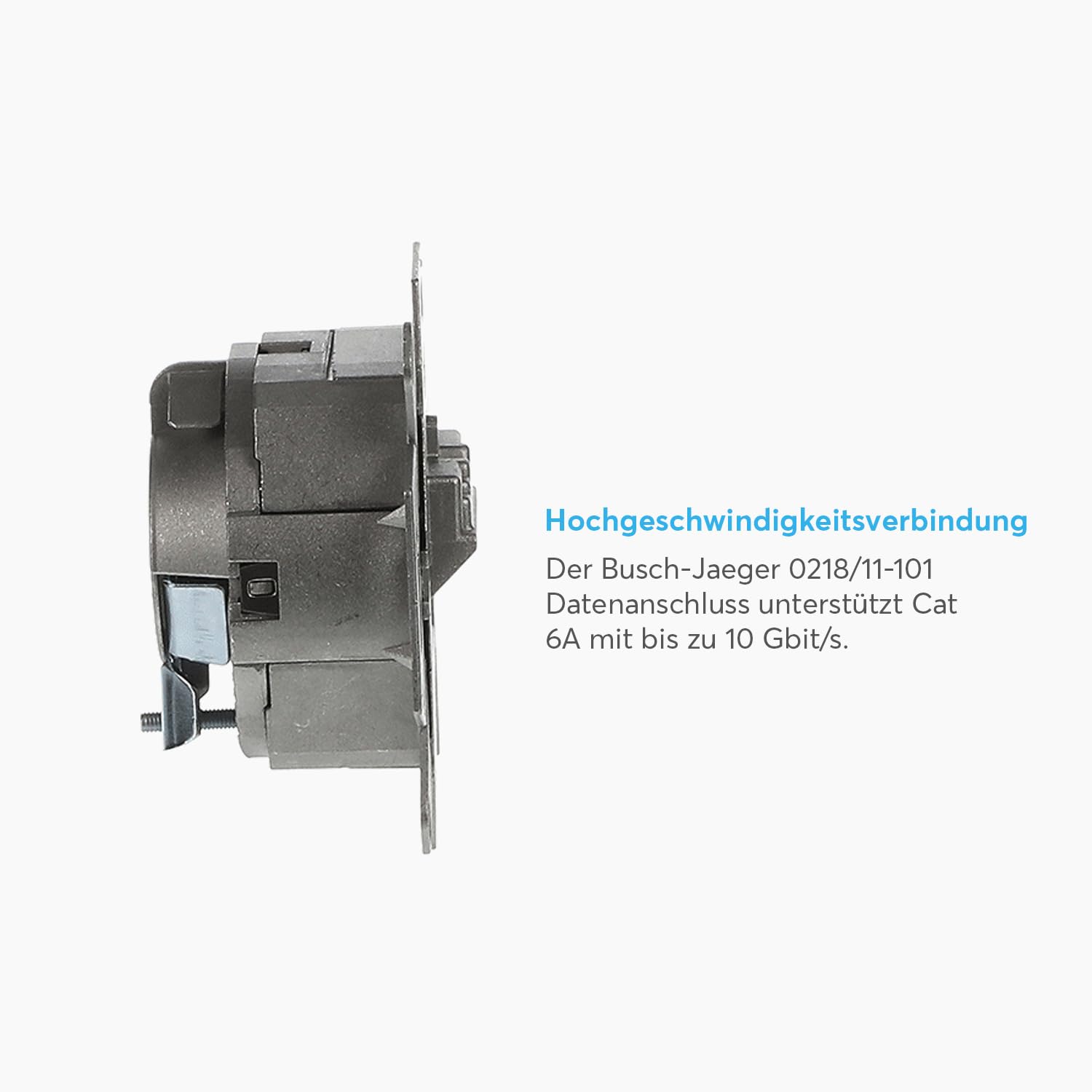

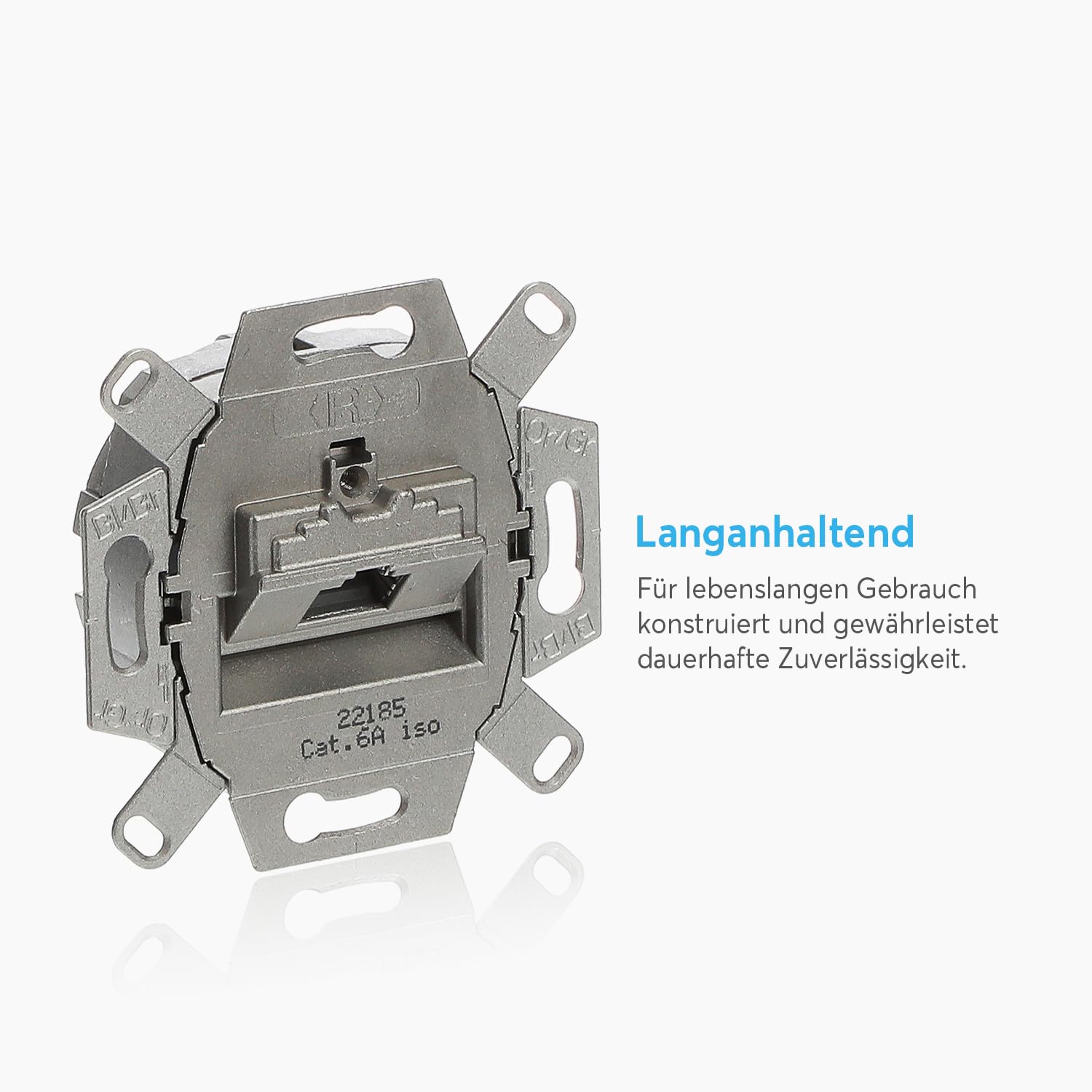

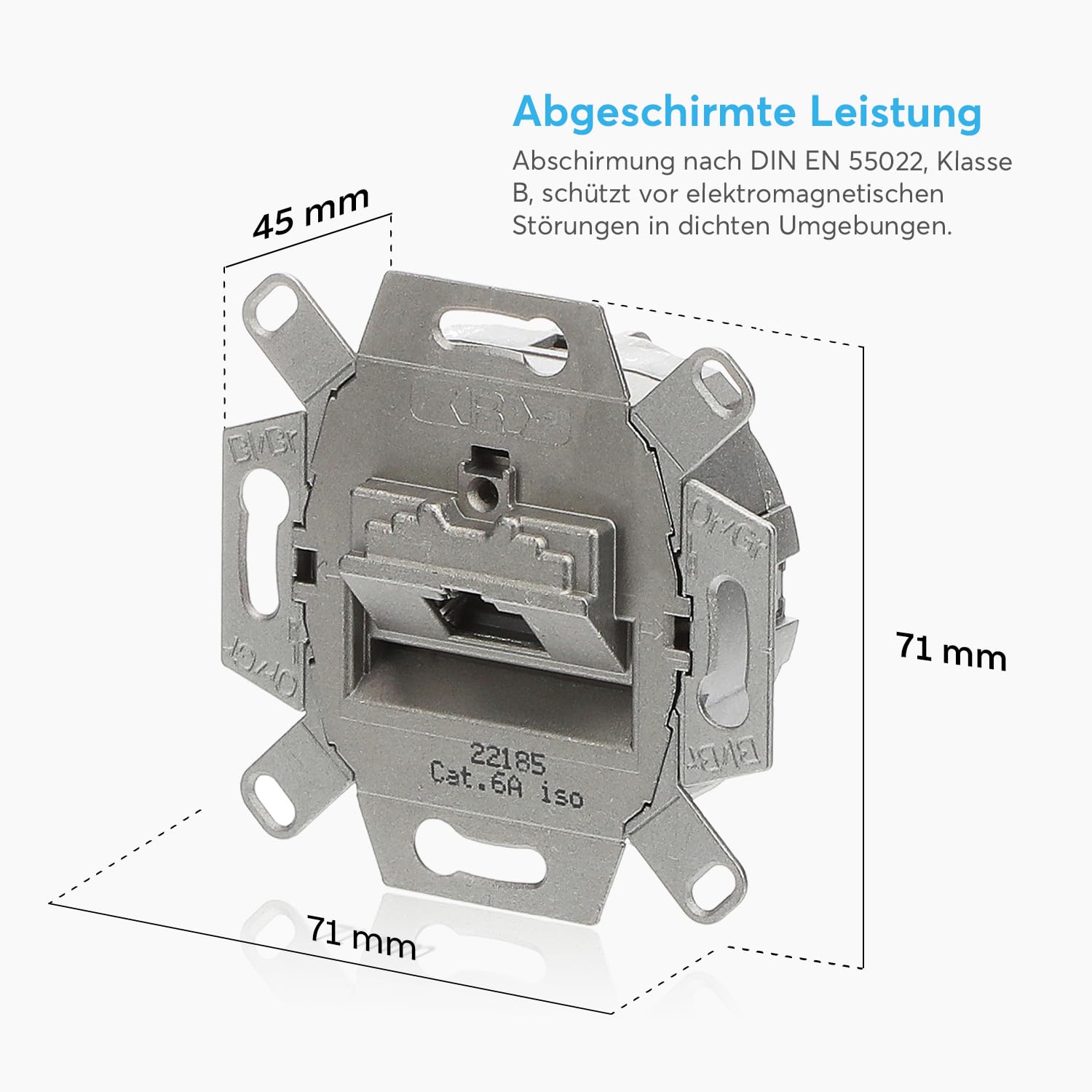

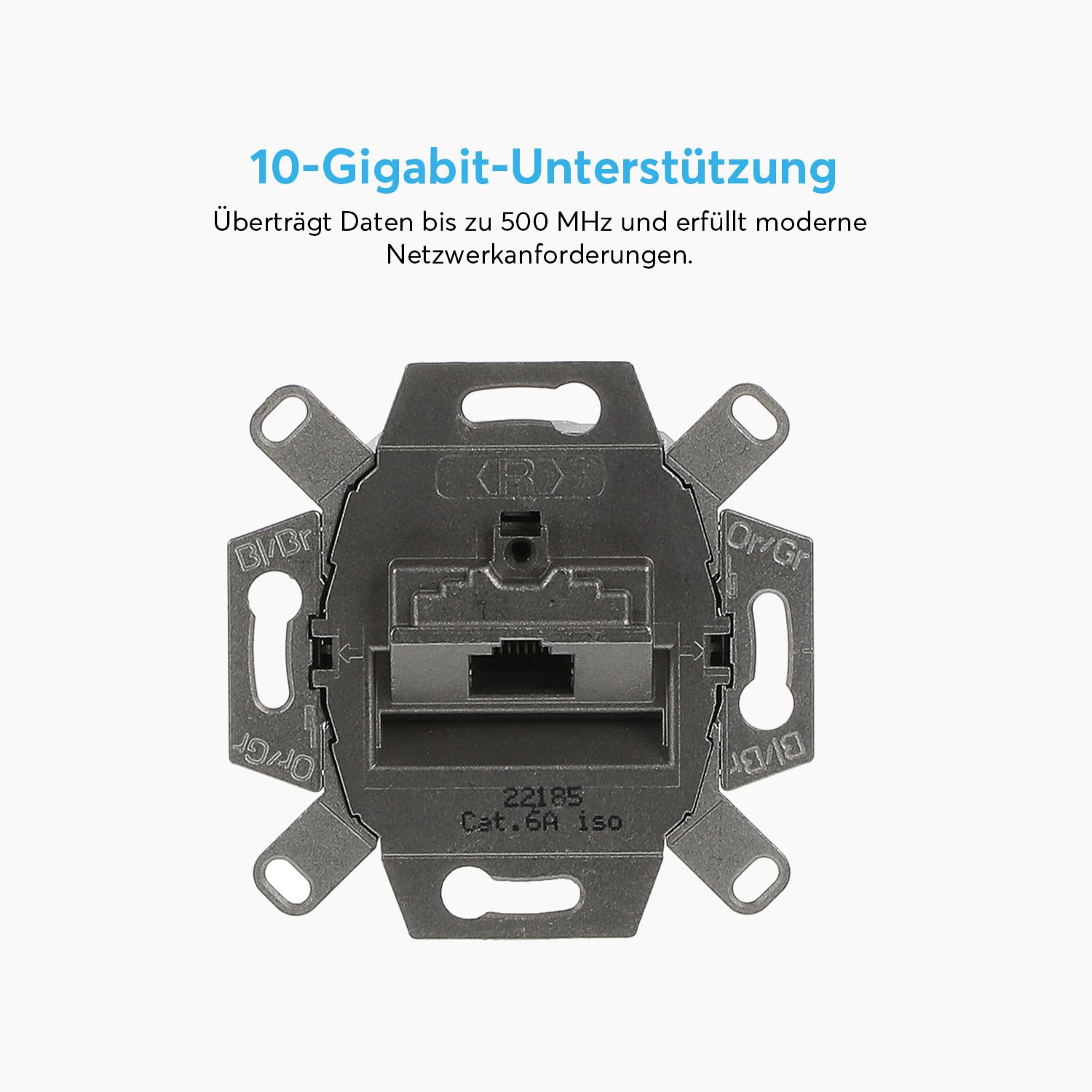

Busch-Jaeger 0218/11-101 Wall SocketUAE-socket RJ45, Category 6A ISO, shieldedConcealed1 outlet8/8-poleWith angled outlet and LSA-IDC terminalsRJ-45 connectors for networks to Category 6A, Class EA (10 Gbit/seconds/500 MHz)Corresponds Category 6A, Class EA according to ISO/IEC 11801:2011-06Port marked A and B according to TIA/EIA-568-B.2Design according to EN 60 603-7-51:2011-01li>Shielding according to DIN EN 55022, Class BUp to 500 MHz on all pairs of conductorsSuitable for 10-Gigabit EthernetSuitable for PoE+ in accordance with IEEE 802.3at, ≥ 1000 mating cyclesFlexible cable feed without kinks from all sidesHousing grounding means 6.3 mm flat connector at the back possibleTested re-embeddedSuitable for mix-and-match useSuitable for RJ 11, RJ 12 and RJ 45 connectorsFor data cables with a diameter of 6-10 mmFor wires from AWG 24-22For installation in cable ducts, flush-mounting boxes and underfloor systemsWithout StrutInstallation depth: 31 mmAssemble only in conjunction with standard flush-mounting boxes
