BSIDE Digital Multimeter, A5 Automatic Multi Tester Measures AC DC Voltage Current Cap Ohm Hz Diode Continuity NCV Mode

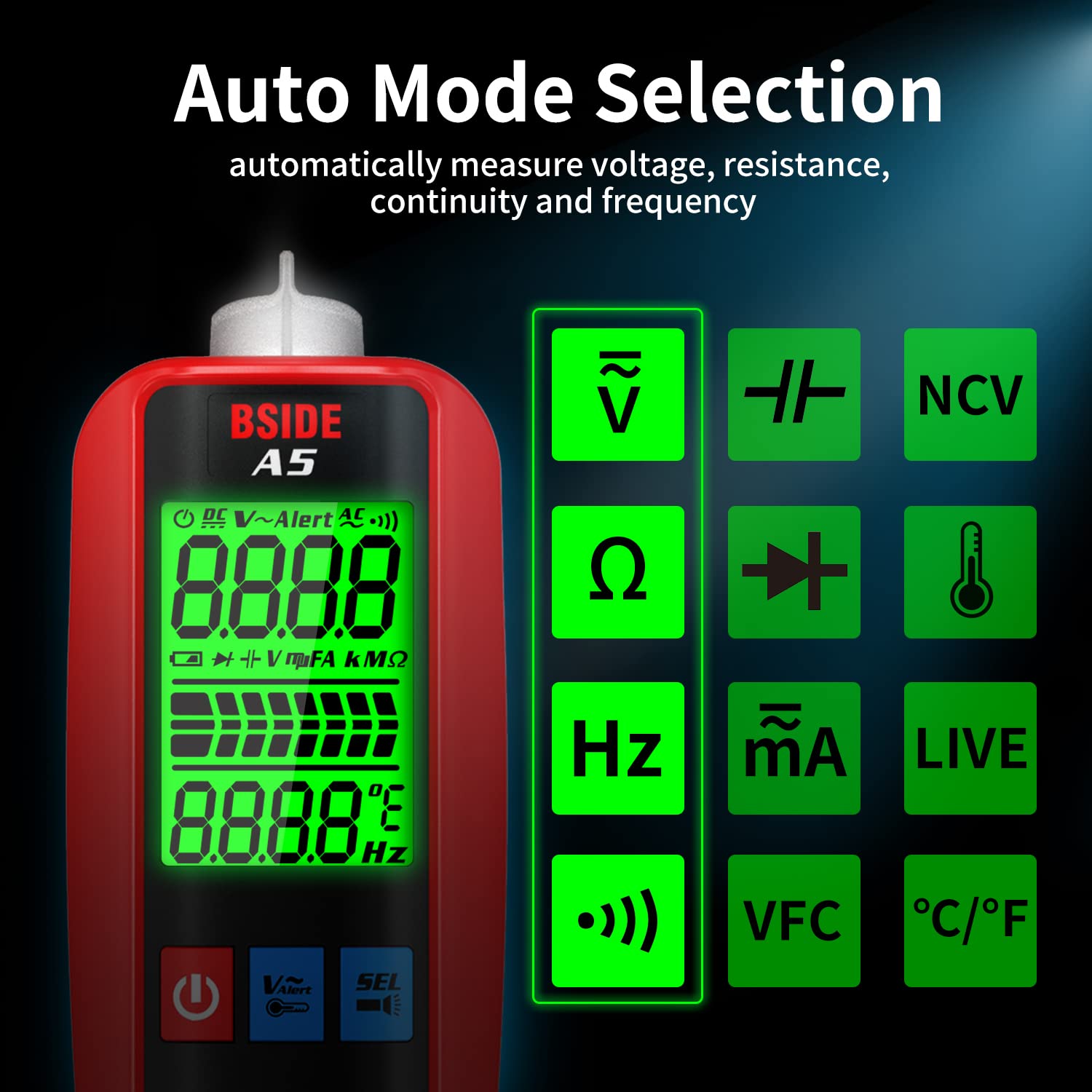

• AUTOMATIC AND SIMPLE - This A5 professional multimeter defaults to smart mode, automatically testing AC DC voltage/current, resistance, frequency and continuity. Automatic activation of the current function with red backlight alert. Easy to use for beginners.
• HANDY AND MULTIFUNCTIONAL - Manual mode is also available via buttons. The smart multimeter can test AC DC voltage, AC DC current, resistance, capacitance, diode, continuity, frequency, temperature, and can be a voltage detector pen in NCV mode.
• KEEP AWAY FROM DANGER - Intuitive, easy to read LCD with large numbers. 3 test results Display: Test Value, Analog Bars and Hertz/Ambient Temperature. Red backlit alarm for high voltage over 90V. High impedance, anti-burn and anti-overcharge design with easy to replace fuse.
• MEASUREMENT OF INVERTER VOLTAGE - This electrician tester allows you to measure the output voltage of inverters. It helps you better plan the operating speeds of pumps, lifts and air conditioners, compressors, etc.
• POCKET MULTIMETER WITH CASE: Comes with a sturdy zippered case, a silicone cover for better feel and protection. Compact, easy to carry for quick checks with flashlight. All of these make this multi-function tester a difference and a true enjoyment.

Our new generation electrical multimeter tester BISIDE A5 is designed for electricians and beginners with: Red/green backlight LCD with 3 test results. Automatic test of AC DC voltage/current, resistance, continuity, and frequency. Measures amperage when red test leads plug in amp port. Capacitance, diode and temperature measurement. VFC function. Live wire check and NCV detection with adjustable sensitivity. Low sensitivity for accurate identification of complex lines. High sensitivity for easy detection of electrical wires in wall. Auto range, auto power off, low battery indication. Bright LED Flashlight for rewiring in the dark. EVA case, removable silicone leather cover. Specifications: Display: 6000 counts Screen: 2.2 inch DC Voltage: 0-620V(DC mode)/0.8-620V(Auto mode) 0.01V ±(0.8%+3) AC Voltage: 0-620V(DC mode)/0.8-620V(Auto mode) 0.01V ±(1.2%+5); 10-620V(VFC Mode) 1V (4.0%+3) DC Current: 1.0-610mA 0.1mA ±(1.5%+3) AC Current: 1.0-610mA(40-1000Hz) 0.1mA ±(1.5%+3) Resistance: 0Ω-6MΩ 0.1Ω ±(1.2%+3)；6MΩ-60MΩ 0.1Ω ±(2.0%+10) Capacitance: 0.5µF-6mF 0.001µF ±(3.5%+8); 6mF-60.00mF 0.001µF ±(4.5%+10) Frequency: 0-9999Hz(900mVrms-20Vrms) 0.001Hz ±(2.0%+10) Temperature: 0-1000℃(32-1832℉) 1℃/1℉ ±(2.0%+3) V-Alert(Non-contact Voltage Detection): 90V-1000V/6V-1000V AC voltage Diode: Measures diodes less than 3V Continuity: If the resistance is less than 50Ω, the beeper sounds Ambient Temperature: 0-50℃ ±2℃ Power: 1.5V (AAA) x 2 Size: 139.7 x 53.7 x 32.8 mm Weight: 92g Package Includes: Multimeter Autoranging Test Leads Thermocouple Carrying Case 2 x AAA Battery Screwdriver English User Manual
