BSIDE S6X Smart Digital Multimeter Rechargeable Non Contact Electrical Tester Pen with Colour LCD ID Pointer Ammeter Voltmeter Capacitance Diode Tester Live Detector VFD Ohm Hz Continuity Tester

• [Super Large Colour LCD]: Despite being an voltage tester pen, it features a remarkably large screen with large digits, three-line colour display and ID pointer design, giving you a more intuitive and better assessment of real-time conditions and risks when working around electricity.

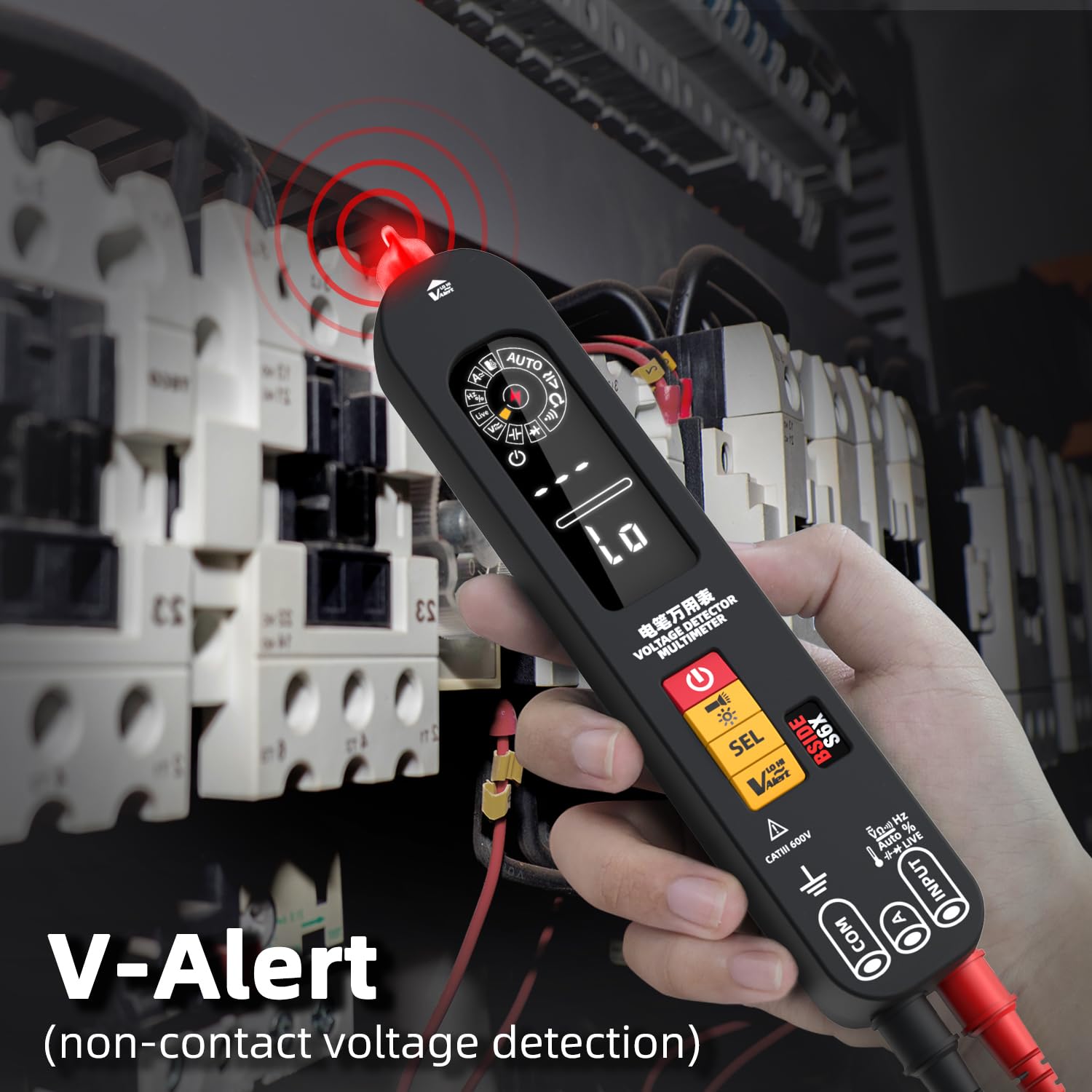

• [Rechargeable Voltage Detector] : Powered by a built-in rechargeable battery, this electric current tester pen works right out of the box. Simply press the V-Alert button for non-contact voltage detection. High and low sensitivity can be adjusted for different wiring scenarios, such as accurately locating firewire in a clump of wires, or finding live wires in wall.

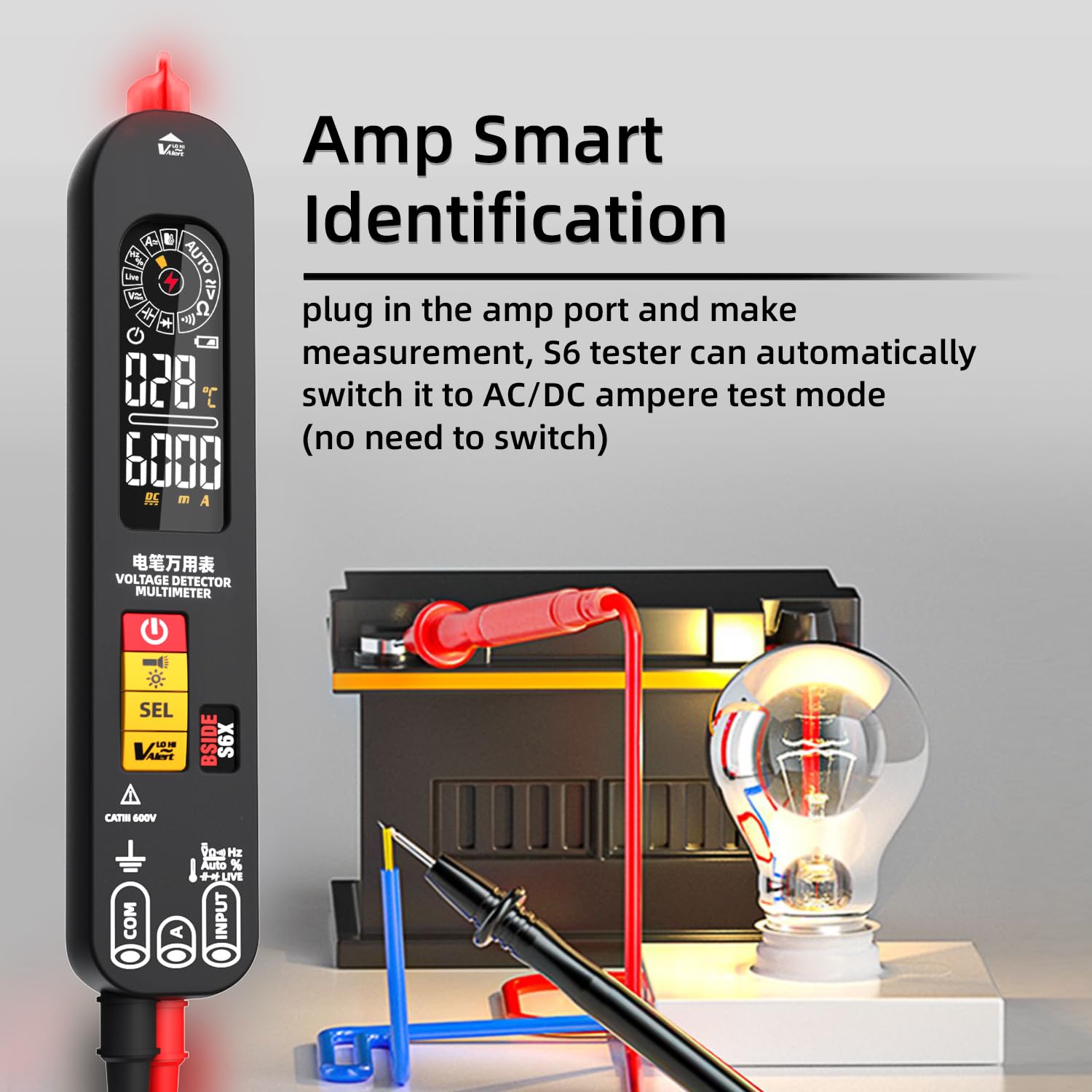

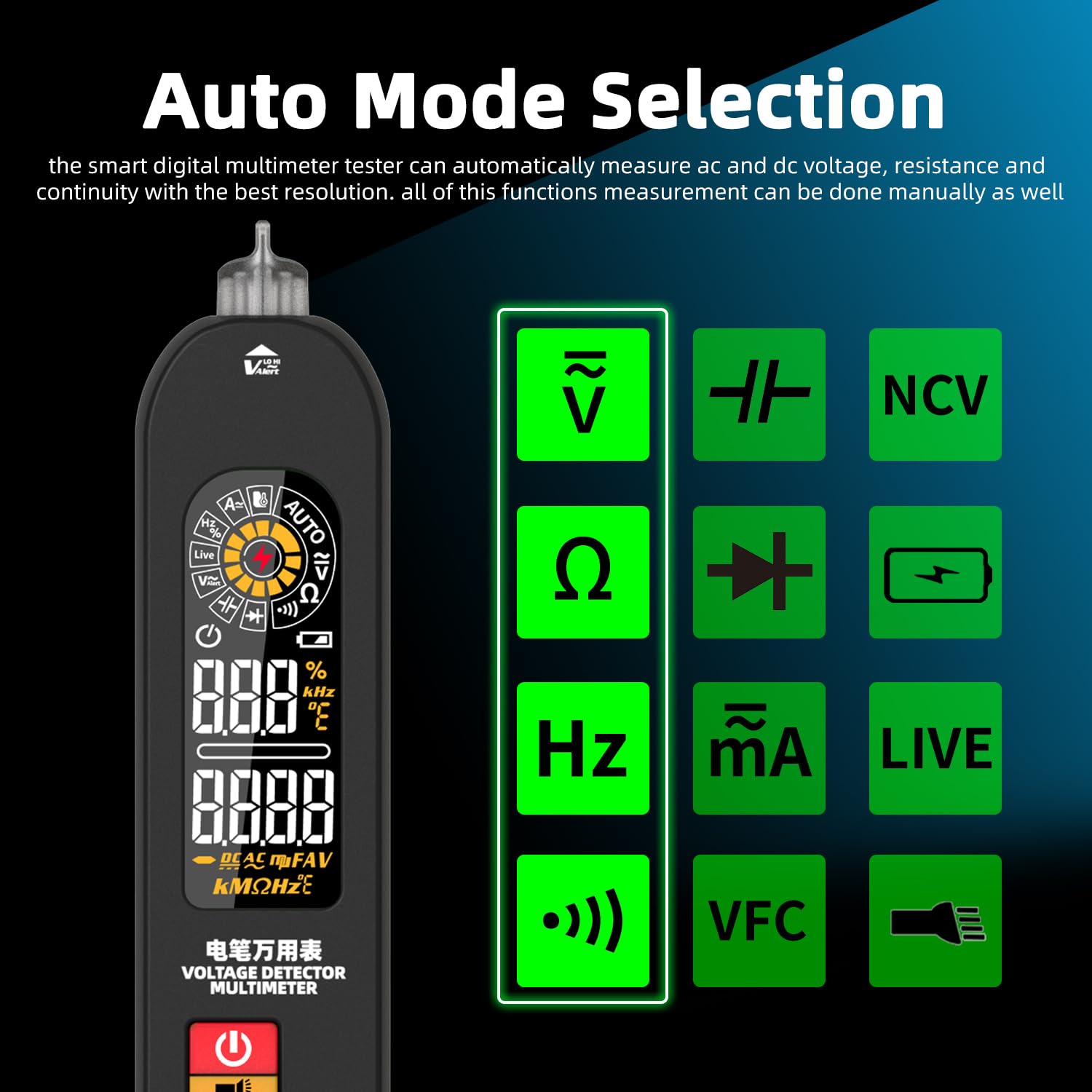

• [Electric Multi-Function Tester] : The smart multimeter pen automatically measures not only AC DC voltage, resistance, continuity and frequency, but also AC DC current, without adjusting the range or switching functions. Manual mode is also available. It can also test capacitance, diode, temperature and duty cycle etc.

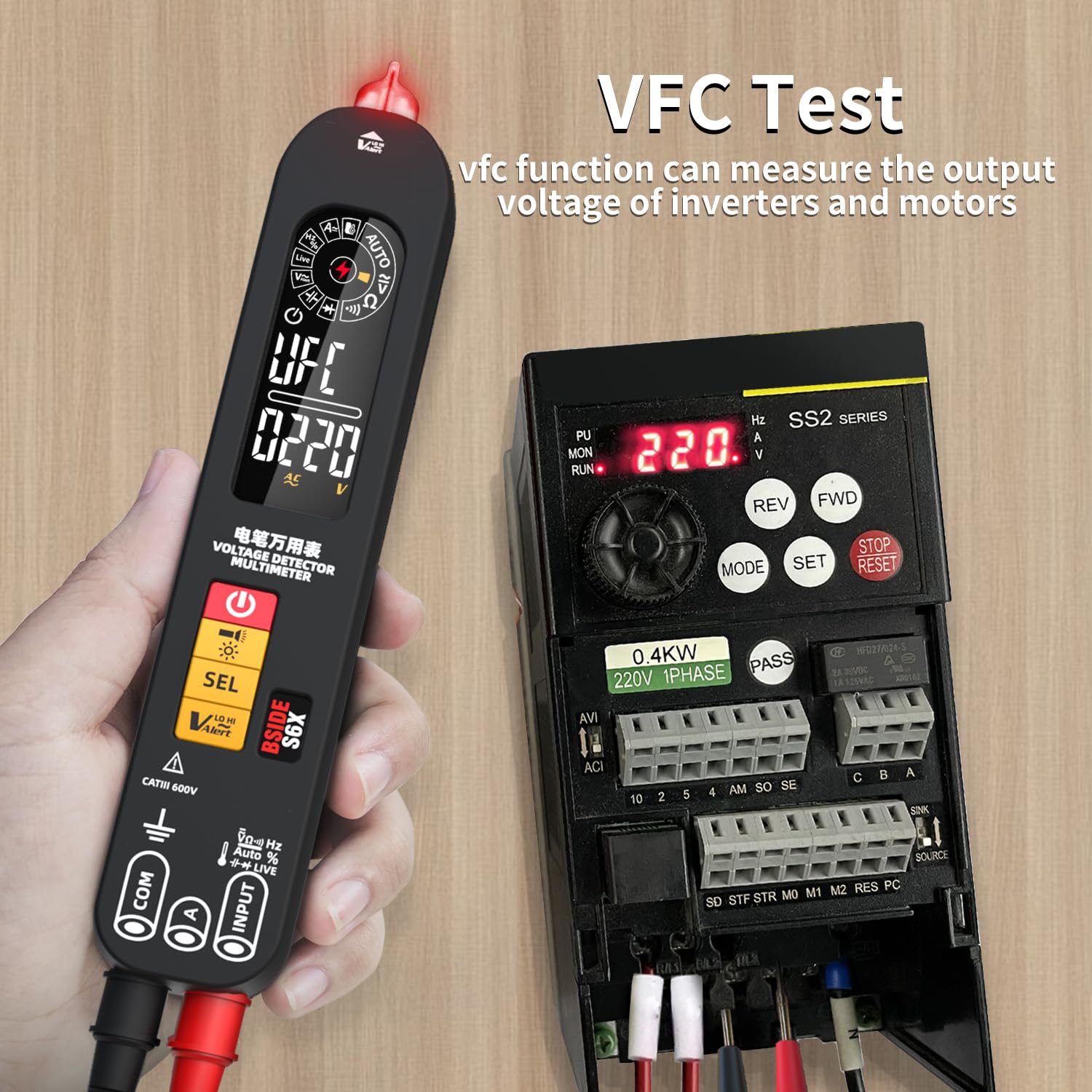

• [Variable Frequency Voltage Test]: With this electrician's pen, you can also measure the output voltage of inverters. It helps you to better estimate the voltage of pumps, lifts, air conditioners, compressors, etc. and to better plan operating speeds.
• [Keep Away from Danger] : The voltmeter ammeter complies with CE standards and CATIII 600V safety regulations, has double insulation protection and comes with a removable silicone holster for a safer use and a more comfortable grip. Once the test leads are inserted to activate the current function, the buttons are locked to prevent burnout and danger caused by misuse.

Looking for a powerful pen type multimeter? This is BSIDE's most versatile electrical test pen to date, a must have for electricians, handyman and DIYers in a wide range of electronic, electrical, domestic circuit, lighting and automotive applications. Features: Rechargeable pen type digital multimeter NCV detection with adjustable sensitivity, buzzer Low sensitivity for accurate identification of complex lines High sensitivity for easy detection of electrical wires in wall Automatic test for AC DC voltage/current, resistance continuity, frequency Capacitance, diode temperature, duty cycle measurement, VFC function Metal-to-metal live wire check with single probe Super large colour LCD with: - New designed ID pointer - Large digits for better reading - Ambient temperature display - Auto switch-off symbol - Low battery indication 3 colour Flashlight LED flashing Removable holster and case Specifications: Display: 6000 counts Red backlight lights up when >90V DC Voltage: 0-620V 0.001V ±(0.8%+3) AC Voltage: 0-620V 0.001V ±(1.2%+5), 10-620V (VFC Mode) 1V ±(4%+3) DC Current: 1-610mA 0.1mA ±(1.5%+3) AC Current: 1-610mA (40-100Hz) 0.1mA ±(1.5%+3) Resistance: 0-60MΩ 0.1Ω ±(1.2%+3) Capacitance: 1nF-60 mF 0.01nF ±(3.5%+8) Frequency: 1-9.999MHz 0.001Hz ±(1.2%+3) V-Alert (NCV): Yes Live Wire Search: Yes Diode: Measures diodes less than 3V Continuity: If the resistance is less than 50Ω, the beeper sounds Ambient Temperature: 0-50℃ ±2℃ Power: 3.7V battery (built-in, rechargeable) Size: 181.5 x 32.6 x 25 mm Weight: 86.2g Package Includes: Smart Multimeter Pen S6X Test Leads Carrying Case English User Manual
