BSIDE Rechargeable Smart Digital Multimeter A1 Plus Capacitance Diode Tester with New Screen ID Pointer Auto Range Non Contact Voltage Detector 6V-1000V Resistance Voltage Continuity Tester

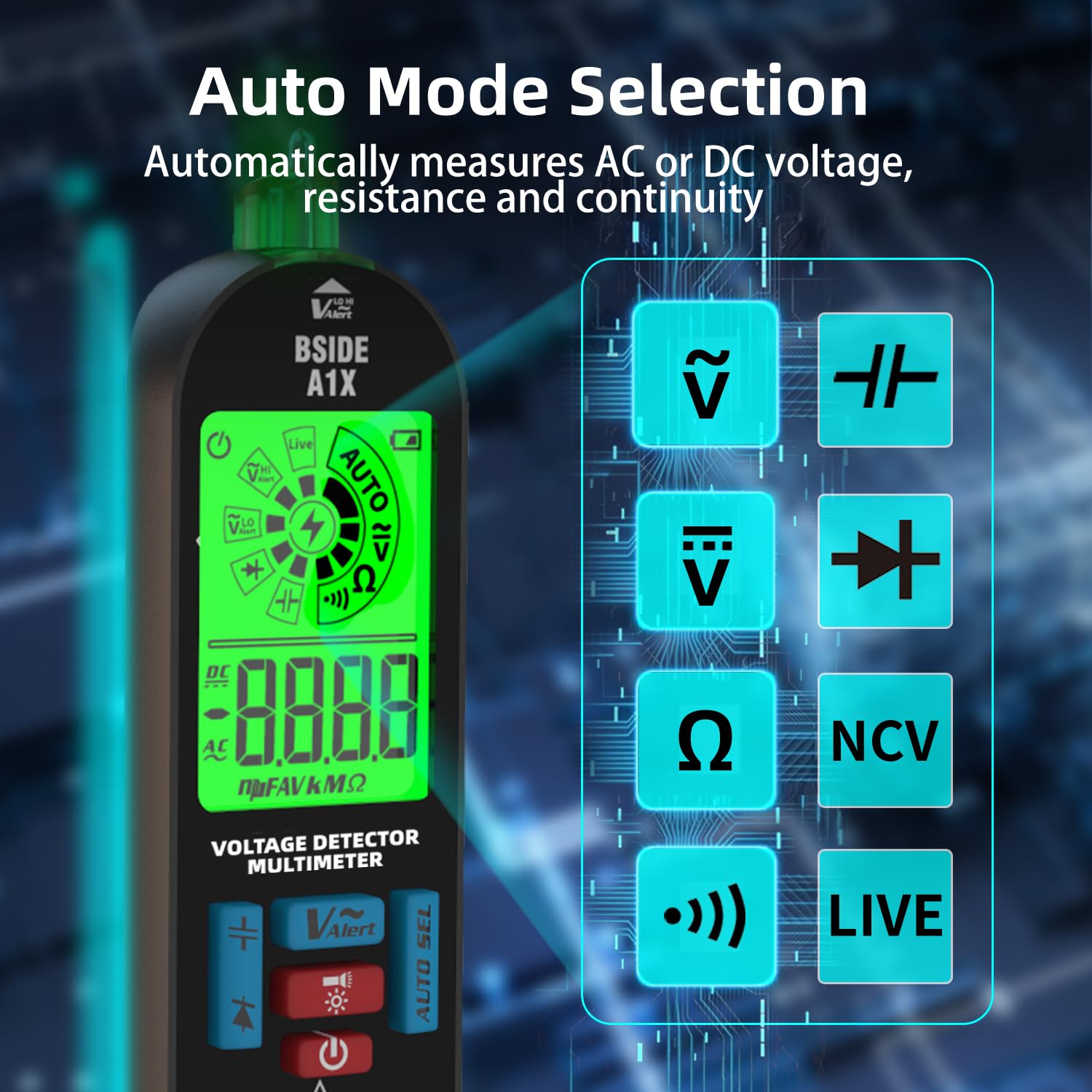

• [Automatic Measurement]: This smart multimeter tester can automatically measure AC and DC voltage, resistance and continuity without setting scales. All these functions can also be measured manually.

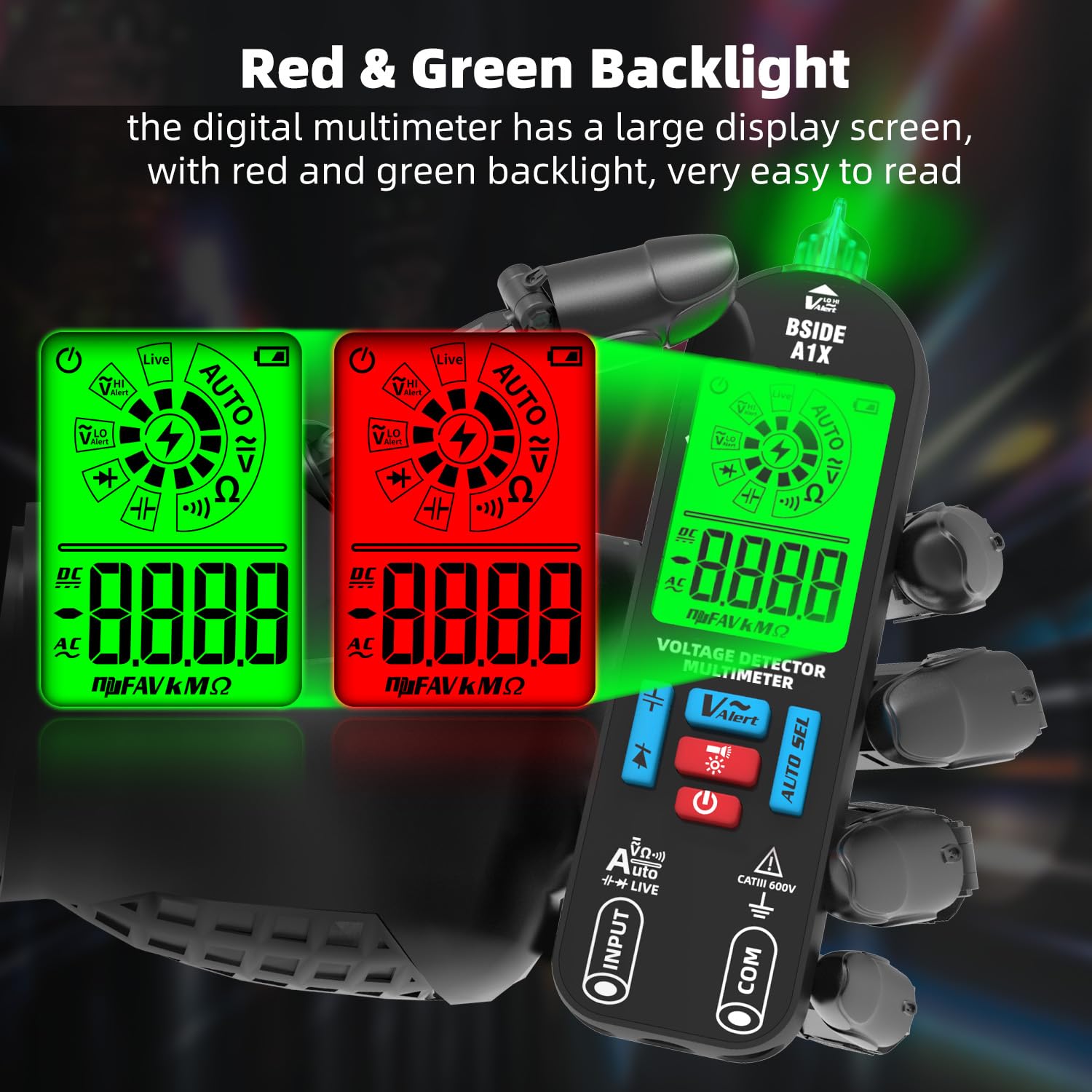

• [New ID Display]: Red & Green backlight LCD with new ID pointer which automatically indicates to the current test function, giving you a more intuitive visual experience. When the voltage tested is above 90 volts, this smart electrical tester will alert you with a red backlight.

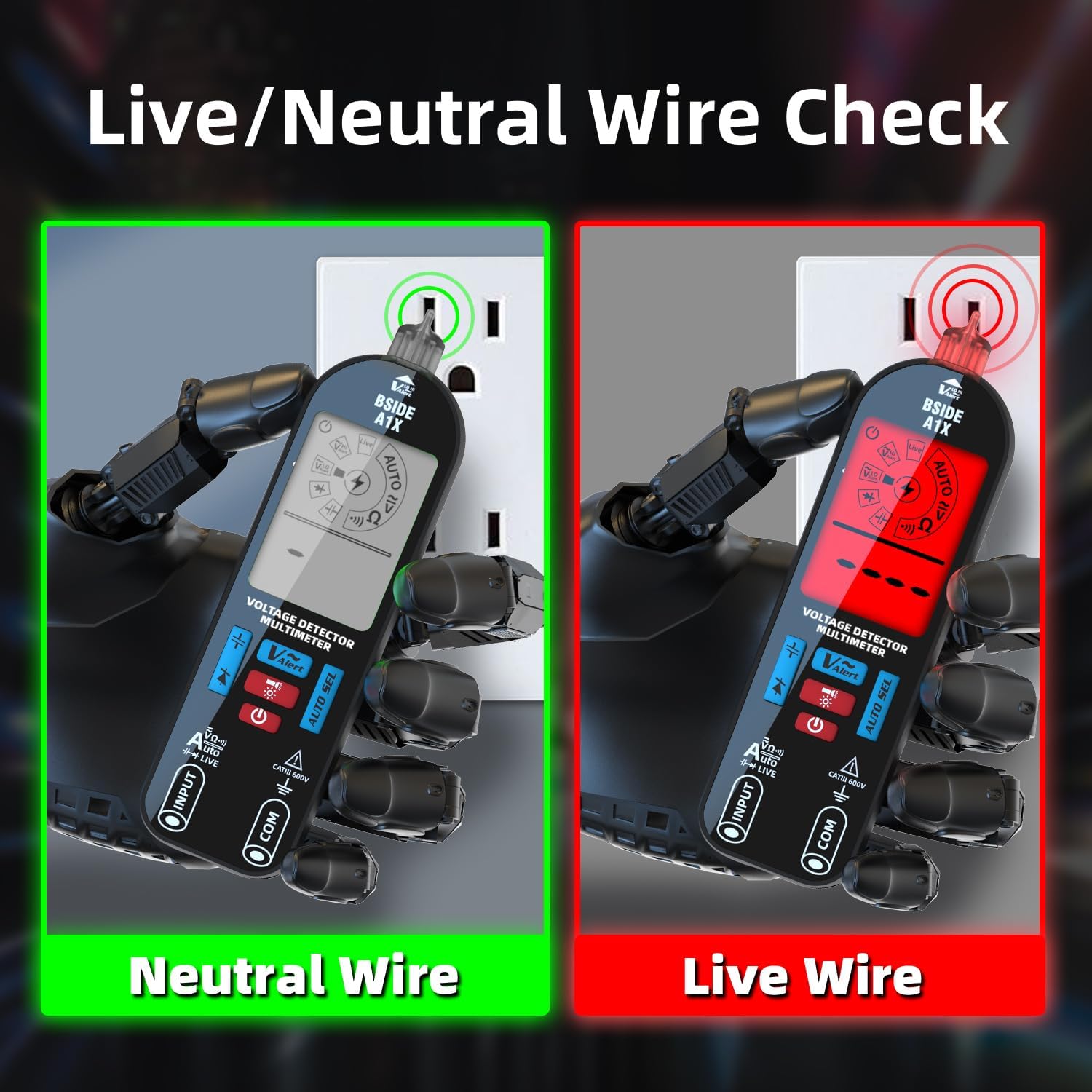

• [Voltage Detector Pen]: Can be a non contact voltage tester pen for detecting live wires(6V-1000V/90V-1000V) with precise discrimination between phase and neutral, and features high/low setting, buzzer alarm, and visual alert of flashing red/green backlight.

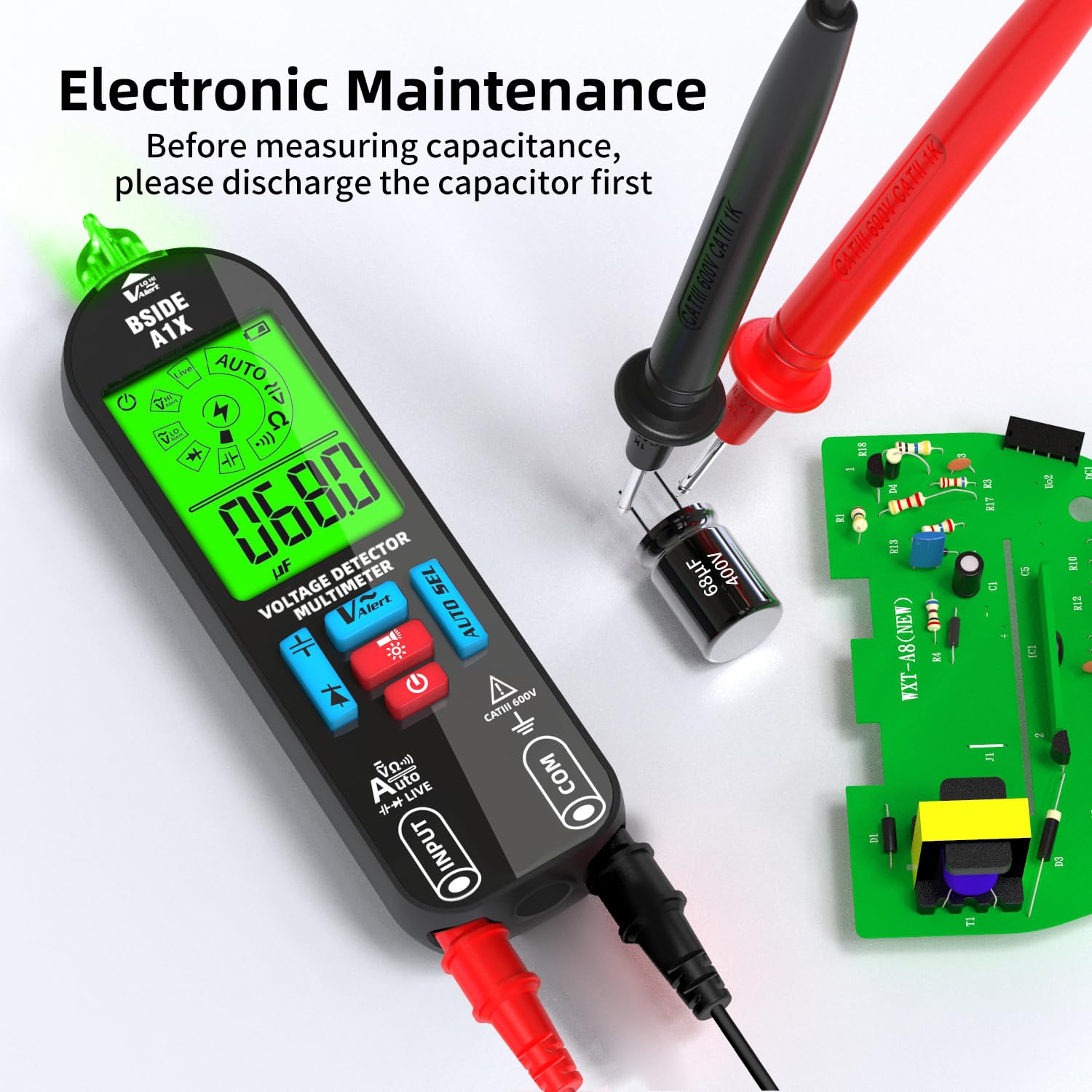

• [Plus Capacitance Diode Testing]: Upgraded version of BSIDE A1 mini multi tester. capacitance and diode functions have now been added. Buttons are increased to five for faster function switching.
• [Rechargeable Multimeter Mini]: Comes with a rechargeable battery, eliminating the trouble of frequent battery replacement. No more waste batteries for environmental protection. Small size, measures everything you need at home.

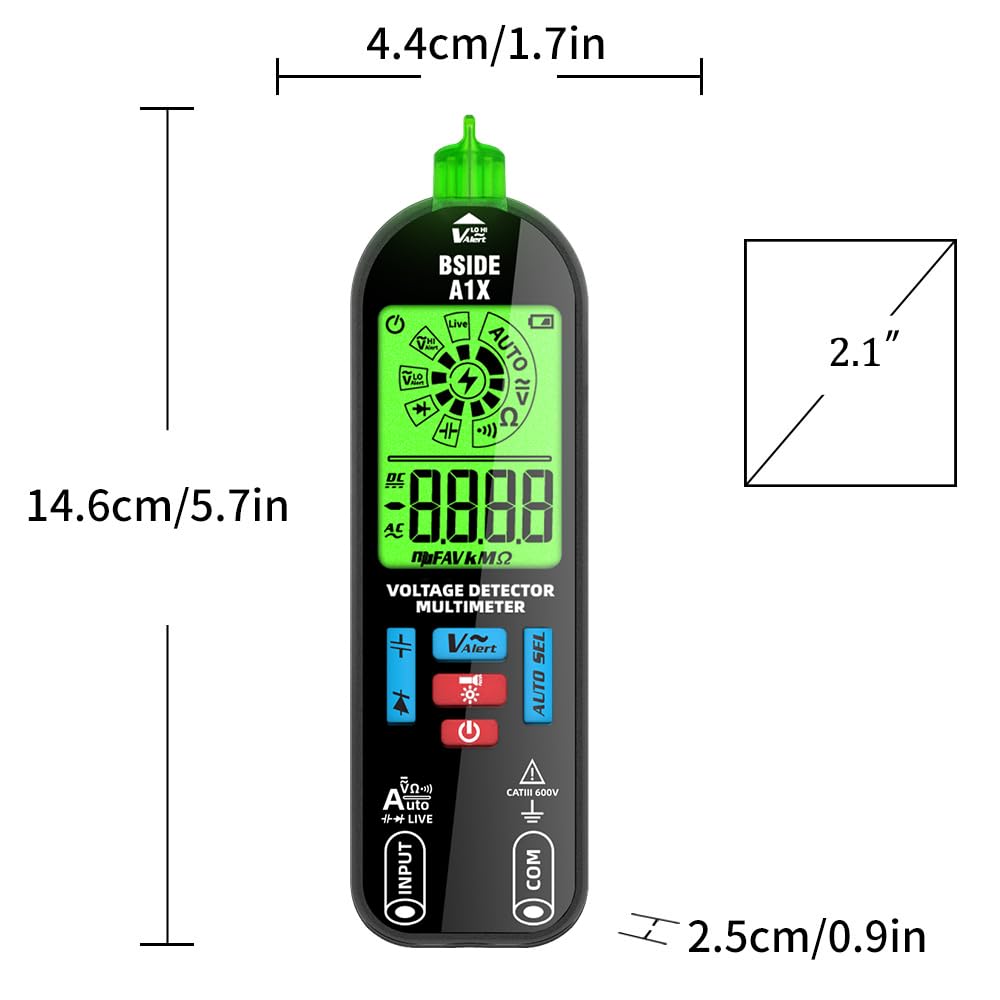

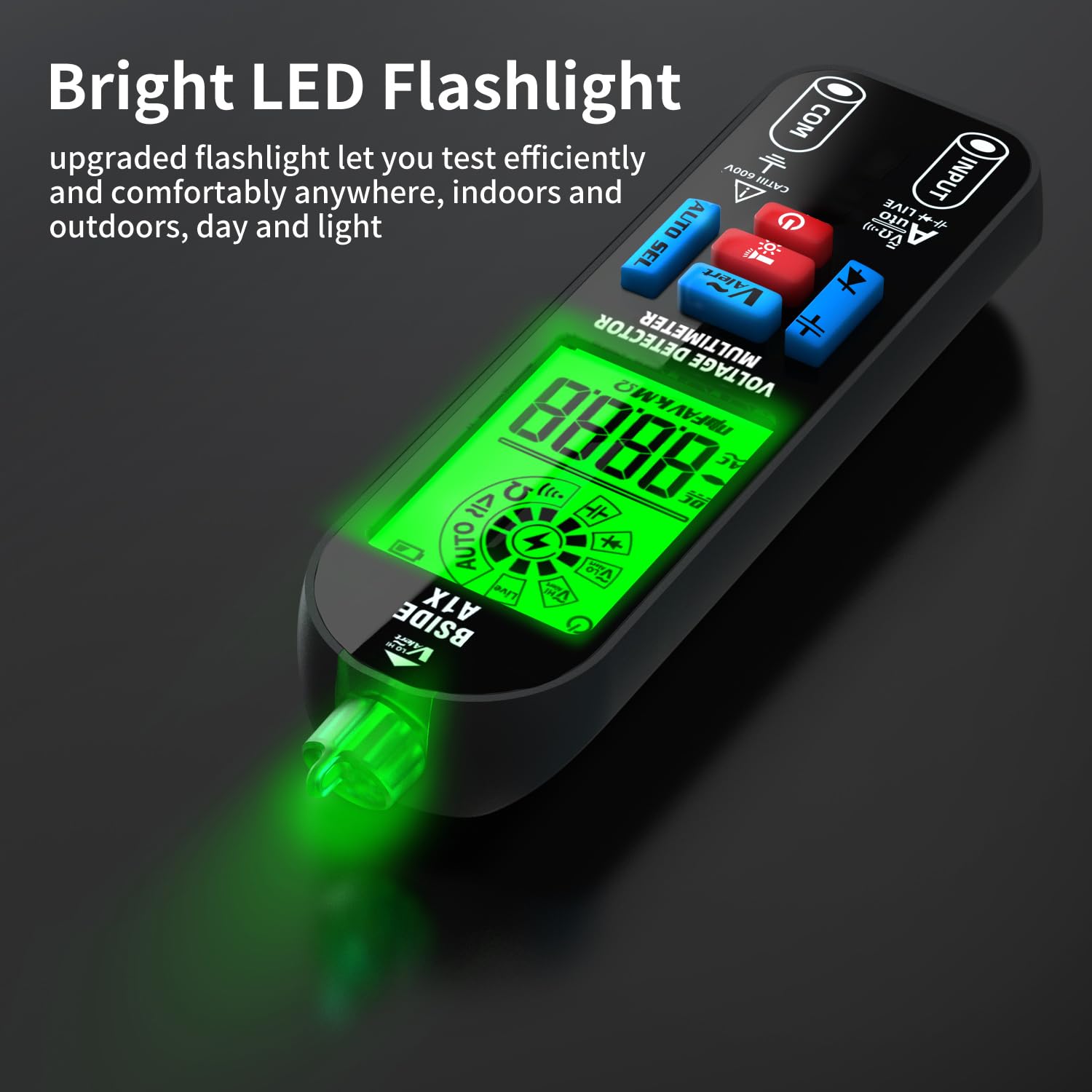

Easier, Faster and More Functions: Pocket mini tester with automatic/manual mode. Smart test of AC/DC voltage, resistance, and continuity. Capacitance, diode measurement. NCV detection with adjustable sensitivity and buzzer. Low sensitivity for accurate identification of complex lines High sensitivity for easy detection of electrical wires in wall Live/null wire check, break points finder Red and green backlight LCD with: - New designed ID pointer. -Large digits for better reading. - Auto switch-off. - Low battery indication. Flashlight for rewiring in dark. Built-in rechargeable battery powered. Anti burned and anti overcharge protection. Specifications: Display: 2000 counts Screen: Backlight LCD DC Voltage: 0-520V, 0.001V, ±(0.8%+3) AC Voltage: 0-520V, 0.001V, ±(0.8%+3) Resistance: 0Ω-19.99MΩ, 1Ω, ±(1.2%+3) Diode: Measure diodes less than 3V Capacitance: 1nF-1999nF 0.01nF, ±(3.5%+8), 2μF-1999μF, 0.01μF, ±(4.5%+10) Continuity: If the resistance less than 50Ω, the beeper sounds V-Alert (NCV): 90V-1000V/6V-1000V AC Voltage Live Wire Check: Yes Power: 3.7V 400mA rechargeable Size: 146x44x25mm Weight: 73g Package Includes: Multimeter Voltage Tester Test Leads Charging Cable English User Manual
