BSIDE O1 Handheld Oscilloscope Multimeter TRMS with 4 Results Colour LCD Automotive Oscilloscope Scope 10Mhz Data Strorage/Transfer Capacitance Voltage Continuity Current Tester Voltage Detector

• [Multifuction Tester]: Latest BSIDE digital multimeter true rms, defaults to multimeter mode when powered on. It measures AC DC voltage/current, millivolt, milliamp, resistance, diode, continuity, capacitance, and also can be a non contact voltage detector. One button will lead you to oscilloscope mode.
• [Waveform Generator]: With a single “AUTO”, the oscilloscope meter automatically recognises the waveform type and adjusts its amplitude and time base to enable accurate graphical display. The bandwidth is 10Mhz and the trigger mode is adjustable(Auto, Manual and Normal). It can automatically capture waveforms in real time for continuous signals, single signals, or within a specific setup range, distinguishing between AC or DC coupling.

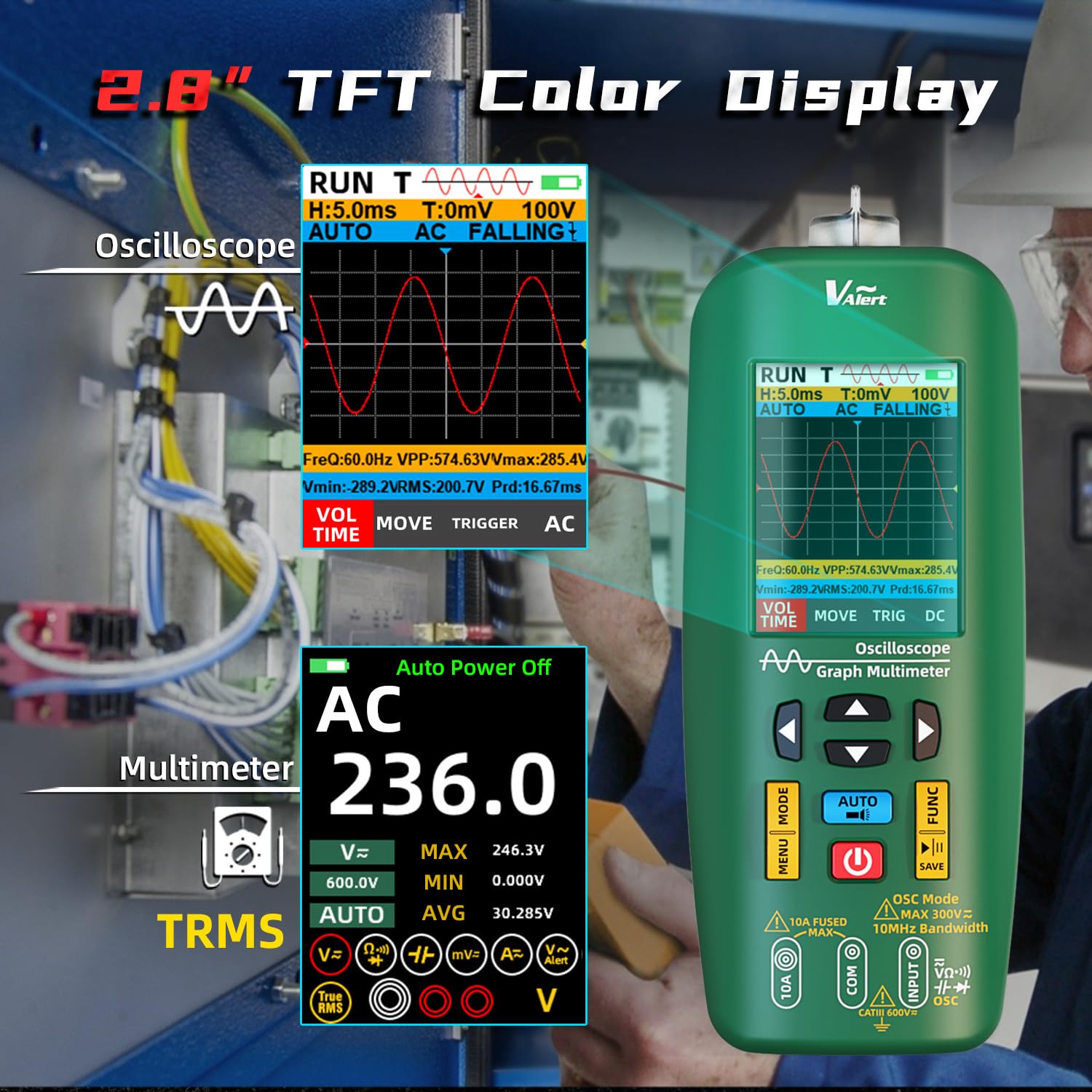

• [TRMS AC Measurements]: The digital multimeter features a colour LCD, with easy to read MAX/MIN/AVG value, real-time values. When measuring AC voltage or AC current, the multimeter can display the true RMS value. For example, you can easily find out the RMS value and peak value of sinusoidal current to accurately analyse and design your circuits.

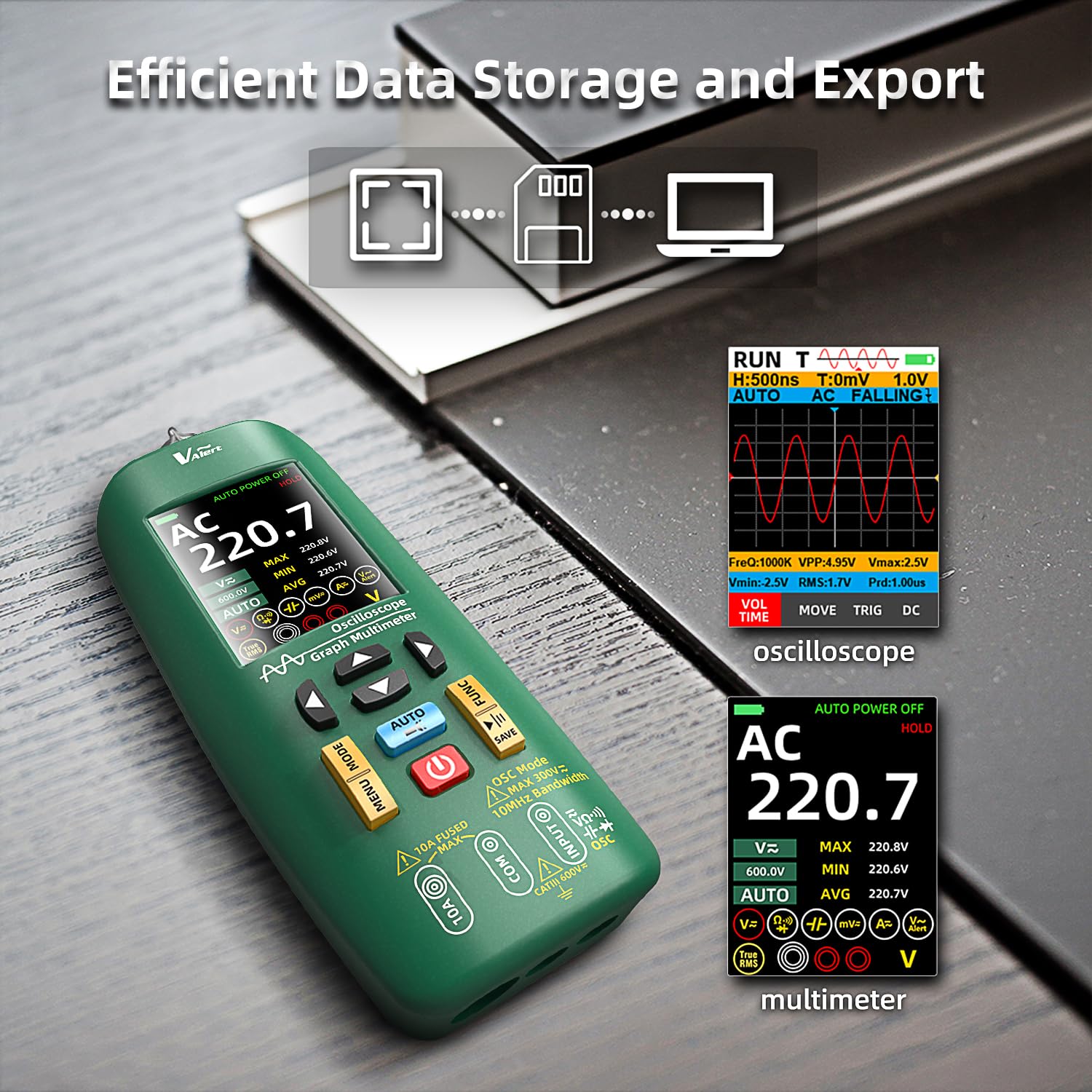

• [Data Transfer to PC]: This portable oscilloscope multimeter can take screenshots at any time. Pictures are automatically saved and can be transferred to a PC for analysis and viewing, such as frequency, VPP, max/min and average values, RMS and periods etc.

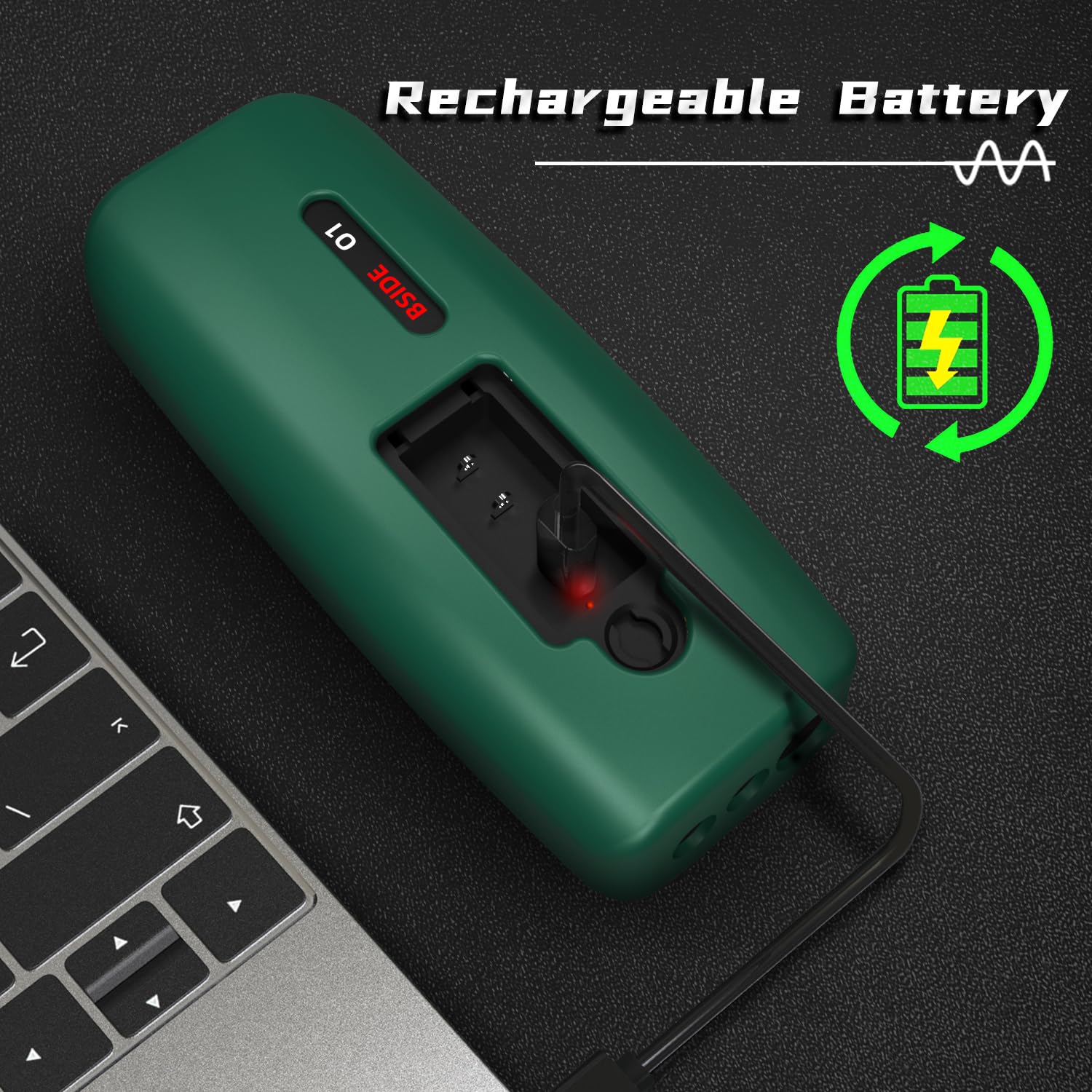

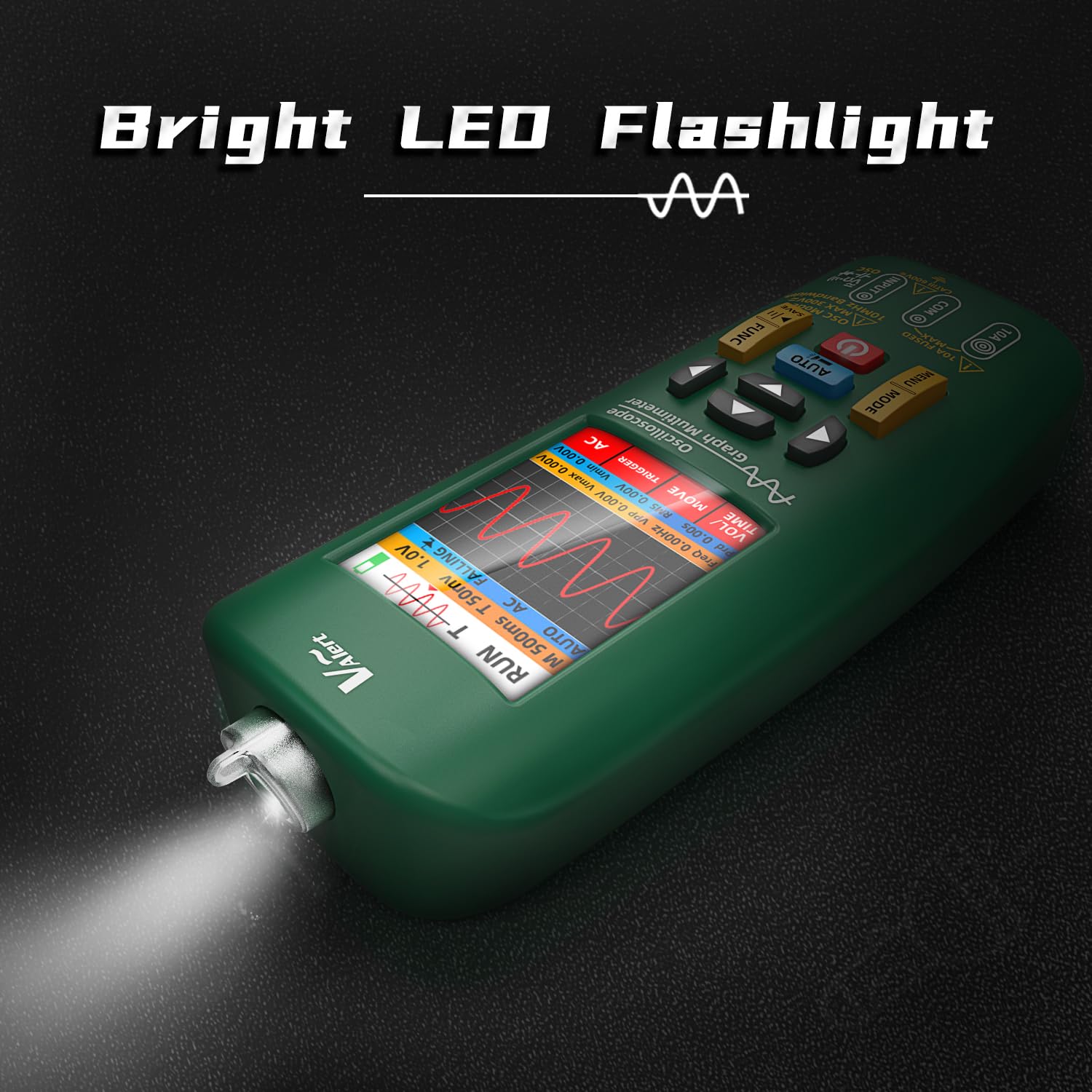

• [Rechargeable and More]: With a built-in 2000 mAh rechargeable battery and a brilliant flashlight, long hours of work and wiring in dark are no longer a problem. All multimeter and oscilloscope tasks can be done with the all-in-one test leads. In addition, the built-in fuse can be replaced. It’s an ideal tool for electronic engineers, technicians and DIYers.

Professional, graphical and visual: High precision multimeter with oscilloscope function Free switching between multimeter and oscilloscope 48MSa/s real-time smaple rate, one button auto calibration Take screenshots, save and export at any time Fast, stable display and responsiveness All-in-one and sharp test leads Voltage detecotr with flashlight Comes with high quality case The firmware version can be subsequently upgraded. Just contact us Applications: 1, General electrical equipment overhaul (air conditioning, power supply, AC/DC switch, lift, etc.) 2, Hardware/software debugging (RS232, RS485, I2C, CAN communication circuits, scanning drive circuits, brushless motor circuits etc.) 3, Overhaul of audio equipment, remote control models, automotive electric circuits 4, Observation of slow signal changes, such as relays and switch contacts jitter, battery charging and discharging curve 5, Power supply related (power factor compensation, street light drive circuits, etc.) 6, School and laboratory teaching, experiments Specifications: Display: 6000 counts Screen: 2.8 inch TFT Colour Bandwith: 10MHz Real-time smaple rate: 48MSa/s Horizontal time base scale: 100ns/div-20s/div Vertical voltage scale: 20mV/div-100V/div DC voltage: 0-600V 0.01mV ±(1%+5) AC voltage: 0-600V 0.01mV ±(1.2%+5) True RMS DC current: 0-10A 0.001A ±(1.2%+3) AC current: 0-10A 0.001A ±(1.2%+3) True RMS Max input voltage(osc mode): 300V (DC+AC peak) Resistance: 0Ω-60MΩ 0.1Ω ±(1.2%+5) Capacitance: 0-99.99mF 0.01nF ±(5.0%+10) Diode: Less than 3V Output: Square wave, 3V/1Khz Fuse: 250V/10A, 5x20mm Package list: Multimeter Oscilloscope Test Leads Carrying Case Charging Cable User Manual
